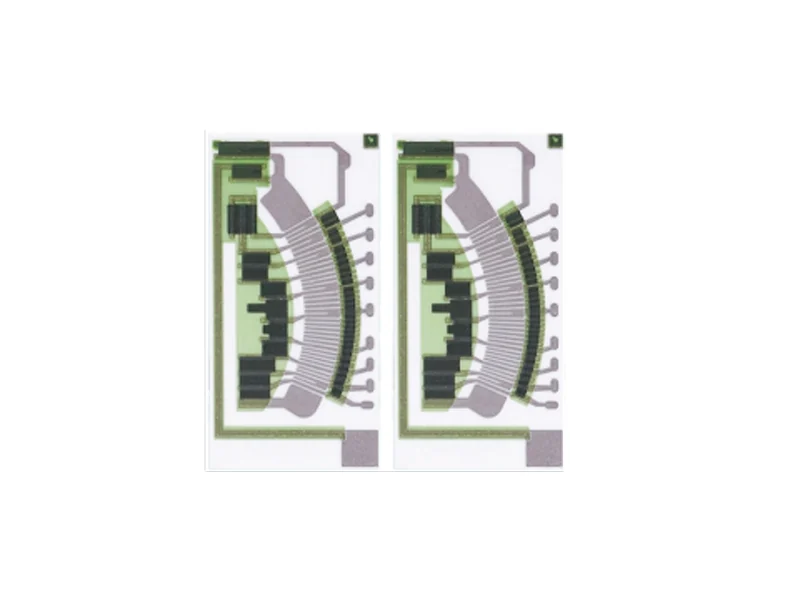

Automotive fuel gauge ceramic circuit for stable level sensing
Chipsimple manufactures automotive fuel gauge ceramic circuits for fuel level sensing systems that need repeatable resistance output, durable contact behavior, and stable performance in demanding vehicle environments. Ceramic thick film technology is well suited for fuel sender assemblies because it supports compact patterns, custom resistance curves, and reliable batch consistency.
Fuel gauge projects usually require more than a simple board supplier. The resistance curve, contact area, wiper movement, fuel environment, tolerance range, and assembly structure all affect final signal behavior. Chipsimple can review customer samples, drawings, target resistance values, curve requirements, and expected lifecycle conditions before prototype or production quotation.
Custom options
- Resistance curve and thick film resistor track design.
- Custom substrate size, mounting hole, edge profile, and contact area.
- Material and process review for motorcycle, automotive, and equipment fuel systems.
- Electrical inspection and batch consistency control for OEM supply.
Typical buyer requirements
Automotive buyers often need stable output, low variation between batches, resistance to operating temperature changes, and compatibility with the mechanical fuel sender structure. For new projects, the best RFQ package includes a drawing, existing sample photo, resistance table, angle or travel range, target quantity, and testing requirements.
Why use ceramic thick film technology
Ceramic substrates provide dimensional stability and electrical insulation, while thick film resistor patterns allow custom signal output. This combination helps engineers build compact and reliable fuel level sensing products for motorcycles, small vehicles, industrial machinery, and automotive replacement or OEM programs.
