Product Category

Ceramic Thick Film Circuits

Review representative products, materials, applications, and RFQ information for custom manufacturing projects.

Ceramic thick film circuit manufacturing

Chipsimple manufactures custom ceramic thick film circuits, thick film resistor PCB, alumina ceramic PCB, AlN ceramic substrate, ceramic hybrid circuit, thick film metallization substrate, thick film heater substrate, and gold plated ceramic circuit products for high-reliability electronics.

Engineering review covers substrate material, conductor paste, resistor paste, resistance tolerance, trim method, dielectric layer, solderable or bondable finish, operating temperature, thermal cycling, and assembly conditions.

Read thick film resistor PCB guide · Hybrid ceramic substrate assembly

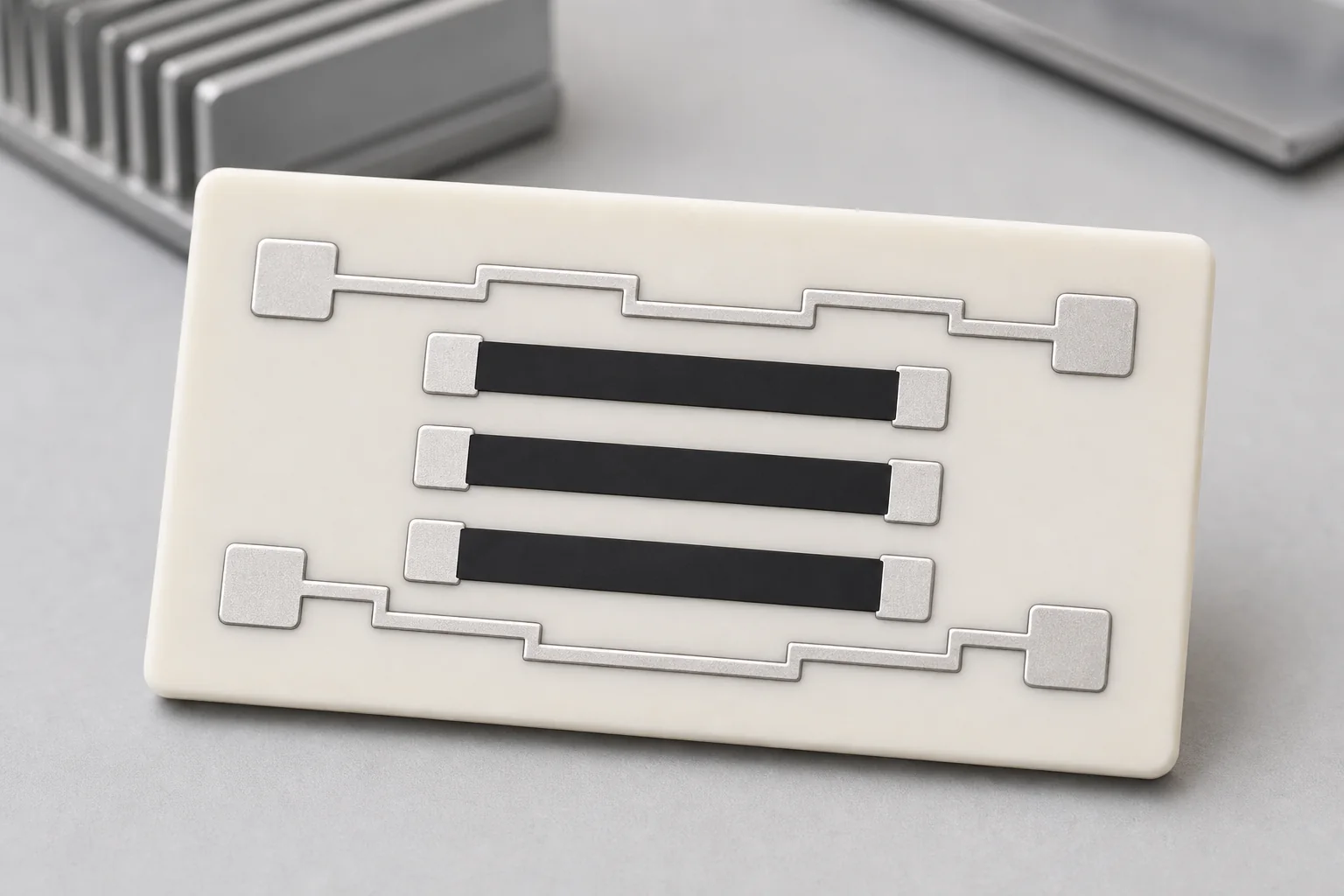

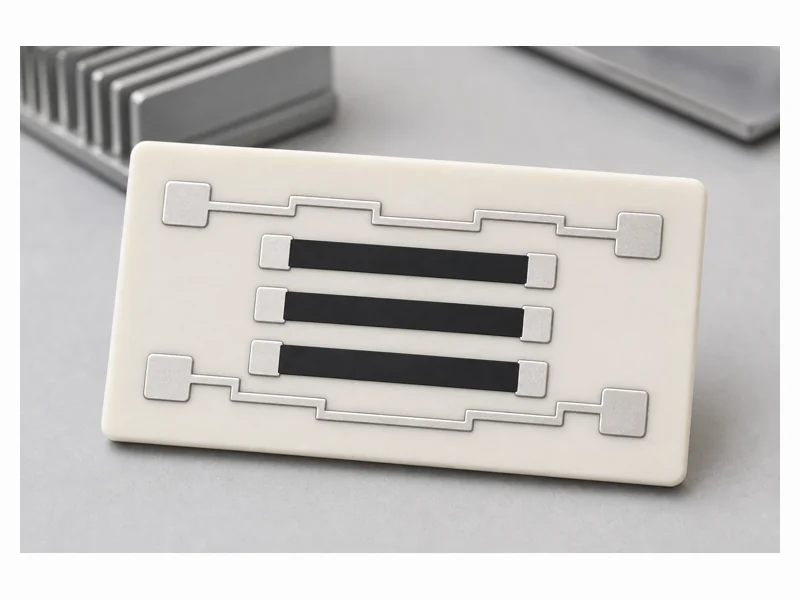

Alumina ceramic thick film PCB with printed conductor and resistor patterns

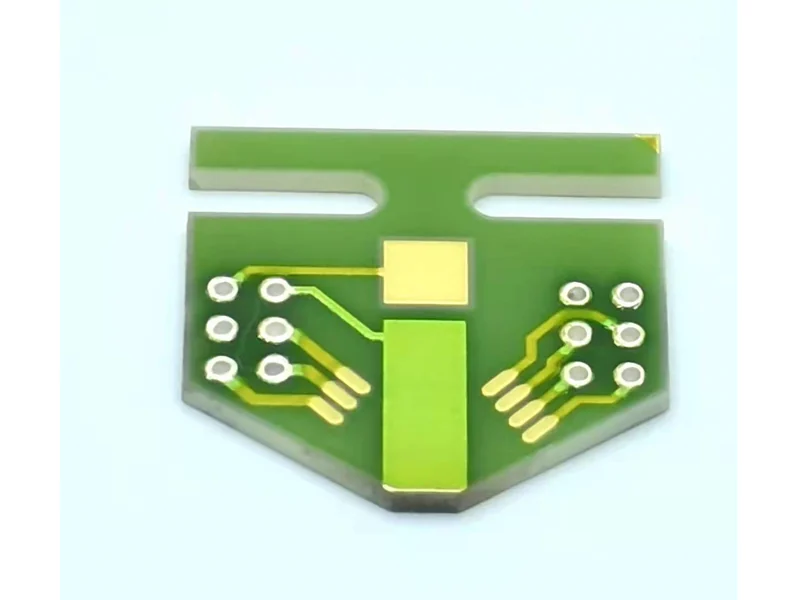

AlN ceramic thick film substrate used in a power electronics thermal module

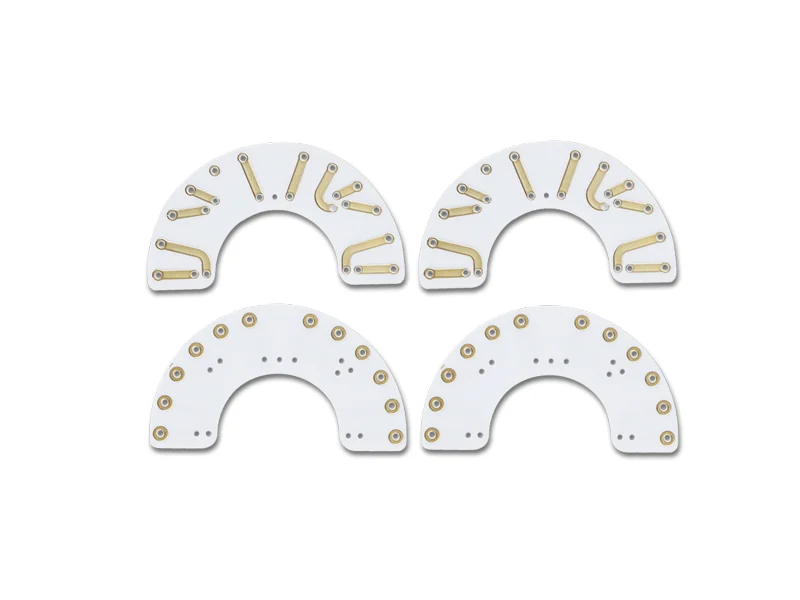

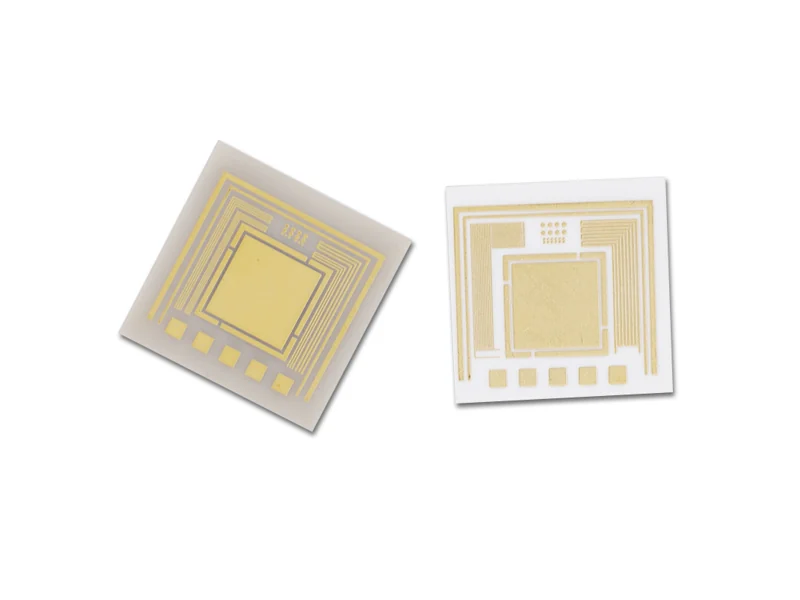

Gold metallized ceramic circuit in RF communication module testing
