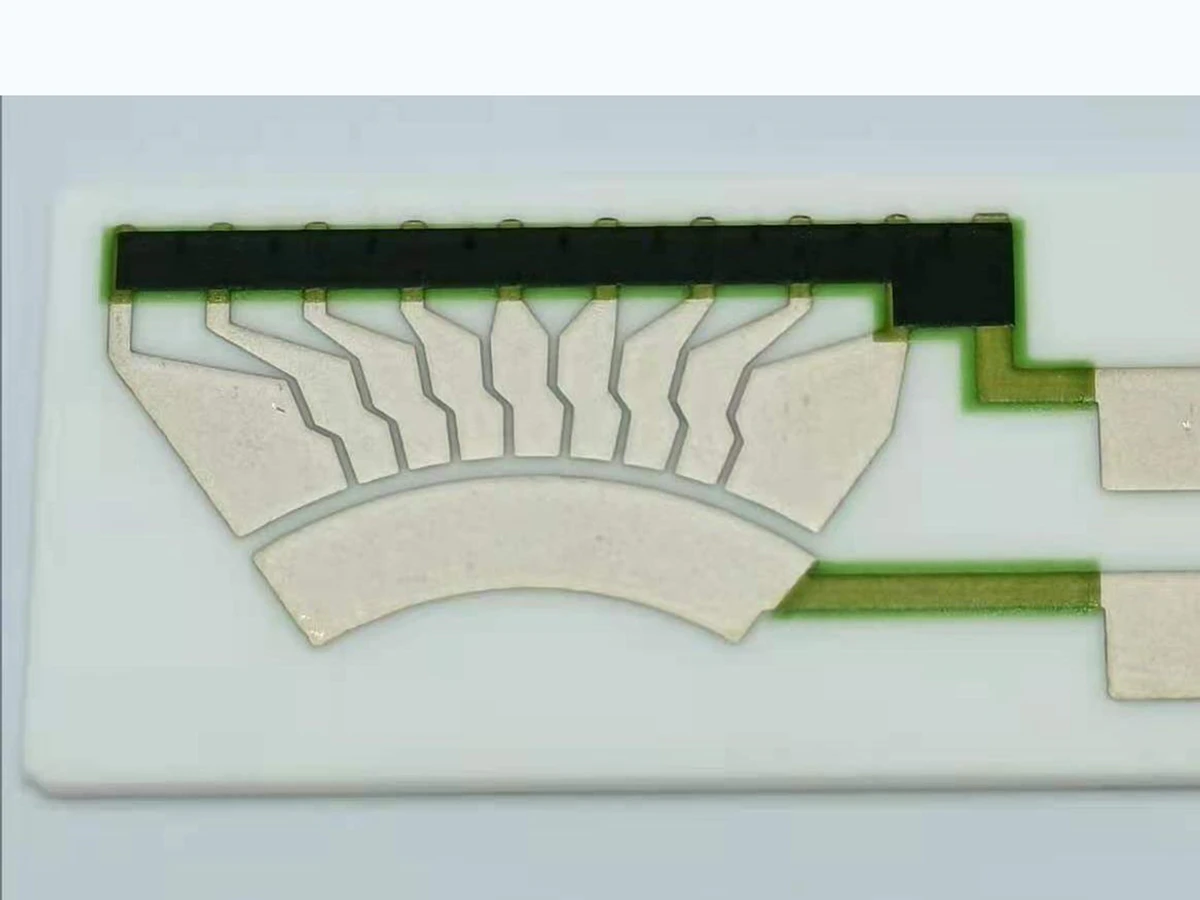

Level-to-output mapping
Translate float or linkage position into active travel, empty/full references, curve breakpoints, reserve points, resistance or voltage targets, and allowable output error.
Float-sender resistive level element
Fuel Level Sensor Resistor Card
A fuel level sensor resistor card is engineered around the sender mechanism and its required output rather than selected from resistance alone. Chipsimple reviews float travel, curve data, track geometry, contact mechanics, terminals, material route, fuel-side isolation, electronics, and validation before release.
- Float or linkage travel mapped to curve data
- Segmented and nonlinear response review
- Wiper path, terminals, and support integration
- Sender-level environmental and lifecycle planning
- By curve table
- Resistance response
- By schematic
- Track architecture
- By drawing
- Float travel and active geometry
- By project review
- Fuel-side integration
Product Categories
From design choice to a quoted part
A custom resistive card for a specified sender mechanism. The card provides the contact pattern and resistance function; tank-volume conversion and final gauge behavior belong to the assembled sender system.
Prepare the drawing review
Send card and sender drawings, target curve points, datum and direction, wiper details, electrical excitation, media, validation conditions and quantities.
Send Drawings- Travel and target curve
- Reference every resistance point to the same angle or travel datum. State empty/full direction, stops and permitted wiper sweep.
- Contact and fluid
- Define wiper material and force, fuel or media exposure, terminals and contact-noise limits. Wear qualification needs the actual contact pair.
- Error allocation
- Keep card error, mechanism hysteresis, harness resistance and gauge conversion separate in the validation plan.
Engineering reading for this purchase
- Tank geometry and sender arm travel in an actual fuel-gauge chain
Integrate tank geometry, float-arm motion, resistor-card travel and gauge conversion without assigning complete fuel-level performance to one component.
- Fuel-Level Sender Output: Mapping the Installed Tank Mechanism
Select a fuel-level resistor-card transfer from the installed tank, float linkage and receiver circuit rather than from a generic empty-to-full resistance range.
- Float-arm angle mapped to wiper position
Engineer float-arm angle to wiper-position mapping with a bounded model, worked calculation, uncertainty allocation, diagnostic validation and drawing-specific RFQ inputs.
- Oil sump geometry, float behavior and resistive sender readout
Define the installed oil-level chain from sump condition and float equilibrium through resistor-card output and instrument interpretation.
- Selecting terminal style by force and readout requirements
Engineering method for sensor terminal interface selection: compare lower insertion force terminal with more rigid low-resistance terminal using bounded calculations, controlled evidence, failure signatures and drawing-specific release inputs.
- Fuel-Sender Wiper Force: Separate Contact Load from Fixture Offset
Measure fuel-level sender wiper force using a defined contact position, fixture tare and lever geometry without subtracting the real spring preload.
On this pageJump to section
Verified capability review
Quick Specifications
Fuel Level Sensor Resistor Card is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Level-to-output map | Level, float or linkage position, and resistance or voltage points follow the approved system table | Linear, nonlinear, or segmented response is reviewed with tank or reservoir geometry and readout electronics | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Active travel | Travel angle or distance, direction, endpoints, dead zones, and stops are drawing-controlled | Mechanical tolerance and contact trajectory are correlated with each measurement point | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Fluid and contact boundary | Fluid exposure, isolation, wiper material, force, loading, terminal route, and sealing are selected by application | Fuel, oil, water-based media, additives, contamination, and temperature require separate compatibility plans | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Level-sensor validation | Output correlation, repeatability, contact stability, cycling, environment, and calibration are project-defined | Failure criteria cover drift, intermittent contact, wear, leakage or isolation, and endpoint error | Released mechanism drawing, electrical table, approved sample, and validation plan |
View 13 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina / FR-4 / PI approved routes | Select alumina, FR-4, or PI from stiffness, contact support, media, temperature, mounting, and cure/firing needs | Approved material specification, drawing, and incoming criteria |
| Sensor Geometry | Rotary / Linear / Arc | Travel angle or distance, active arc, datum, dead zones, endpoints, and contact path by mechanism drawing | Released drawing, DFM approval, and first-article inspection |
| Resistor System | RuO₂ / Carbon | RuO₂ or carbon selected for substrate, curve, contact load, environment, and electrical loading | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Au / Ag-C | Ag, Ag-Pd, Au, or Ag-C selected for terminal, wiper, media, corrosion, and process compatibility | Approved material stack, assembly interface, and sample |
| Track Count | 1–4 tracks typical | Within 1–4 tracks, redundancy, diagnostics, isolation, and terminal count follow the system schematic | Released drawing, DFM approval, and first-article inspection |
| Nominal Resistance | 100 Ω–1 MΩ typical | Within 100 Ω–1 MΩ, endpoints, intermediate points, ratios, and loading follow the approved curve table | Released electrical limits, measurement method, and approved sample |
| Resistance Curve | Linear / Nonlinear / Segmented | Linear, nonlinear, segmented, or customer point table with defined scan direction and reference condition | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±1–10% by material system | Within ±1–10%, limits are allocated by material system, measurement position, fixture, and electronics | Released electrical limits, measurement method, and approved sample |
| Linearity | ±0.5–2% FS typical | Within ±0.5–2% FS typical, define best-fit or terminal-based calculation, usable travel, and hysteresis | Released electrical limits, measurement method, and approved sample |
| TCR | ±100–200 ppm/°C ceramic reference | ±100–200 ppm/°C ceramic reference; final TCR range, tracking, and temperature points follow the selected paste system | Released electrical limits, measurement method, and approved sample |
| Contact System | Precious metal / Carbon | Precious-metal or carbon contact with defined geometry, force, speed, current, lubricant, and contact path | Approved material stack, assembly interface, and sample |
| Operating Temperature | -40 to +125°C, system-dependent | -40 to +125°C category envelope is checked with media, vibration, humidity, electrical load, and mating materials | Approved electrical-thermal design and instrumented prototype validation |
| Life-test conditions | Full-travel cycling is defined with speed, stroke, direction, contact force, electrical load, and starting condition | Cycle count, media, temperature, vibration, contact noise, curve drift, wear, and endpoint limits by mechanism risk | Approved mating contact, lifecycle profile, and validation report |
Engineering Capabilities
The resistor card, float mechanism, wiper, wiring, and readout electronics form one level-sensing chain. Engineering review therefore connects the mechanical conversion to printed artwork and measurable sender-level acceptance limits.

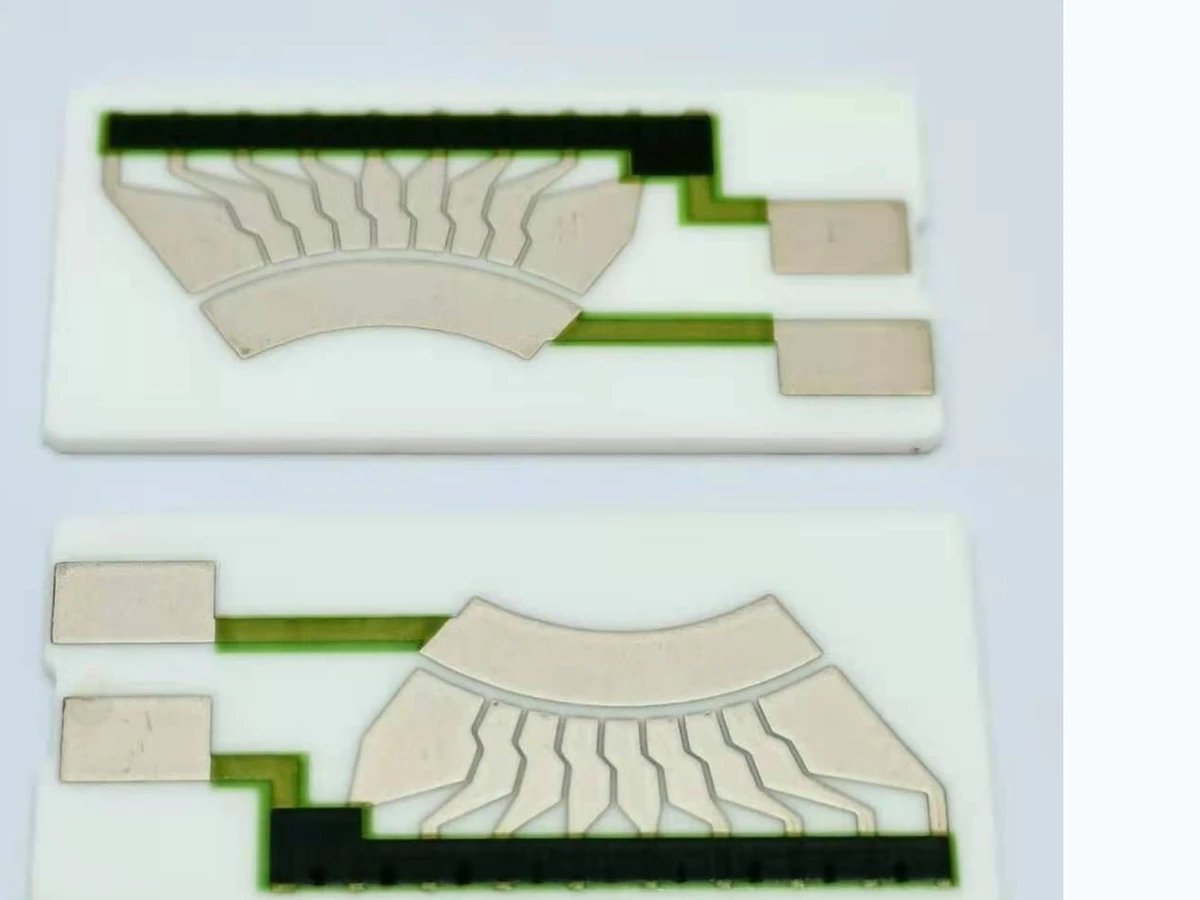

Segment and conductor layout
Release the resistor segments, collector paths, overlaps, inactive margins, terminal pads, and mechanical reference features as controlled drawing data.

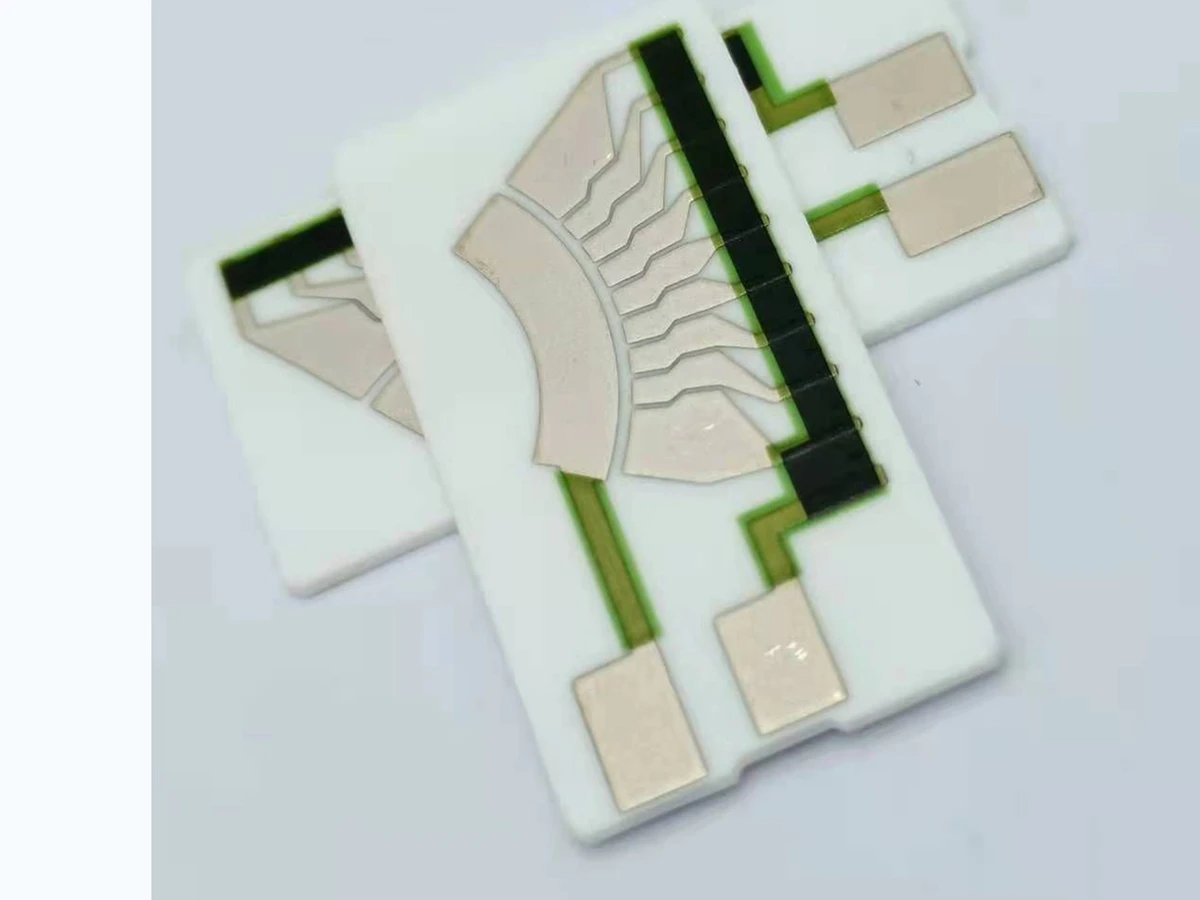

Wiper and sender integration
Review contact material, force, path width, support, pivot tolerance, terminals, loading, sealing boundary, media isolation, and assembly stack together.
Curve and lifecycle validation
Define output versus travel, repeatability, contact stability, temperature, vibration, contamination, cycling, calibration, and end-of-line checks for the complete sender.
Typical Applications
Representative level-sensing directions require application-specific float mechanics, media isolation, electrical response, contact design, environment, and lifecycle validation.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationVehicle fuel-level senders
Vehicle senders need tank-specific volume mapping, float mechanics, terminals, sealing, electrical loading, vibration, temperature, calibration, and qualification.
Review application inputs
Application illustrationMotorcycle fuel senders
Compact motorcycle tanks require project-specific float clearance, arm travel, curve, contact force, fuel isolation, vibration, mounting, and gauge calibration.
Review application inputs
Application illustrationMarine and equipment level sensing
Related equipment may be evaluated after media, sealing, corrosion boundary, float or linkage design, output curve, electronics, and service environment are defined.
Review application inputsVerified Product Views

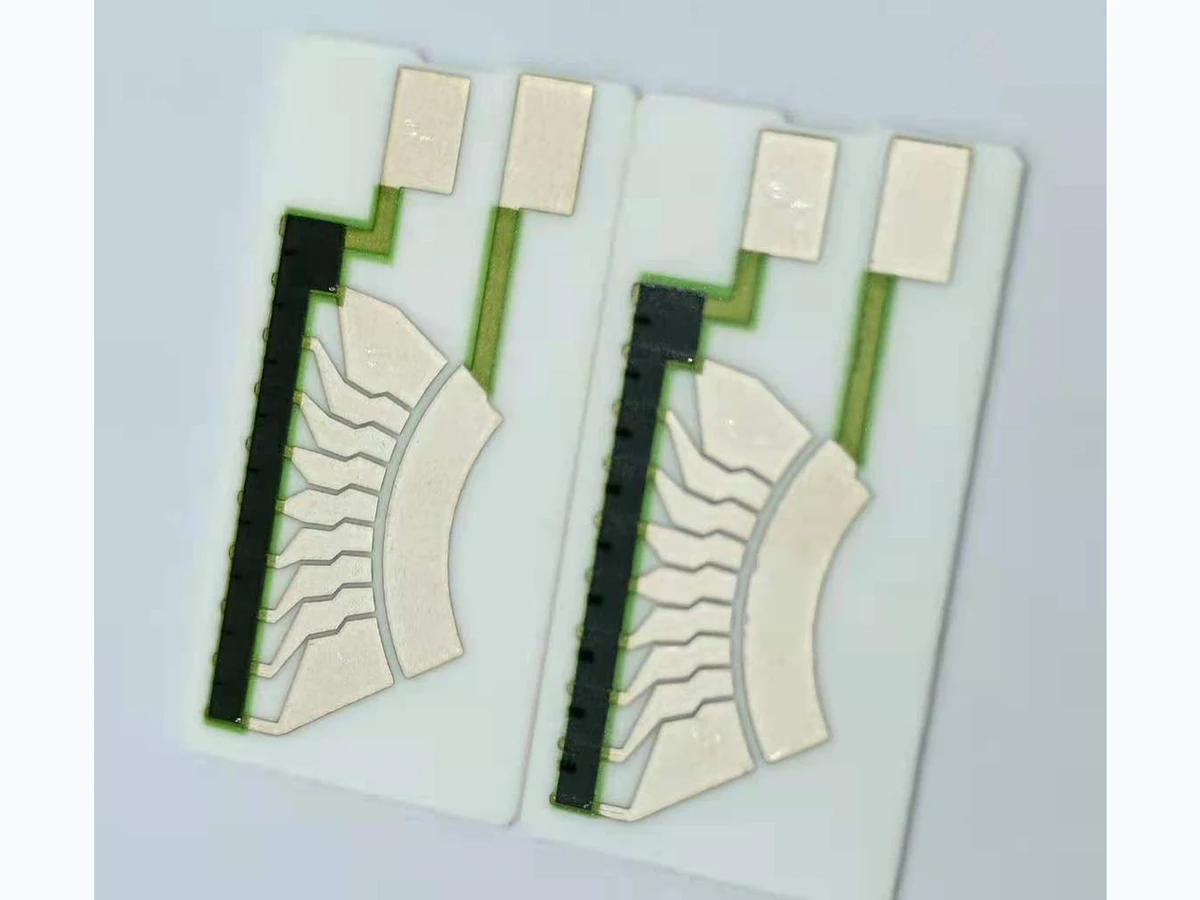

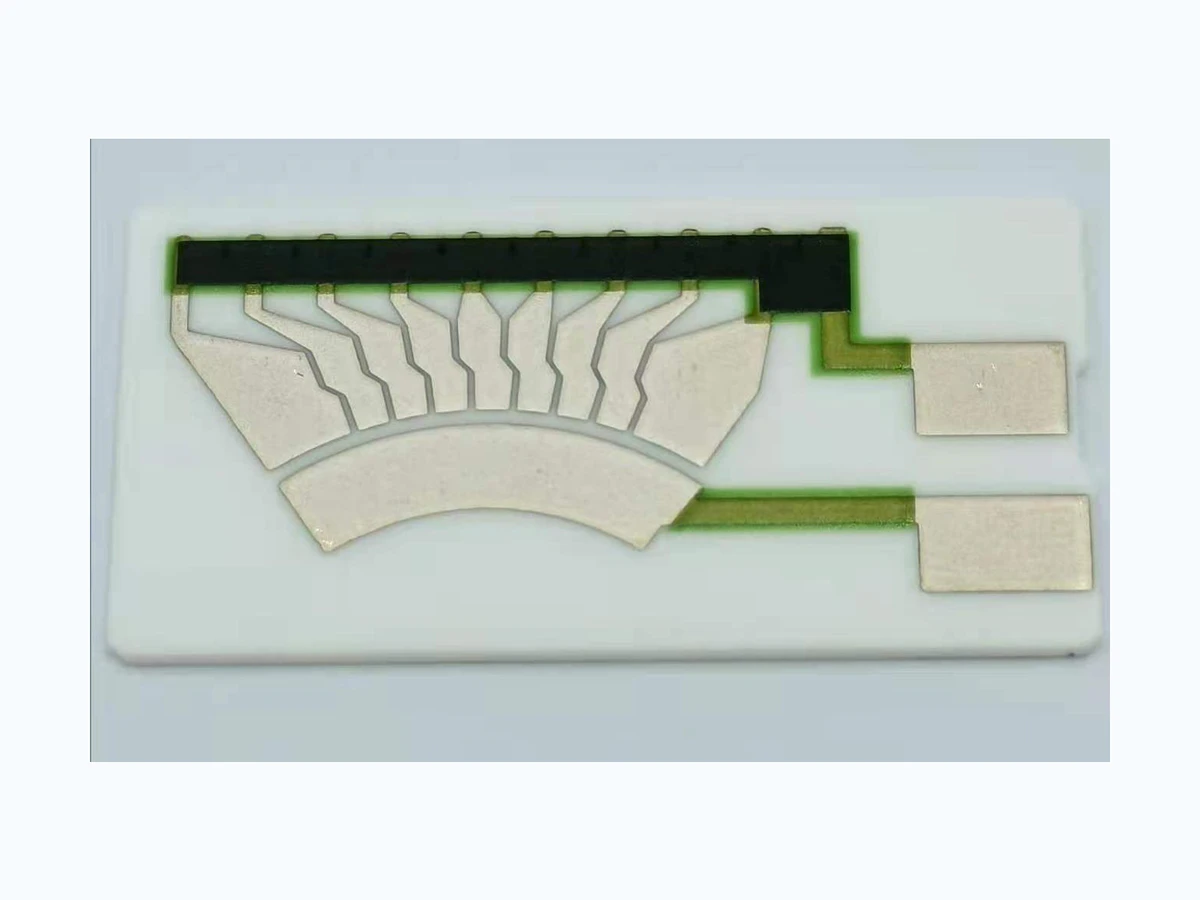

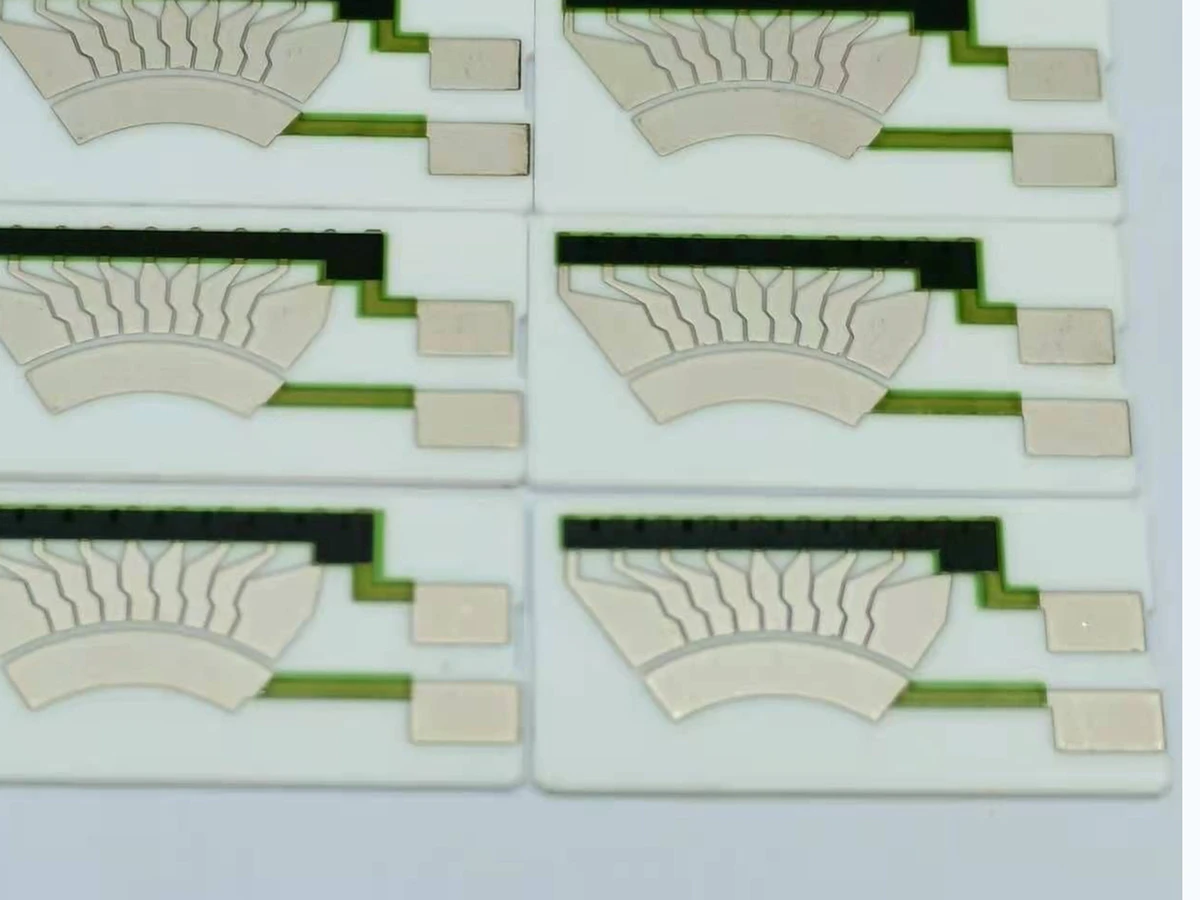

The verified photographs show complete white cards with visible segmented arc patterns, conductor paths, black printed zones, and terminal pads. They verify surface appearance only, not the intended fuel, material, curve, or qualification status.
- Visible format
- Complete rectangular cards appear in single, paired, stacked, and six-piece arrangements.
- Track pattern
- Segmented arc regions, dark printed bars, conductor routes, and terminal pads are visible.
View 2 additional evidence boundaries
- Surface condition
- The photographs support visual review of the exposed face only; no hidden assembly is shown.
- Evidence boundary
- Material, resistance, output curve, fuel compatibility, temperature, contact wear, vibration, and lifecycle remain unverified by photographs.
Manufacturing & Quality
Chipsimple supports drawing-led printed sensor elements with controlled printing, resistance adjustment where applicable, dimensional and electrical inspection, and protected handling.
Read the shared manufacturing-control scope
The exact route depends on substrate, resistor system, contact design, and validation plan; these photographs show general company capability, not evidence of the displayed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom Fuel Level Sensor Resistor Card?
Define tank or vessel geometry, float and linkage mechanics, pivot and stops, active travel, required output versus level or volume, reserve and endpoint values, electronics, contact, terminals, media isolation, environment, lifecycle, and calibration method first.
Are the Quick Specifications guaranteed for every resistor card?
No. These are category-level selection values, not a released part specification. Substrate, resistor and conductor systems, geometry, resistance, tolerance, linearity, TCR, contact route, and operating temperature are narrowed against the drawing, mating mechanics, electronics, and validation plan.
How should Fuel Level Sensor Resistor Card performance be validated?
Correlate the complete sender output to production-intent float position and liquid level or volume. Add repeatability, contact stability, hysteresis, temperature, vibration, contamination, cycling, harness loading, calibration, and end-of-line checks defined by the project.
What should be included with the RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, active travel or angle, resistance and output-curve data, track count, mating contact, electrical loading, environment, validation method, quantity, and schedule. Provide the full level- or volume-to-output table and sender geometry; endpoint resistance alone is not enough to define a nonlinear tank response.
Request a Fuel Level Sensor Resistor Card Quote
Send the vessel and sender drawing, float-travel data, curve table, mating contact, electrical circuit, media boundary, environment, and validation plan for a coordinated resistor-card review.
RFQ inputs and review sequence
- Drawing-led DFM and curve-definition review
- Substrate, resistor, conductor, and contact-system selection
- Prototype and validation-route planning
- Confidential handling of customer drawings and data
- Controlled drawing, artwork, dimensions, tolerances, and active travel or angle
- Resistance range, output curve or table, linearity target, and track count
- Mating wiper or contact details, force window, connector, and assembly stack
- Substrate and printed-system preference, or permission for engineering selection
- Electrical loading, temperature, vibration, fluids, contamination, and lifecycle targets
- Prototype quantity, annual volume, inspection method, validation plan, and schedule
- 1We check the drawing, motion, electrical response, contact interface, environment, and missing acceptance inputs.
- 2You receive DFM questions and a proposed material, artwork, prototype, and validation route for review.
- 3Production follows the approved revision, inspection plan, traceability requirement, and packing instruction.
Submit RFQ and upload files
PDF, DWG, DXF, STEP, Gerber, ZIP, Excel, Word, or sample photos are accepted.
