Ceramic Filter Circuit Engineering
Custom Thick Film Filter Circuits
Thick film filter circuits integrate drawing-defined conductor patterns and functional thick-film elements on ceramic for compact signal-conditioning networks. Chipsimple reviews substrate, printed stack, artwork, terminals, topology, impedance, frequency response, electrical loading, assembly, environment, and acceptance testing together. Send the schematic, layout, response targets, quantity, and validation method for an engineering review.
- Custom filter artwork reviewed from customer files
- Printed material stack coordinated as one system
- Network interfaces and grounding defined before release
- Frequency acceptance tied to a controlled test method
- Alumina / AlN
- Category substrate routes
- ≥100 µm
- Category minimum line/space
- Up to 850°C
- Firing temperature
- By drawing
- Filter response release
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Thick Film Filter Circuits is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | 96% Alumina (Al₂O₃) standard route | 99% / 99.6% alumina or AlN through material and process review | Approved material specification, drawing, and incoming criteria |
| Board Thickness | 0.25–3.0 mm | Thickness inside 0.25–3.0 mm is checked against outline, flatness, holes, handling, and firing | Approved material specification, drawing, and incoming criteria |
| Conductor System | Silver (Ag) / Silver-Palladium (Ag-Pd) | Pt-Ag, Au, bonding, soldering, contact, and high-temperature routes by compatible stack review | Approved material stack, assembly interface, and sample |
| Resistor System | RuO₂ thick film | Paste family, sheet resistance, geometry, refire sequence, and trim allowance by circuit target | Released drawing and approved sample |
| Conductor Thickness | 10–25 µm | Value inside 10–25 µm is selected for print build, firing, current path, and assembly | Released drawing, DFM approval, and first-article inspection |
| Resistor Tolerance | ±1% standard | ±0.5% available after geometry, material, trimming, and measurement review | Released drawing and approved sample |
View 6 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Firing Temperature | Up to 850°C | The peak profile is paste- and stack-specific within the approved route; later refires are reviewed together | Approved material-process route and production traveler |
| Thermal Conductivity | ≥24 W/m·K, 96% alumina reference | Alternative alumina grade or AlN route by approved material certificate and system thermal review | Released drawing and approved sample |
| Minimum Line/Space | ≥100 µm | Geometry at the ≥100 µm controlled capability is checked for paste, screen, registration, overlap, edge clearance, and yield | Released drawing, DFM approval, and first-article inspection |
| Board Size | Up to 120 × 120 mm | Larger than 120 × 120 mm by panel, flatness, handling, firing, and inspection review | Released drawing, DFM approval, and first-article inspection |
| Surface Finish | HASL / ENIG / ENEPIG | Finish selected for soldering, bonding, contact, storage, and downstream thermal exposure | Approved material stack, assembly interface, and sample |
| Dielectric Strength | ≥15 kV/mm | Product withstand voltage is derived from dielectric material, fired thickness, clearances, interfaces, and test method | Released insulation stack and agreed IR/withstand test plan |
Engineering Capabilities
A manufacturable filter circuit connects the ceramic and printed materials to the released network response. Engineering review aligns artwork, registration, printed functions, grounding, terminals, assembly, electrical loading, frequency targets, and the test fixture before prototype or repeat-production approval.
Artwork and registration control
Define routing, functional areas, overlaps, clearances, openings, datums, keep-outs, and any multi-print registration requirement in controlled artwork with one revision and measurable acceptance limits.
Filter network and assembly interface
Review topology, impedance, terminals, grounding, component or printed-element interfaces, attachment method, housing, cleaning, thermal path, and downstream assembly conditions as one functional network.
Electrical and frequency validation
Release continuity, isolation, resistance, capacitance when applicable, passband or stopband targets, insertion loss, return loss, test fixture, calibration, sampling, and failure limits before results become product claims.
Typical Applications
Thick film filter circuits may support compact signal-conditioning assemblies when each electrical target, interface, environment, and validation condition is defined for the actual system.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationRF and communication modules
Custom filter circuits can be evaluated for RF signal paths after frequency range, impedance, topology, loss targets, grounding, enclosure, interfaces, and calibrated test conditions are defined.
Review application inputs
Application illustrationSensor signal conditioning
Ceramic filter networks may support sensor interfaces when signal level, bandwidth, noise, loading, temperature, packaging, calibration, and system-level validation requirements are supplied.
Review application inputs
Application illustrationIndustrial control filtering
Industrial control assemblies can be reviewed for compact filtering after supply conditions, interference spectrum, isolation, grounding, connectors, environment, reliability tests, and acceptance limits are specified.
Review application inputsVerified Product Views

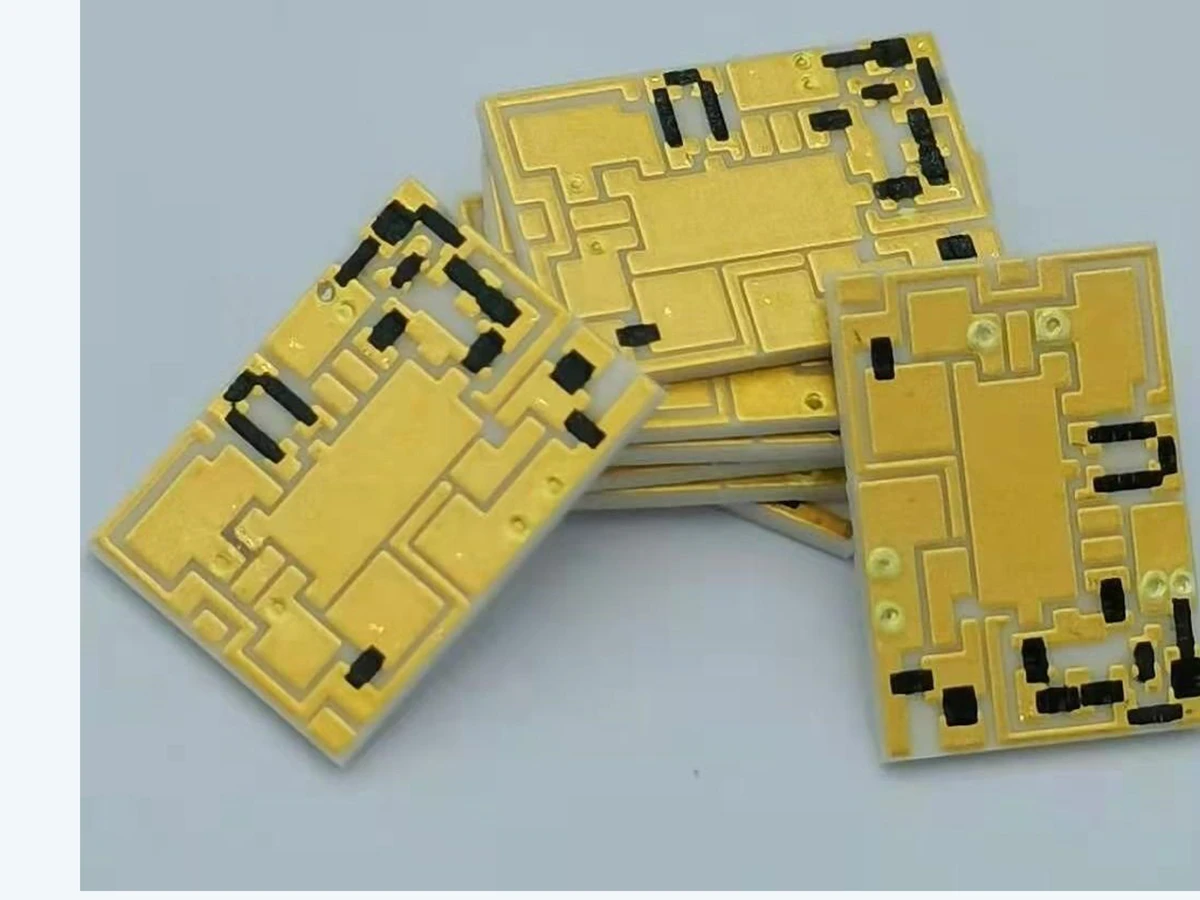

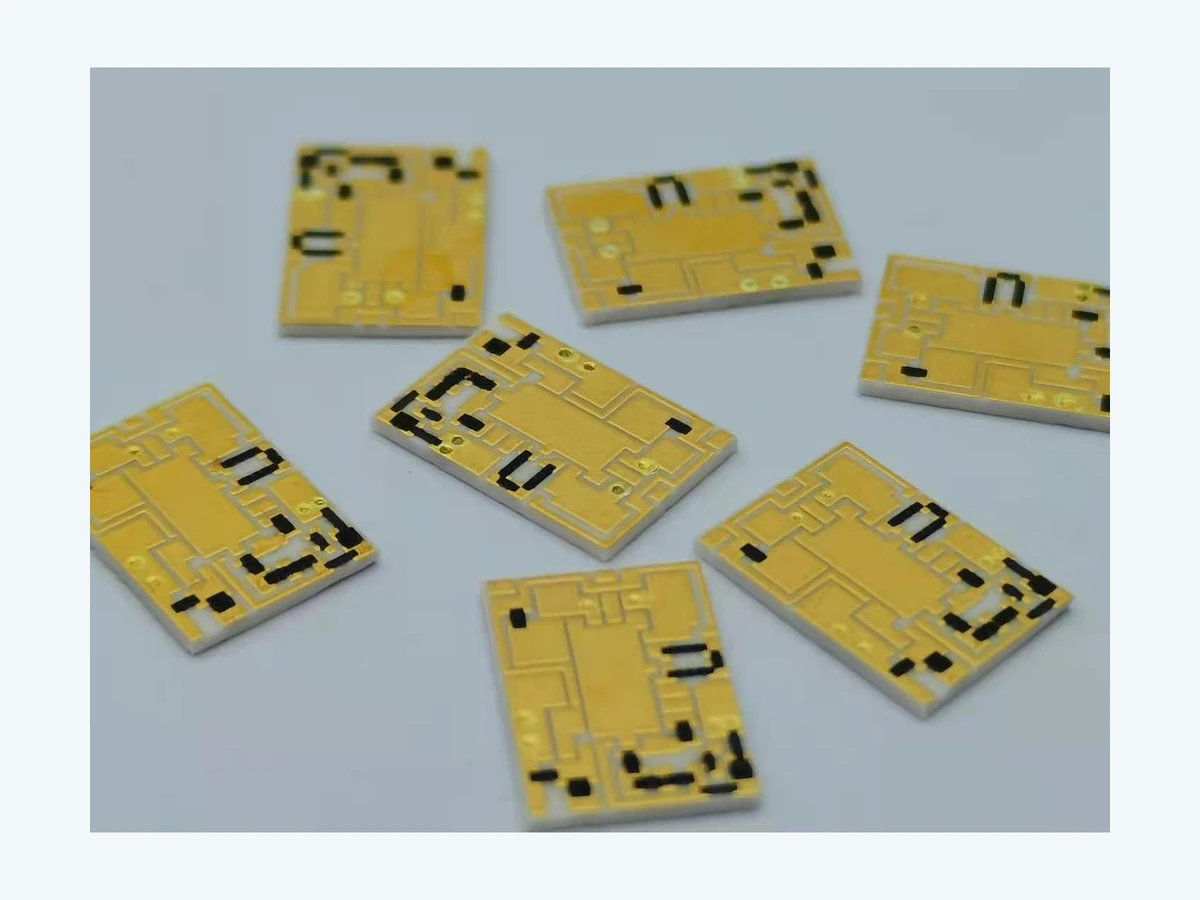

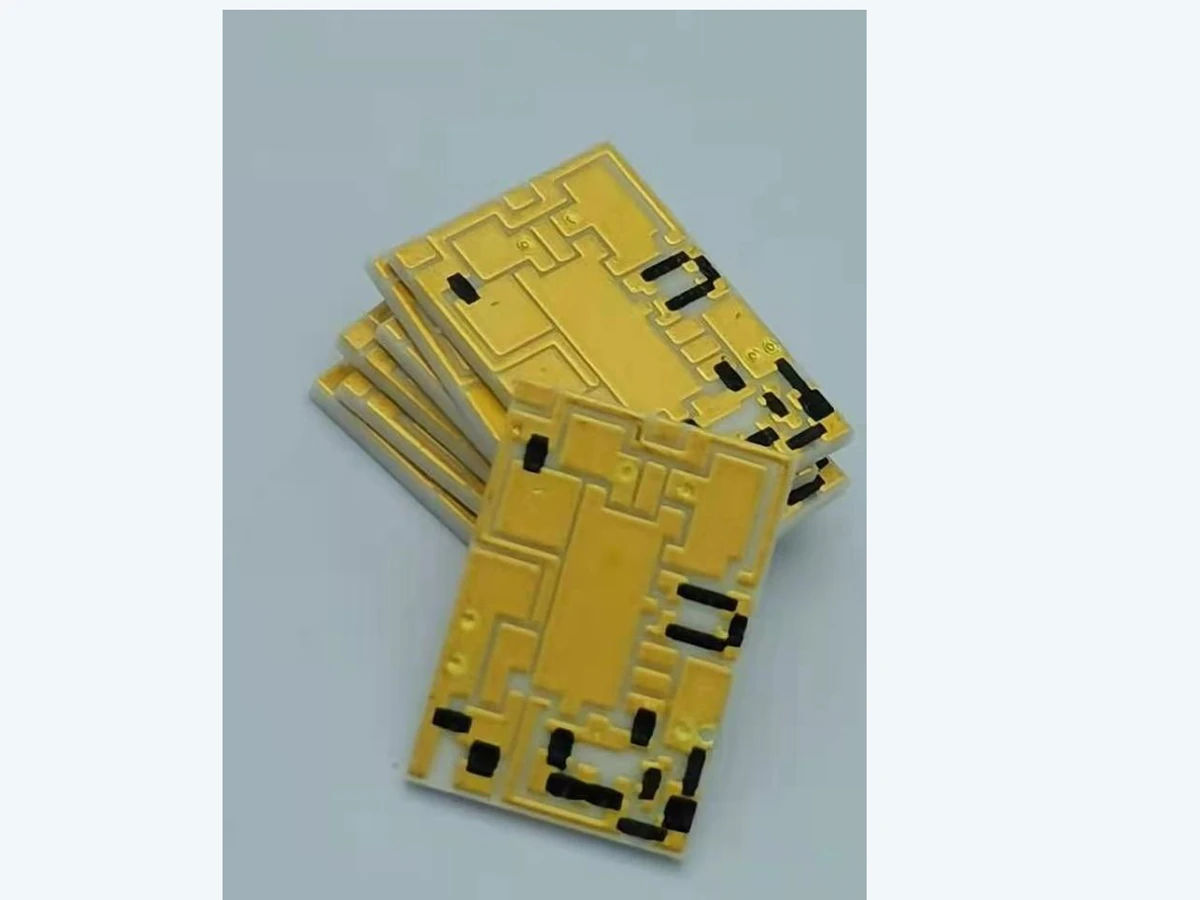

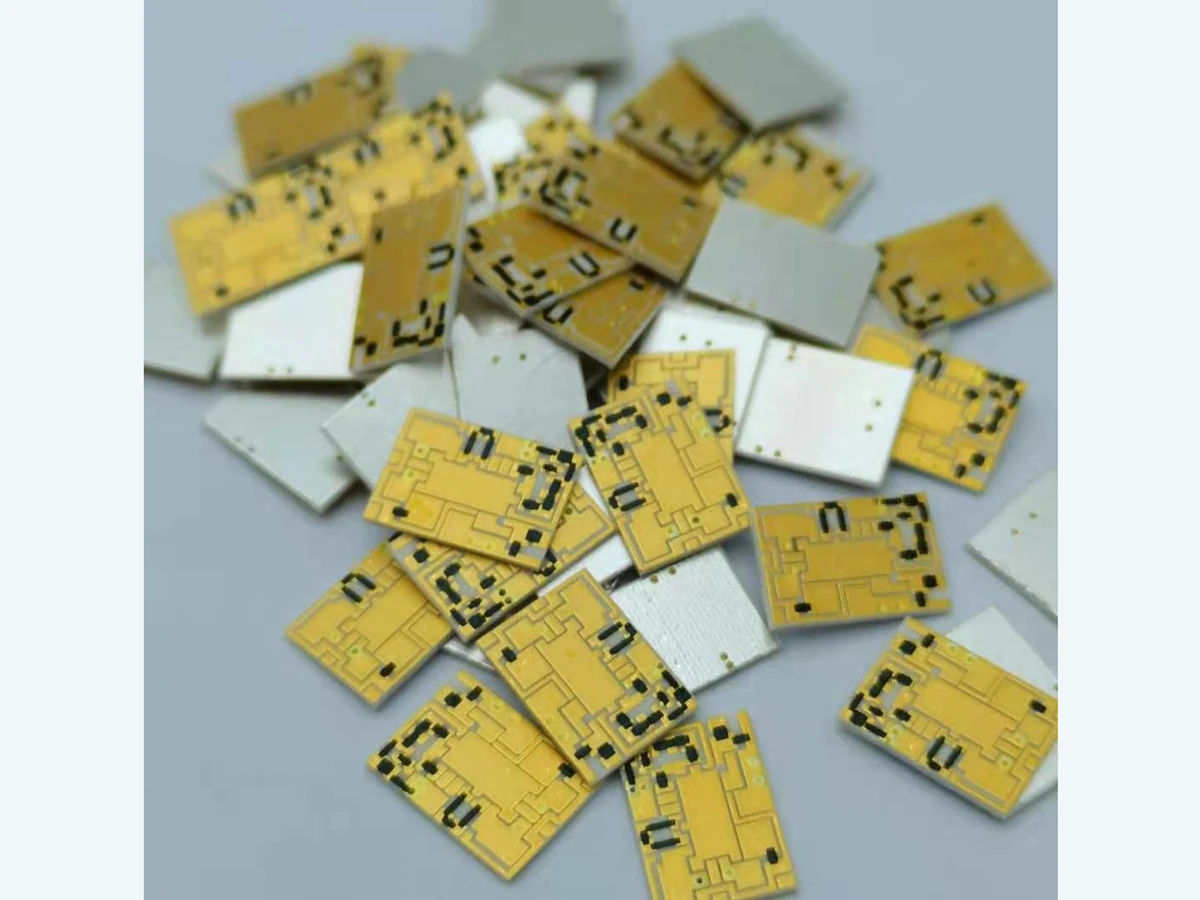

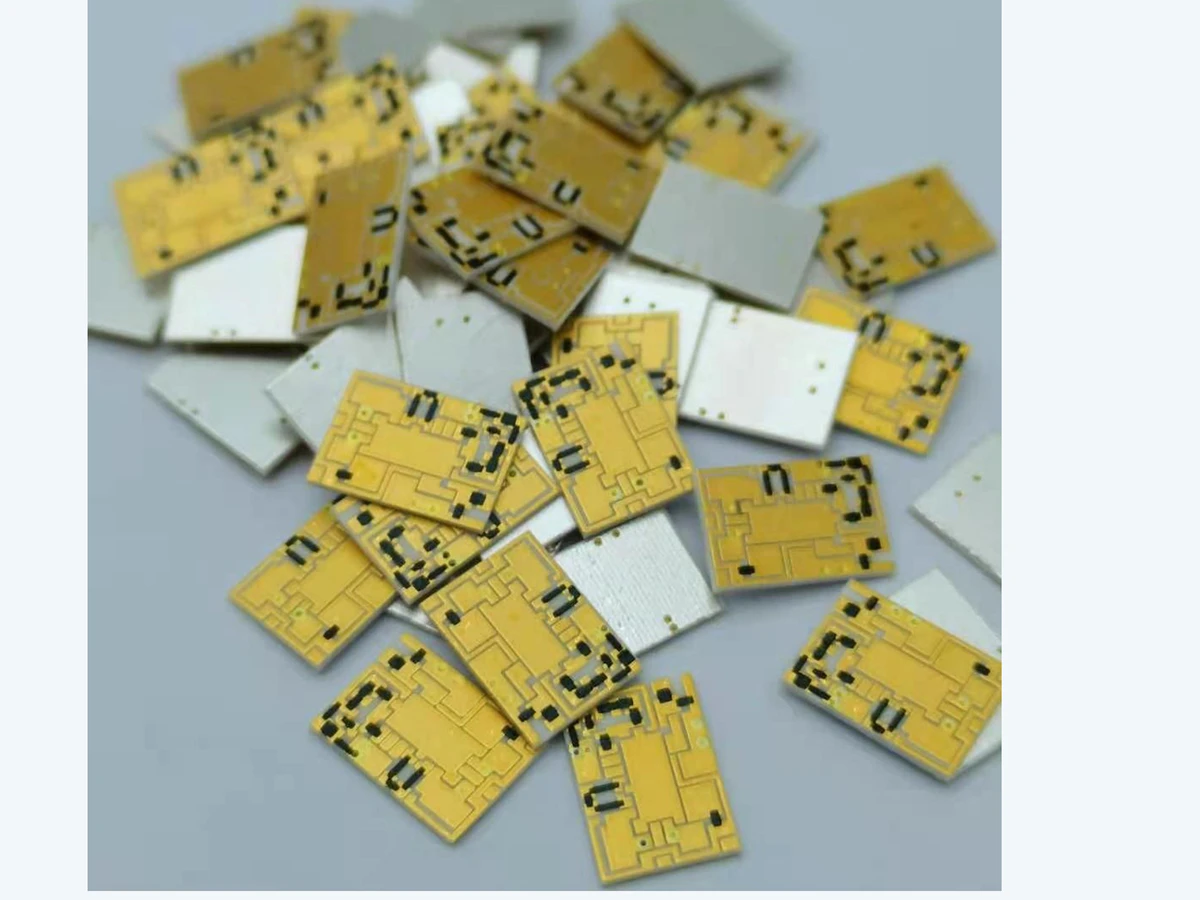

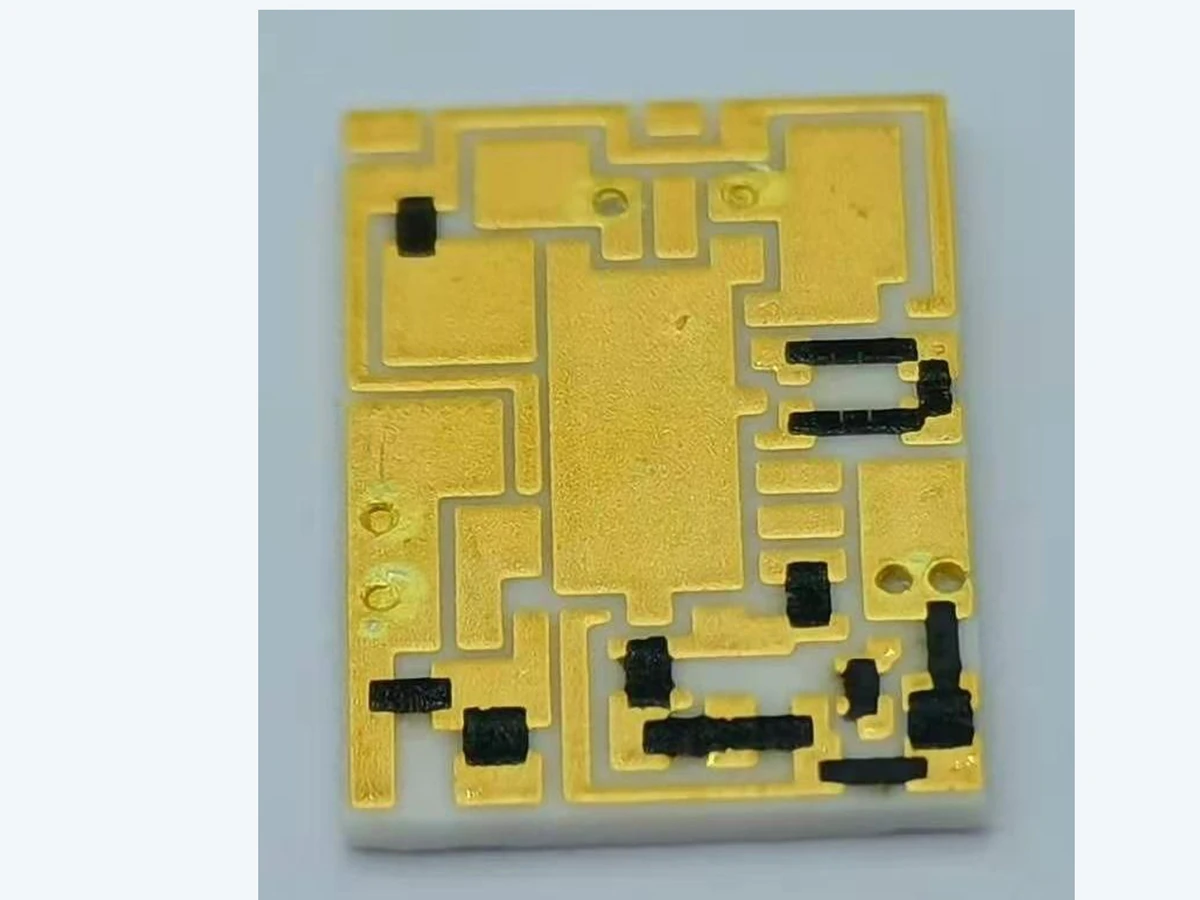

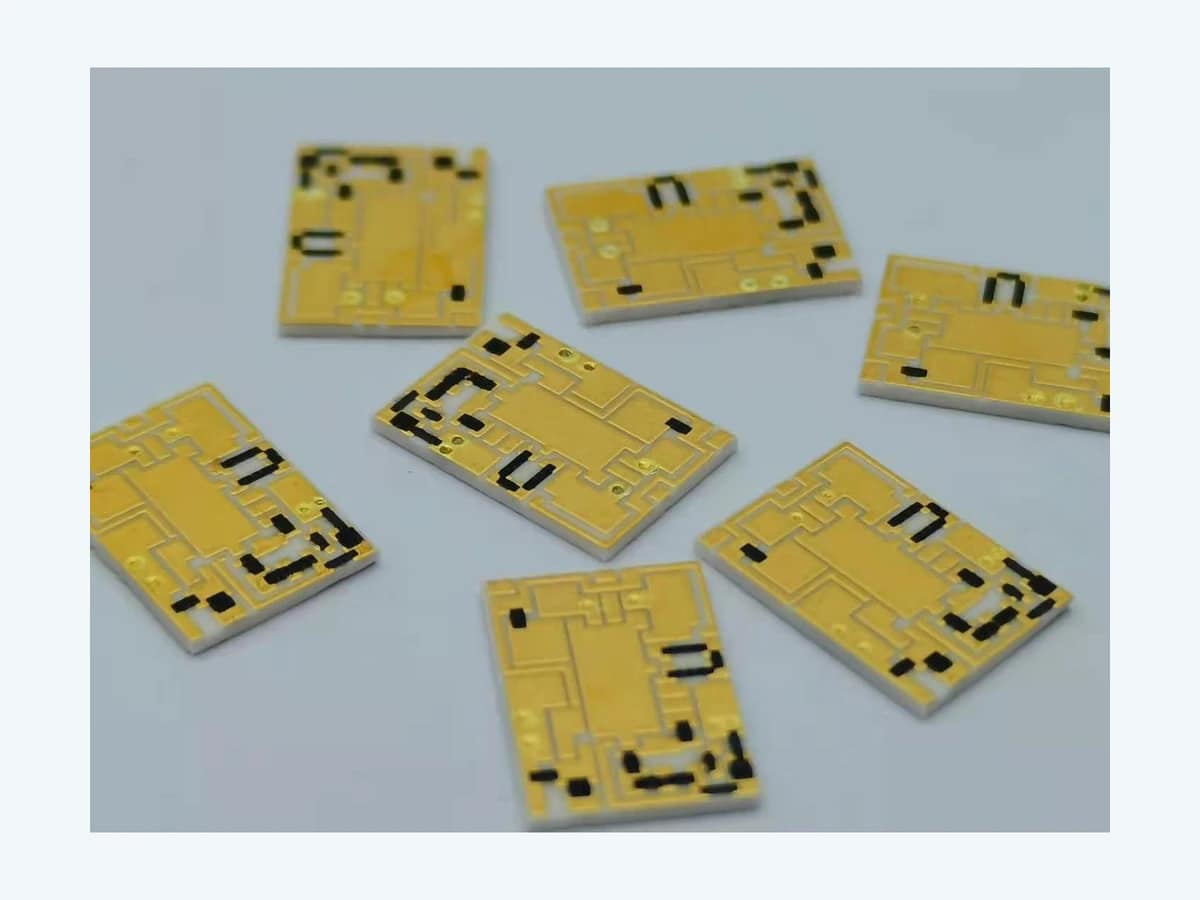

The real product set confirms rectangular ceramic bodies, gold-colored surface patterns, dark functional areas, small openings, repeated layouts, and both patterned and plain-facing samples. The views do not prove material chemistry or electrical performance.
- Visible construction
- Rectangular ceramic bodies, gold-colored patterned regions, dark functional areas, openings, edges, and repeated sample formats are visible.
- Material boundary
- Ceramic grade, purity, thickness, flatness, conductor, resistor, dielectric, protection, and finish require controlled documentation.
View 2 additional evidence boundaries
- Circuit boundary
- Topology, impedance, resistance, capacitance, passband, stopband, insertion loss, return loss, loading, and tolerance require the released design and tests.
- Assembly boundary
- Terminal function, grounding, attachment, cleaning, housing, thermal path, and completed-module reliability remain application-specific.
Manufacturing & Quality
Chipsimple supports screen printing, controlled firing, laser adjustment when the released design requires it, and laboratory inspection in Dongguan.
Read the shared manufacturing-control scope
Filter-circuit projects link the approved material stack, artwork revision, firing route, electrical or frequency test method, sampling, traceability, and acceptance limits to the released drawing. Company images represent company-wide manufacturing capability, not the photographed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What defines a custom thick film filter circuit?
It is a ceramic circuit whose printed artwork and functional thick-film system are engineered for a drawing-defined filtering or signal-conditioning function. The substrate, conductor and functional materials, topology, terminals, assembly, impedance, frequency targets, electrical loading, environment, and test fixture must be reviewed together. A surface photograph alone does not establish the circuit response.
Are the Quick Specifications guaranteed for every filter design?
No. The table presents the confirmed Thick Film Ceramic Circuits category selection values. It supports early material and process selection, but geometry, material compatibility, frequency behavior, electrical loading, assembly, environment, test method, and production volume can narrow the usable window. Final values are confirmed against the controlled drawing and approved project conditions.
How should filter performance be validated?
Start with visual, dimensional, continuity, isolation, and drawing-selected resistance or capacitance checks. Then measure the required transfer response with the released impedance, frequency sweep, fixture, cables, calibration plane, source and load conditions, temperature, and assembly state. Define passband, stopband, insertion loss, return loss, repeatability, sample size, conditioning, and failure limits before the data is treated as a product rating.
What should be included with a Thick Film Filter Circuits RFQ?
Send the schematic, Gerber or dimensioned artwork, ceramic preference, printed-layer requirements, topology, impedance, passband and stopband targets, allowable loss, voltage or current loading, terminals, grounding, assembly, enclosure, operating environment, validation method, prototype quantity, annual volume, and schedule. Include the intended test fixture or interface definition when frequency response is an acceptance requirement.
Request a Thick Film Filter Circuit Quote
Send the controlled circuit files and required response so the material stack, artwork, interfaces, loading, assembly, inspection, and frequency-validation route can be reviewed together. Clear impedance, fixture, calibration, and acceptance definitions prevent a visual sample from being mistaken for a released electrical design.
RFQ inputs and review sequence
- Drawing-led DFM and material-route feedback
- Prototype and repeat-production route review
- Confidential handling of customer files
- Project-specific inspection and validation planning
- Schematic, Gerber, DXF, DWG, PDF, or dimensioned artwork with revision
- Ceramic material, thickness, outline, holes, datums, flatness, and tolerances
- Conductor, resistor, dielectric, protection, terminal, and layer-sequence requirements
- Topology, impedance, passband, stopband, insertion loss, return loss, and loading targets
- Grounding, connector, attachment, housing, cleaning, and downstream assembly conditions
- Fixture, calibration plane, electrical, frequency, environmental, and reliability tests
- Prototype quantity, annual volume, schedule, sampling, traceability, and packing
- 1We review the drawing, network targets, material route, interfaces, and missing acceptance inputs.
- 2You receive DFM questions and a prototype and validation route for approval.
- 3Repeat production follows the released revision, inspection plan, test method, and packing requirement.
Submit RFQ and upload files
PDF, DWG, DXF, STEP, Gerber, ZIP, Excel, Word, or sample photos are accepted.
