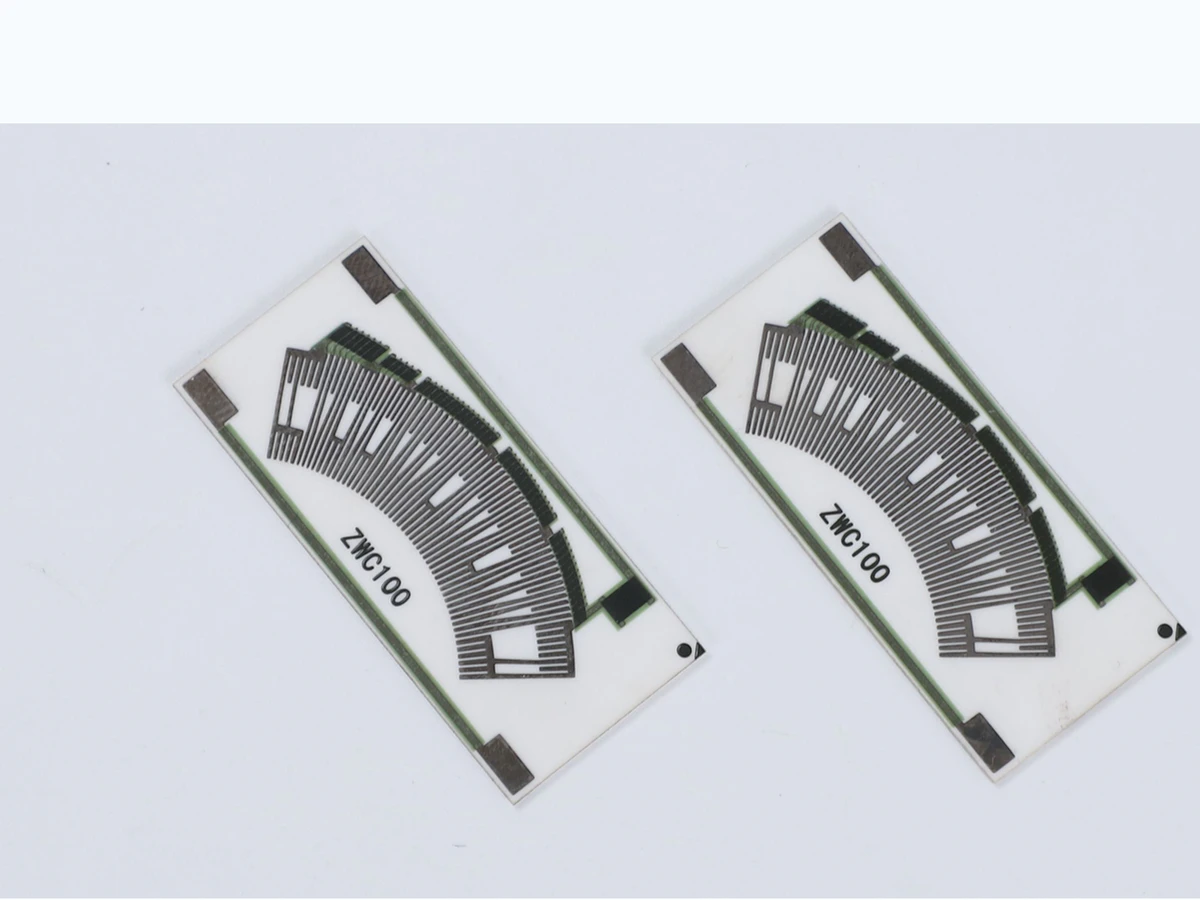

Pedal travel and track mapping
Translate pedal motion, active travel, direction, zero and full-scale points, inactive margins, redundancy, and required output into controlled track geometry and curve data.
Pedal-position resistive feedback element
Accelerator Pedal Position Sensor Resistor Card
An accelerator pedal position sensor resistor card converts pedal travel through a project-defined resistive and contact interface. Chipsimple reviews the complete measurement chain—mechanical motion, printed tracks, output curve, terminals, electronics, environment, and validation—before artwork and acceptance limits are released.
- Pedal travel mapped to controlled track geometry
- Single or redundant track review by drawing
- Mating contact and terminal interface planning
- Curve, linearity, and lifecycle validation route
- By pedal mechanics
- Travel and geometry
- By schematic
- Track count and redundancy
- By drawing
- Pedal travel and output curve
- By project review
- Contact and validation plan
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Accelerator Pedal Position Sensor Resistor Card is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Pedal travel mapping | Pedal travel, mechanical transfer, zero, full-scale, inactive zones, and output points follow the pedal drawing | Pedal stops, linkage ratio, return system, wiper trajectory, and tolerance stack are correlated before artwork | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Redundant channel relationship | Track count, direction, ratio or correlation, diagnostic thresholds, and output curves follow the system schematic | Single-point faults, cross-channel plausibility, loading, calibration, and controller interpretation are defined by program | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Pedal contact and terminals | Wiper material, force, path, support, connector, terminals, enclosure, and electrical loading are released together | Intermittency, wear, contamination, vibration, misalignment, terminal faults, and return-to-idle behaviour are reviewed | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Pedal-module validation | Output versus travel, channel correlation, hysteresis, contact stability, temperature, vibration, cycling, diagnostics, and calibration are project-defined | Production-intent pedal mechanics, enclosure, connector, electronics, and end-of-line fixture are used | Released mechanism drawing, electrical table, approved sample, and validation plan |
View 13 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina / FR-4 / PI approved routes | Select alumina, FR-4, or PI from stiffness, contact support, media, temperature, mounting, and cure/firing needs | Approved material specification, drawing, and incoming criteria |
| Sensor Geometry | Rotary / Linear / Arc | Travel angle or distance, active arc, datum, dead zones, endpoints, and contact path by mechanism drawing | Released drawing, DFM approval, and first-article inspection |
| Resistor System | RuO₂ / Carbon | RuO₂ or carbon selected for substrate, curve, contact load, environment, and electrical loading | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Au / Ag-C | Ag, Ag-Pd, Au, or Ag-C selected for terminal, wiper, media, corrosion, and process compatibility | Approved material stack, assembly interface, and sample |
| Track Count | 1–4 tracks typical | Within 1–4 tracks, redundancy, diagnostics, isolation, and terminal count follow the system schematic | Released drawing, DFM approval, and first-article inspection |
| Nominal Resistance | 100 Ω–1 MΩ typical | Within 100 Ω–1 MΩ, endpoints, intermediate points, ratios, and loading follow the approved curve table | Released electrical limits, measurement method, and approved sample |
| Resistance Curve | Linear / Nonlinear / Segmented | Linear, nonlinear, segmented, or customer point table with defined scan direction and reference condition | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±1–10% by material system | Within ±1–10%, limits are allocated by material system, measurement position, fixture, and electronics | Released electrical limits, measurement method, and approved sample |
| Linearity | ±0.5–2% FS typical | Within ±0.5–2% FS typical, define best-fit or terminal-based calculation, usable travel, and hysteresis | Released electrical limits, measurement method, and approved sample |
| TCR | ±100–200 ppm/°C ceramic reference | ±100–200 ppm/°C ceramic reference; final TCR range, tracking, and temperature points follow the selected paste system | Released electrical limits, measurement method, and approved sample |
| Contact System | Precious metal / Carbon | Precious-metal or carbon contact with defined geometry, force, speed, current, lubricant, and contact path | Approved material stack, assembly interface, and sample |
| Operating Temperature | -40 to +125°C, system-dependent | -40 to +125°C category envelope is checked with media, vibration, humidity, electrical load, and mating materials | Approved electrical-thermal design and instrumented prototype validation |
| Life-test conditions | Full-travel cycling is defined with speed, stroke, direction, contact force, electrical load, and starting condition | Cycle count, media, temperature, vibration, contact noise, curve drift, wear, and endpoint limits by mechanism risk | Approved mating contact, lifecycle profile, and validation report |
Engineering Capabilities
Pedal feedback requires the mechanical and electrical definitions to move together. The four reviews below establish the artwork, printed-system route, contact interface, and acceptance method without treating category values as a finished pedal specification.

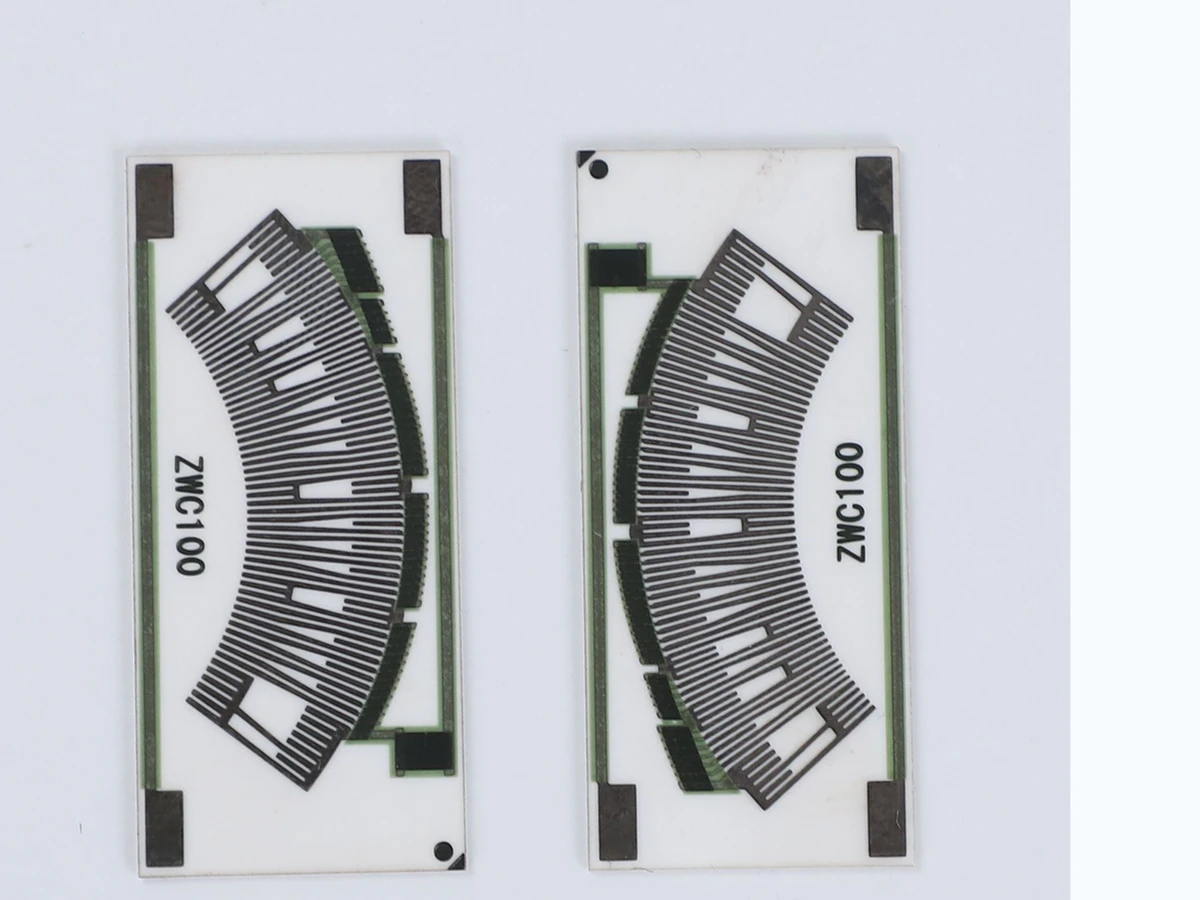

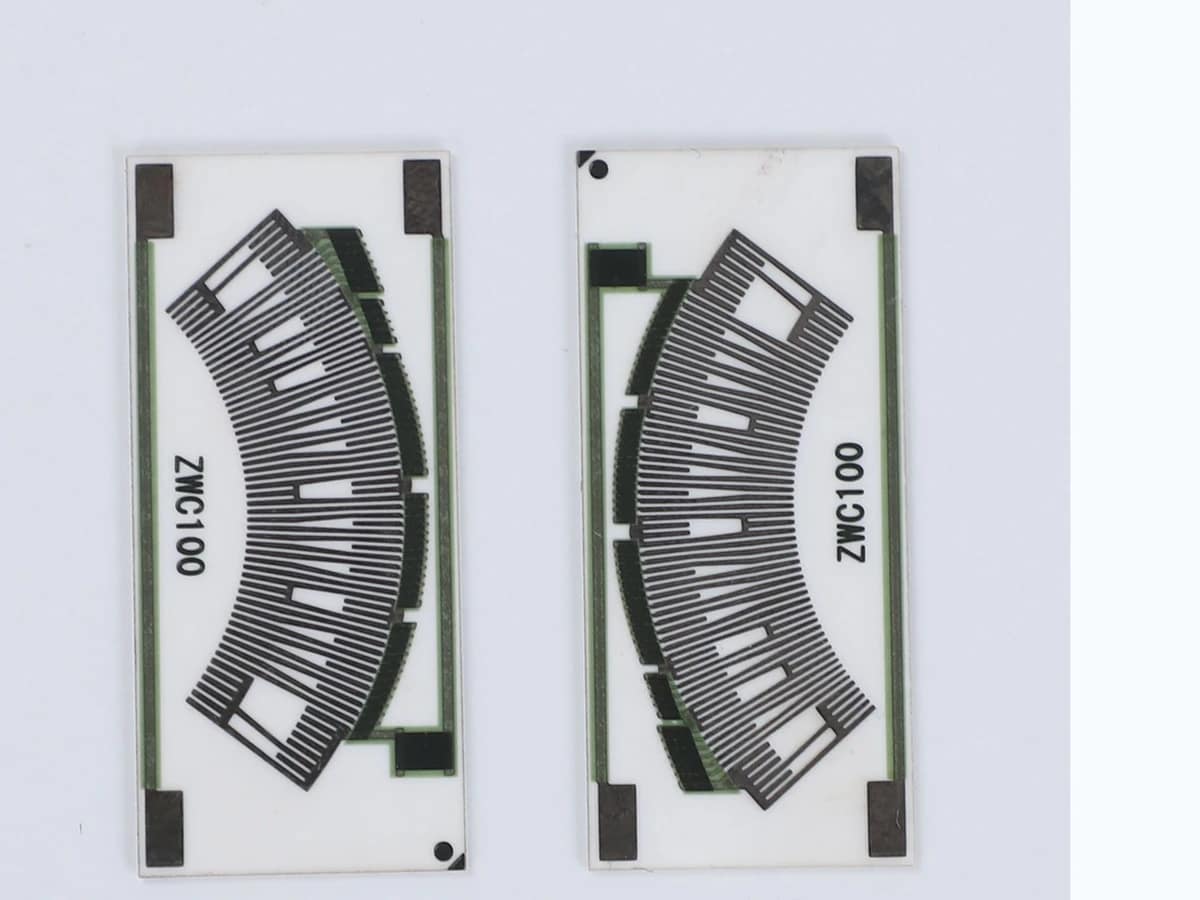

Printed-system and alignment review
Select the drawing-compatible substrate, resistor, conductor, pad, and overlap route, then control artwork registration around the mechanical reference and terminal interface.

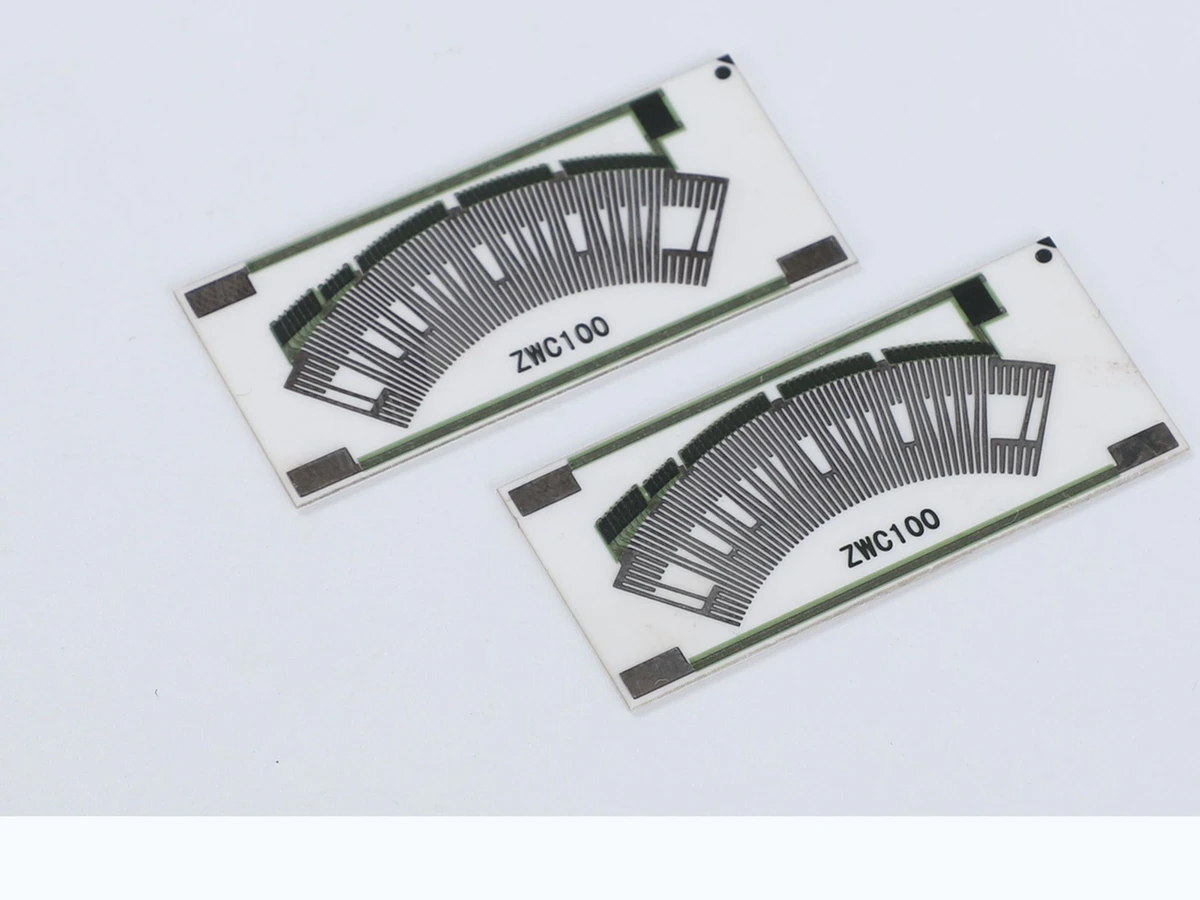

Contact and terminal interface
Review wiper material, contact force, path width, support, connector location, electrical loading, and assembly stack as a single interface rather than isolated card features.

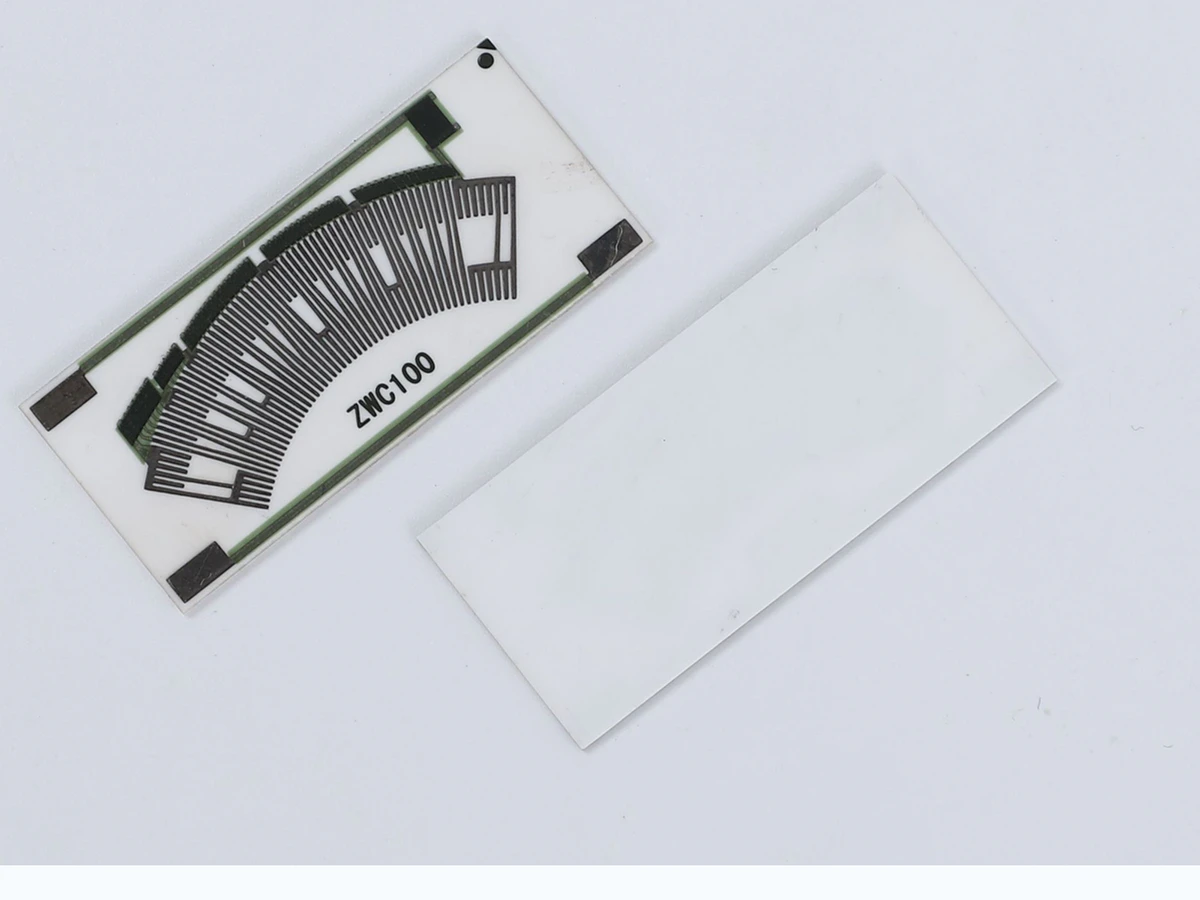

Output and lifecycle validation
Define resistance, curve, correlation between tracks, linearity, contact behavior, environmental exposure, cycling, and end-of-line test conditions for the intended pedal module.
Typical Applications
These scenes show representative directions only. Suitability depends on the released pedal mechanics, redundancy concept, electronics, vehicle environment, diagnostic strategy, and validation plan.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationAccelerator and throttle feedback
Pedal or throttle modules require released travel, track correlation, contact mechanics, vibration, temperature, contamination, calibration, and system-level fault handling.
Review application inputs
Application illustrationAutomotive control electronics
A resistor card can be considered within an automotive control module after interfaces, electrical loading, diagnostics, assembly, environment, and qualification are defined.
Review application inputs
Application illustrationIndustrial pedal and lever controls
Industrial motion controls need application-specific travel, support, contact force, enclosure, contamination, signal conditioning, duty cycle, and field validation.
Review application inputsVerified Product Views
The verified photographs show complete surface views from the supplied product set. They support only the visible geometry described below; they do not establish material identity, resistance, curve accuracy, environmental rating, contact life, or production acceptance.

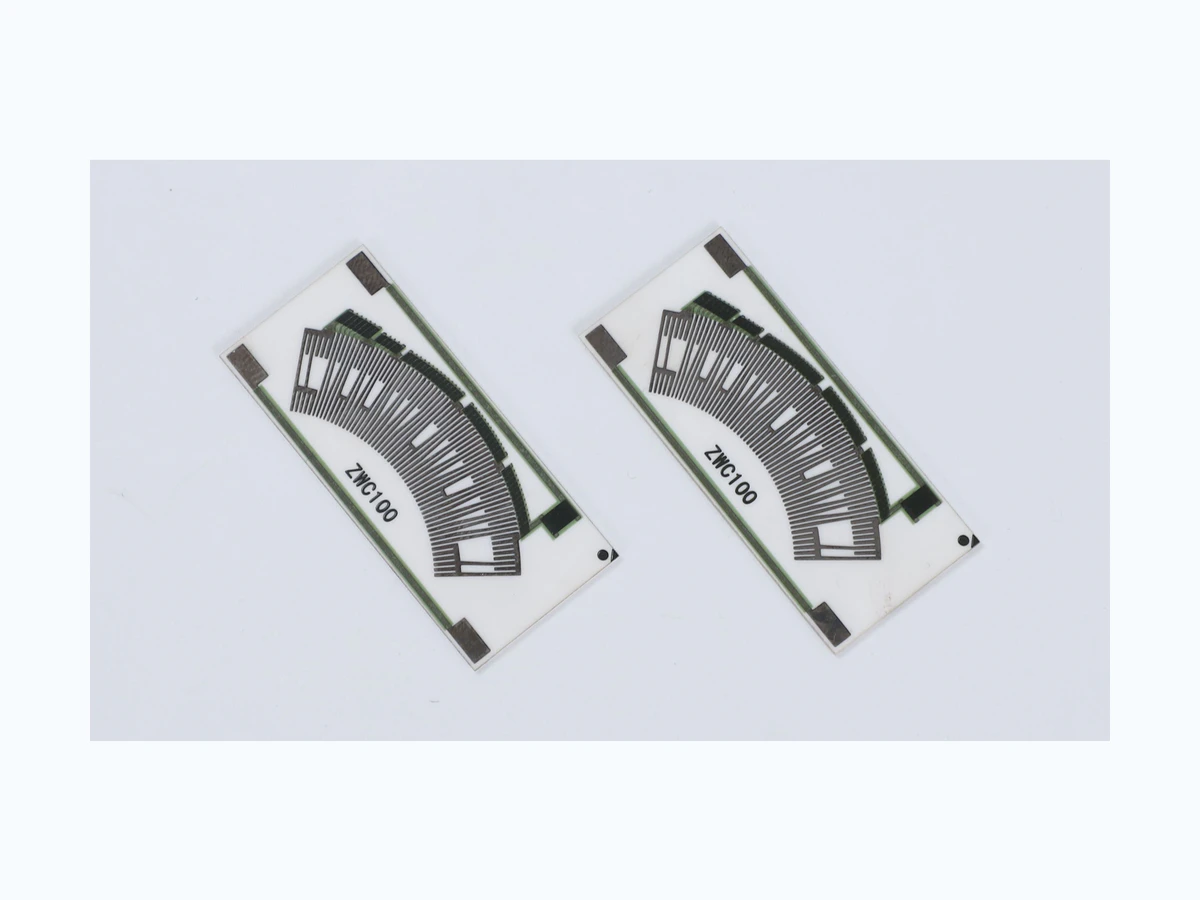

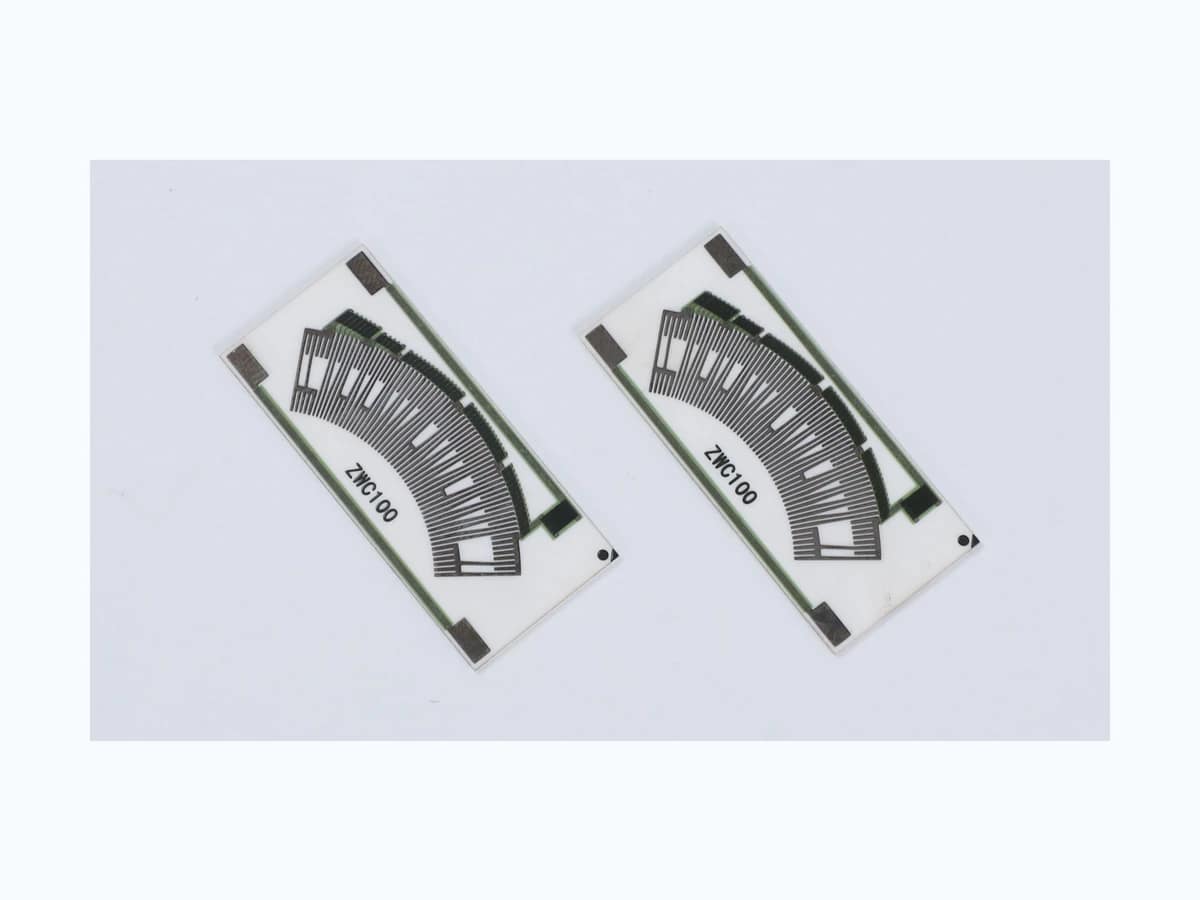

- Visible format
- Rectangular white cards are shown individually and in two-card arrangements.

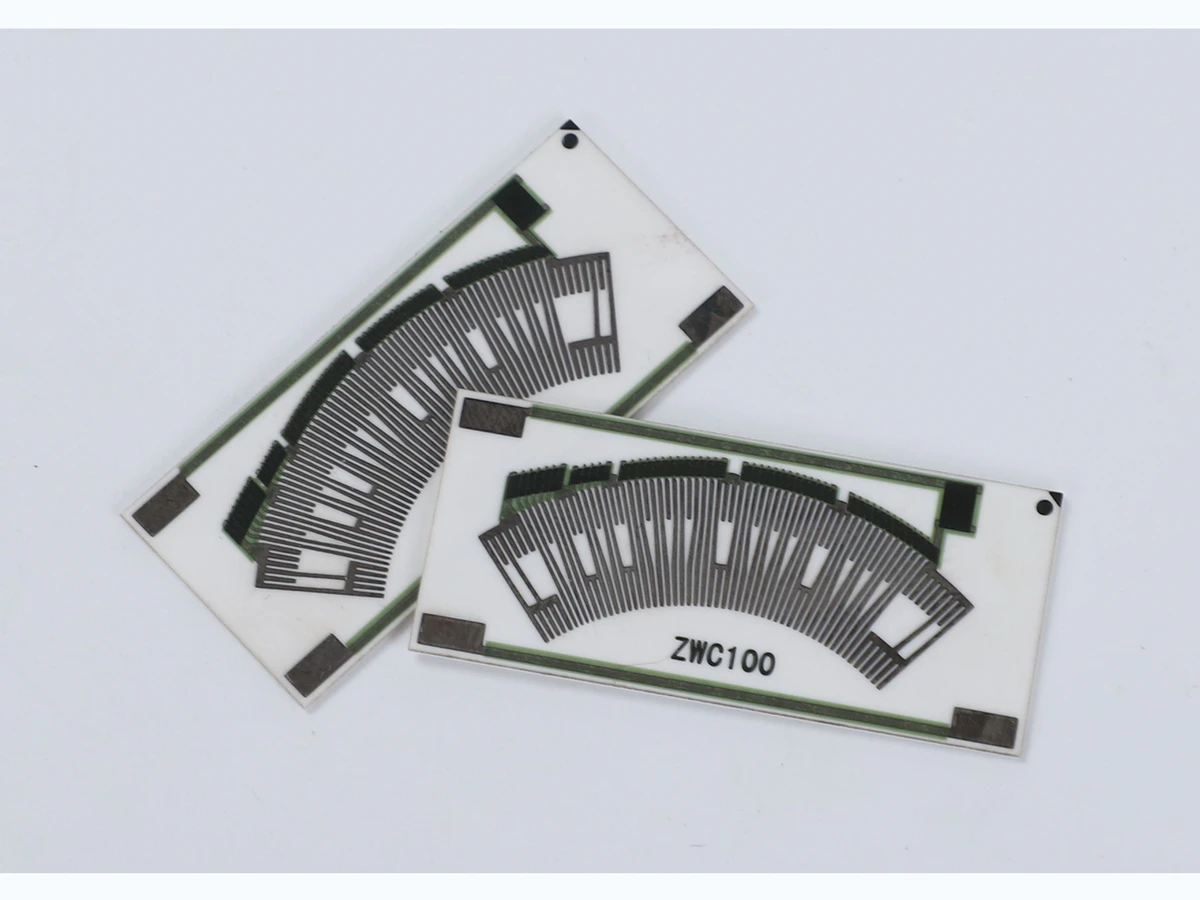

- Printed geometry
- Arc-shaped segmented regions, dark paths, conductive routing, pads, and sample markings are visible.
View 2 additional evidence boundaries
- Reference features
- Corner marks and terminal regions can be seen, but their dimensions and functions require the drawing.
- Evidence boundary
- Surface photographs cannot confirm substrate chemistry, electrical values, redundancy behavior, wear, temperature, or lifecycle performance.
Manufacturing & Quality
Chipsimple supports drawing-led printed sensor elements with controlled printing, resistance adjustment where applicable, dimensional and electrical inspection, and protected handling.
Read the shared manufacturing-control scope
The exact route depends on substrate, resistor system, contact design, and validation plan; these photographs show general company capability, not evidence of the displayed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom Accelerator Pedal Position Sensor Resistor Card?
Start with pedal travel, mechanical transfer, required output curves, track count and correlation, fault-detection concept, contact mechanics, terminal layout, controller loading, environment, lifecycle target, and end-of-line calibration. These inputs determine whether an arc, linear, or other drawing-defined route is appropriate.
Are the Quick Specifications guaranteed for every resistor card?
No. These are category-level selection values, not a released part specification. Substrate, resistor and conductor systems, geometry, resistance, tolerance, linearity, TCR, contact route, and operating temperature are narrowed against the drawing, mating mechanics, electronics, and validation plan.
How should Accelerator Pedal Position Sensor Resistor Card performance be validated?
Validate the card inside production-intent pedal mechanics and electronics. Check output versus travel, track correlation, contact stability, hysteresis, loading, vibration, temperature, contamination, cycling, connector behavior, diagnostics, and calibration using drawing-defined limits.
What should be included with the RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, active travel or angle, resistance and output-curve data, track count, mating contact, electrical loading, environment, validation method, quantity, and schedule. For redundant designs, include both output curves, correlation or ratio limits, diagnostic thresholds, and the required relationship between tracks.
Request a Accelerator Pedal Position Sensor Resistor Card Quote
