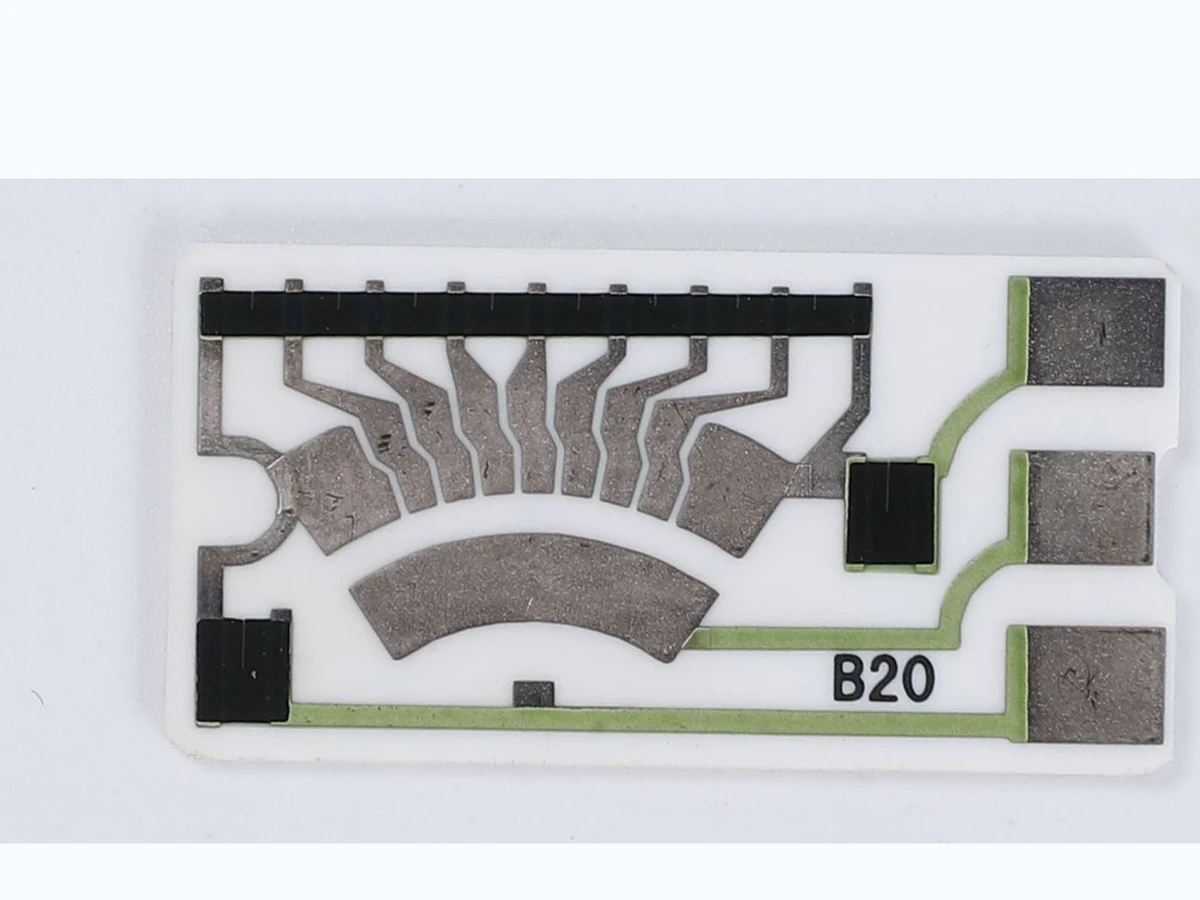

Float travel and curve definition
Map float-arm position and tank-volume targets to active angle, breakpoints, resistance or voltage output, empty/full references, stops, and any damping or segmentation requirements.
Vehicle fuel-sender resistive element
Automotive Fuel Gauge Resistor Card
An automotive fuel gauge resistor card works with a float, arm, contact, wiring, and vehicle electronics to translate tank level into a usable signal. Chipsimple reviews the motion range, resistance curve, printed geometry, terminals, fuel-side isolation, environment, and validation method before releasing the design.
- Float-arm travel mapped to resistance response
- Linear, nonlinear, or segmented curve review
- Contact path and terminal interface planning
- Vehicle-environment validation by project
- By curve table
- Resistance response
- By sender design
- Curve construction
- By drawing
- Tank geometry and sender travel
- By project review
- Fuel isolation and validation
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Automotive Fuel Gauge Resistor Card is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Tank-volume response | Empty, reserve, intermediate, and full points follow the vehicle program's approved curve table | Tank geometry, float buoyancy, arm length, pivot, travel stops, gauge loading, and damping are correlated before artwork release | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Sender travel interface | Active angle, direction, inactive zones, contact path, and terminal assignment are controlled by the sender drawing | Tolerance stack and wiper trajectory are checked in production-intent sender mechanics | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Fuel-side boundary | Printed element, contact, sealing, and fuel isolation follow the approved sender construction | Fuel blend, additives, vapour, contamination, temperature, and exposure sequence are defined by the vehicle validation plan | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Vehicle validation | Curve correlation, repeatability, contact stability, vibration, temperature, cycling, and end-of-line calibration are project-defined | Failure limits include intermittent output, endpoint drift, wear, seal or isolation failure, and diagnostic response | Released mechanism drawing, electrical table, approved sample, and validation plan |
View 13 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina / FR-4 / PI approved routes | Select alumina, FR-4, or PI from stiffness, contact support, media, temperature, mounting, and cure/firing needs | Approved material specification, drawing, and incoming criteria |
| Sensor Geometry | Rotary / Linear / Arc | Travel angle or distance, active arc, datum, dead zones, endpoints, and contact path by mechanism drawing | Released drawing, DFM approval, and first-article inspection |
| Resistor System | RuO₂ / Carbon | RuO₂ or carbon selected for substrate, curve, contact load, environment, and electrical loading | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Au / Ag-C | Ag, Ag-Pd, Au, or Ag-C selected for terminal, wiper, media, corrosion, and process compatibility | Approved material stack, assembly interface, and sample |
| Track Count | 1–4 tracks typical | Within 1–4 tracks, redundancy, diagnostics, isolation, and terminal count follow the system schematic | Released drawing, DFM approval, and first-article inspection |
| Nominal Resistance | 100 Ω–1 MΩ typical | Within 100 Ω–1 MΩ, endpoints, intermediate points, ratios, and loading follow the approved curve table | Released electrical limits, measurement method, and approved sample |
| Resistance Curve | Linear / Nonlinear / Segmented | Linear, nonlinear, segmented, or customer point table with defined scan direction and reference condition | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±1–10% by material system | Within ±1–10%, limits are allocated by material system, measurement position, fixture, and electronics | Released electrical limits, measurement method, and approved sample |
| Linearity | ±0.5–2% FS typical | Within ±0.5–2% FS typical, define best-fit or terminal-based calculation, usable travel, and hysteresis | Released electrical limits, measurement method, and approved sample |
| TCR | ±100–200 ppm/°C ceramic reference | ±100–200 ppm/°C ceramic reference; final TCR range, tracking, and temperature points follow the selected paste system | Released electrical limits, measurement method, and approved sample |
| Contact System | Precious metal / Carbon | Precious-metal or carbon contact with defined geometry, force, speed, current, lubricant, and contact path | Approved material stack, assembly interface, and sample |
| Operating Temperature | -40 to +125°C, system-dependent | -40 to +125°C category envelope is checked with media, vibration, humidity, electrical load, and mating materials | Approved electrical-thermal design and instrumented prototype validation |
| Life-test conditions | Full-travel cycling is defined with speed, stroke, direction, contact force, electrical load, and starting condition | Cycle count, media, temperature, vibration, contact noise, curve drift, wear, and endpoint limits by mechanism risk | Approved mating contact, lifecycle profile, and validation report |
Engineering Capabilities
Automotive fuel senders need coordinated review of tank mechanics, curve definition, printed materials, contact behavior, terminals, and vehicle validation. The card is released only after these inputs are linked to measurable acceptance criteria.

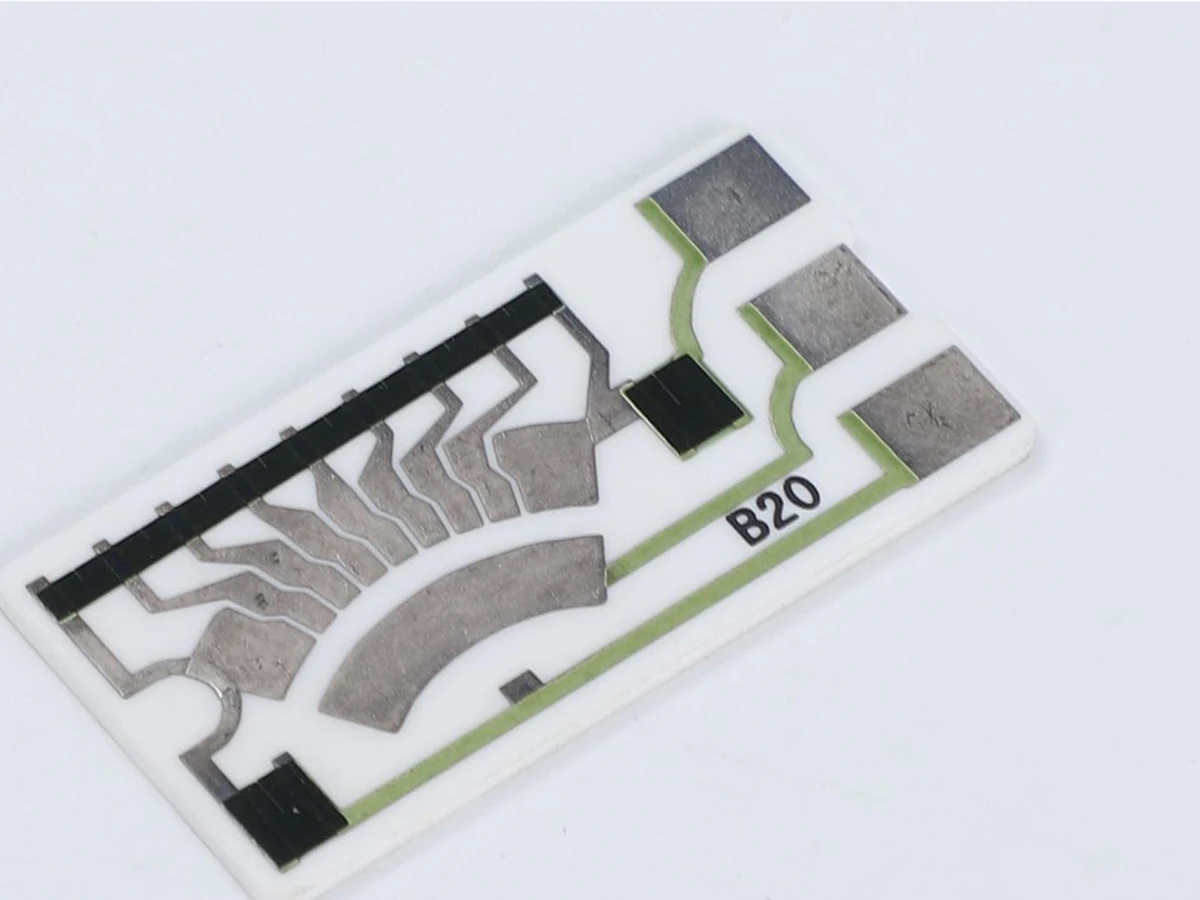

Track and conductor artwork
Release resistor segments, conductor paths, collector areas, overlaps, inactive margins, terminals, and reference features as controlled artwork tied to the sender mechanics.

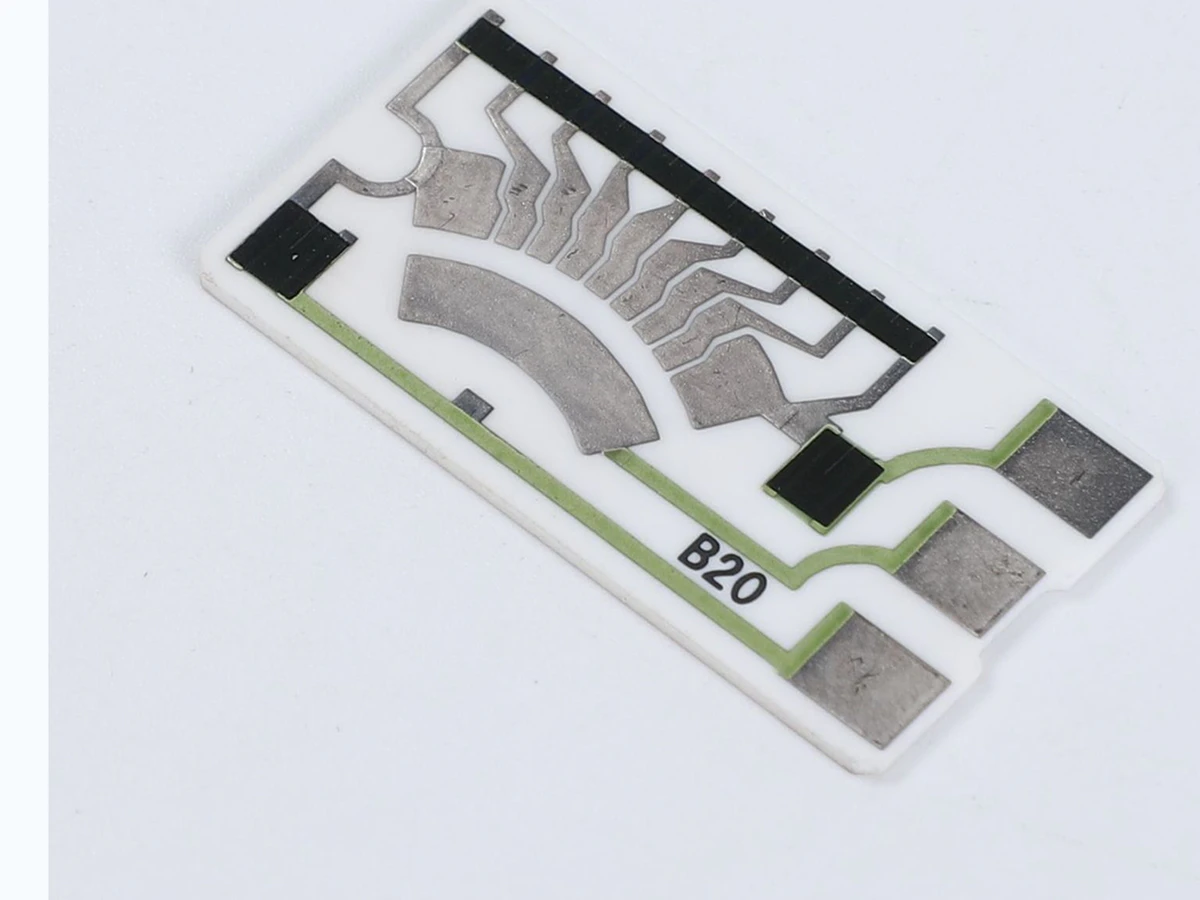

Wiper and terminal integration
Review contact material, force, path width, pivot tolerance, support, terminal connection, loading, sealing boundary, and assembly stack for the intended sender module.

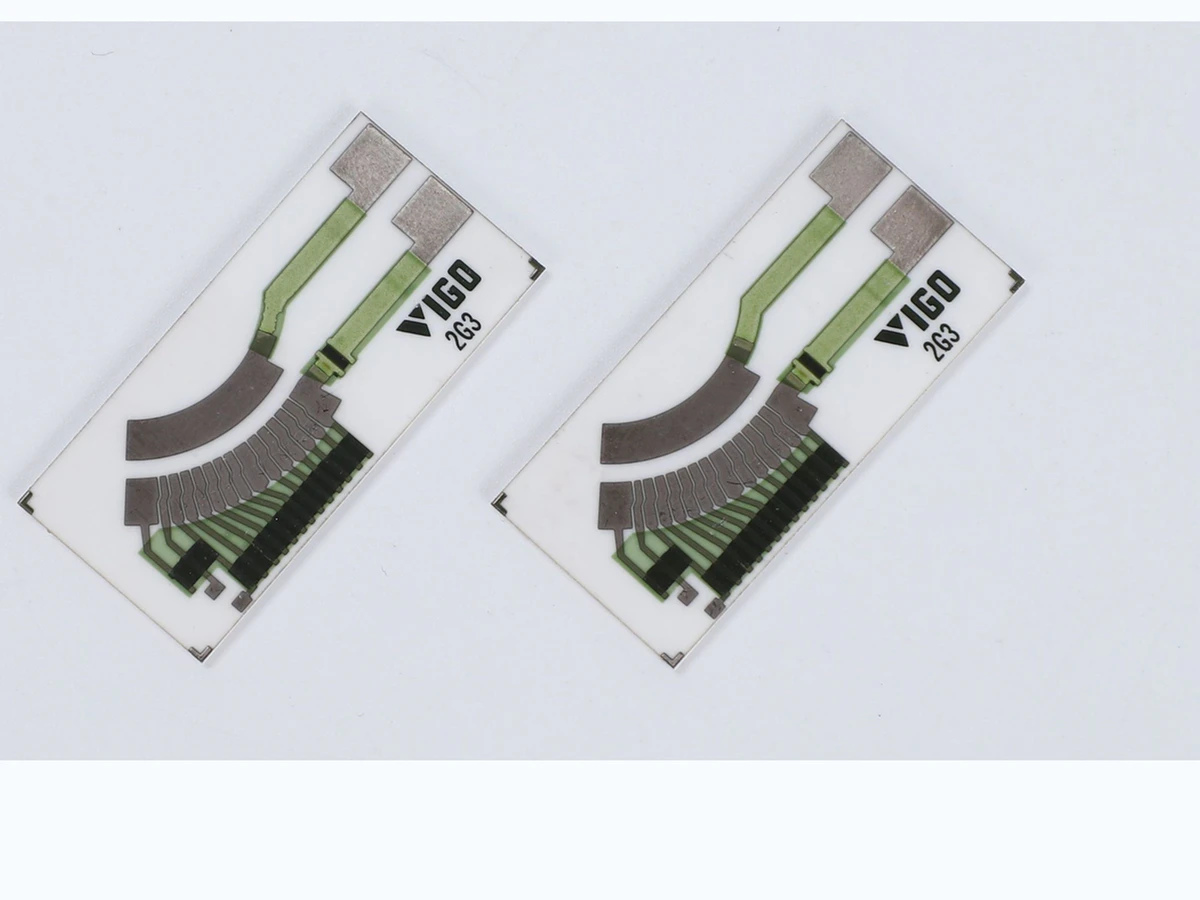

Sender-level validation
Define output versus position or volume, contact stability, repeatability, vibration, temperature, contamination, cycling, calibration, and end-of-line checks using production-intent hardware.
Typical Applications
Representative applications below require tank-specific mechanical conversion, material compatibility, sealing, electronics, calibration, and vehicle-level validation before use.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationAutomotive fuel-level senders
Passenger and commercial vehicle senders require tank-specific float travel, curve tables, contact mechanics, sealing, vibration, temperature, calibration, and qualification.
Review application inputs
Application illustrationVehicle instrument systems
Gauge and controller integration depends on electrical loading, harness, diagnostics, damping, empty/full calibration, environmental exposure, and vehicle-level acceptance tests.
Review application inputs
Application illustrationCustom liquid-level mechanisms
Related level-sensing mechanisms may be reviewed after media isolation, float or linkage design, output curve, contact system, enclosure, and lifecycle requirements are defined.
Review application inputsVerified Product Views

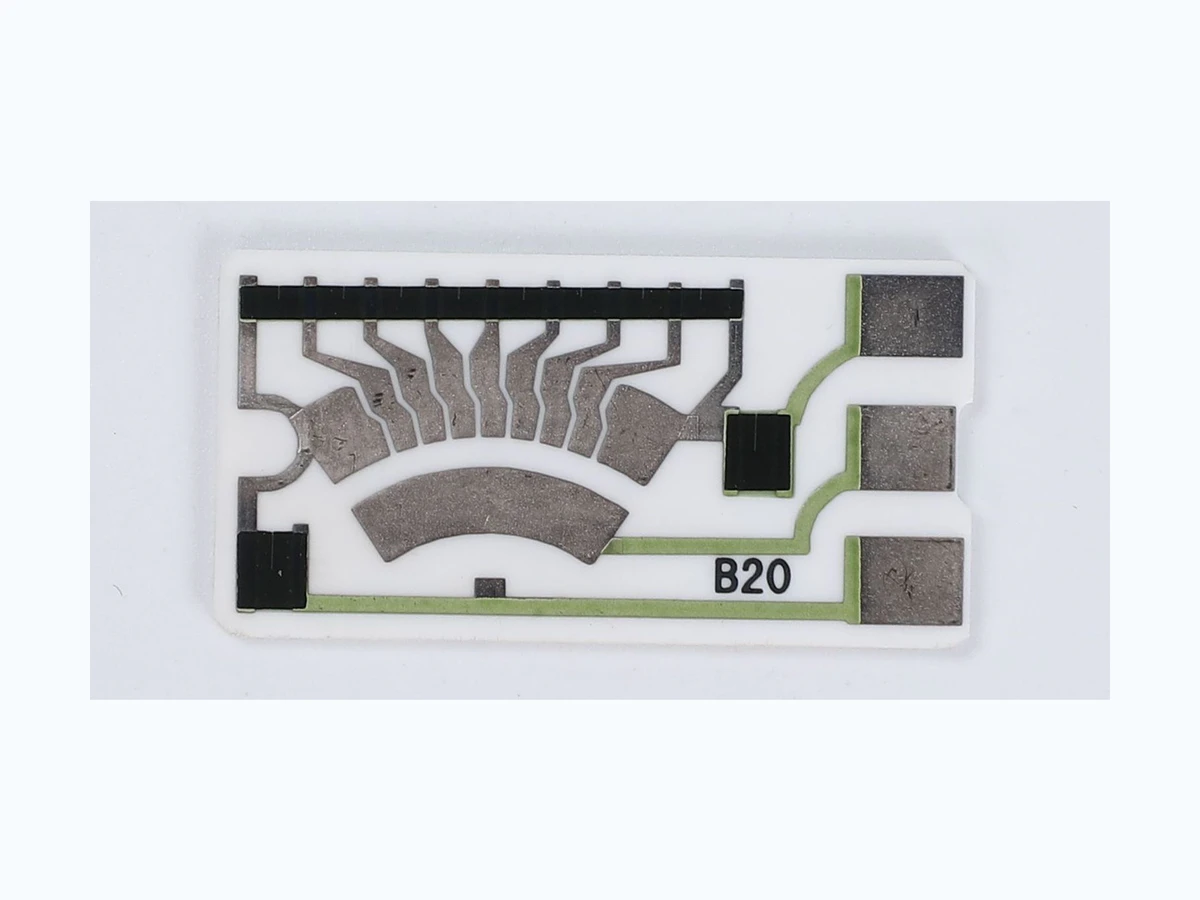

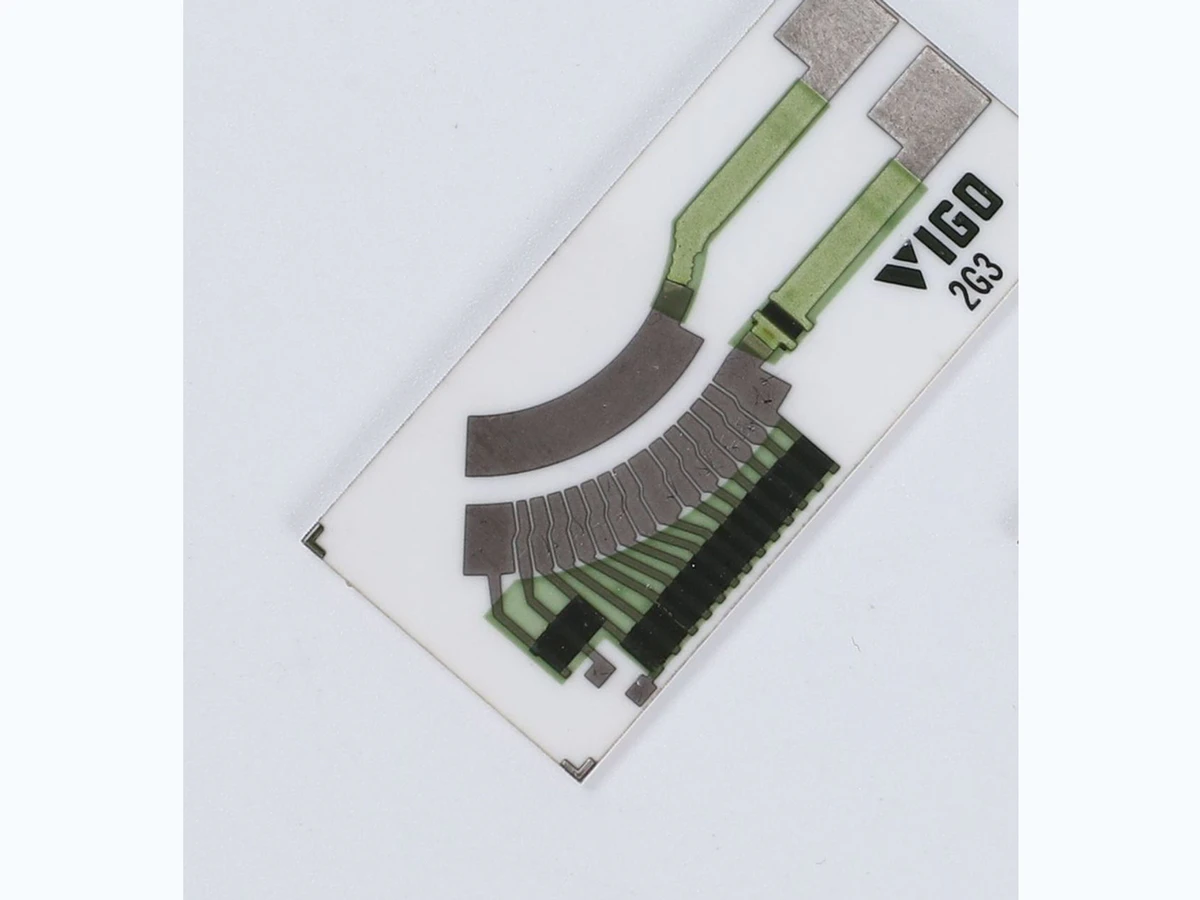

The supplied photographs verify several complete rectangular resistor-card views with visible arc patterns, conductor routes, pads, and sample markings. They do not identify materials or prove electrical, fuel, environmental, or lifecycle performance.
- Visible format
- The sample set shows complete rectangular white cards in single-card and paired compositions.
- Printed geometry
- Arc-shaped regions, segmented paths, conductors, terminal pads, and visible sample codes are present.
View 2 additional evidence boundaries
- Surface variants
- More than one visible pattern arrangement appears in the supplied photographs; functional equivalence is not inferred.
- Evidence boundary
- The images cannot confirm substrate, paste chemistry, resistance curve, fuel compatibility, temperature, contact life, or qualification status.
Manufacturing & Quality
Chipsimple supports drawing-led printed sensor elements with controlled printing, resistance adjustment where applicable, dimensional and electrical inspection, and protected handling.
Read the shared manufacturing-control scope
The exact route depends on substrate, resistor system, contact design, and validation plan; these photographs show general company capability, not evidence of the displayed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom Automotive Fuel Gauge Resistor Card?
Start with tank geometry, fuel-volume table, float and arm mechanics, pivot and stop locations, required empty/full and intermediate outputs, electronics, wiper system, sealing boundary, fuel exposure, vibration, temperature, lifecycle, and calibration method.
Are the Quick Specifications guaranteed for every resistor card?
No. These are category-level selection values, not a released part specification. Substrate, resistor and conductor systems, geometry, resistance, tolerance, linearity, TCR, contact route, and operating temperature are narrowed against the drawing, mating mechanics, electronics, and validation plan.
How should Automotive Fuel Gauge Resistor Card performance be validated?
Use a production-intent sender assembly and defined fluid or approved simulation. Correlate output to arm position and tank volume, then check repeatability, contact stability, vibration, temperature, contamination, cycling, harness loading, damping, calibration, and end-of-line test limits.
What should be included with the RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, active travel or angle, resistance and output-curve data, track count, mating contact, electrical loading, environment, validation method, quantity, and schedule. Include the tank-volume-to-arm-position relationship and the required resistance or voltage table, not only empty and full endpoint values.
Request a Automotive Fuel Gauge Resistor Card Quote
Send the tank and sender mechanics, float-travel data, required output curve, mating contact, electrical circuit, environment, and validation requirements. We will review the complete sensing chain before proposing a prototype route.
RFQ inputs and review sequence
- Drawing-led DFM and curve-definition review
- Substrate, resistor, conductor, and contact-system selection
- Prototype and validation-route planning
- Confidential handling of customer drawings and data
- Controlled drawing, artwork, dimensions, tolerances, and active travel or angle
- Resistance range, output curve or table, linearity target, and track count
- Mating wiper or contact details, force window, connector, and assembly stack
- Substrate and printed-system preference, or permission for engineering selection
- Electrical loading, temperature, vibration, fluids, contamination, and lifecycle targets
- Prototype quantity, annual volume, inspection method, validation plan, and schedule
- 1We check the drawing, motion, electrical response, contact interface, environment, and missing acceptance inputs.
- 2You receive DFM questions and a proposed material, artwork, prototype, and validation route for review.
- 3Production follows the approved revision, inspection plan, traceability requirement, and packing instruction.
