AlN Thick Film Heater
AlN thick film heaters combine an aluminum nitride ceramic heat spreader with drawing-defined printed resistance and conductor systems for compact thermal assemblies. Chipsimple reviews ceramic grade, heater zones, voltage, power, resistance, terminals, sensing, mounting, thermal interface, insulation, heat-up profile, environment, and validation before production release.
- AlN thermal path reviewed with assembly
- Custom heater-zone and terminal artwork
- Voltage, power, and resistance coordinated
- Thermal and electrical validation by project
- AlN
- Ceramic substrate
- By electrical design
- Rated voltage and power
- 5
- Four originals plus one detail crop
- By thermal test
- Final operating release
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
AlN Thick Film Heater is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | AlN ceramic | Alternative approved route selected from heat path, insulation, corrosion, outline, mounting, and process compatibility | Approved material specification, drawing, and incoming criteria |
| Dielectric Layers | Ceramic insulation route; dielectric layers only where the released stack requires them | Layer count, fired thickness, edge margin, creepage, clearance, grounding, and interface by safety review | Released insulation stack and agreed IR/withstand test plan |
| Heater Resistor | RuO₂ / Metal-based / PTC | RuO₂, metal-based, or PTC route selected for resistance, temperature coefficient, firing/cure, and duty profile | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Metal terminal | Ag, Ag-Pd, or metal terminal route by current, connection, temperature, corrosion, and assembly | Approved material stack, assembly interface, and sample |
| Rated Voltage | Project-rated after electrical and thermal review | Approved category engineering envelope: 3–240 V AC/DC typical | Approved electrical-thermal design and instrumented prototype validation |
| Rated Power | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–2,000 W typical; heat load and available area are checked | Approved electrical-thermal design and instrumented prototype validation |
View 7 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Target Resistance | Project-rated after electrical and thermal review | Approved category engineering envelope: 0.1 Ω–10 kΩ typical; calculated from released voltage and power | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±5% typical | ±5% typical; reference temperature, lead compensation, and measurement timing are defined | Released electrical limits, measurement method, and approved sample |
| Power Density | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–60 W/cm² typical; local cooling, duty, contact, and hot spots are reviewed | Approved electrical-thermal design and instrumented prototype validation |
| Operating Temperature | Ceramic/metal route ≤600°C typical | Continuous, peak, ambient, fluid, interface, and no-flow/no-load conditions are separated for validation | Approved electrical-thermal design and instrumented prototype validation |
| Process Temperature | ≈850°C ceramic firing route | Actual peak, dwell, atmosphere, and refire/cure exposure follow the selected material stack | Approved material-process route and production traveler |
| Electrical Test | IR ≥100 MΩ / Hi-pot ≥1.5 kVAC typical | IR, hi-pot voltage, ramp, dwell, leakage, humidity state, and pre/post conditioning by product safety plan | Released insulation stack and agreed IR/withstand test plan |
| Life-test conditions | On/off cycling is defined with powered dwell, cooling dwell, mounting, cooling medium, and starting temperature | Cycle count, voltage, load, fault conditions, resistance drift, insulation, leakage, and appearance limits by application risk | Agreed endurance profile and pre/post-test acceptance report |
Engineering Capabilities
AlN can spread heat effectively, but heater behavior still depends on the complete stack and boundary conditions. Engineering review connects ceramic properties, resistor geometry, conductor and protection compatibility, voltage, power, terminal temperature, sensor location, mounting pressure, contact area, heat loss, controls, insulation, thermal cycling, and safety tests.
Heater zones and sensing
Release resistance-path geometry, power zones, no-heat areas, edge and hole clearances, sensor location, terminals, polarity if relevant, and alignment datums.
Terminals and thermal interface
Define lead or terminal attachment, strain relief, maximum joint temperature, mounting pressure, flatness, interface material, heat sink, target body, and assembly sequence.
Electrical and thermal validation
Specify resistance, insulation, hi-pot, leakage if required, power, heat-up curve, temperature map, overshoot, cycling, controls, fixture, sample size, and failure limits.
Typical Applications
AlN heaters fit compact, heat-flux-sensitive assemblies when mounting, sensing, controls, terminal temperature, and thermal validation are defined with the heater.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationSemiconductor process equipment
Compact thermal stages require application-specific temperature uniformity, vacuum or atmosphere, cleanliness, mounting, sensing, controls, ramp rate, cycling, and qualification.
Review application inputs
Application illustrationLaboratory instruments
Analytical and laboratory heaters need controlled temperature range, heat-up time, sensor placement, electrical isolation, fluid or chemical exposure, and calibration.
Review application inputs
Application illustrationMedical thermal assemblies
Medical-device use requires program-specific material declarations, temperature control, insulation, cleaning exposure, risk analysis, traceability, and validated safety limits.
Review application inputsVerified Product Views

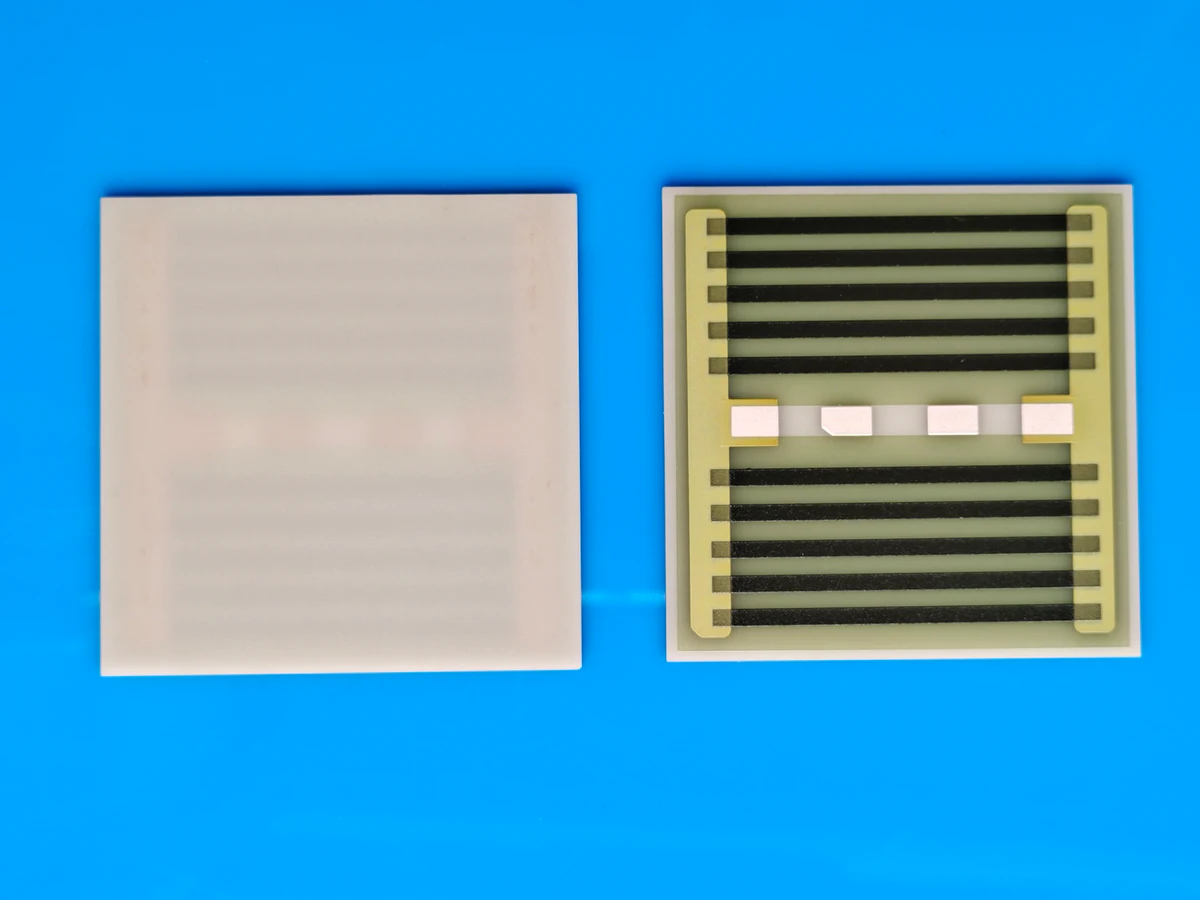

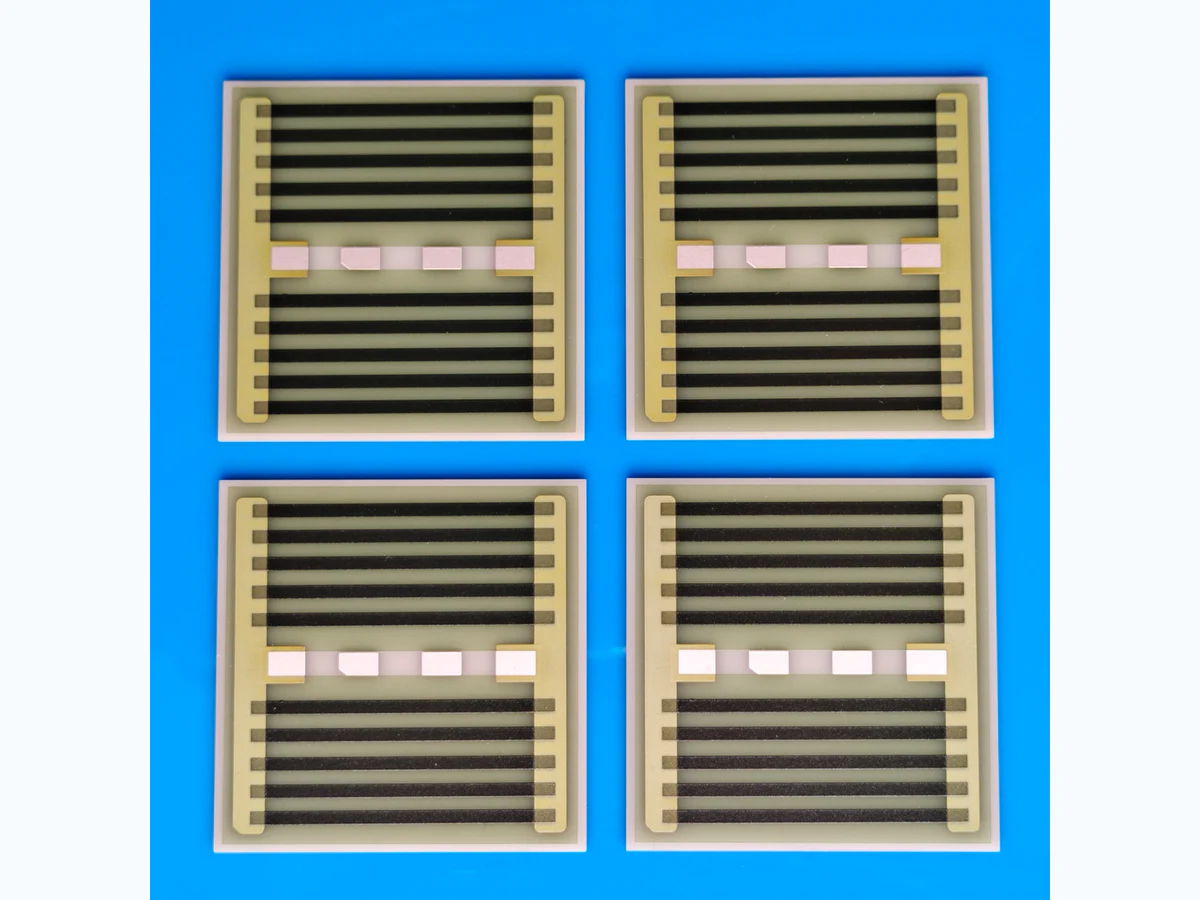

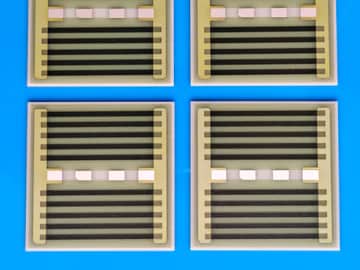

The verified set contains four original product photographs and one controlled crop from a real original. Visible features include square green ceramic bodies, dark printed heater paths, terminal pads, attached leads, and small sensing components on some samples. These views do not prove AlN grade, purity, thermal conductivity, resistance, power, temperature, insulation, or lifecycle.
- Visible construction
- Square ceramic bodies, printed paths, terminal pads, leads, and some sensing components are visible.
- Material boundary
- AlN grade, purity, thickness, thermal conductivity, flatness, and metallization require controlled documentation.
View 2 additional evidence boundaries
- Thermal boundary
- Power density, heat-up time, uniformity, operating temperature, and lifetime depend on mounting and controls.
- Electrical boundary
- Resistance, voltage, insulation, hi-pot, leakage, and terminal ratings require the released design and tests.
Manufacturing & Quality
Chipsimple supports controlled heater printing, thermal processing, laboratory inspection, and protected packing in Dongguan.
Read the shared manufacturing-control scope
AlN heater projects release the ceramic and paste system, artwork, terminals, sensing, mounting, electrical tests, thermal fixture, sampling, traceability, and acceptance records together; final ratings depend on validated assembly conditions.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom AlN Thick Film Heater?
Define AlN grade and thickness, heater outline, resistance, voltage, power, power zones, target temperature, heat-up time, duty cycle, sensor and control scheme, terminals, mounting pressure, heat sink or heated body, interface material, insulation, ambient, vacuum or fluid exposure, and safety tests.
Are the quick specification values guaranteed for every design?
No. They are practical category-level selection values, not a released product specification. Material compatibility, geometry, print build, electrical loading, assembly, environment, inspection method, and expected volume can narrow the usable window. Final values are confirmed against the controlled drawing and approved project conditions.
How should AlN Thick Film Heater performance be validated?
Test resistance, insulation, hi-pot or leakage as required, actual power, terminal temperature, heat-up and cool-down curves, surface temperature map, overshoot, control response, mounting effects, thermal cycling, and relevant environment. Use the production-intent fixture, sensor, controls, sample size, and failure limits.
What should be included with an RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, material preference, electrical targets, assembly interface, operating environment, validation requirements, prototype quantity, annual volume, and schedule. Include the AlN grade, thermal interface, power map, sensor and controls, heat-up target, terminal limits, and production-intent test fixture.
Request a AlN Thick Film Heater Quote
Send the heater drawing with the real thermal stack, target body, mounting, sensing, controls, ambient, and safety requirements. Resistance, voltage, power, temperature, heat-up time, and insulation must be evaluated in the intended assembly rather than released from a free-air photograph or category value.
RFQ inputs and review sequence
- Drawing-led DFM and material-route feedback
- Prototype and repeat-production route review
- Confidential handling of customer files
