Alumina body and printed stack
Review ceramic purity and thickness, diameter and holes, flatness, edge condition, conductor and resistor compatibility, protective coverage, clearances, print sequence, and thermal contact area.
Ceramic Heater Engineering
Alumina Thick Film Heater
An alumina thick film heater places a project-defined printed resistance and conductor system on a compact ceramic body, with terminal, lead, insulation, heat-transfer, and control requirements released as one assembly. The supplied photographs show round ceramic discs with white rims, green visible surfaces, dark radial patterns, terminal areas, and red leads. Send the ceramic drawing, resistance, voltage, power, thermal boundary, terminal and lead details, environment, quantity, and validation plan for review.
- Round alumina heater and printed-layout review
- Resistance, conductor, protection, and terminal definition
- Lead attachment and assembly-interface evaluation
- Project-selected electrical and thermal validation
- 4 photos
- Photographed product set
- Alumina
- Named ceramic route
- ±5%
- Typical resistance
- ≈850°C
- Ceramic process typical
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Alumina Thick Film Heater is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina ceramic | Alternative approved route selected from heat path, insulation, corrosion, outline, mounting, and process compatibility | Approved material specification, drawing, and incoming criteria |
| Dielectric Layers | Ceramic insulation route; dielectric layers only where the released stack requires them | Layer count, fired thickness, edge margin, creepage, clearance, grounding, and interface by safety review | Released insulation stack and agreed IR/withstand test plan |
| Heater Resistor | RuO₂ / Metal-based / PTC | RuO₂, metal-based, or PTC route selected for resistance, temperature coefficient, firing/cure, and duty profile | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Metal terminal | Ag, Ag-Pd, or metal terminal route by current, connection, temperature, corrosion, and assembly | Approved material stack, assembly interface, and sample |
| Rated Voltage | Project-rated after electrical and thermal review | Approved category engineering envelope: 3–240 V AC/DC typical | Approved electrical-thermal design and instrumented prototype validation |
| Rated Power | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–2,000 W typical; heat load and available area are checked | Approved electrical-thermal design and instrumented prototype validation |
View 7 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Target Resistance | Project-rated after electrical and thermal review | Approved category engineering envelope: 0.1 Ω–10 kΩ typical; calculated from released voltage and power | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±5% typical | ±5% typical; reference temperature, lead compensation, and measurement timing are defined | Released electrical limits, measurement method, and approved sample |
| Power Density | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–60 W/cm² typical; local cooling, duty, contact, and hot spots are reviewed | Approved electrical-thermal design and instrumented prototype validation |
| Operating Temperature | Ceramic/metal route ≤600°C typical | Continuous, peak, ambient, fluid, interface, and no-flow/no-load conditions are separated for validation | Approved electrical-thermal design and instrumented prototype validation |
| Process Temperature | ≈850°C ceramic firing route | Actual peak, dwell, atmosphere, and refire/cure exposure follow the selected material stack | Approved material-process route and production traveler |
| Electrical Test | IR ≥100 MΩ / Hi-pot ≥1.5 kVAC typical | IR, hi-pot voltage, ramp, dwell, leakage, humidity state, and pre/post conditioning by product safety plan | Released insulation stack and agreed IR/withstand test plan |
| Life-test conditions | On/off cycling is defined with powered dwell, cooling dwell, mounting, cooling medium, and starting temperature | Cycle count, voltage, load, fault conditions, resistance drift, insulation, leakage, and appearance limits by application risk | Agreed endurance profile and pre/post-test acceptance report |
Engineering Capabilities
Four controls connect the alumina disc, printed heater system, terminal and lead assembly, heat-transfer interface, and validation plan. Visible features guide the first review; purity, layer chemistry, dimensions, values, temperature limits, and test acceptance remain project-controlled.
Resistance layout and registration
Connect resistance, tolerance, voltage, power, power density, path geometry, heated area, conductor transitions, openings, sensor position, artwork revision, and measurable alignment limits.
Terminal, lead, and assembly interface
Define terminal material and finish, joining method, lead gauge and temperature rating, polarity, length, routing, strain relief, pull criteria, connector, housing, thermal contact, and packing.
Electrical and thermal verification
Release resistance, continuity, insulation resistance, hi-pot, leakage, power, warm-up, thermal mapping, cycling, functional checks, sampling, calibration, traceability, and report format.
Typical Applications
These application illustrations show conditional ceramic-heater directions. Suitability depends on the released ceramic geometry, heat load, resistance and power, terminal and lead assembly, thermal contact, environment, controls, safety requirements, and validation plan.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.

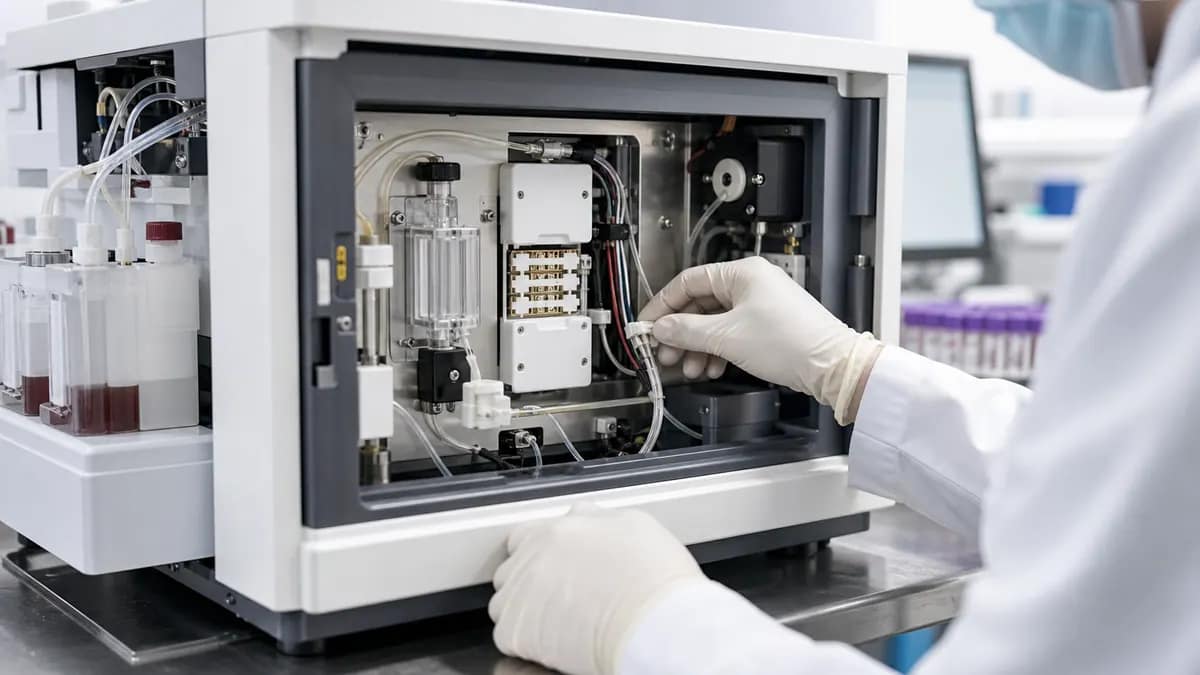

Application illustrationDiagnostic analyzer heating
An alumina heater may support compact analyzer thermal zones after the target temperature, uniformity, sample interface, contamination limits, sensor and control logic, lead routing, cleaning, and equipment validation are released.
Review analyzer inputs
Application illustrationLaboratory instruments
Round or custom ceramic heaters can be reviewed for instrument chambers and fixtures when heated geometry, warm-up time, stability, thermal contact, vacuum or atmosphere, terminals, sensors, and calibration route are defined.
Review instrument inputs

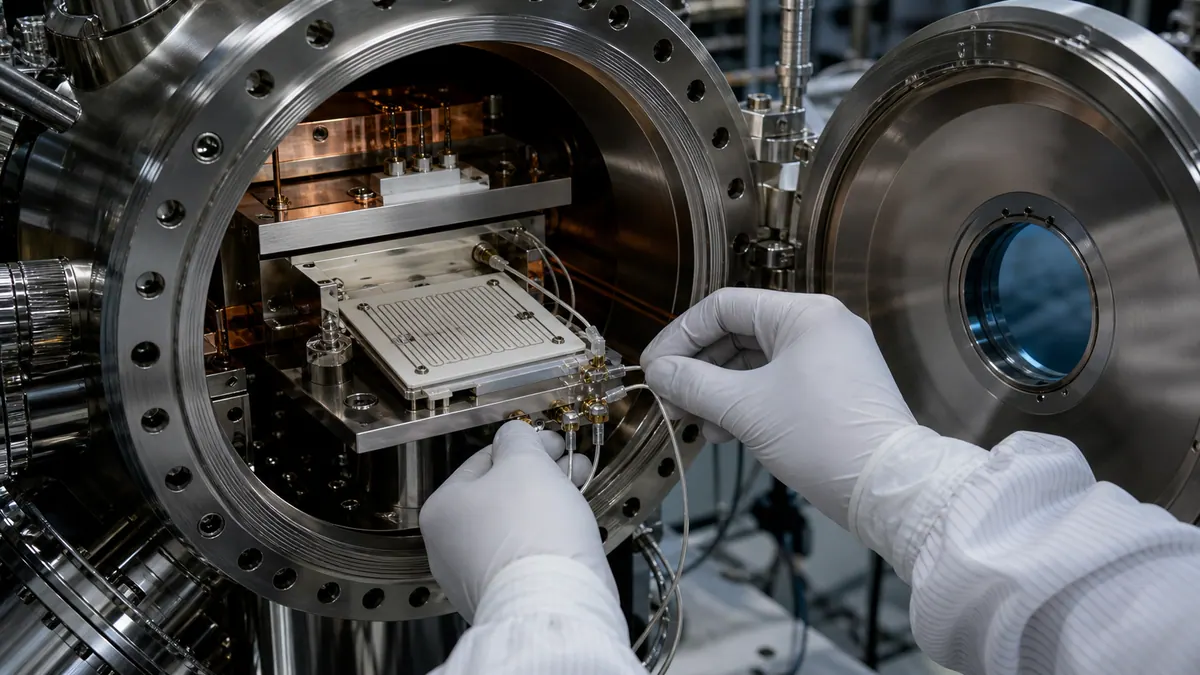

Application illustrationVacuum equipment
An alumina heater may be considered for localized vacuum heating after material compatibility, outgassing, feedthrough and lead design, thermal radiation and conduction, control limits, insulation, cycling, and chamber-level qualification are specified.
Review vacuum inputsVerified Product Views

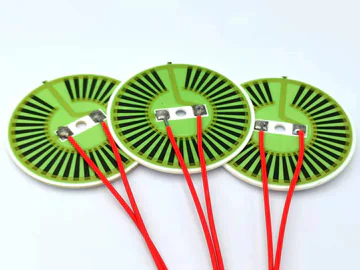

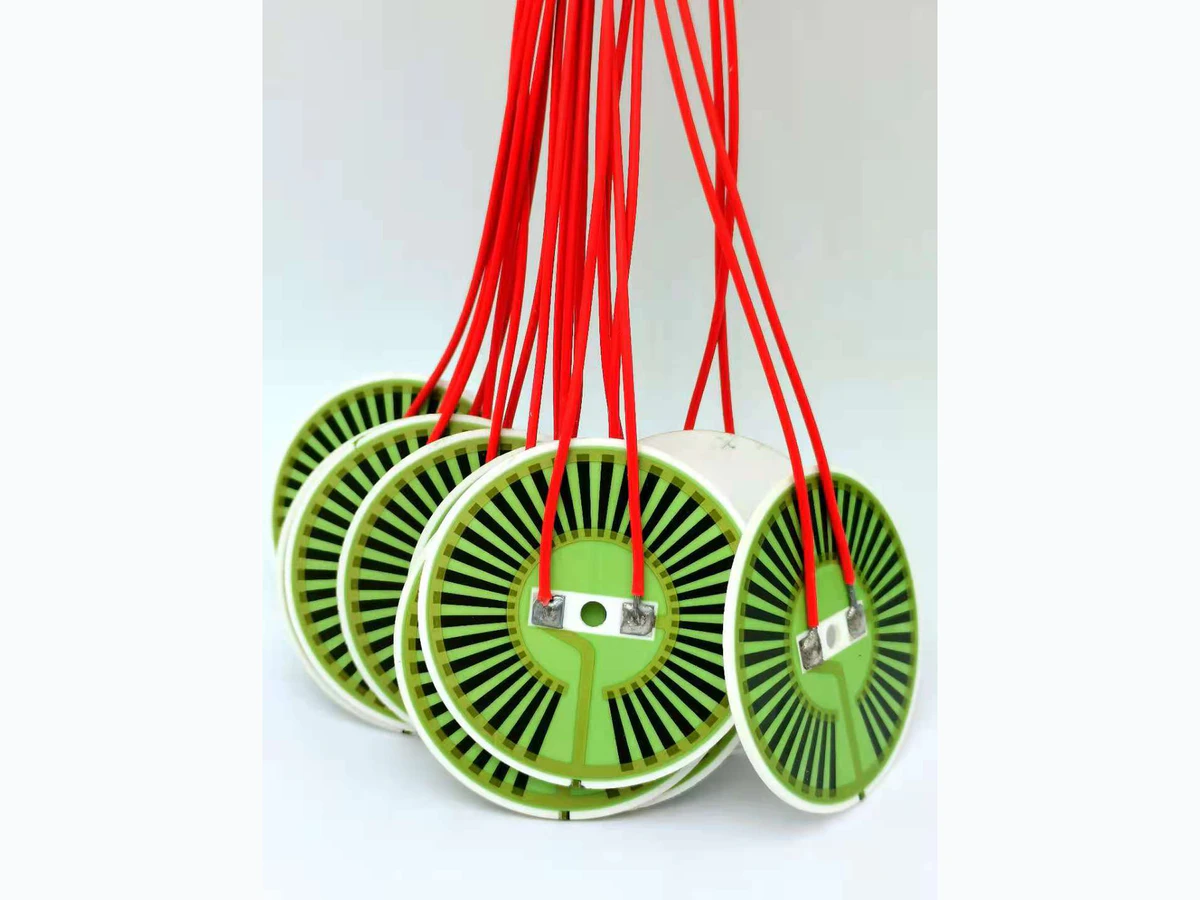

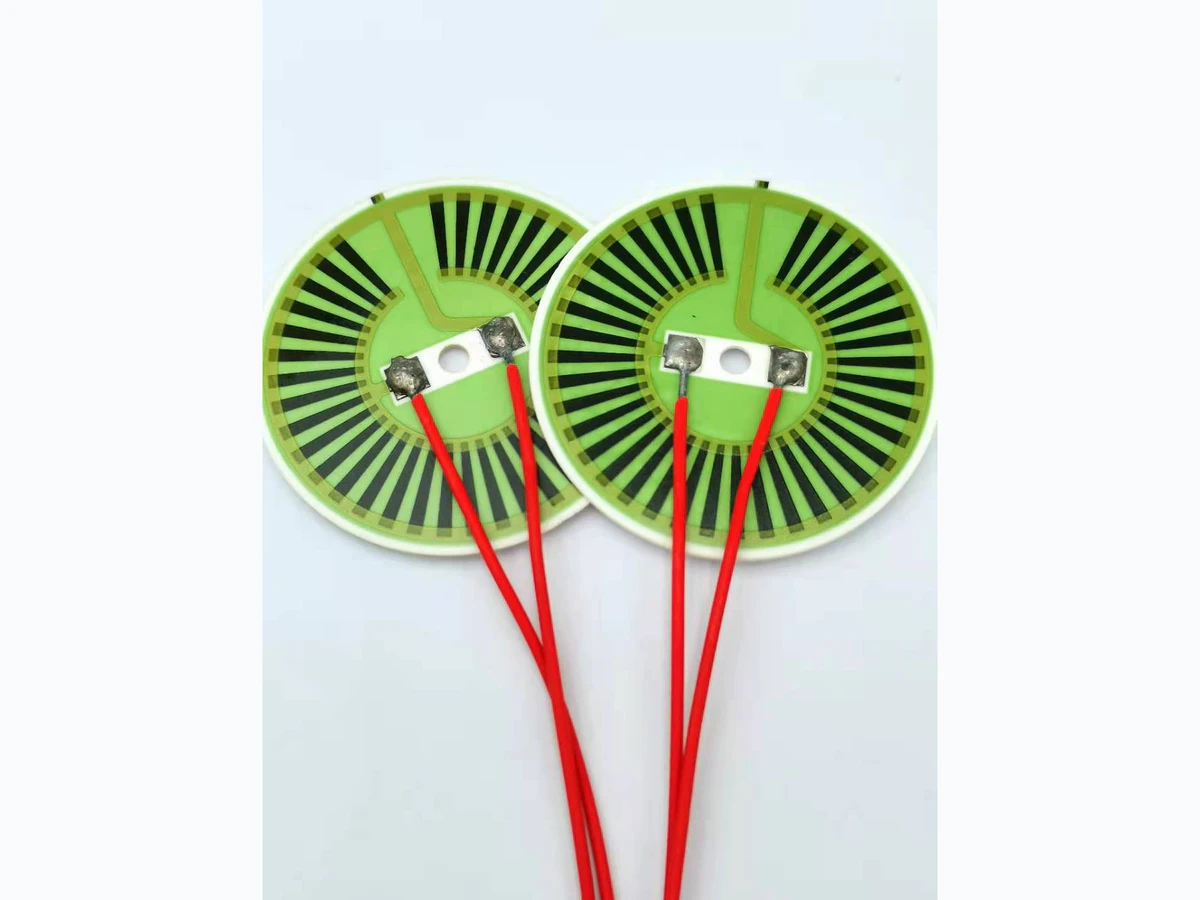

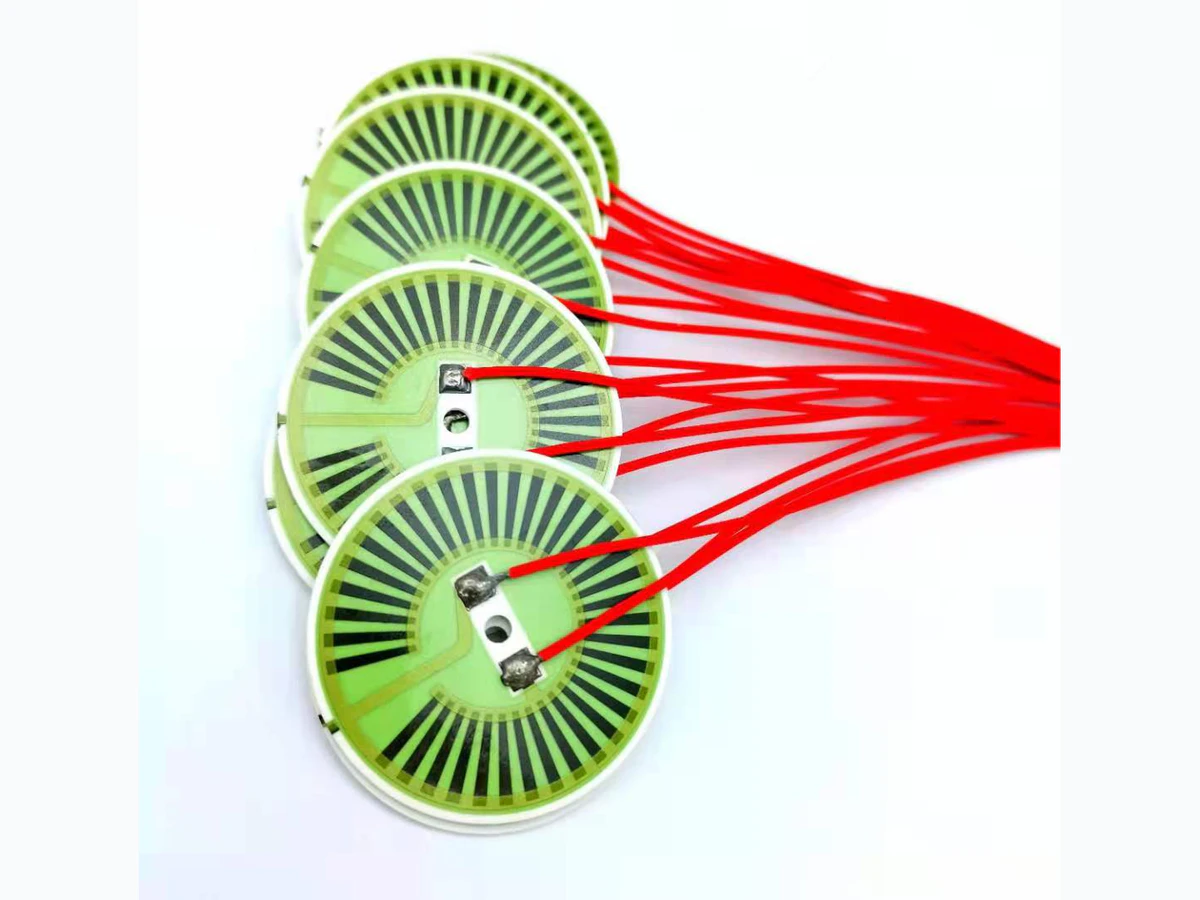

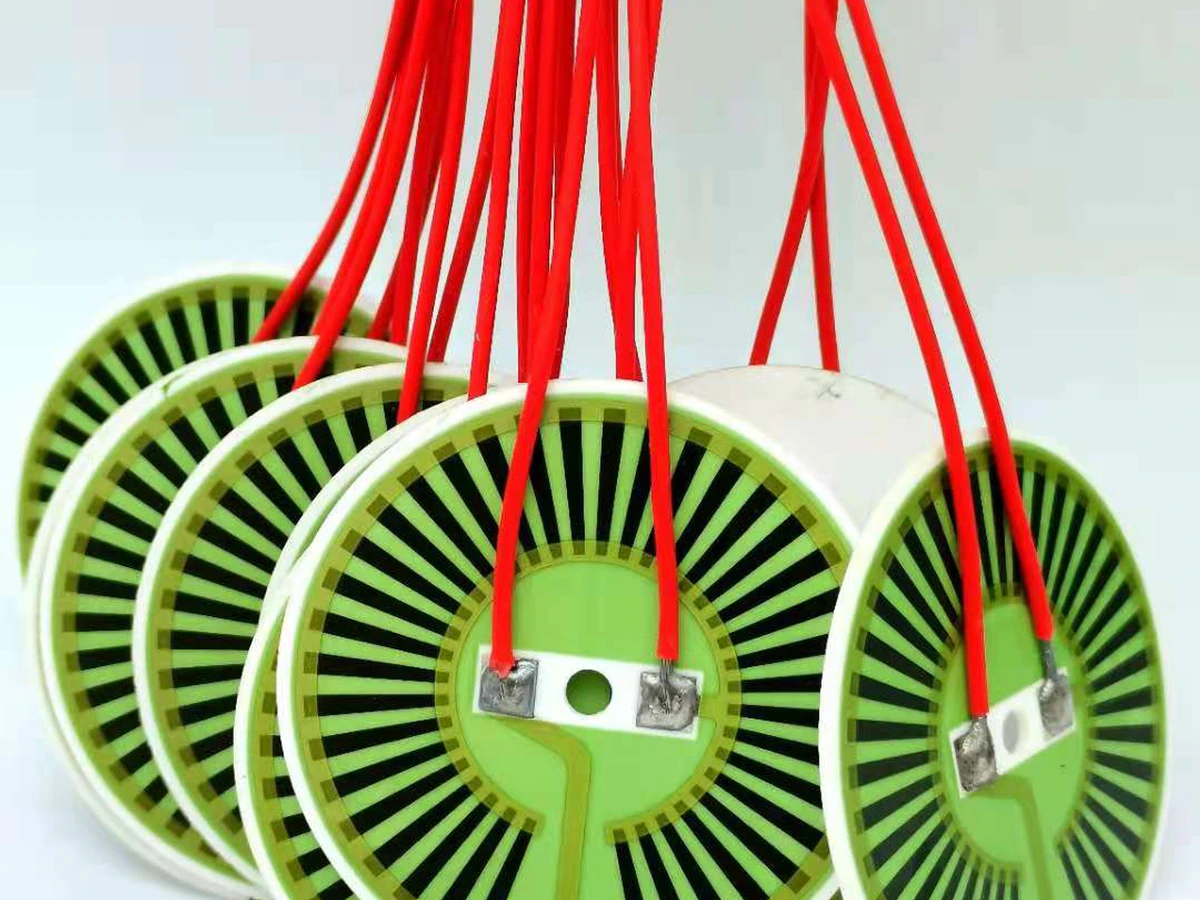

Four supplied photographs and one controlled detail crop visibly confirm round ceramic heater discs with white rims, green visible surfaces, dark radial patterns, terminal regions, red leads, and several group configurations. The images do not establish alumina purity, dimensions, printed material identities, resistance, voltage, power, temperature capability, lead rating, pull strength, insulation, lifetime, lot, inspection, or shipment status.
- Visible product form
- The set shows multiple round ceramic discs, white rims, green visible fields, dark radial patterns, attached red leads, and joined terminal areas.
- Evidence boundary
- Color and appearance do not prove ceramic purity, layer identity, resistance, power, thermal performance, insulation, lead rating, pull strength, lifetime, qualification, or production status.
View 1 additional evidence boundaries
- Required project proof
- Controlled ceramic and artwork drawings, material definitions, assembly instructions, electrical and thermal test results, traceability, and packing records must belong to the authorized order.
Manufacturing & Quality
Company resources support controlled printing, thermal processing, laboratory inspection, and managed production in Dongguan.
Read the shared manufacturing-control scope
For alumina heaters, the compatible ceramic and paste system, terminal and lead assembly, resistance and insulation checks, thermal validation, sampling, traceability, and acceptance records are confirmed for each released project.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be included in an alumina thick film heater RFQ?
Provide the dimensioned ceramic drawing, alumina purity and thickness if specified, printed artwork, heated area, target resistance and tolerance, voltage, power, power density, temperature target, heat load, duty cycle, thermal contact, terminal and lead requirements, sensors and controls, environment, quantities, safety tests, and acceptance records. A sample photo is useful but cannot replace the controlled drawing and electrical conditions.
Can the resistance pattern, disc size, terminals, and leads be customized?
They can be reviewed against the ceramic and assembly route. Engineering checks ceramic availability, diameter and thickness, holes and edge finish, printable area, resistance range, path geometry, conductor transitions, protection, terminal metallurgy, joining temperature, lead rating, strain relief, connector space, thermal contact, inspection access, tooling, yield, and volume before confirming feasibility.
How are alumina heater temperature and uniformity confirmed?
The heater is evaluated under the released mounting and heat-load condition. The plan may include resistance and power measurement, sensor placement, warm-up, steady-state mapping, local hot-spot review, control limits, insulation and hi-pot checks, cycling, and application-level functional testing. The listed category ranges are typical guidance, not a guaranteed temperature for every disc.
Do the supplied green and dark visible areas identify the layer materials?
No. Visible color is not reliable proof of resistor, conductor, dielectric, glass, protective, or ceramic chemistry. The photographs confirm patterns and interfaces only. Material identity, fired build, values, electrical duty, temperature limit, stability, safety performance, lot, and shipment status require controlled specifications and records.
Request an Alumina Thick Film Heater Quote
Send the ceramic, printed-layer, electrical, thermal, terminal, lead, assembly, environment, safety, and order inputs so engineering can review the alumina body, resistance layout, conductor transitions, protection, heat-transfer interface, and validation route together. Production release follows the approved drawing and project test plan.
RFQ inputs and review sequence
- Drawing-led DFM feedback and heater-layout review
- Prototype and repeat-production route evaluation
- Confidential handling of customer drawings
- Project-specific electrical and safety-test planning
- Dimensioned ceramic drawing with alumina grade or purity, thickness, diameter or outline, holes, datums, flatness, edge finish, tolerances, heated area, and revision
- Target resistance and tolerance, voltage, power, current, power density, temperature profile, heat load, duty cycle, warm-up, uniformity, and sensor or control method
- Printed conductor, resistor, protection and opening requirements plus terminal material, joining route, lead gauge, rating, length, polarity, routing, strain relief, connector, and housing
- Operating and storage atmosphere, vacuum, humidity, contamination, cleaning, chemical exposure, vibration, cycling, insulation and hi-pot criteria, and applicable equipment standard
- Prototype and lot quantities, schedule, sampling, calibration, inspection and test reports, traceability, labeling, protected packing, and shipment requirements
- 1Upload ceramic and heater-layout drawings
- 2Engineering reviews the printed stack and interfaces
- 3Confirm prototype and validation conditions
Submit RFQ and upload files
PDF, DWG, DXF, STEP, Gerber, ZIP, Excel, Word, or sample photos are accepted.
