Crossover stack definition
Review substrate, lower conductor, dielectric material and build, upper conductor, optional protection, openings, print count, firing sequence, and refire compatibility.
Printed Crossover Engineering
Custom Thick Film Dielectric Crossover Circuit
Custom thick film dielectric crossover circuits require the lower conductor, dielectric footprint, upper conductor, overlap, registration, net relationship, electrical limits, and firing sequence to be released together. Send the layer artwork, stack requirements, operating conditions, assembly details, quantity, and test plan so engineering can review manufacturability.
- Conductor-dielectric stack review
- Overlap and registration control
- Net, continuity, and isolation planning
- Project-defined electrical records
- 96% Alumina
- Substrate material
- 0.25 – 3.0 mm
- Board thickness
- ≥ 100 μm
- Minimum line/space
- Up to 850°C
- Firing temperature
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Thick Film Dielectric Crossover Circuit is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | 96% Alumina (Al₂O₃) standard route | 99% / 99.6% alumina or AlN through material and process review | Approved material specification, drawing, and incoming criteria |
| Board Thickness | 0.25–3.0 mm | Thickness inside 0.25–3.0 mm is checked against outline, flatness, holes, handling, and firing | Approved material specification, drawing, and incoming criteria |
| Conductor System | Silver (Ag) / Silver-Palladium (Ag-Pd) | Pt-Ag, Au, bonding, soldering, contact, and high-temperature routes by compatible stack review | Approved material stack, assembly interface, and sample |
| Resistor System | RuO₂ thick film | Paste family, sheet resistance, geometry, refire sequence, and trim allowance by circuit target | Released drawing and approved sample |
| Conductor Thickness | 10–25 µm | Value inside 10–25 µm is selected for print build, firing, current path, and assembly | Released drawing, DFM approval, and first-article inspection |
| Resistor Tolerance | ±1% standard | ±0.5% available after geometry, material, trimming, and measurement review | Released drawing and approved sample |
View 7 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Firing Temperature | Up to 850°C | The peak profile is paste- and stack-specific within the approved route; later refires are reviewed together | Approved material-process route and production traveler |
| Thermal Conductivity | ≥24 W/m·K, 96% alumina reference | Alternative alumina grade or AlN route by approved material certificate and system thermal review | Released drawing and approved sample |
| Minimum Line/Space | ≥100 µm | Geometry at the ≥100 µm controlled capability is checked for paste, screen, registration, overlap, edge clearance, and yield | Released drawing, DFM approval, and first-article inspection |
| Board Size | Up to 120 × 120 mm | Larger than 120 × 120 mm by panel, flatness, handling, firing, and inspection review | Released drawing, DFM approval, and first-article inspection |
| Surface Finish | HASL / ENIG / ENEPIG | Finish selected for soldering, bonding, contact, storage, and downstream thermal exposure | Approved material stack, assembly interface, and sample |
| Dielectric Strength | ≥15 kV/mm | Product withstand voltage is derived from dielectric material, fired thickness, clearances, interfaces, and test method | Released insulation stack and agreed IR/withstand test plan |
| Crossover plan | Local dielectric and overpass conductor controlled on the stack drawing | Crossover count, overlap, keep-out, refire sequence, insulation resistance, and withstand test by circuit risk | Approved stack and first-article electrical results |
Engineering Capabilities
Four controls connect the printed stack, overlap, registration, net relationship, electrical limits, and assembly to one released crossover structure. Visible surface features support an initial review but do not prove dielectric identity or function.
Overlap and registration control
Define artwork datums, crossover footprint, conductor-to-dielectric overlap, edge clearance, print direction, compensation, tolerance, inspection access, and measurable acceptance limits.
Net and assembly interfaces
Connect each lower and upper route to its net duty, continuity and isolation requirements, test points, terminals, joining route, housing, coating, cleaning, and environment.
Electrical verification plan
Select visual, dimensional, registration, continuity, isolation, leakage, adhesion, environmental, traceability, and packing checks with agreed conditions, sampling, and records.
Typical Applications
These application directions show where a localized printed crossover may fit after stack, electrical, assembly, environmental, and validation requirements are defined.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationIndustrial instrument controllers
Localized printed crossings may support compact controller routing after the substrate, layer stack, net relationships, electrical loading, connector layout, enclosure, environment, and validation plan are released.
Review controller inputs
Application illustrationSensor signal-conditioning modules
Dense routing can be evaluated for sensor interfaces when channel relationships, signal levels, shielding, grounding, isolation needs, connector geometry, temperature, contamination, and test criteria are defined.
Review sensor inputs

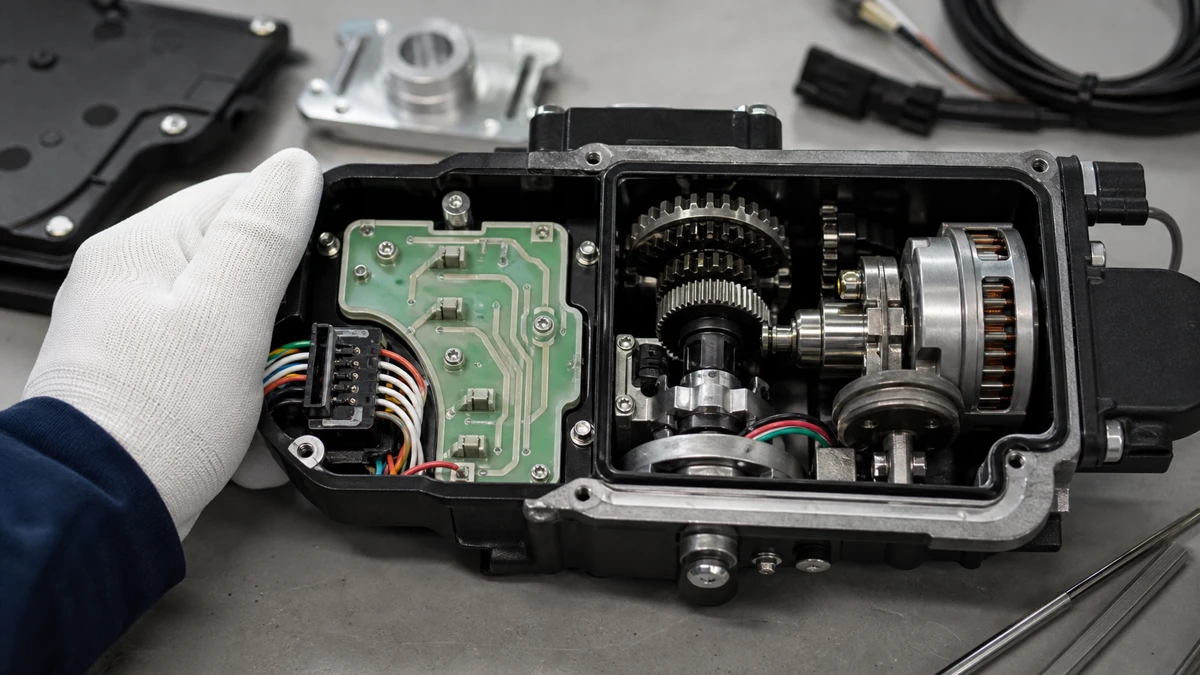

Application illustrationCompact actuator control assemblies
Actuator electronics require the motion interface, connector, current paths, grounding, crossover locations, vibration, temperature, housing, assembly method, service access, and acceptance plan to be released together.
Review crossover inputsVerified Product Views

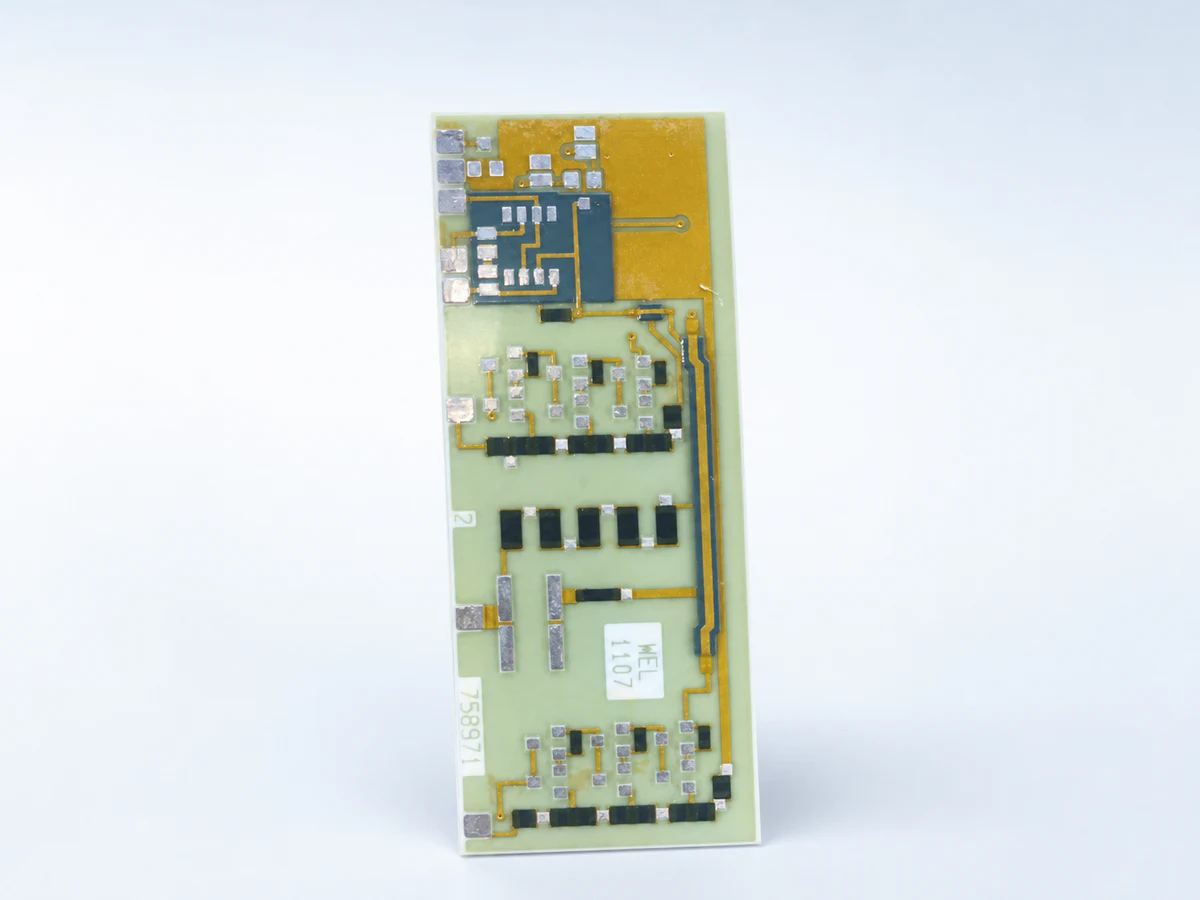

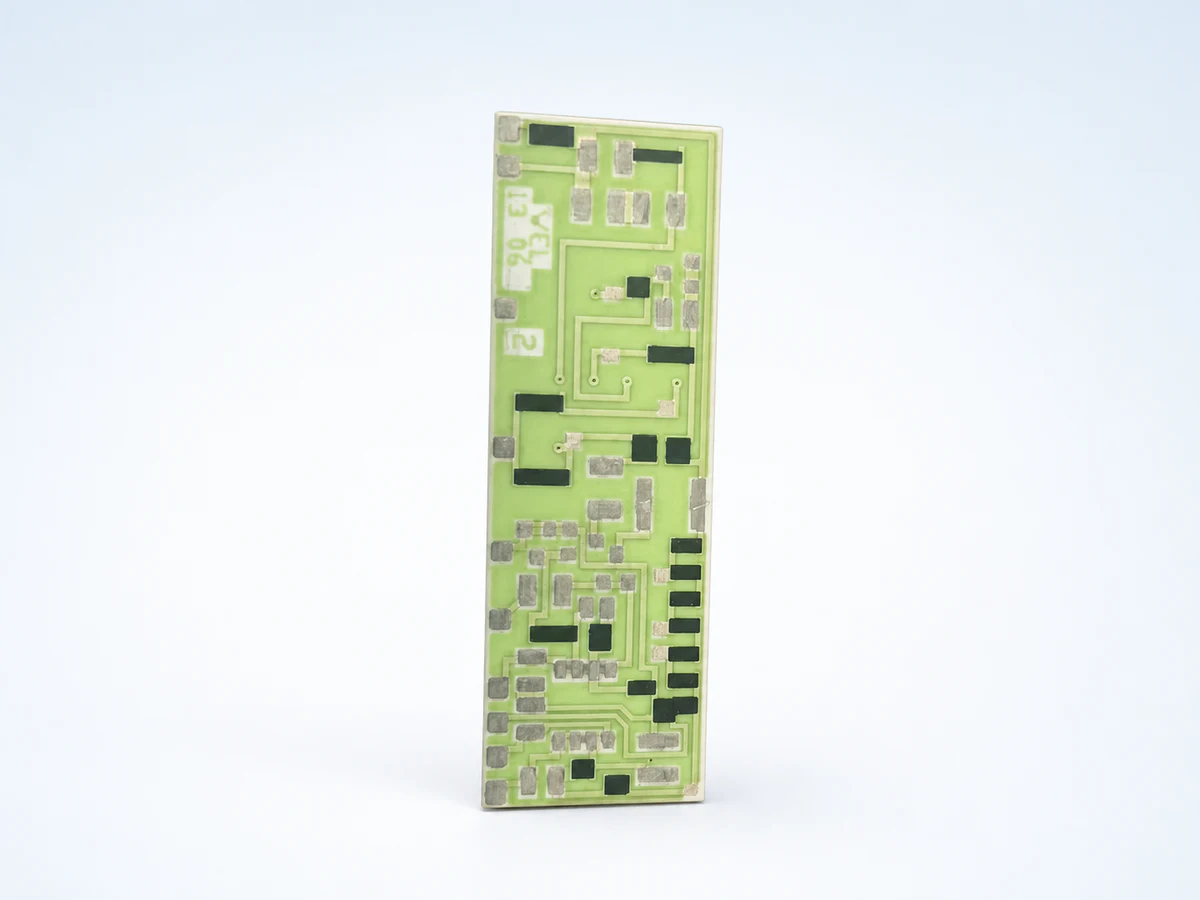

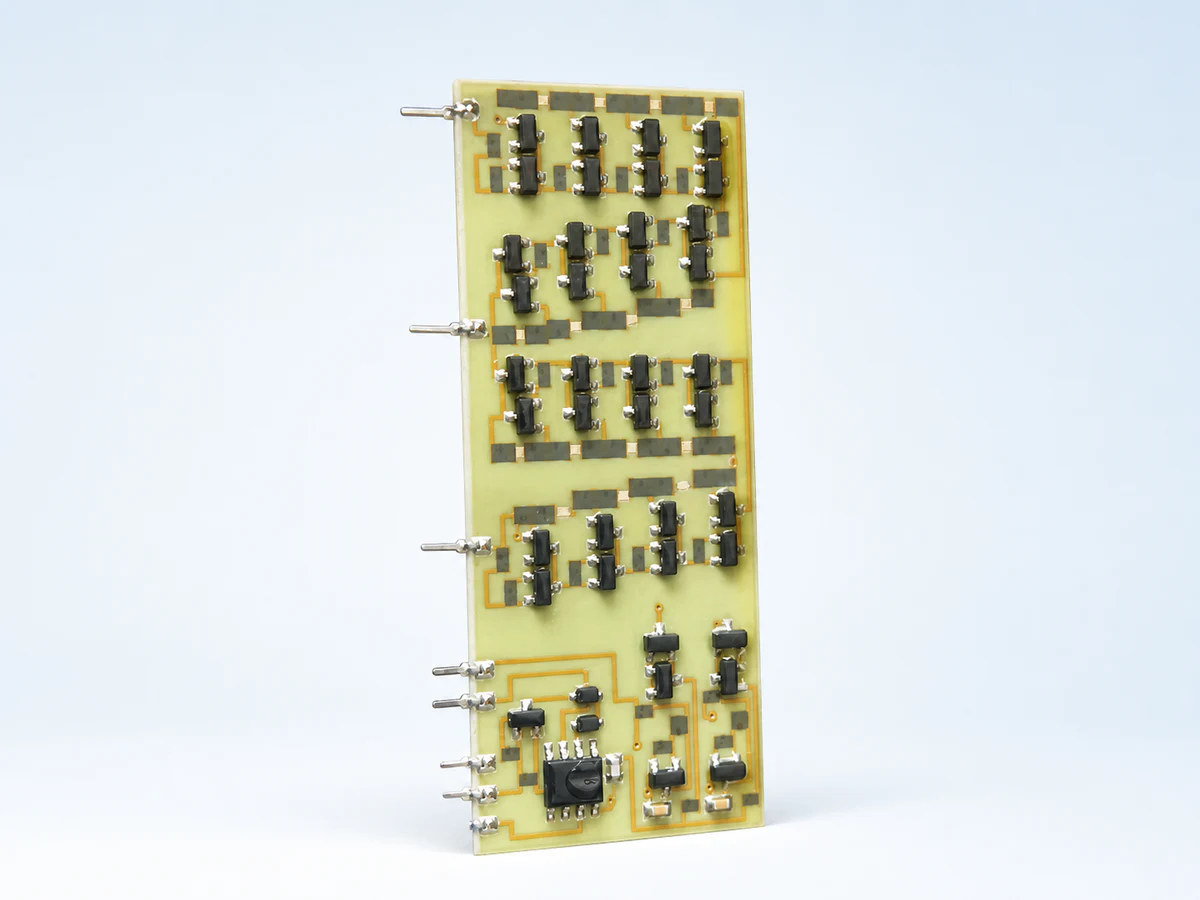

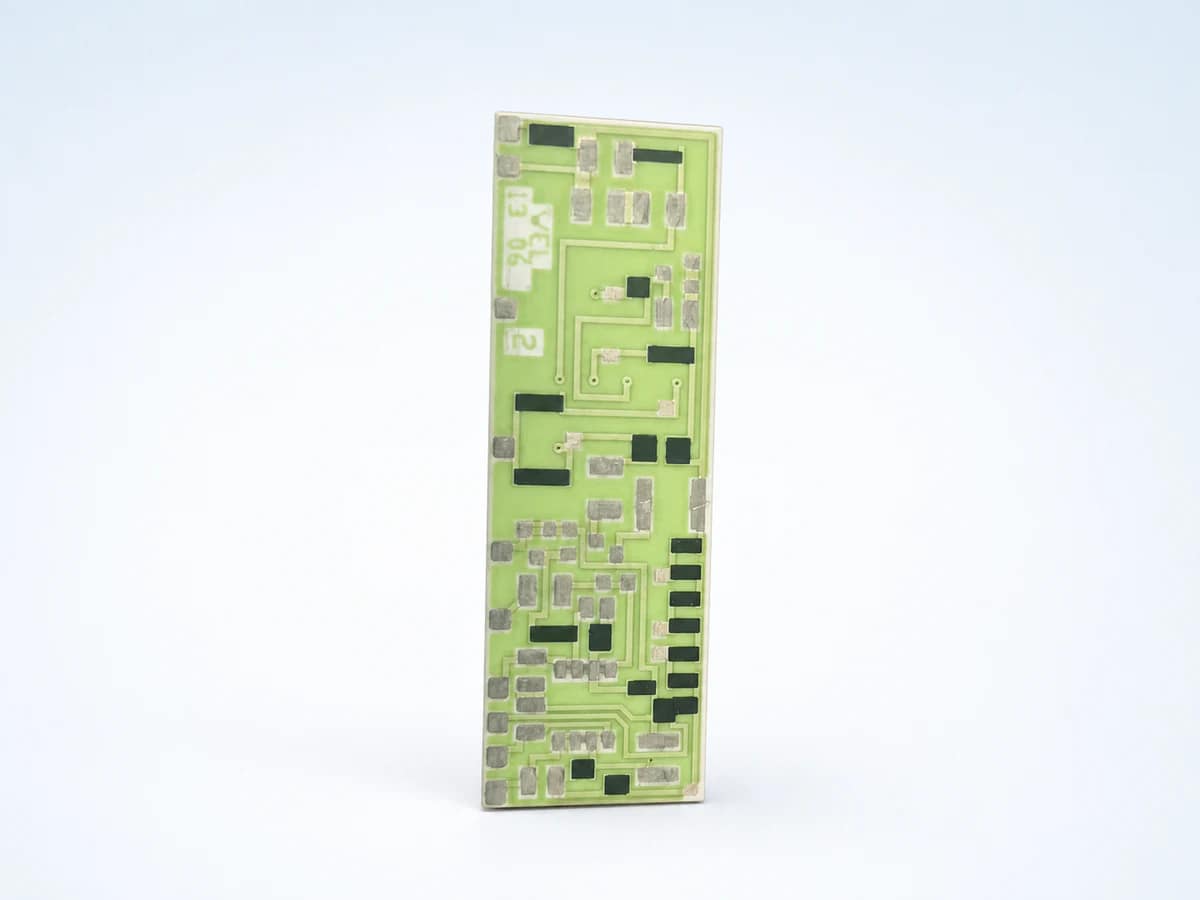

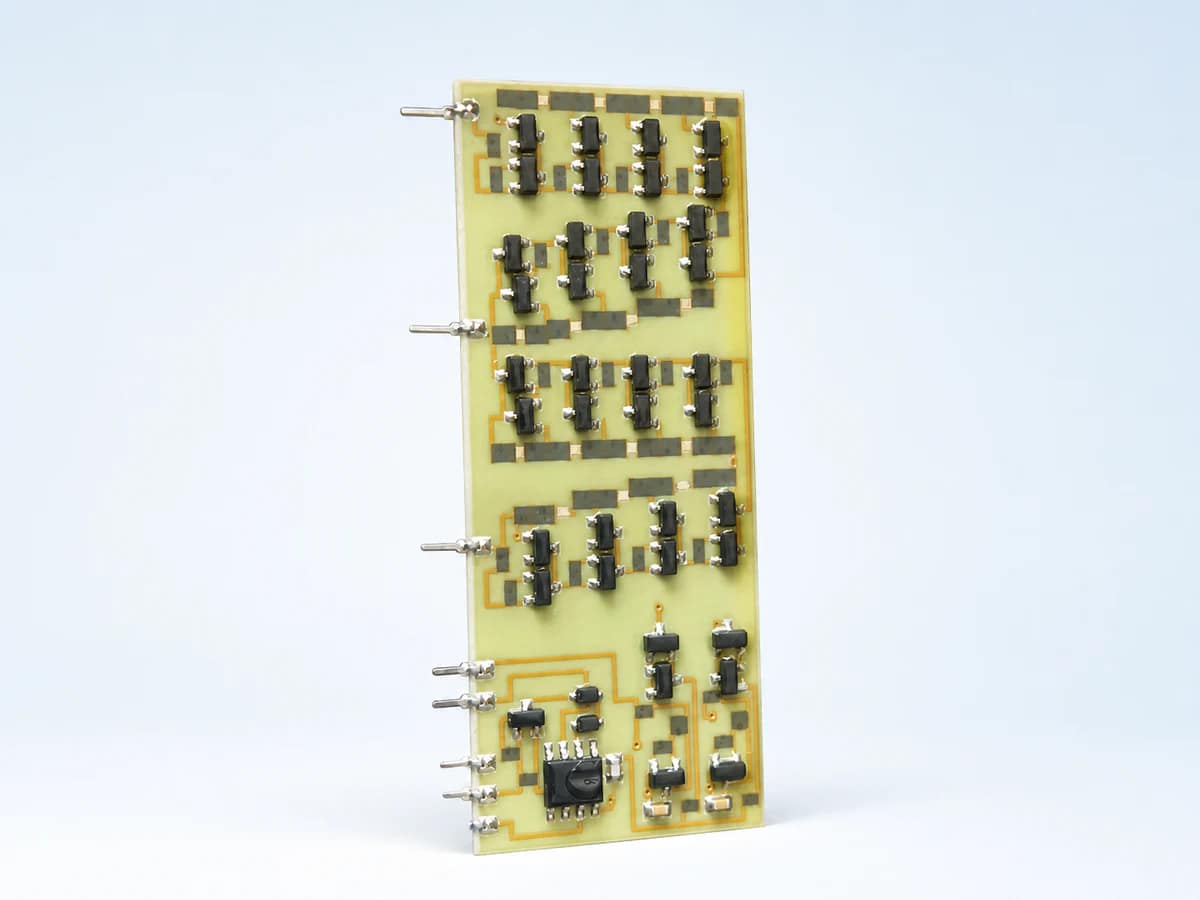

Five physical product views show elongated pale-green circuit forms with visible gold or amber routing, silver pads and solder joints, black components, terminals, labels, and different surface layouts. These views document product form only; they do not establish dielectric identity, layer order, crossover function, continuity, isolation, voltage performance, dimensions, inspection results, lot history, or shipment traceability.
- Visible product form
- Elongated rectangular forms, several surface-layout variants, visible routing, silver pads and joints, dark components, terminals, edge details, and product markings are visible.
- Hidden structure boundary
- Material identities, layer sequence, fired build, overlap, net relationships, continuity, isolation, withstand performance, and electrical function cannot be proven from surface photographs.
View 1 additional evidence boundaries
- Required project proof
- Controlled artwork, material records, stack and process records, electrical results, traceability, and packing evidence must belong to the corresponding authorized order.
Manufacturing & Quality
Company resources support thick film screen printing, controlled firing, laboratory inspection, and managed production at the Dongguan site.
Read the shared manufacturing-control scope
The applicable ceramic, conductor, dielectric, artwork, firing route, electrical checks, sampling, traceability, and acceptance records are confirmed for each released project.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What is a thick film dielectric crossover?
It is a drawing-defined printed structure in which one conductor route passes over another through a compatible dielectric layer. The substrate, lower conductor, dielectric footprint, upper conductor, overlap, registration, print and firing sequence, net relationship, electrical limits, assembly, and verification method must be released for the project.
Can surface photographs prove a dielectric crossover structure?
No. The photographs confirm physical circuit variants, visible routing, pads, components, terminals, and markings. They do not identify the lower conductor, dielectric footprint, upper conductor, layer sequence, fired build, overlap, continuity, isolation, withstand voltage, or electrical function of a crossover. Those items require controlled artwork, material records, and agreed tests.
What information defines crossover electrical performance?
Provide the lower and upper route geometry, dielectric footprint and material, fired build, overlap, registration tolerance, net relationship, continuity points, working and transient voltage, current, isolation or leakage limits, environment, test access, equipment, sampling, and acceptance method. Unreleased numerical values remain project-specific.
What files should be sent for quotation?
Send the controlled circuit drawing, Gerber or layer artwork, schematic or net map, substrate requirement, conductor and dielectric notes, dimensions and tolerances, electrical and environmental inputs, assembly method, inspection plan, quantity, schedule, and required records. Clear sample photographs can start a review but cannot replace the stack definition.
Request a Thick Film Dielectric Crossover Quote
Send enough information to connect the ceramic, lower route, dielectric footprint, upper route, net map, electrical duty, assembly, environment, verification plan, and order scope. Clear sample photographs can begin a review, but the printed stack must be drawing-defined.
RFQ inputs and review sequence
- Drawing-led DFM feedback and optimization support
- Prototype and production-route evaluation
- Confidential handling of customer drawings
- Project-specific stack and electrical review
- Dimensioned ceramic drawing plus lower-route, dielectric, upper-route, and optional protection artwork with revision and shared datums
- Crossover table with locations, footprint, overlap, openings, keep-outs, registration limits, net relationships, and test access
- Substrate, conductor, dielectric, protection, print and firing sequence, terminal duty, joining route, and assembly details
- Continuity, isolation, leakage or withstand conditions when applicable, current, environment, validation method, and acceptance limits
- Prototype quantity, expected lot volume, schedule, sampling, records, traceability, and protected packing requirements
- 1Upload drawings, layer artwork, and net map
- 2Engineering identifies missing stack inputs
- 3Confirm the prototype and validation route
Submit RFQ and upload files
PDF, DWG, DXF, STEP, Gerber, ZIP, Excel, Word, or sample photos are accepted.
