Thermal profile and material-system review
Review operating and peak temperature, dwell, ramp, gradients, cycle count, atmosphere, substrate, printed materials, and protection as one compatible release system.
Thermal-Duty Ceramic Circuit Engineering
Custom High Temperature Thick Film Circuit
Custom high temperature thick film circuits are reviewed as a complete ceramic, printed-layer, terminal, assembly, and validation system. Send the controlled artwork, material requirements, operating and peak temperature profile, dwell and cycling conditions, electrical targets, atmosphere, quantity, and test plan so engineering can assess a practical manufacturing route.
- Complete thermal-profile review
- Printed material and firing compatibility
- Terminal and assembly interface planning
- Project-defined inspection and validation
- Ceramic route
- Substrate by drawing
- Printed stack
- By project review
- Thermal duty
- By validation
- Test records
- Project-defined
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
High Temperature Thick Film Circuit is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | 96% Alumina (Al₂O₃) standard route | 99% / 99.6% alumina or AlN through material and process review | Approved material specification, drawing, and incoming criteria |
| Board Thickness | 0.25–3.0 mm | Thickness inside 0.25–3.0 mm is checked against outline, flatness, holes, handling, and firing | Approved material specification, drawing, and incoming criteria |
| Conductor System | Silver (Ag) / Silver-Palladium (Ag-Pd) | Pt-Ag, Au, bonding, soldering, contact, and high-temperature routes by compatible stack review | Approved material stack, assembly interface, and sample |
| Resistor System | RuO₂ thick film | Paste family, sheet resistance, geometry, refire sequence, and trim allowance by circuit target | Released drawing and approved sample |
| Conductor Thickness | 10–25 µm | Value inside 10–25 µm is selected for print build, firing, current path, and assembly | Released drawing, DFM approval, and first-article inspection |
| Resistor Tolerance | ±1% standard | ±0.5% available after geometry, material, trimming, and measurement review | Released drawing and approved sample |
View 7 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Firing Temperature | Up to 850°C | The peak profile is paste- and stack-specific within the approved route; later refires are reviewed together | Approved material-process route and production traveler |
| Thermal Conductivity | ≥24 W/m·K, 96% alumina reference | Alternative alumina grade or AlN route by approved material certificate and system thermal review | Released drawing and approved sample |
| Minimum Line/Space | ≥100 µm | Geometry at the ≥100 µm controlled capability is checked for paste, screen, registration, overlap, edge clearance, and yield | Released drawing, DFM approval, and first-article inspection |
| Board Size | Up to 120 × 120 mm | Larger than 120 × 120 mm by panel, flatness, handling, firing, and inspection review | Released drawing, DFM approval, and first-article inspection |
| Surface Finish | HASL / ENIG / ENEPIG | Finish selected for soldering, bonding, contact, storage, and downstream thermal exposure | Approved material stack, assembly interface, and sample |
| Dielectric Strength | ≥15 kV/mm | Product withstand voltage is derived from dielectric material, fired thickness, clearances, interfaces, and test method | Released insulation stack and agreed IR/withstand test plan |
| High-temperature validation | Complete substrate, films, terminals, protection, and assembly interface reviewed as one system | Continuous/peak temperature, atmosphere, dwell, cycling, load, resistance drift, adhesion, and insulation limits by application | Approved thermal profile and prototype validation report |
Engineering Capabilities
Four review controls connect the requested thermal duty to a manufacturable ceramic circuit. Available product views support an initial geometry and visible-feature review; substrate identity, printed materials, numerical temperature limits, electrical performance, assembly compatibility, and validation remain drawing- and project-controlled.
Printed layers and firing sequence
Plan artwork, print order, openings, drying, firing interactions, conductor duty, functional targets, adhesion, and any required refire around the selected materials.
Terminal, assembly, and environment interfaces
Define joining, housing, support, clamping, sealing, expansion, vibration, oxidation, contamination, and cleaning conditions before the circuit and assembly route are released.
Inspection and validation planning
Select visual, dimensional, electrical, insulation, adhesion, thermal exposure, cycling, traceability, and packing checks from the drawing, assembly state, and project risk.
Typical Applications
The three labeled application illustrations show conditional directions for engineering review. Product suitability depends on the actual thermal profile, atmosphere, electrical loading, terminals, mounting, enclosure, and validation plan.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.

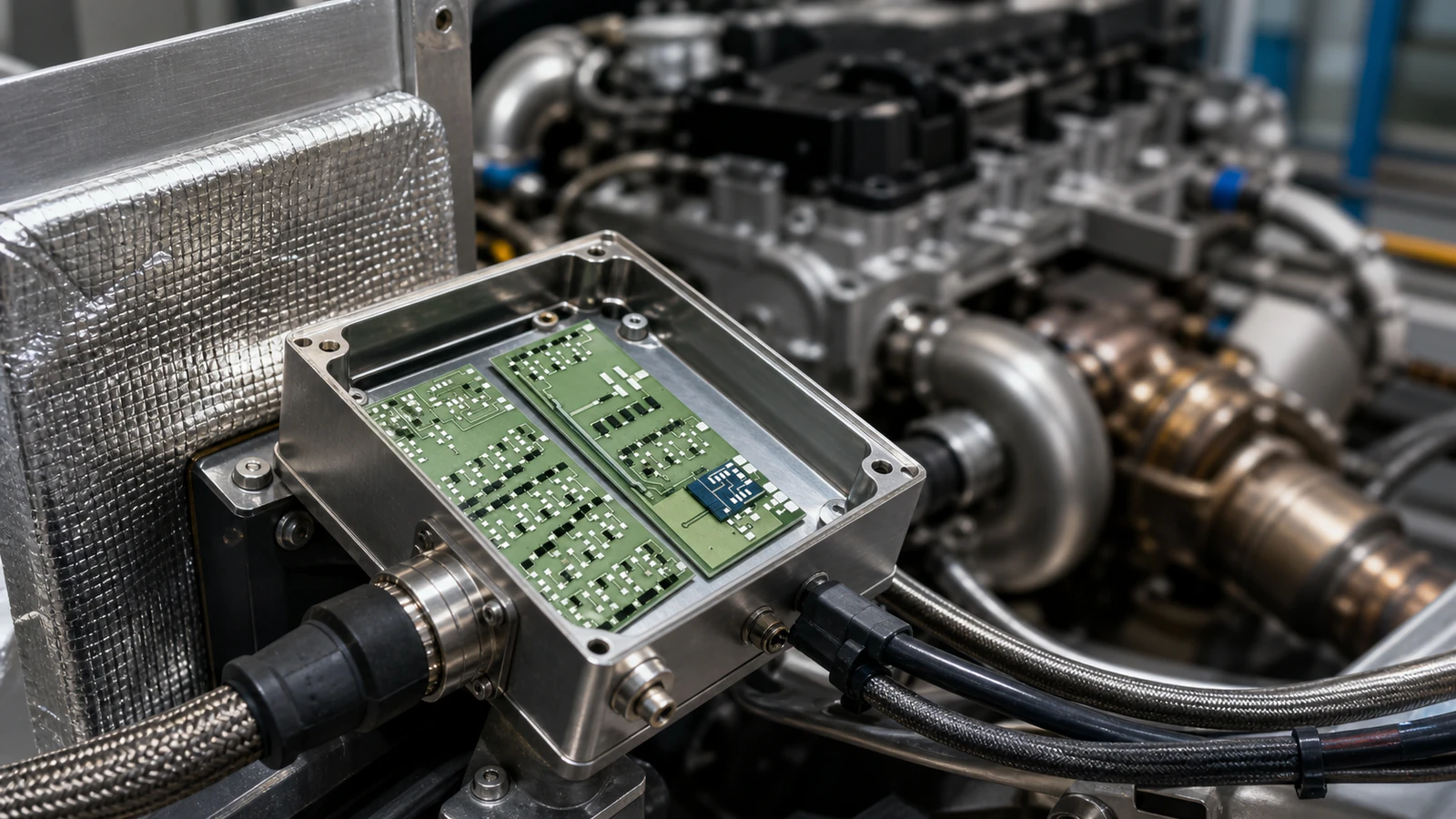

Application illustrationEngine-adjacent sensor interfaces
This route can be evaluated for sensor electronics near heat sources after temperature, vibration, atmosphere, enclosure, terminal duty, and electrical validation requirements are released.
Review sensor inputs

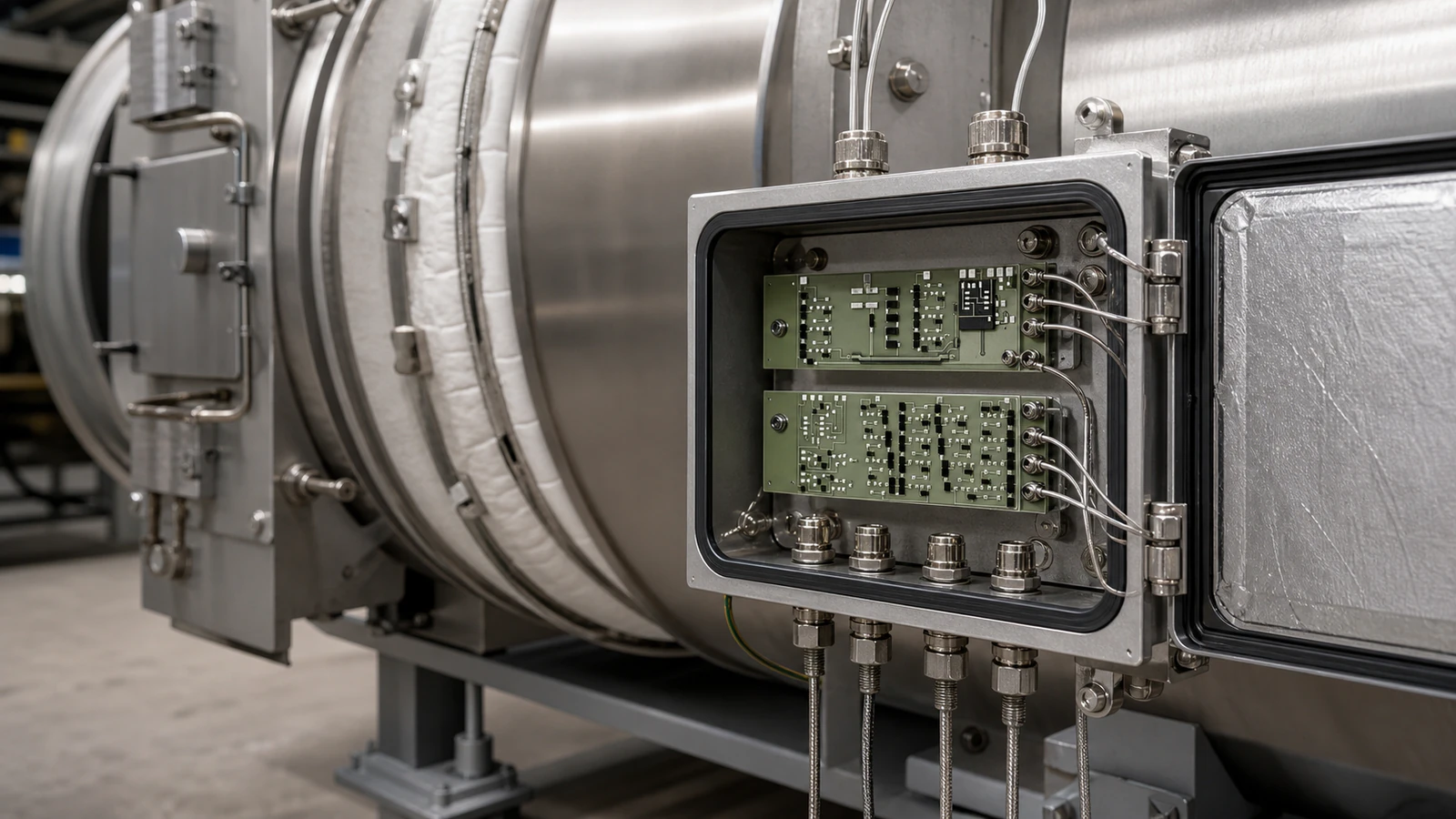

Application illustrationFurnace and oven instrumentation
A ceramic thick film circuit may support instrumentation outside a hot zone when dwell, cycling, thermal gradients, wiring, enclosure, atmosphere, and inspection are defined.
Review thermal inputs

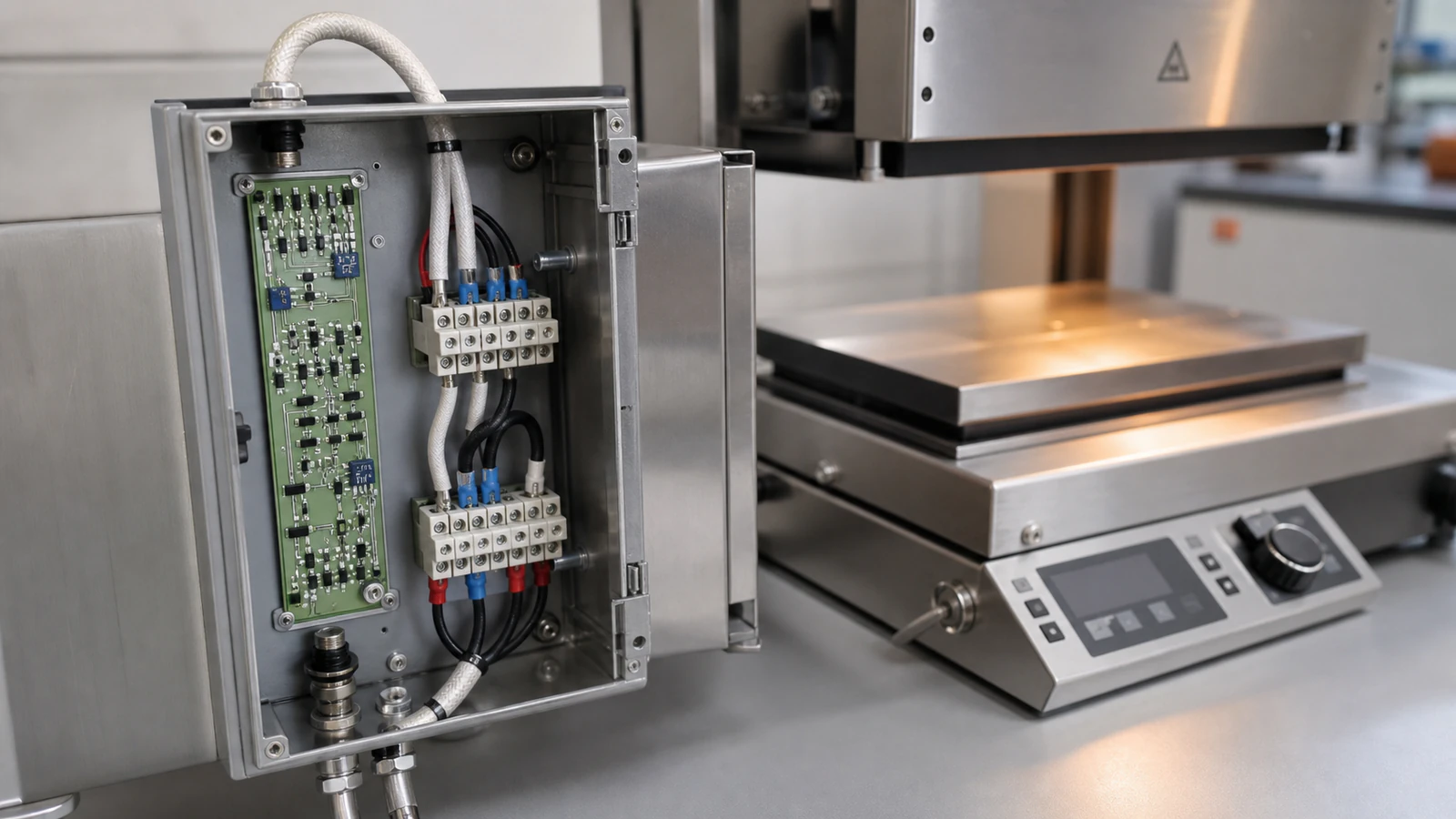

Application illustrationThermal-process control equipment
Compact process equipment can be reviewed around operating temperature, peak exposure, electrical loading, mounting, protection, cable interfaces, and an agreed validation plan.
Review control inputsVerified Product Views

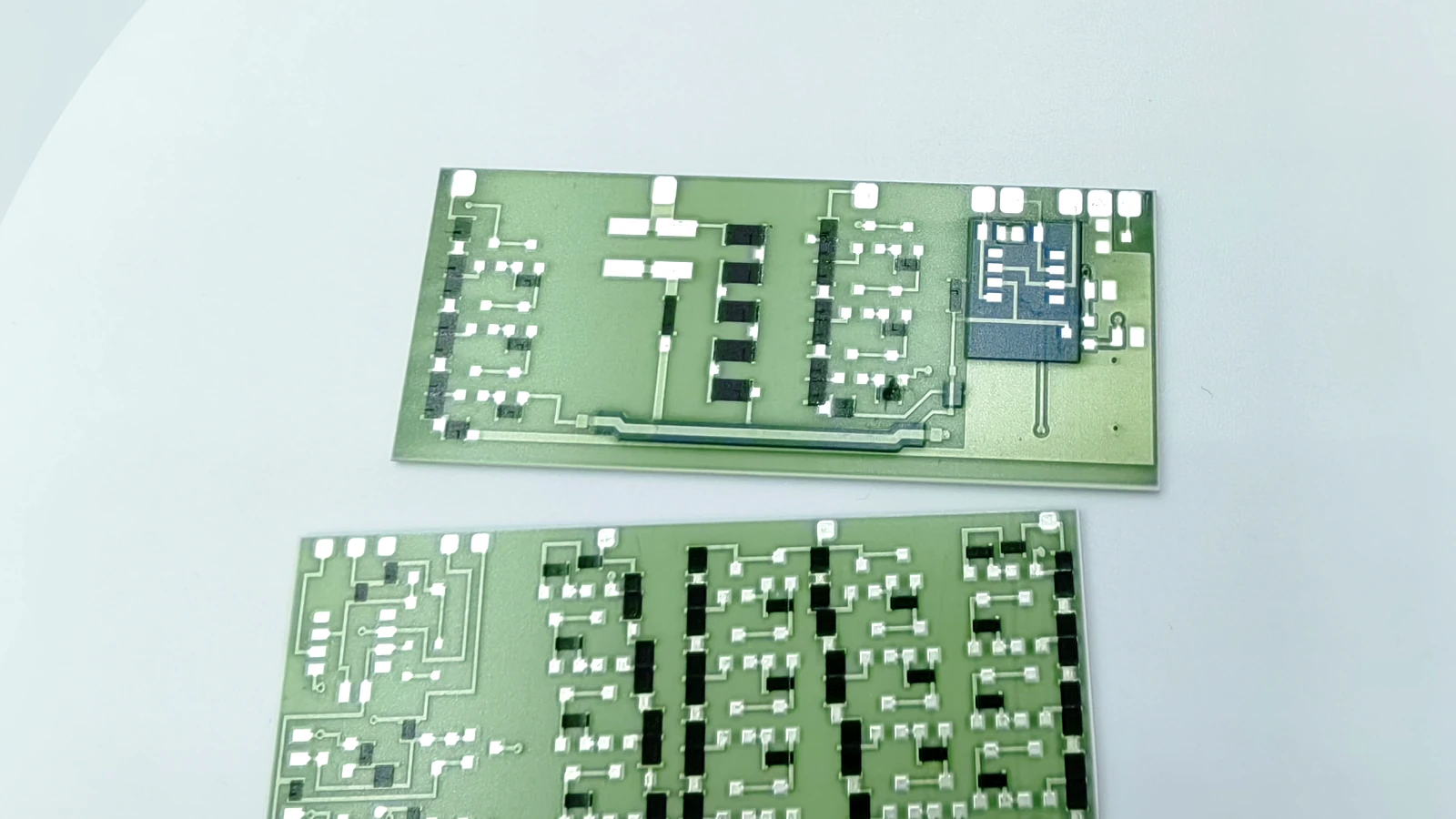

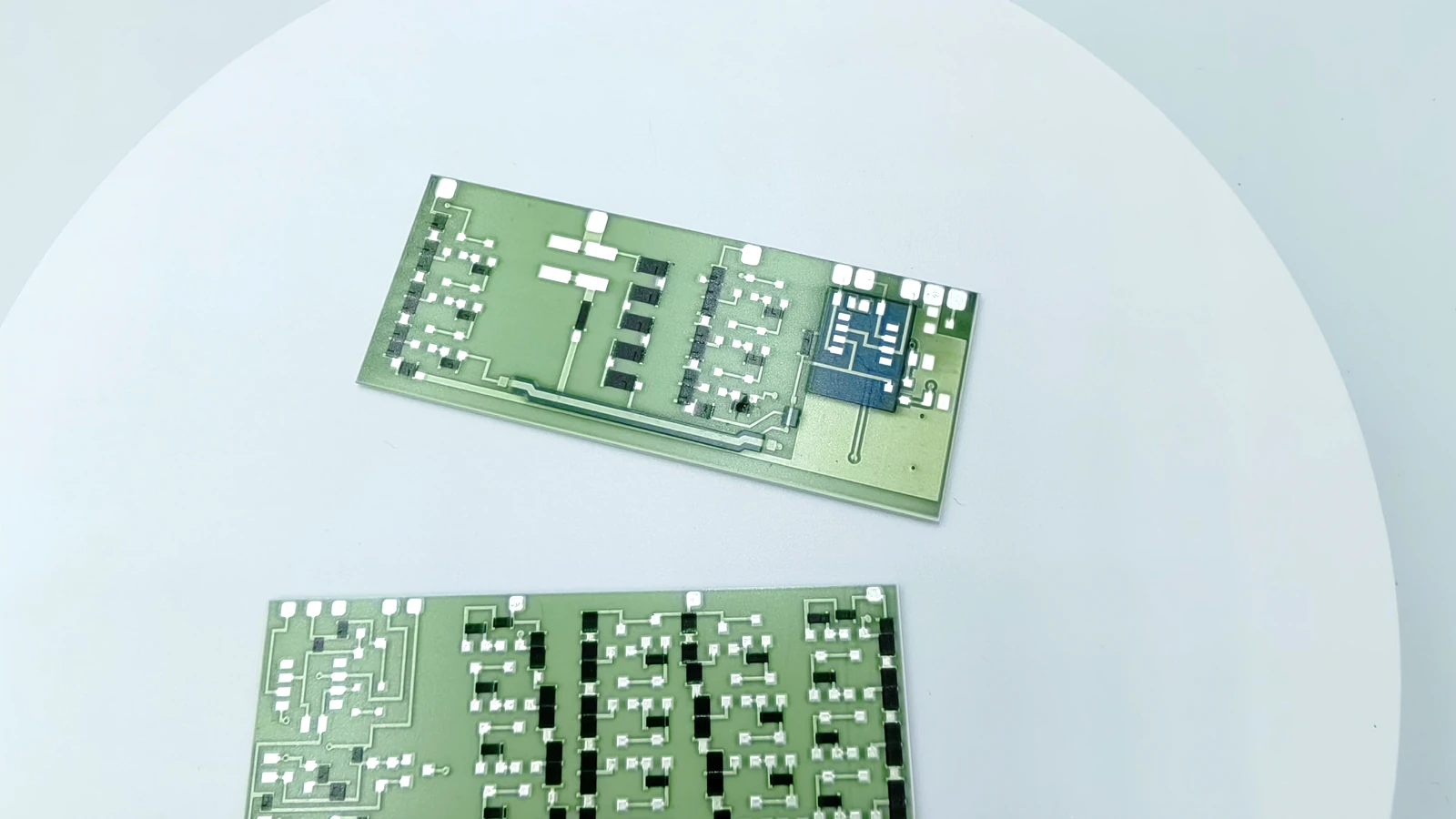

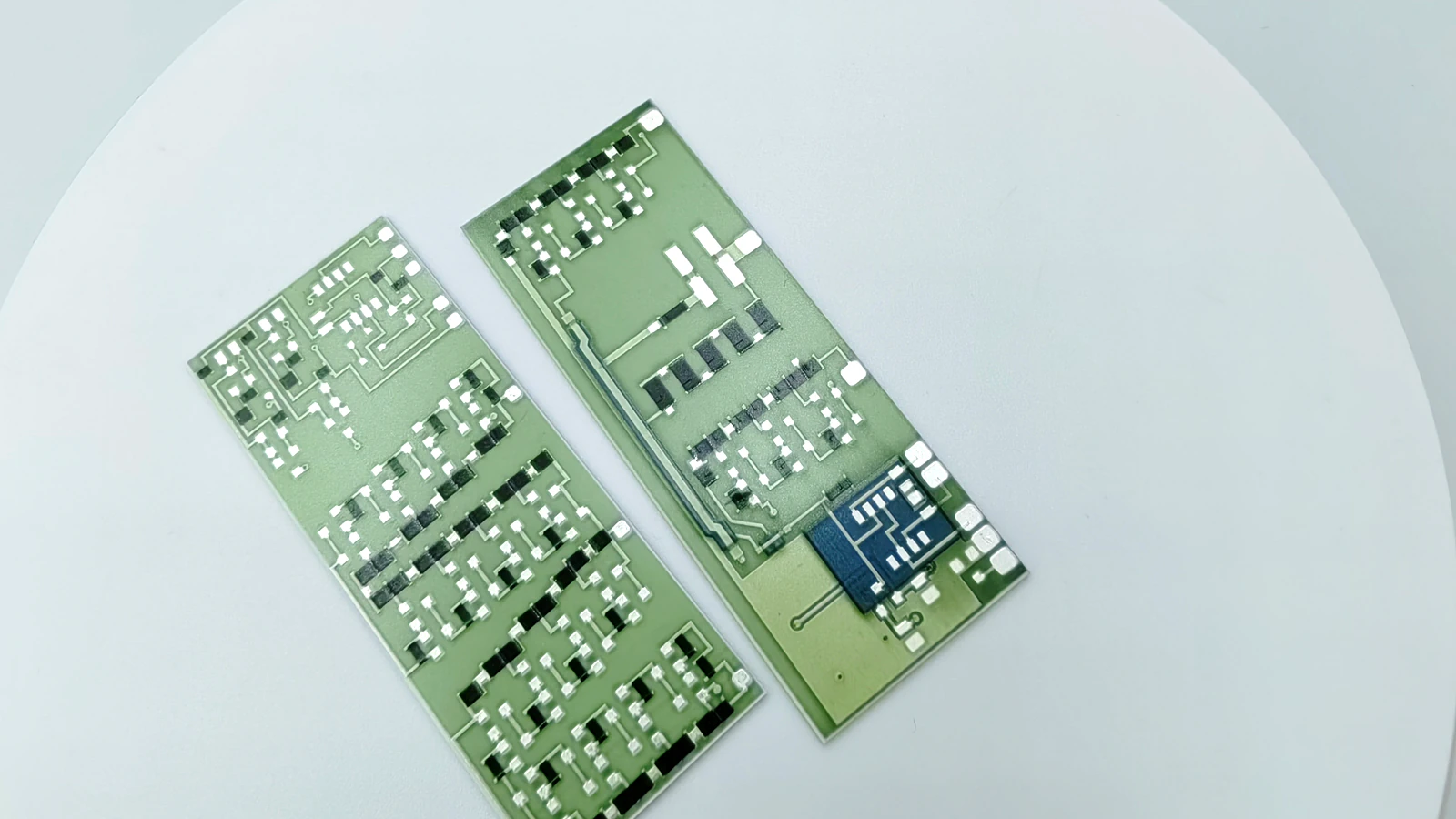

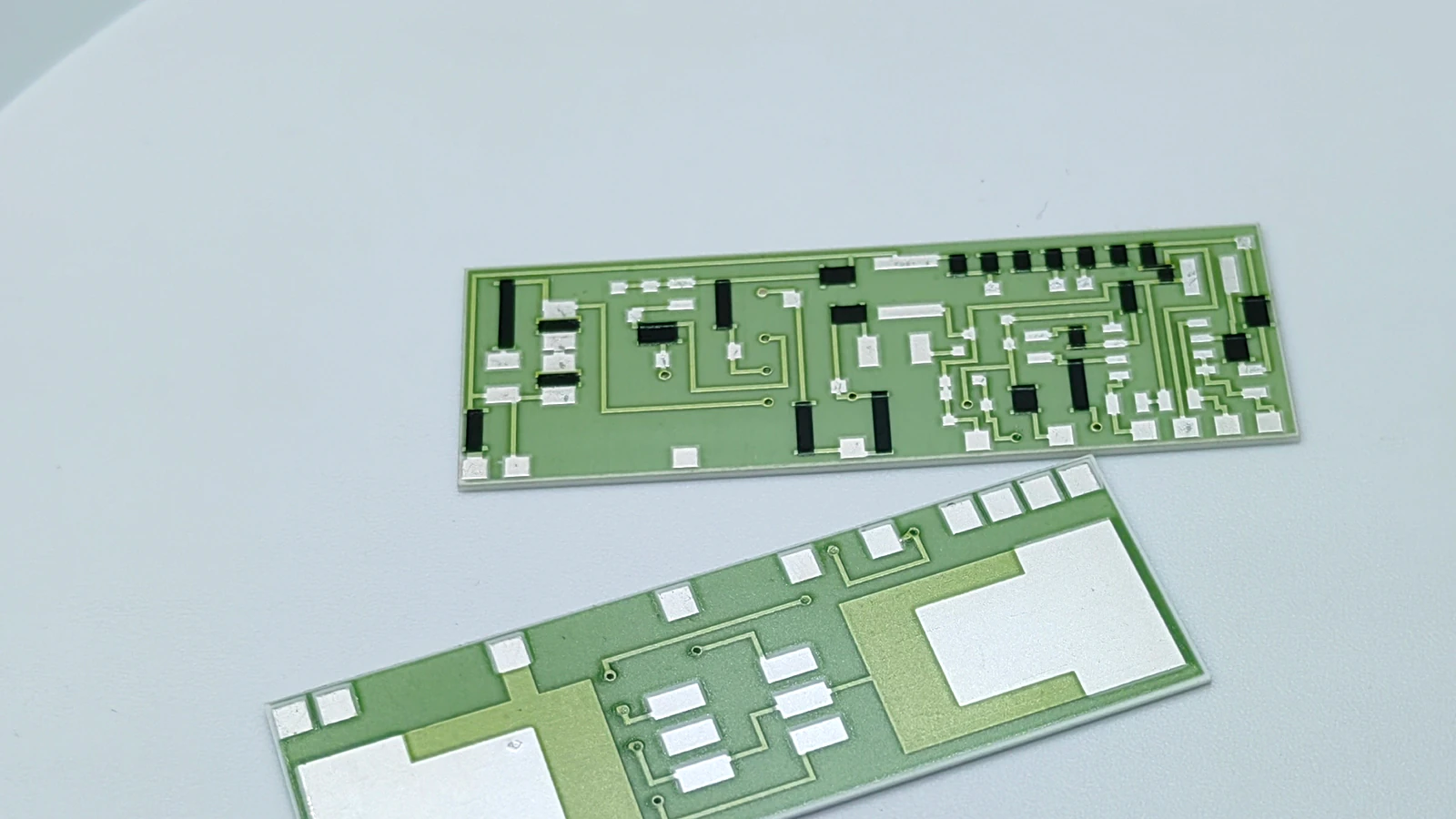

Available real product photographs confirm several rectangular green circuit forms with different visible layouts, silver-colored routes and pads, repeated black blocks, and a localized blue area. Surface appearance does not identify substrate grade, paste chemistry, layer function, dimensions, electrical values, or operating temperature. A numerical thermal claim requires the released material system, assembly state, exposure profile, and test record.
- Visible product forms
- Several rigid rectangular green circuit forms and different visible layouts are shown across the available real product photographs.
- Visible printed areas
- Silver-colored routes and pads, repeated black blocks, and a localized blue area are visible. Their chemistry, layer order, function, and fired condition are not established by appearance.
View 1 additional evidence boundaries
- Required thermal proof
- Substrate and paste specifications, released drawings, assembly details, temperature profile, electrical conditions, validation method, and corresponding results are required for a project-specific thermal claim.
Manufacturing & Quality
Company resources support screen printing, controlled firing, inspection, and production handling for ceramic thick film projects.
Read the shared manufacturing-control scope
The applicable substrate, paste system, print sequence, firing profile, electrical checks, temperature validation, records, and acceptance limits are confirmed against the released drawing and test plan.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What makes a thick film circuit suitable for a high-temperature project?
Suitability depends on the complete released system: ceramic substrate, conductor and functional pastes, dielectric or protection layers, firing compatibility, terminals, assembly materials, housing, atmosphere, electrical loading, and validation method. A substrate name or a product photograph cannot establish the finished circuit temperature limit on its own.
Can product photographs confirm the maximum operating temperature?
No. Photographs can confirm product form and visible printed areas, but not substrate grade, paste chemistry, fired thickness, layer function, terminal compatibility, electrical loading, dwell time, thermal gradients, cycling life, oxidation behavior, or test results. A numerical temperature rating needs an agreed material system, assembly state, exposure profile, and validation record.
What files are needed to quote a high temperature thick film circuit?
Send the controlled drawing or measured sample data, substrate requirement, printed artwork and layer notes, conductor and terminal duty, electrical targets, operating and peak temperature profile, dwell and ramp conditions, cycle count, atmosphere, assembly and housing details, quantity, required tests, acceptance limits, and traceability documents.
How should thermal cycling and oxidation risk be validated?
Define the cycle range, dwell, ramp rate, cycle count, atmosphere, electrical loading, fixture, and final assembly state. Then agree visual, dimensional, electrical, insulation, adhesion, and functional checks before and after exposure. The validation method and acceptance limits are released by project, not inferred from a generic ceramic or paste property.
Request a High Temperature Thick Film Circuit Quote
Send enough information to connect the ceramic substrate, printed layers, thermal profile, electrical loading, terminals, assembly, atmosphere, and validation method. Clear measured sample photographs can begin a review when final drawings are not yet available, but numerical temperature and performance limits still require controlled project data.
RFQ inputs and review sequence
- Drawing-led DFM feedback and optimization support
- Prototype and production-route evaluation
- Confidential handling of customer drawings
- Project-specific thermal and validation review
- Dimensioned outline plus Gerber, DXF, DWG, PDF, STEP, or clear measured sample photographs with revision
- Ceramic material, grade, thickness, surface condition, printed artwork, material notes, layer sequence, and openings
- Operating and peak temperature, dwell, ramp, gradients, cycle count, atmosphere, cooling, mounting, and enclosure conditions
- Electrical targets, loading, test nodes, terminals, joining, insulation, assembly materials, validation method, and acceptance limits
- Prototype quantity, expected lot volume, schedule, traceability, signed records, and protected packing requirements
