Outline, substrate, and dielectric definition
Review substrate route and thickness, overall envelope, tabs, holes, datums, flatness, edge clearances, tooling, dielectric coverage, printable area, mating parts, and assembly loads.
Custom Heater Geometry
Custom-Shaped Thick Film Heater
A custom-shaped thick film heater is developed around the available envelope, heated zone, resistance and power target, substrate and dielectric route, printed path, terminals, mounting features, heat transfer, and validation plan. The supplied photographs show compact narrow rectangular metal-supported modules with mounting ears and holes, blue visible surfaces, dark serpentine paths, silver-colored pads, and front, angled, and rear views. Send the mating CAD and complete operating conditions for a practical DFM review.
- Envelope, outline, and mounting-interface review
- Printed path and heated-zone optimization
- Pad, terminal, connector, and strain-relief definition
- Application-specific insulation and thermal validation
- 5 views
- Photographed product set
- Custom CAD
- Outline control
- By heat path
- Local thermal loading
- By safety plan
- Insulation acceptance
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Custom-Shaped Thick Film Heater is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Approved stainless steel, aluminum, alumina, AlN, or PI route | Alternative approved route selected from heat path, insulation, corrosion, outline, mounting, and process compatibility | Approved material specification, drawing, and incoming criteria |
| Dielectric Layers | 3–4 layers typical for metal substrates; ceramic and polymer builds are route-specific | Layer count, fired thickness, edge margin, creepage, clearance, grounding, and interface by safety review | Released insulation stack and agreed IR/withstand test plan |
| Heater Resistor | RuO₂ / Metal-based / PTC | RuO₂, metal-based, or PTC route selected for resistance, temperature coefficient, firing/cure, and duty profile | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Metal terminal | Ag, Ag-Pd, or metal terminal route by current, connection, temperature, corrosion, and assembly | Approved material stack, assembly interface, and sample |
| Rated Voltage | Project-rated after electrical and thermal review | Approved category engineering envelope: 3–240 V AC/DC typical | Approved electrical-thermal design and instrumented prototype validation |
| Rated Power | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–2,000 W typical; heat load and available area are checked | Approved electrical-thermal design and instrumented prototype validation |
View 7 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Target Resistance | Project-rated after electrical and thermal review | Approved category engineering envelope: 0.1 Ω–10 kΩ typical; calculated from released voltage and power | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±5% typical | ±5% typical; reference temperature, lead compensation, and measurement timing are defined | Released electrical limits, measurement method, and approved sample |
| Power Density | Project-rated after electrical and thermal review | Approved category engineering envelope: 1–60 W/cm² typical; local cooling, duty, contact, and hot spots are reviewed | Approved electrical-thermal design and instrumented prototype validation |
| Operating Temperature | Polymer ≤150°C / ceramic-metal ≤600°C typical | Continuous, peak, ambient, fluid, interface, and no-flow/no-load conditions are separated for validation | Approved electrical-thermal design and instrumented prototype validation |
| Process Temperature | ≈850°C ceramic / ≈590°C metal / 120–200°C polymer | Actual peak, dwell, atmosphere, and refire/cure exposure follow the selected material stack | Approved material-process route and production traveler |
| Electrical Test | IR ≥100 MΩ / Hi-pot ≥1.5 kVAC typical | IR, hi-pot voltage, ramp, dwell, leakage, humidity state, and pre/post conditioning by product safety plan | Released insulation stack and agreed IR/withstand test plan |
| Life-test conditions | On/off cycling is defined with powered dwell, cooling dwell, mounting, cooling medium, and starting temperature | Cycle count, voltage, load, fault conditions, resistance drift, insulation, leakage, and appearance limits by application risk | Agreed endurance profile and pre/post-test acceptance report |
Engineering Capabilities
Four controls connect the custom envelope, substrate and printed stack, heated zone, mounting and contact interfaces, and validation route. The supplied module family supports visible DFM discussion; feasibility for a new outline depends on the released CAD, values, materials, tooling, environment, and order volume.
Heated-zone and path registration
Connect the available area to resistance, voltage, power, power density, path geometry, local loading, keep-outs, pads, sensors, heat spread, contact pressure, and measurable artwork alignment.
Mounting and electrical interface
Define mounting ears and holes, clamp or bond route, pad finish, terminal or spring contact, lead direction, connector space, joining method, strain relief, housing, serviceability, and packing protection.
Fit, insulation, and thermal validation
Release dimensional fit, resistance, continuity, insulation, hi-pot, leakage, power, thermal mapping, hot-spot limits, mounting stress, cycling, functional checks, sampling, and records.
Typical Applications
These application illustrations show conditional directions for compact and shaped heaters. Suitability depends on the released envelope, substrate, resistance and power, heated zone, mounting and contact system, environment, controls, safety standard, tooling, and validation plan.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationCompact sealing tools
A narrow or profiled heater may fit a sealing jaw or local hot bar after the heated length, pressure, surface contact, warm-up, duty cycle, mounting stiffness, sensor location, controls, insulation, and machine safety are released.
Review sealing-tool inputs
Application illustrationThermal print and marking modules
A custom heated module can be reviewed near print or marking hardware when line geometry, local temperature profile, media contact, duty cycle, response time, mounting accuracy, serviceability, controls, and equipment validation are defined.
Review thermal-module inputs
Application illustrationMedical and surgical tools
Small shaped heaters may support controlled tool heating after biocompatible boundaries, sterilization or cleaning exposure, temperature control, insulation, lead and connector route, mechanical envelope, risk controls, and device-level validation are specified.
Review medical-tool inputsVerified Product Views

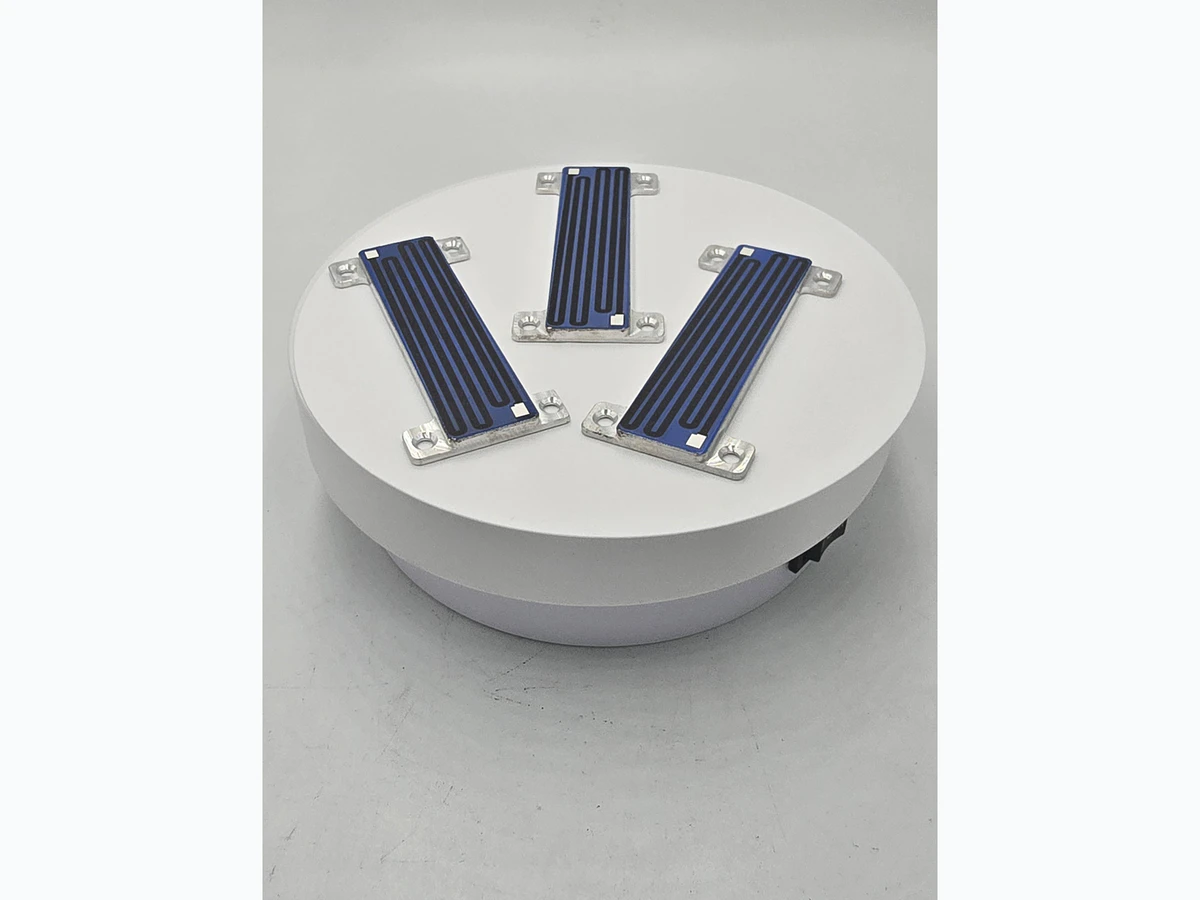

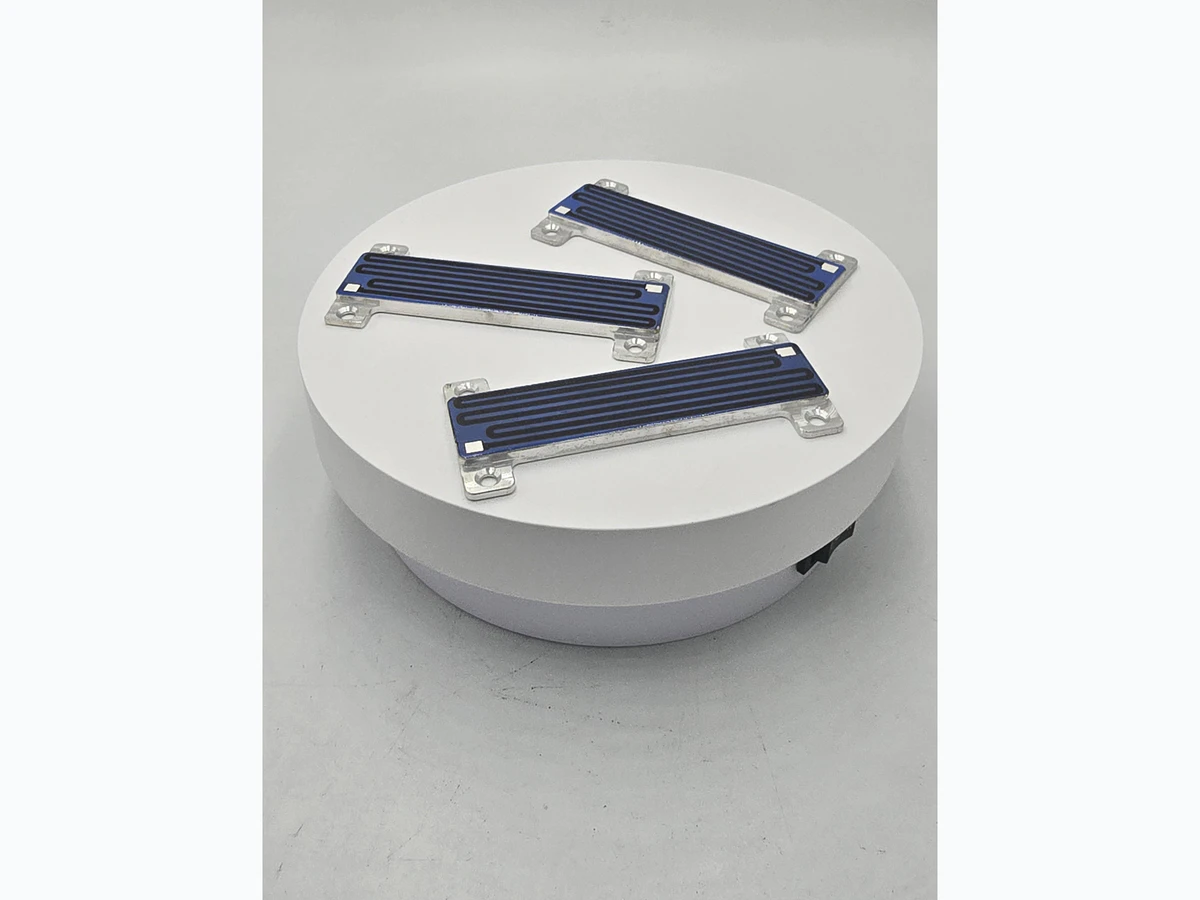

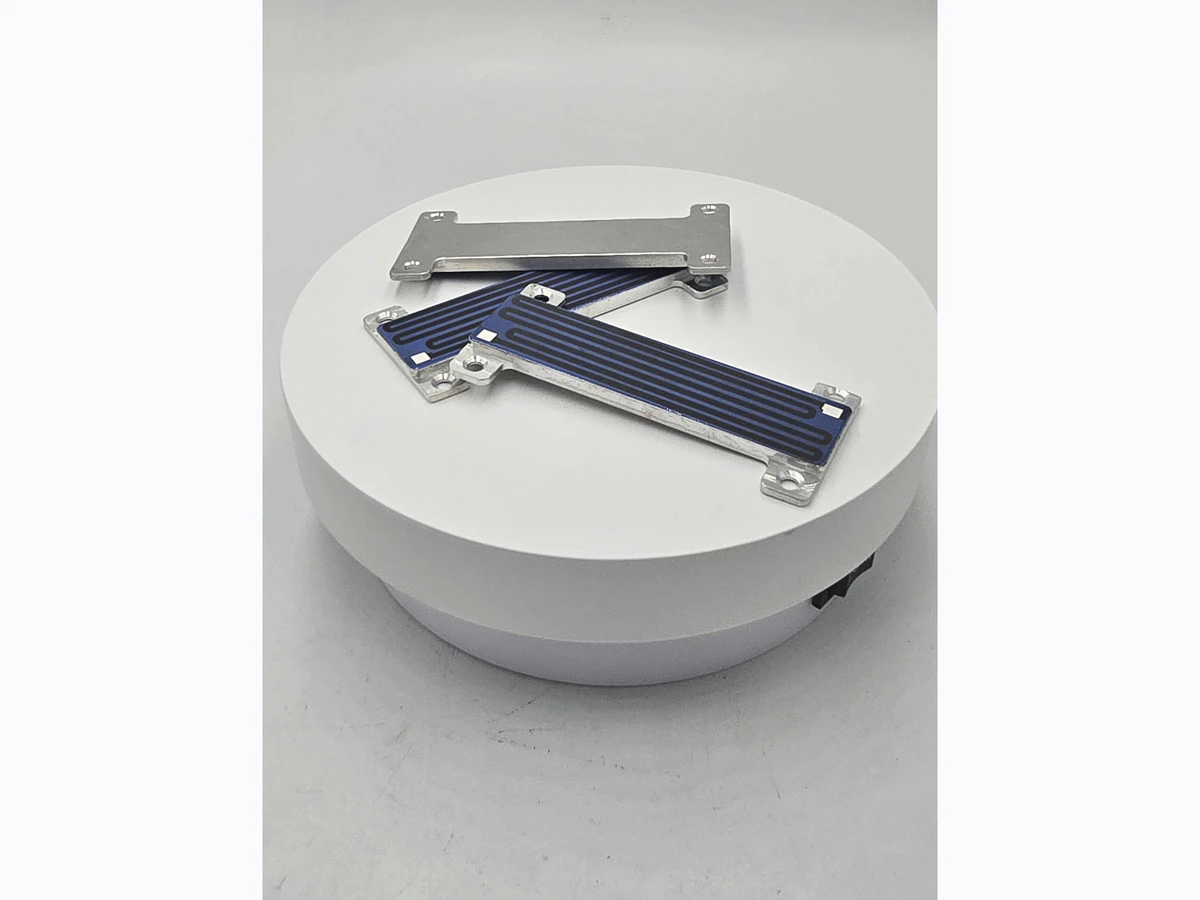

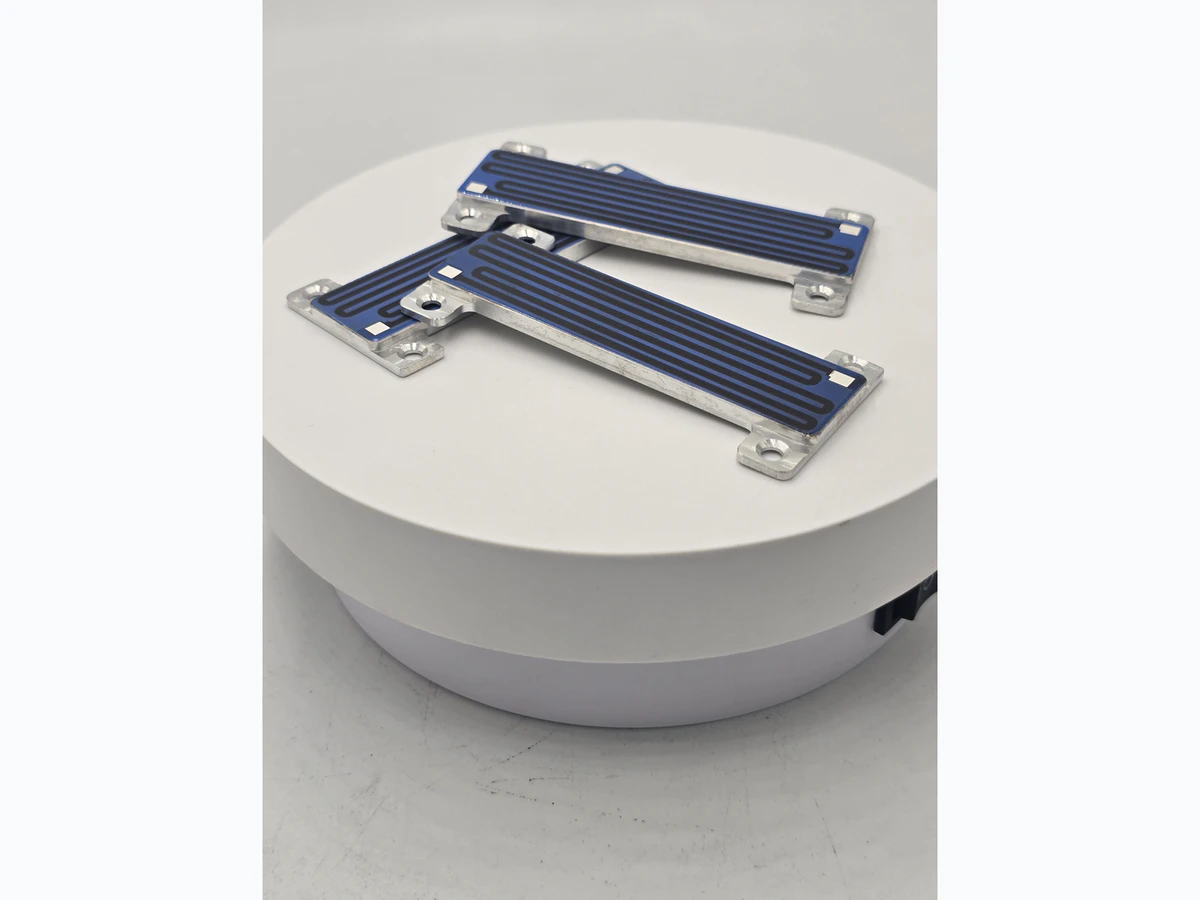

Five supplied photographs visibly confirm a compact rectangular heater-module family with metal support, mounting ears and holes, blue visible fields, dark serpentine paths, silver-colored pads, grouped front views, angled views, and a rear or edge view. They do not establish substrate alloy, dielectric or resistor chemistry, dimensions, resistance, voltage, power, temperature capability, pad finish, attachment method, insulation, lifetime, qualification, lot, or shipment status.
- Visible product form
- The set shows a narrow rectangular module family with metal-supported bodies, mounting ears and holes, blue fields, dark serpentine paths, silver-colored pads, and multiple viewing angles.
- Evidence boundary
- These examples do not prove arbitrary shape capability, material identity, printed-layer function, values, thermal output, insulation, lifetime, qualification, or production status.
View 1 additional evidence boundaries
- Required project proof
- Mating CAD, released heater artwork and stack, assembly notes, electrical and thermal results, dimensional fit checks, traceability, and packing records must belong to the authorized order.
Manufacturing & Quality
Company resources support controlled thick film printing, thermal processing, laboratory inspection, and managed production in Dongguan.
Read the shared manufacturing-control scope
For custom heaters, the approved outline and tooling route, dielectric and resistor system, mounting and terminal interfaces, fit and electrical tests, thermal validation, sampling, traceability, and records are released per project.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What makes a heater shape practical for thick film manufacturing?
Feasibility depends on the substrate route and thickness, available blank or ceramic format, cutting or forming method, minimum edge and hole features, flatness, printable area, dielectric coverage, resistor path geometry, pad and terminal access, tooling, handling, inspection, yield, and volume. Send the mating CAD and heated-zone definition; a sketch without dimensions is not enough for release.
Can you copy a heater from a physical sample?
A sample can start form, mounting, surface, and interface review, but production still requires controlled dimensions, electrical targets, thermal conditions, materials or approved alternatives, terminal and connector data, safety tests, and acceptance criteria. Resistance alone does not define the heater because power, heat sinking, duty cycle, contact pressure, controls, and the installed environment change its behavior.
How should mounting holes, tabs, pads, and connectors be specified?
Provide the mating-part CAD, datums, tolerances, clamp or bond method, contact pressure, assembly sequence, service loads, pad finish, terminal or spring contact, joining temperature, lead direction, connector envelope, strain relief, creepage and clearance, and packing protection. Engineering then checks feature manufacturability, printed keep-outs, heat distribution, stress, and inspection access.
Do these rectangular module photographs prove every custom outline is available?
No. They verify the visible supplied module family only. A different curve, ring, notch, tab, hole pattern, flexible form, ceramic outline, or three-dimensional assembly requires separate material, process, tooling, yield, fit, electrical, thermal, insulation, reliability, and volume review before feasibility is confirmed.
Request a Custom-Shaped Thick Film Heater Quote
Send the mating CAD, heated-zone definition, substrate preference, electrical and thermal targets, mounting and contact system, environment, safety plan, quantities, and acceptance records so engineering can review shape feasibility and the complete heater route. New outlines remain conditional until material availability, tooling, printable area, yield, fit, and validation are confirmed.
RFQ inputs and review sequence
- Drawing-led DFM feedback and heater-layout review
- Prototype and repeat-production route evaluation
- Confidential handling of customer drawings
- Project-specific electrical and safety-test planning
- Dimensioned heater and mating-part CAD with overall envelope, substrate route and thickness, tabs, holes, slots, radii, datums, flatness, edge clearances, tolerances, heated zone, and revision
- Target resistance and tolerance, voltage, power, current, power density, temperature profile, response time, heat load, duty cycle, cooling boundary, sensor location, and control logic
- Dielectric, resistor, conductor, protection, pad, terminal, spring contact, lead, connector, joining, mounting, bonding, clamping, strain-relief, and serviceability requirements
- Operating and storage environment, contact media, humidity, chemicals, cleaning or sterilization, vibration, cycling, insulation and hi-pot criteria, and equipment safety standard
- Prototype and annual quantities, tooling expectation, schedule, sampling, fit and test reports, traceability, labeling, protected packing, and shipment requirements
- 1Upload heater and mating-assembly CAD
- 2Engineering reviews geometry, tooling, and hot-spot risks
- 3Confirm prototype fit and validation plan
