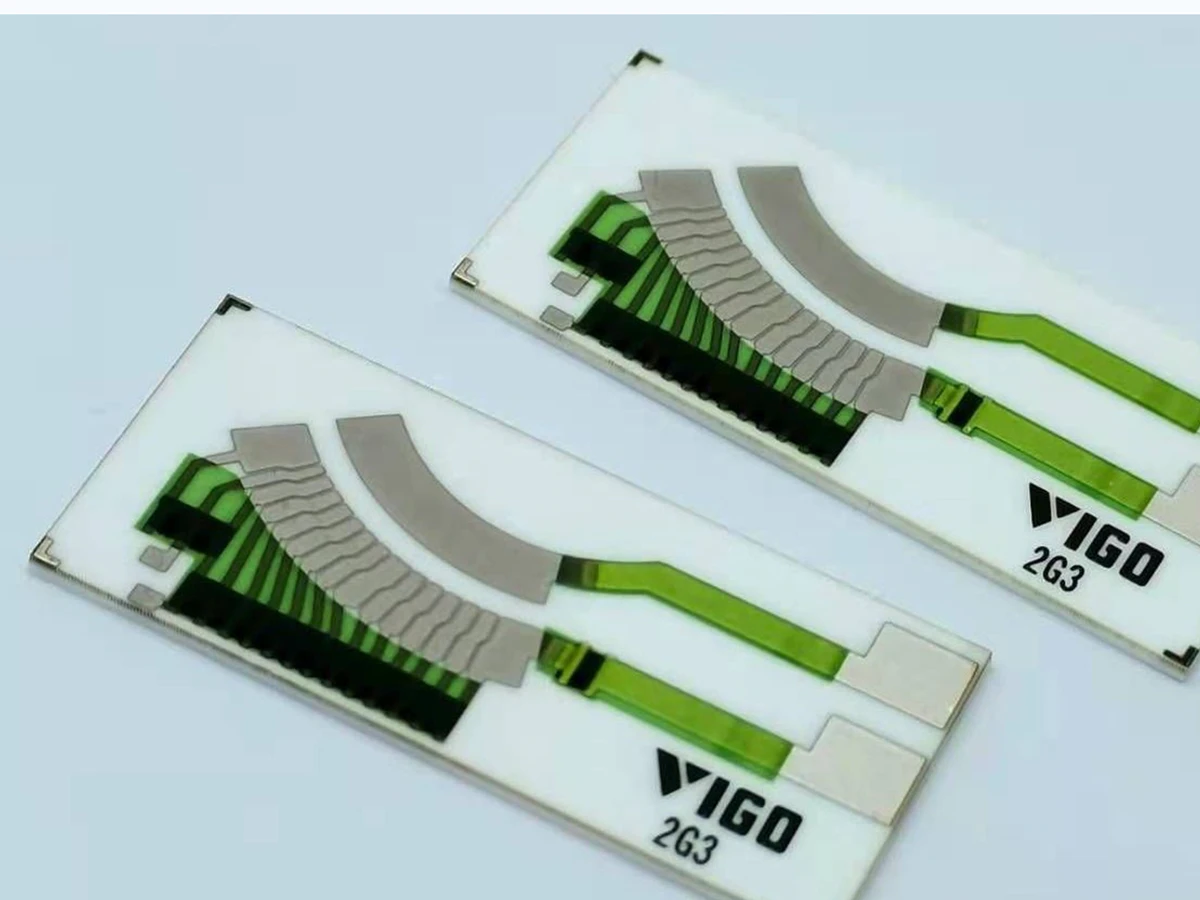

Level motion and curve mapping
Define level range, float or linkage travel, active angle, stops, reference points, required resistance or voltage table, and permitted error across the sensing range.
Oil-level resistive sensing element
Oil Level Sensor Resistor Card
An oil level sensor resistor card is engineered around the level mechanism, oil-side boundary, required output, contact interface, and operating environment. Chipsimple reviews float or linkage travel, printed curve, terminals, material route, sealing and media isolation, temperature, electronics, and validation before release.
- Oil-level motion mapped to output curve
- Media boundary and sealing-interface review
- Contact path, terminals, and support planning
- Temperature and lifecycle validation by project
- By oil environment
- Temperature requirement
- By curve table
- Resistance response
- By drawing
- Level mechanism and media boundary
- By project review
- Oil, temperature, and lifecycle
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Oil Level Sensor Resistor Card is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Oil and temperature boundary | Oil type, additive package, continuous and transient temperature, splash or immersion condition are specified by the program | Approved oil or simulation media, exposure duration, conditioning, and post-exposure checks are agreed before validation | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Level mechanism | Float or linkage range, active travel, stops, mounting, drainage, and output table follow the reservoir drawing | Motion conversion and tolerance stack are checked with the production-intent housing and media boundary | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Sealing and contact interface | Seal, vent, isolation, wiper material, force, support, terminals, and connector are reviewed as one assembly | Leakage, contamination, pressure or splash, contact interruption, wear, and thermal expansion are included in risk review | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Oil-system validation | Curve, repeatability, temperature, vibration, media exposure, cycling, calibration, and end-of-line checks are project-defined | Acceptance limits include output drift, contact stability, seal or isolation failure, surface change, and wear | Released mechanism drawing, electrical table, approved sample, and validation plan |
View 13 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina / FR-4 / PI approved routes | Select alumina, FR-4, or PI from stiffness, contact support, media, temperature, mounting, and cure/firing needs | Approved material specification, drawing, and incoming criteria |
| Sensor Geometry | Rotary / Linear / Arc | Travel angle or distance, active arc, datum, dead zones, endpoints, and contact path by mechanism drawing | Released drawing, DFM approval, and first-article inspection |
| Resistor System | RuO₂ / Carbon | RuO₂ or carbon selected for substrate, curve, contact load, environment, and electrical loading | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Au / Ag-C | Ag, Ag-Pd, Au, or Ag-C selected for terminal, wiper, media, corrosion, and process compatibility | Approved material stack, assembly interface, and sample |
| Track Count | 1–4 tracks typical | Within 1–4 tracks, redundancy, diagnostics, isolation, and terminal count follow the system schematic | Released drawing, DFM approval, and first-article inspection |
| Nominal Resistance | 100 Ω–1 MΩ typical | Within 100 Ω–1 MΩ, endpoints, intermediate points, ratios, and loading follow the approved curve table | Released electrical limits, measurement method, and approved sample |
| Resistance Curve | Linear / Nonlinear / Segmented | Linear, nonlinear, segmented, or customer point table with defined scan direction and reference condition | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±1–10% by material system | Within ±1–10%, limits are allocated by material system, measurement position, fixture, and electronics | Released electrical limits, measurement method, and approved sample |
| Linearity | ±0.5–2% FS typical | Within ±0.5–2% FS typical, define best-fit or terminal-based calculation, usable travel, and hysteresis | Released electrical limits, measurement method, and approved sample |
| TCR | ±100–200 ppm/°C ceramic reference | ±100–200 ppm/°C ceramic reference; final TCR range, tracking, and temperature points follow the selected paste system | Released electrical limits, measurement method, and approved sample |
| Contact System | Precious metal / Carbon | Precious-metal or carbon contact with defined geometry, force, speed, current, lubricant, and contact path | Approved material stack, assembly interface, and sample |
| Operating Temperature | -40 to +125°C, system-dependent | -40 to +125°C category envelope is checked with media, vibration, humidity, electrical load, and mating materials | Approved electrical-thermal design and instrumented prototype validation |
| Life-test conditions | Full-travel cycling is defined with speed, stroke, direction, contact force, electrical load, and starting condition | Cycle count, media, temperature, vibration, contact noise, curve drift, wear, and endpoint limits by mechanism risk | Approved mating contact, lifecycle profile, and validation report |
Engineering Capabilities
Oil-level sensing combines motion conversion, media isolation, printed electrical behavior, contact mechanics, and environment. The four reviews below link those constraints to artwork and measurable acceptance limits.

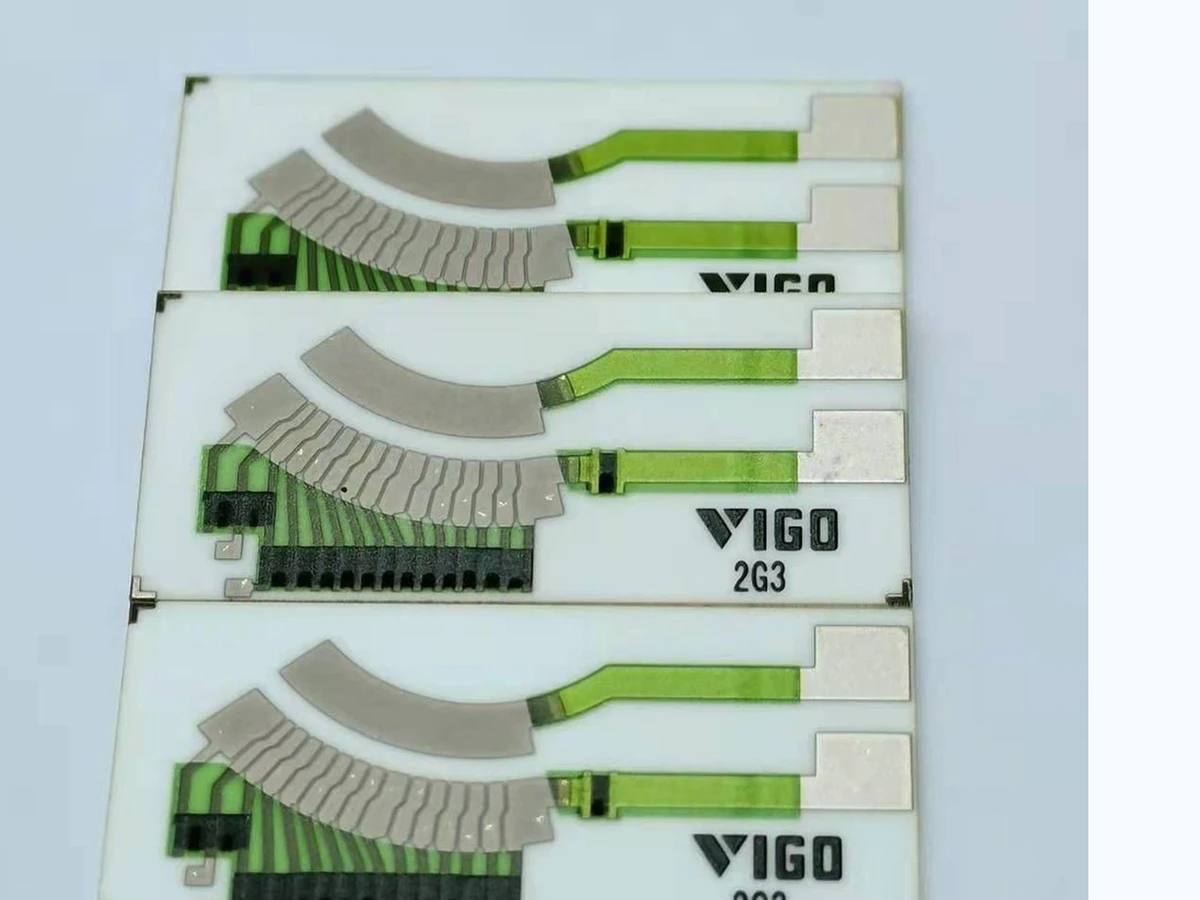

Printed path and material route
Release the drawing-compatible substrate, resistor, conductor, collector, overlap, terminal, inactive-zone, and reference-feature artwork for the selected assembly route.

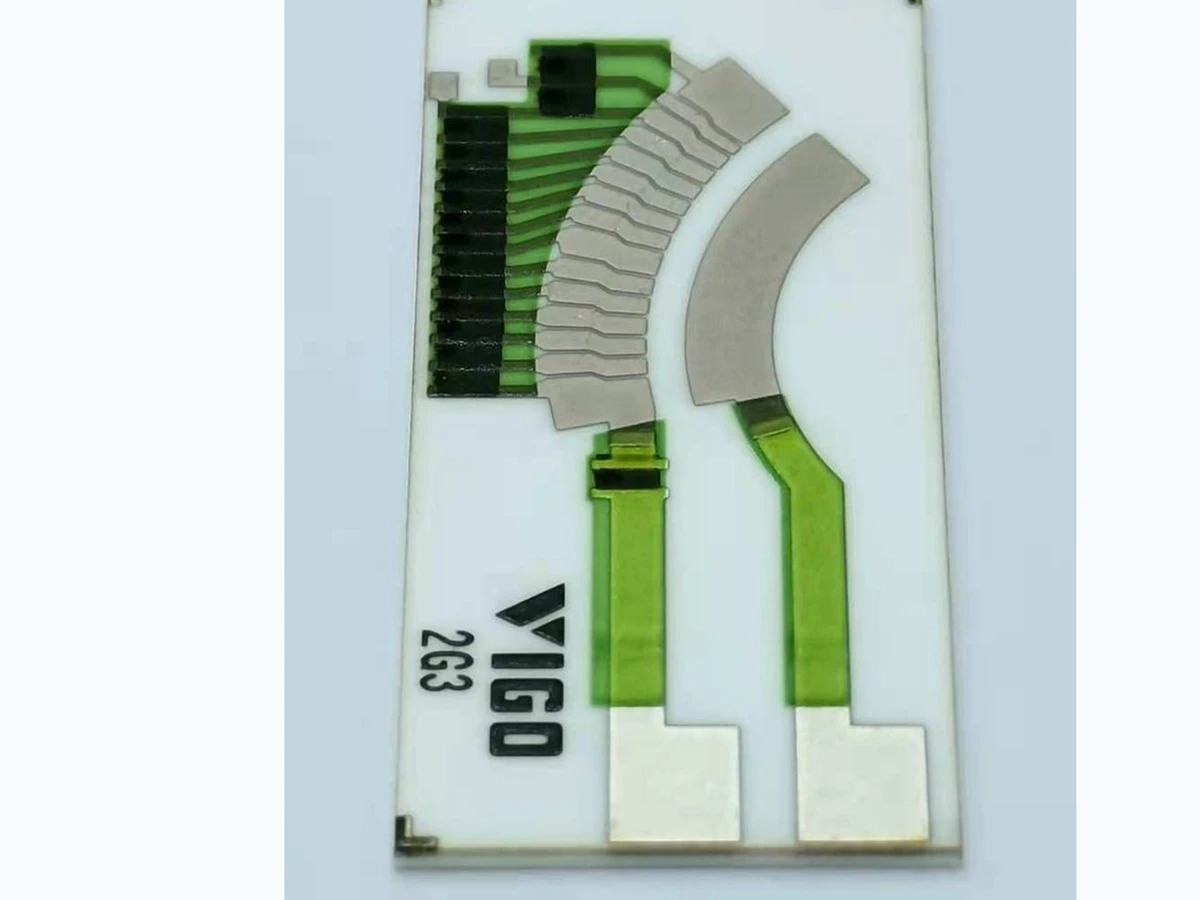

Media boundary and contact integration
Review oil isolation, sealing, venting or drainage, wiper material and force, support, terminals, connector, loading, mounting, and tolerance stack together.

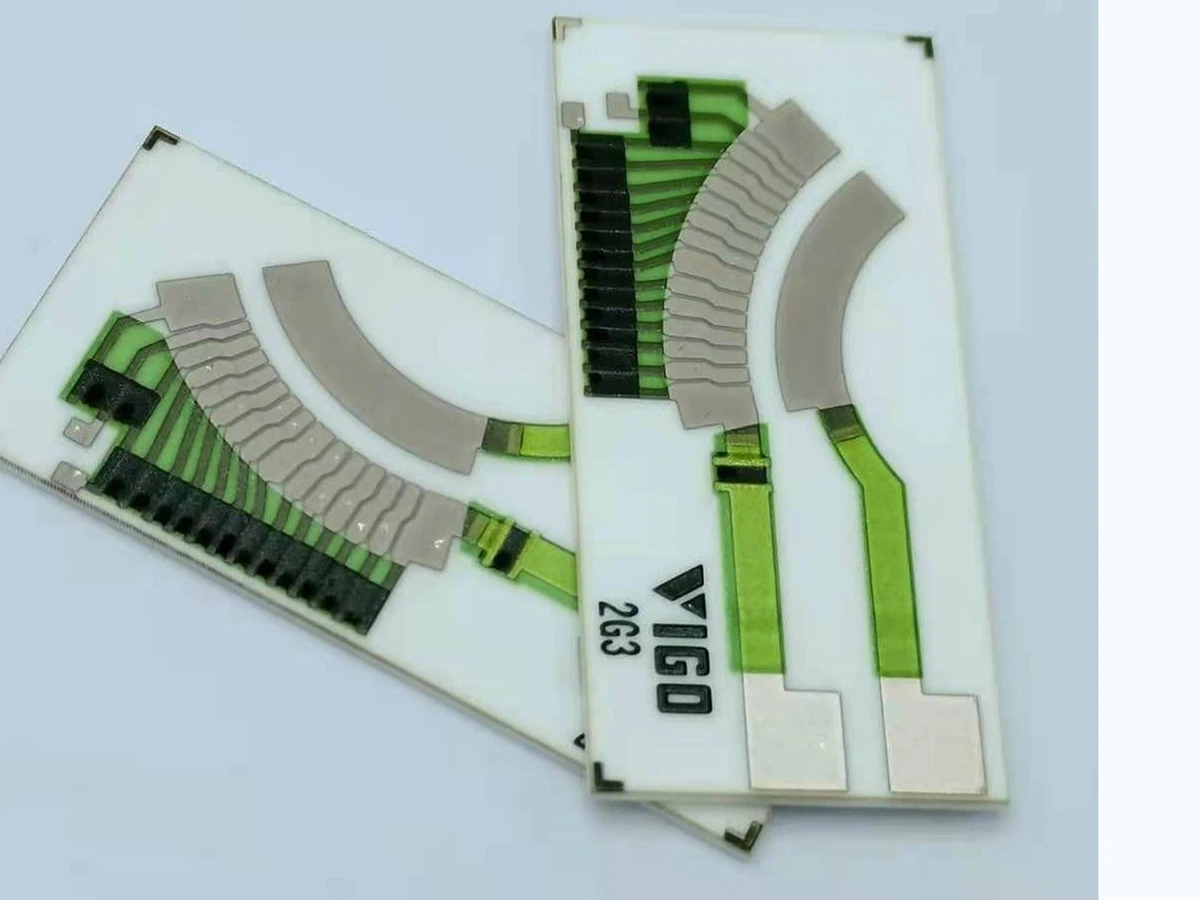

Thermal and lifecycle validation
Define output, repeatability, contact stability, temperature, vibration, oil or approved media exposure, cycling, calibration, and end-of-line checks for the complete sensor.
Typical Applications
Representative applications require oil-specific media review, temperature, sealing, mechanics, contact design, electrical loading, calibration, and system-level validation.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationAutomotive oil-level sensing
Vehicle oil-level sensors require released sump or reservoir geometry, media boundary, temperature, vibration, float or linkage motion, electronics, and calibration.
Review application inputs
Application illustrationIndustrial oil reservoirs
Industrial equipment needs application-specific oil compatibility, temperature, enclosure, sealing, motion conversion, output curve, maintenance, and lifecycle validation.
Review application inputs
Application illustrationLubrication and process monitoring
Related monitoring systems may be considered after media, pressure or splash boundary, mechanism, loading, calibration, contamination, and inspection are defined.
Review application inputsVerified Product Views

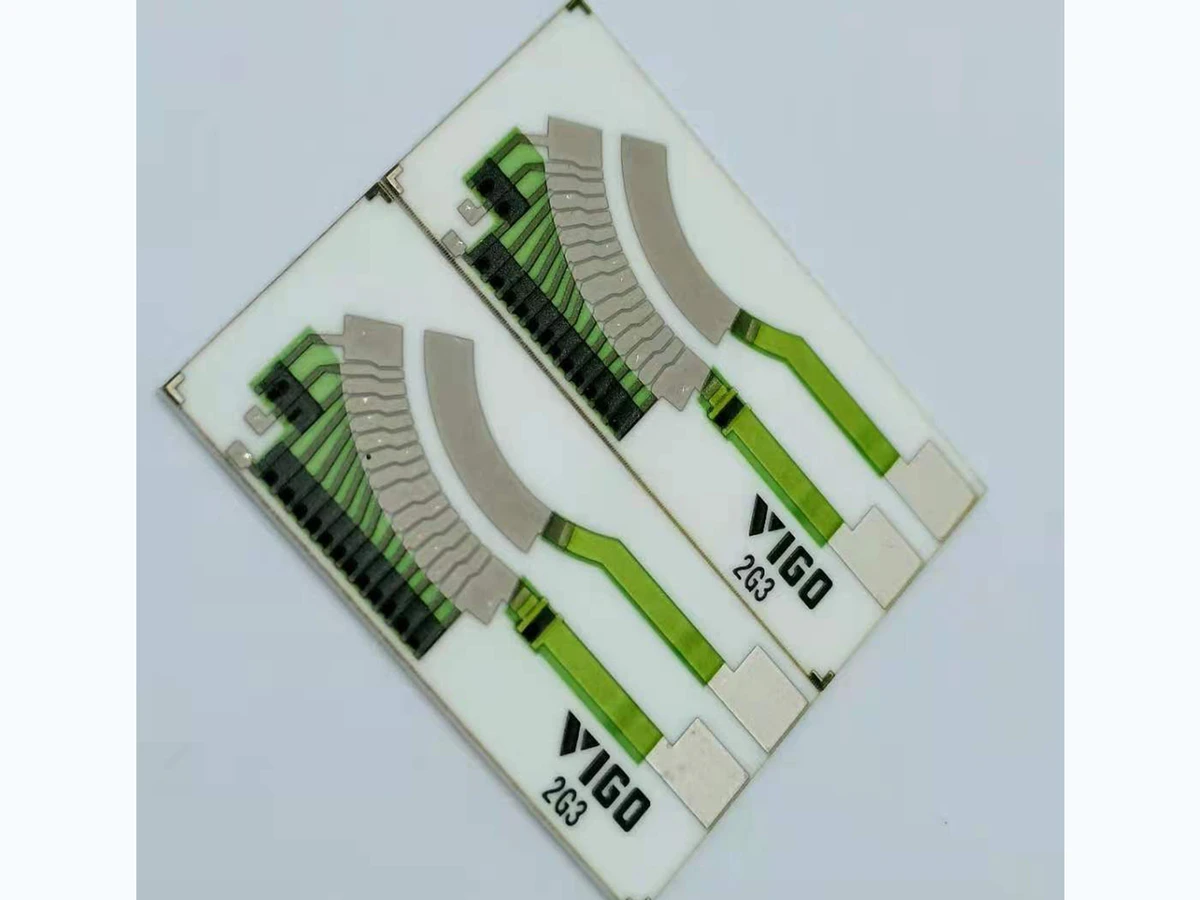

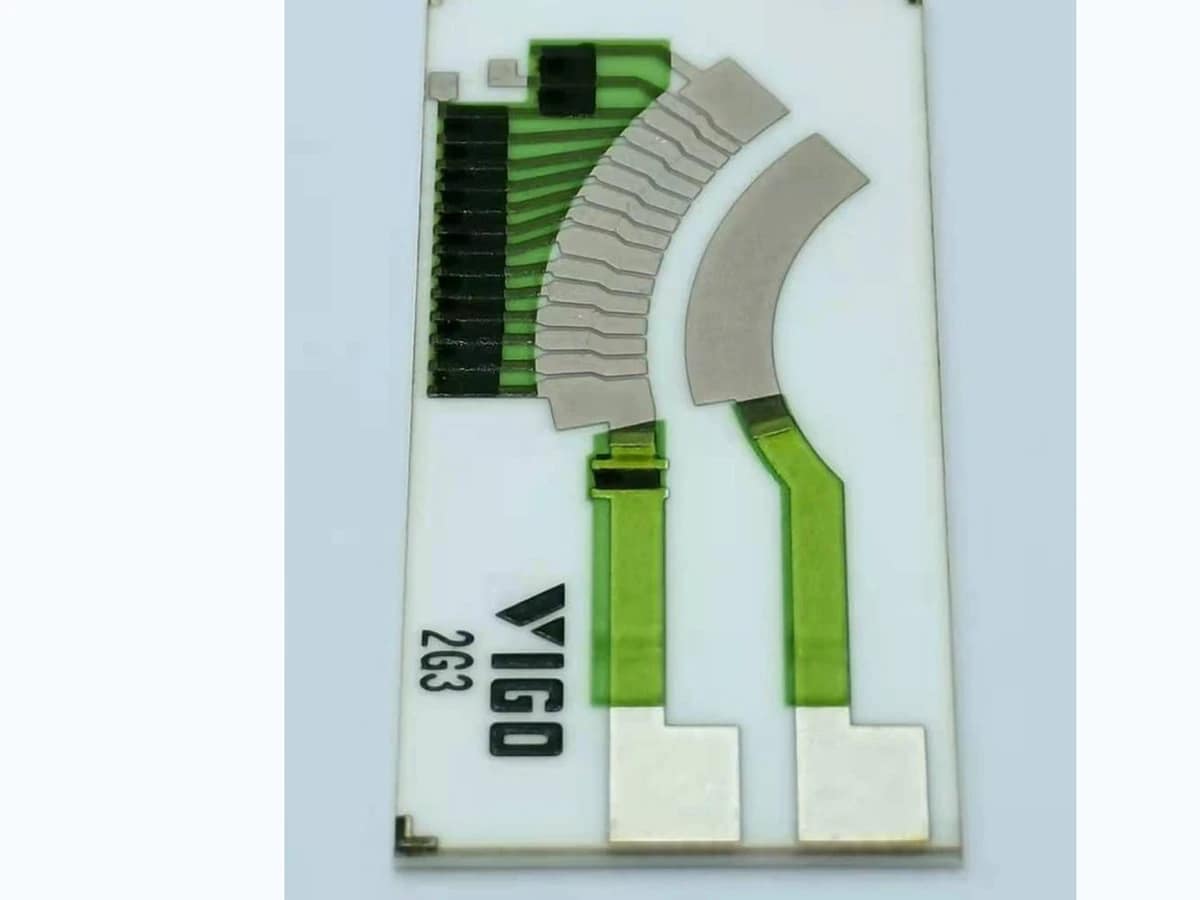

The verified photographs show complete white rectangular cards with printed arc regions, fine segmented paths, conductor routes, terminals, and sample markings. They do not show the mating mechanism, sealing, media exposure, or test results.
- Visible format

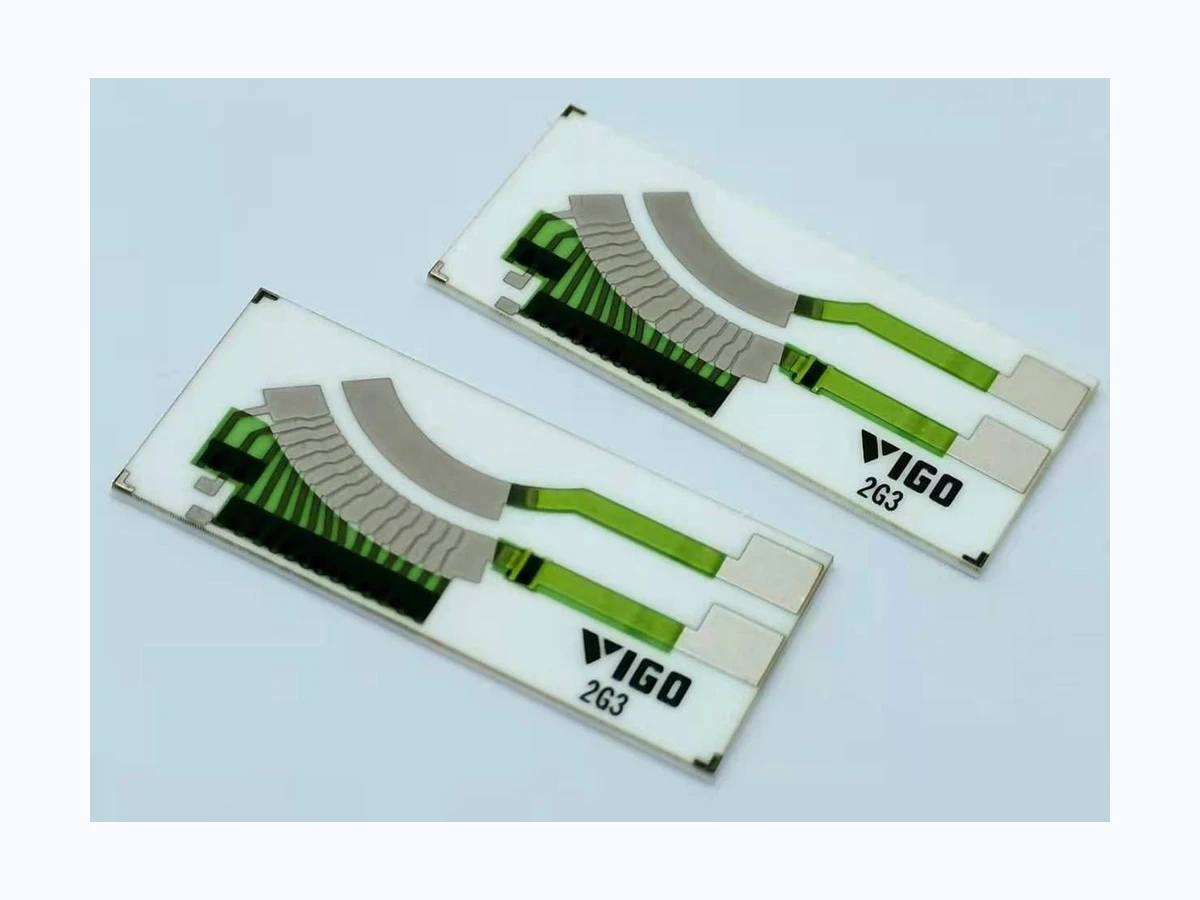

- Complete rectangular cards are shown individually and in paired or three-card arrangements.
- Printed features
- Arc regions, fine segmented paths, green routing, dark printed zones, terminals, and sample markings are visible.
View 2 additional evidence boundaries
- Assembly boundary
- No float, linkage, wiper, housing, seal, connector, or oil-side installation is shown.
- Evidence boundary
- Material, electrical curve, oil compatibility, temperature, sealing, contact wear, vibration, and lifecycle are not proven by photographs.
Manufacturing & Quality
Chipsimple supports drawing-led printed sensor elements with controlled printing, resistance adjustment where applicable, dimensional and electrical inspection, and protected handling.
Read the shared manufacturing-control scope
The exact route depends on substrate, resistor system, contact design, and validation plan; these photographs show general company capability, not evidence of the displayed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom Oil Level Sensor Resistor Card?
Start with the oil type and additives, level range, reservoir geometry, float or linkage motion, active travel, output table, media boundary, seals, drainage, mounting, contact, terminals, loading, temperature, vibration, lifecycle, and calibration.
Are the Quick Specifications guaranteed for every resistor card?
No. These are category-level selection values, not a released part specification. Substrate, resistor and conductor systems, geometry, resistance, tolerance, linearity, TCR, contact route, and operating temperature are narrowed against the drawing, mating mechanics, electronics, and validation plan.
How should Oil Level Sensor Resistor Card performance be validated?
Validate the complete mechanism, media boundary, contact, wiring, and electronics using the specified oil or an approved simulation. Check output, repeatability, temperature, vibration, contact stability, cycling, leakage or isolation criteria, calibration, and end-of-line limits.
What should be included with the RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, active travel or angle, resistance and output-curve data, track count, mating contact, electrical loading, environment, validation method, quantity, and schedule. Identify the oil or fluid, additive package if relevant, continuous and transient temperatures, splash or immersion condition, sealing concept, and permitted validation media.
Request a Oil Level Sensor Resistor Card Quote
Share the reservoir and mechanism drawing, oil and temperature information, level-to-output table, media boundary, contact, terminals, electronics, lifecycle, and validation plan.
RFQ inputs and review sequence
- Drawing-led DFM and curve-definition review
- Substrate, resistor, conductor, and contact-system selection
- Prototype and validation-route planning
- Confidential handling of customer drawings and data
- Controlled drawing, artwork, dimensions, tolerances, and active travel or angle
- Resistance range, output curve or table, linearity target, and track count
- Mating wiper or contact details, force window, connector, and assembly stack
- Substrate and printed-system preference, or permission for engineering selection
- Electrical loading, temperature, vibration, fluids, contamination, and lifecycle targets
- Prototype quantity, annual volume, inspection method, validation plan, and schedule
- 1We check the drawing, motion, electrical response, contact interface, environment, and missing acceptance inputs.
- 2You receive DFM questions and a proposed material, artwork, prototype, and validation route for review.
- 3Production follows the approved revision, inspection plan, traceability requirement, and packing instruction.
