Carbon artwork and coverage
Release the resistive geometry, contact areas, overlaps, keep-outs, print direction, and any graded response path as controlled artwork.
FR4 Printed Resistor Engineering

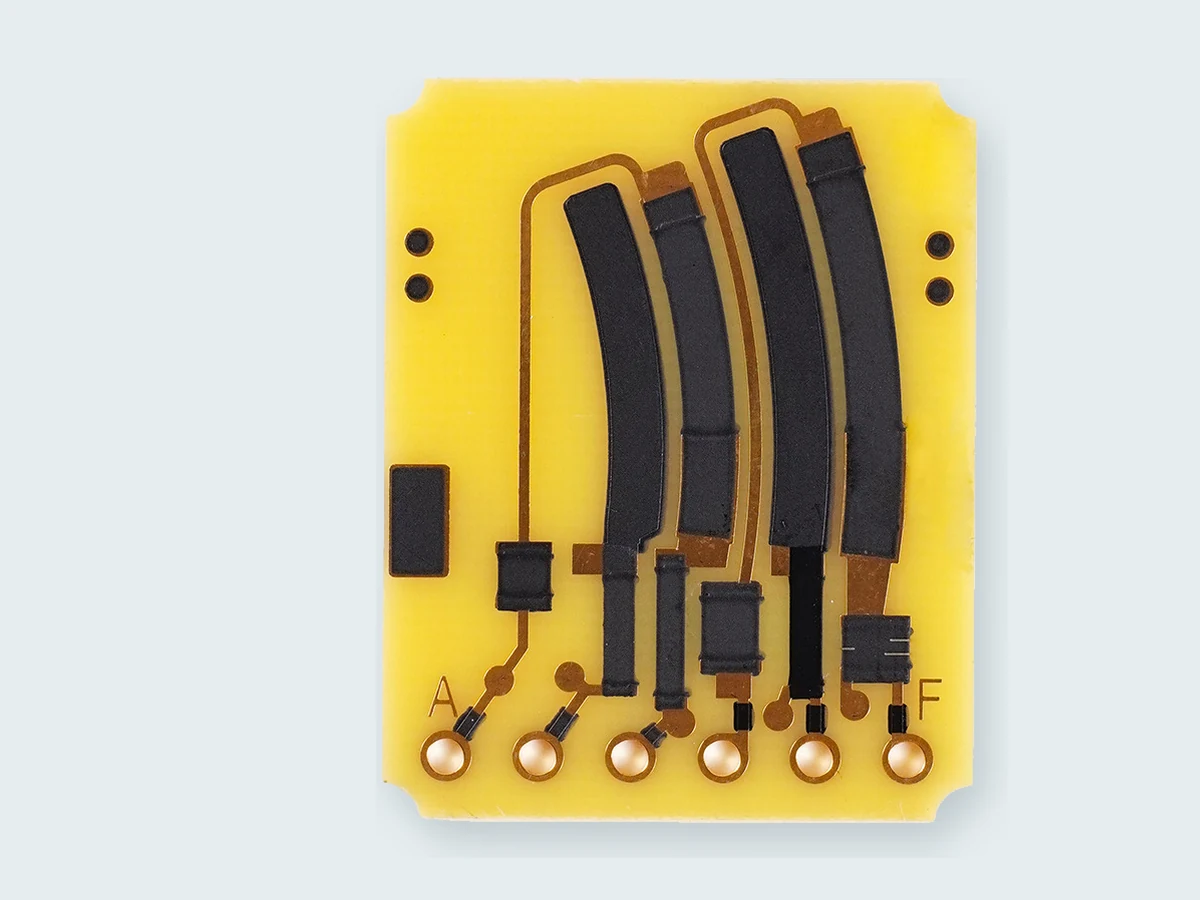

Custom FR4 printed carbon resistor PCB
Custom printed resistance and contact-track layouts on FR4 for OEM sensing, control, and interface assemblies—reviewed from artwork, electrical targets, contact mechanics, environment, and test requirements.
- Real source form
- Text-free product views
- FR4 + carbon
- Dedicated process family
- By drawing
- Values, curve, wear, and tests
Product Categories
On this pageJump to section
Verified capability review
FR4 Printed Carbon Resistor PCB Specifications
FR4 Printed Carbon Resistor PCB is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Base Material | FR-4 | FR-4 grade, Tg, copper construction, finish, mask, and panel route by PCB and cure review | Approved material specification, drawing, and incoming criteria |
| Board Thickness | 0.4–3.2 mm typical | Within 0.4–3.2 mm typical, stack, tolerance, flatness, connector, and enclosure are reviewed | Approved material specification, drawing, and incoming criteria |
| Copper Weight | 0.5–2 oz typical | Within 0.5–2 oz typical, current, pad geometry, carbon overlap, etch, and finish are reviewed | Released drawing and approved sample |
| Carbon Ink | Polymer carbon / Ag-C blend | Polymer carbon or Ag-C blend selected for resistor, contact, curve, or jumper function | Released drawing and approved sample |
| Carbon Film Thickness | 8–15 µm typical | Within 8–15 µm typical, screen, cure, sheet resistance, adhesion, and wear are controlled together | Released drawing, DFM approval, and first-article inspection |
| Cure Temperature | 120–150°C typical | Within 120–150°C typical, peak, dwell, support, board finish, and warpage are validated | Approved material-process route and production traveler |
View 6 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Sheet Resistance | 50–5,000 Ω/□/25 µm reference | Select within the 50–5,000 Ω/□/25 µm ink-family reference after geometry and target review | Released electrical limits, measurement method, and approved sample |
| Target Resistance | 10 Ω–1 MΩ typical | Within 10 Ω–1 MΩ typical, measurement points, temperature, loading, geometry, and tolerance are defined | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±5% / ±10% typical | ±5% or ±10% selected by ink, geometry, copper overlap, cure, and measurement method | Released electrical limits, measurement method, and approved sample |
| Linearity | ±1–5% FS typical | Within ±1–5% FS typical, define calculation method, active travel, endpoints, hysteresis, and loading | Released electrical limits, measurement method, and approved sample |
| Surface Finish | HASL / ENIG / ENEPIG | HASL, ENIG, or ENEPIG selected for carbon compatibility, soldering, contact, corrosion, and storage | Approved material stack, assembly interface, and sample |
| Wear Life | ≥10,000 cycles typical | Beyond the ≥10,000-cycle typical basis, define mating contact, force, speed, stroke, current, lubricant, and drift limit | Agreed lifecycle profile, acceptance drift, and validation report |
Engineering controls specific to printed carbon on FR4
A useful review connects the resistor artwork, copper interface, carbon material, contact mechanics, curing route, and measurement method. These six controls stay product-specific; they are not copied from ceramic thick film pages.
Copper-to-carbon transition
Define overlap geometry, copper finish, current path, contamination limits, and the electrical acceptance method at each transition.
Resistance or curve definition
Provide nominal values or a curve table with tolerance, direction, measurement points, electrical loading, and stabilization conditions.
Wiper and contact mechanics
For moving contacts, specify material, geometry, force, travel, speed, direction, lubrication, contamination, and expected movement duty.
Curing and surface protection
The polymer carbon system, print build, curing conditions, solder mask or overcoat, and exposed windows are reviewed together.
Measurement and validation
Visual, dimensional, resistance, curve, contact, adhesion, wear, environment, and traceability checks are selected from project risk.
Typical application directions
These examples show where a printed resistance or contact track may fit after the mechanics, electrical target, environment, and validation plan are defined.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.

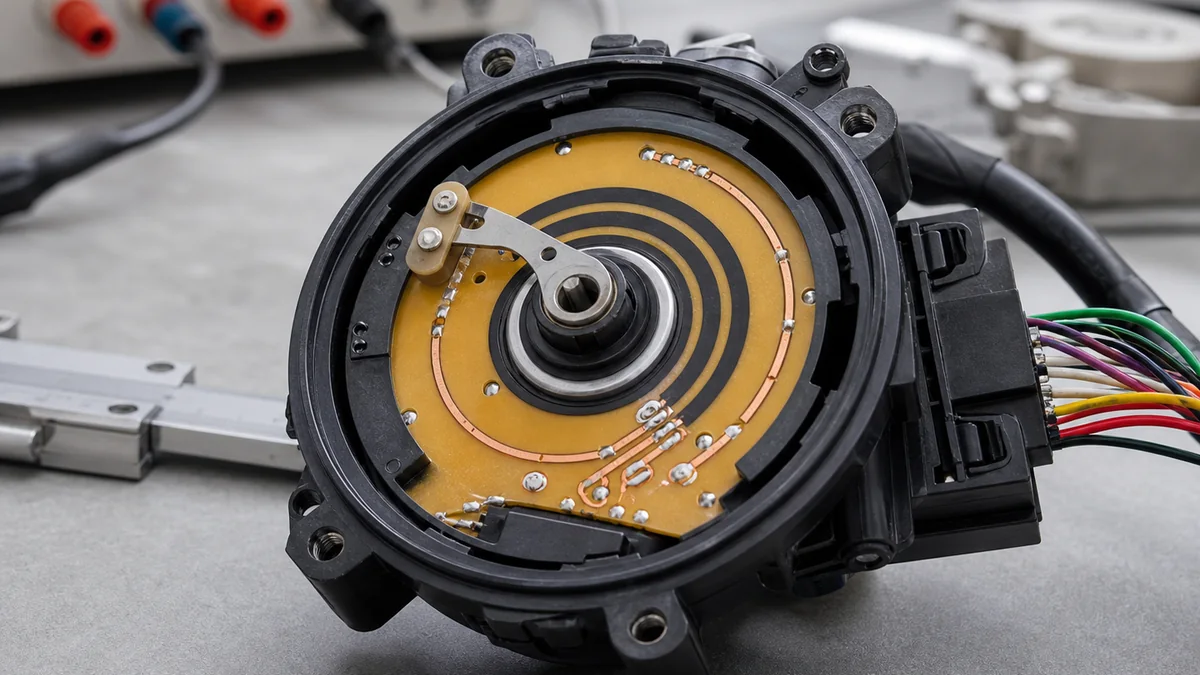

Application illustrationRotary position feedback modules
Arc-shaped printed resistance and contact layouts may be evaluated for rotary feedback after the angle, curve, wiper mechanics, electrical loading, environment, and validation plan are defined.
Review rotary route

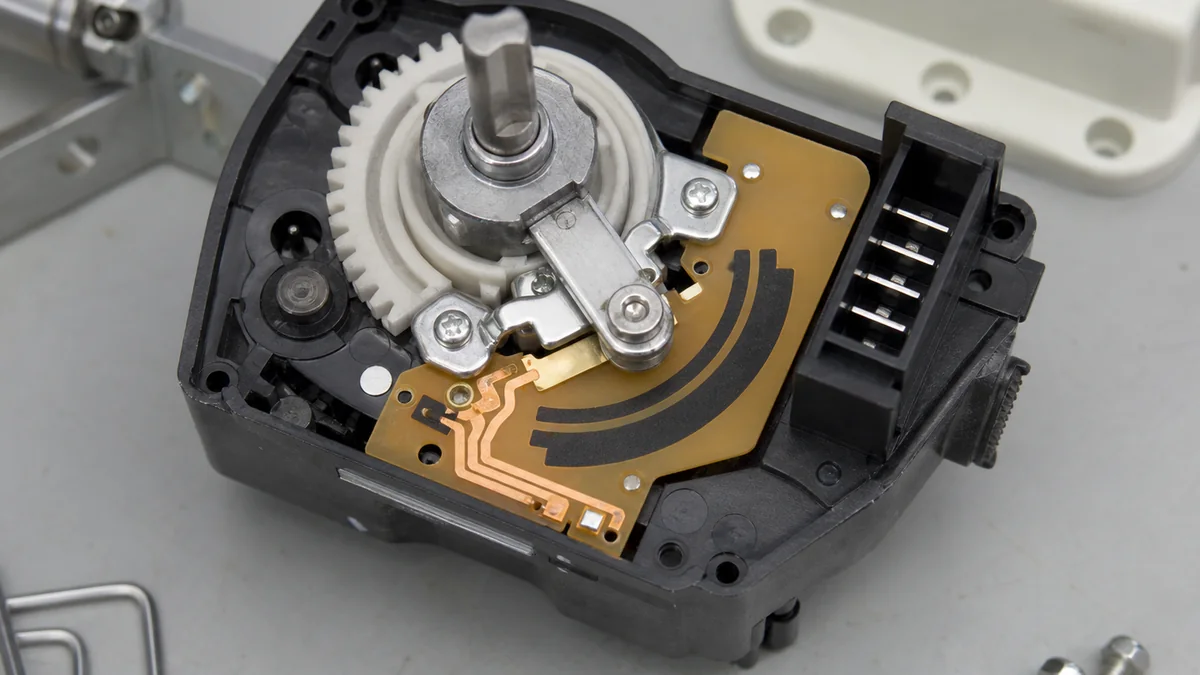

Application illustrationValve and damper actuator feedback
Compact gear-driven actuators can be assessed for a printed feedback interface only after the motion range, contact system, connector, vibration, temperature, and acceptance method are released.
Review actuator inputs

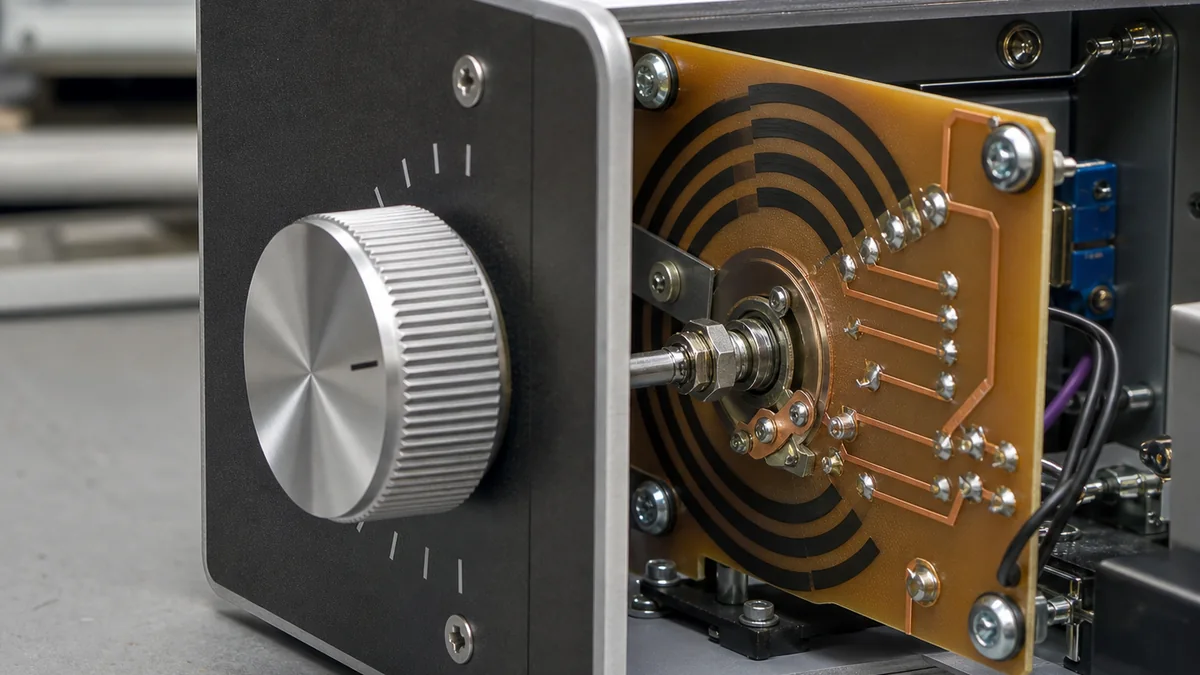

Application illustrationRotary control knob assemblies
Printed carbon tracks may be considered behind a control knob when the rotation, detents, shaft and wiper geometry, resistance behavior, terminal layout, assembly, and lifecycle are drawing-defined.
Review control routeProduct-specific source evidence
The page uses only text-free, geometry-preserving views cut from the supplied source package. Promotional text, third-party application photos, and unsupported specifications were excluded.
- Source package

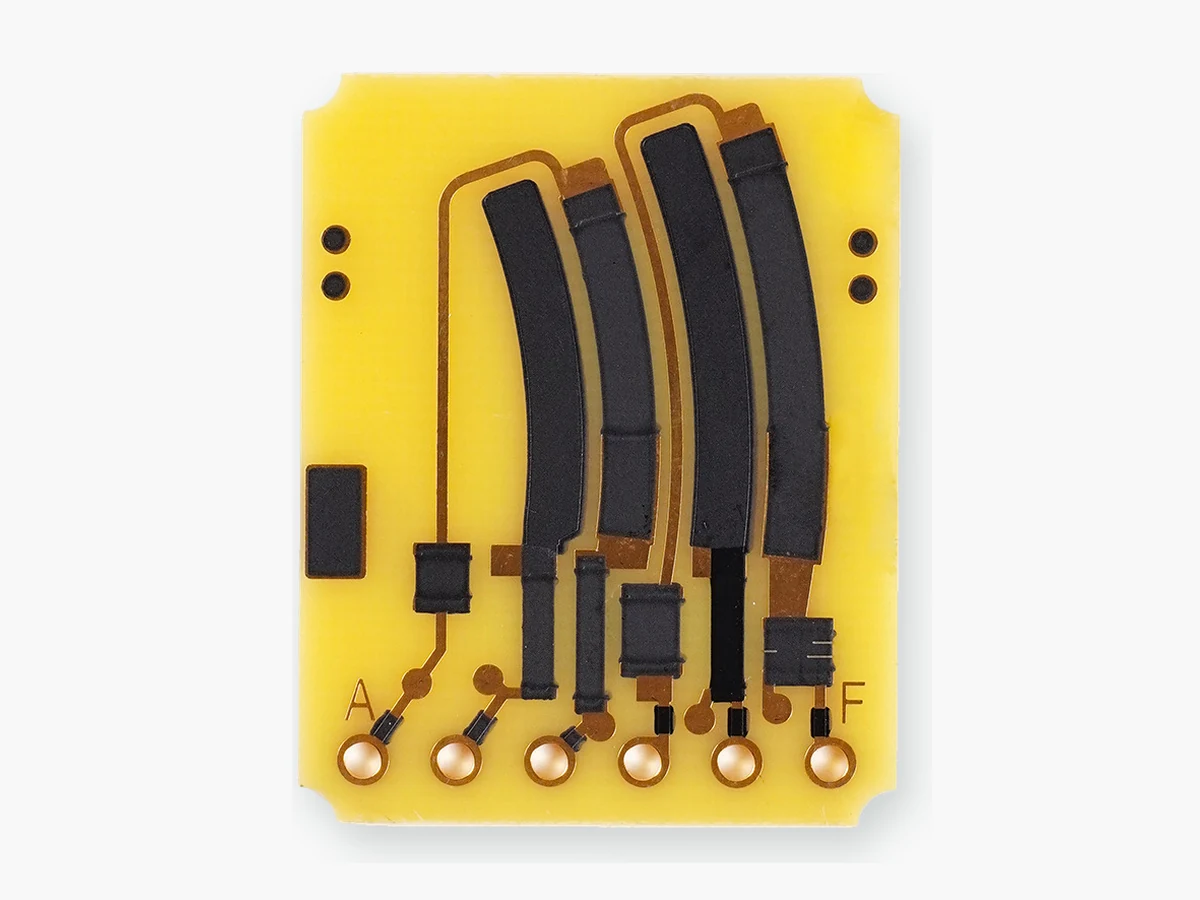

- Seven supplied files resolve to six unique images plus one exact duplicate. The same rigid yellow board form appears in front, rear, and oblique views.
- Visible basis

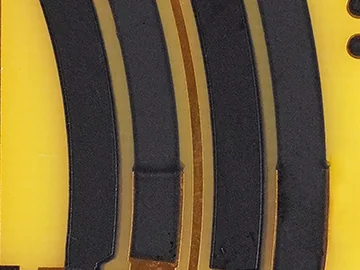

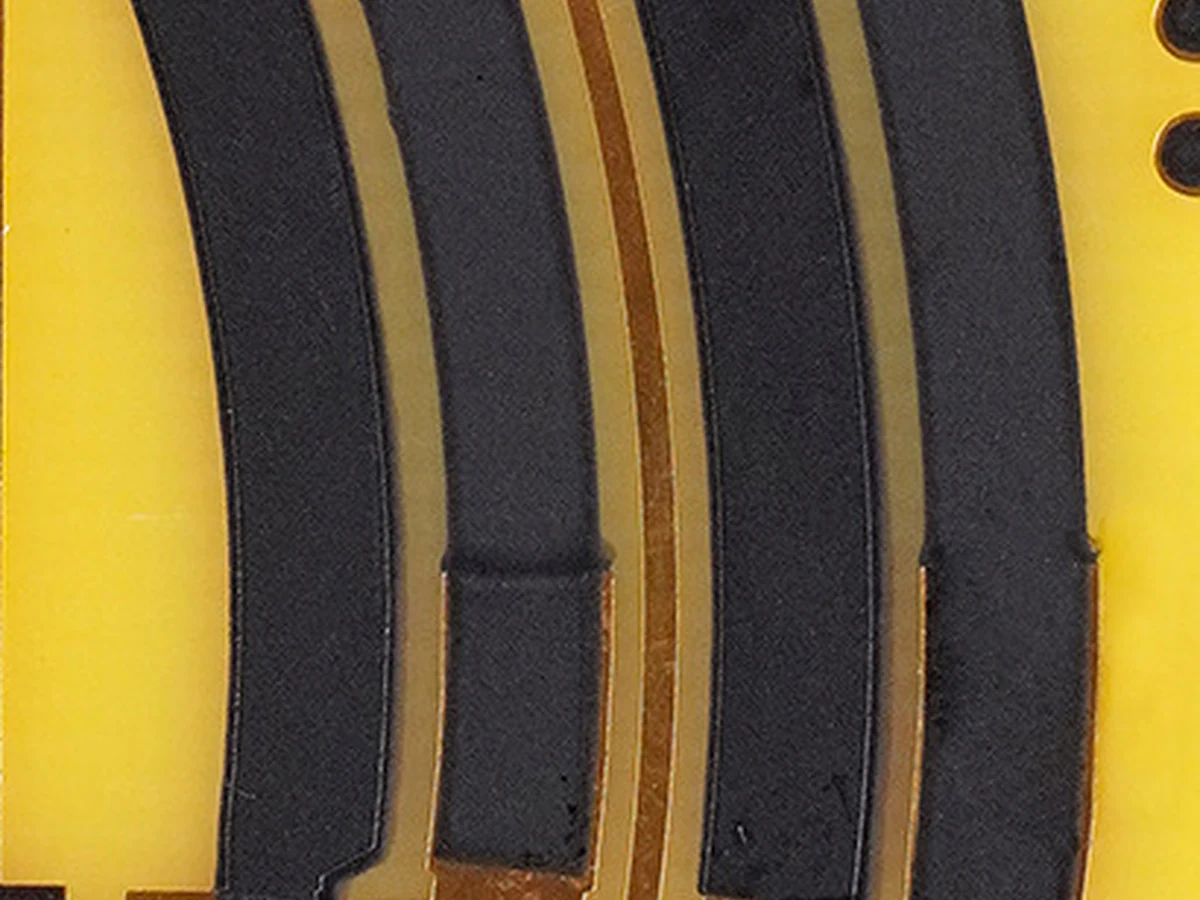

- Curved and rectangular black printed regions, copper-colored paths, six larger terminal holes, four smaller side holes, edge notches, and A/F markings are visible.
View 1 additional evidence boundaries
- Not established by the images
- Exact FR4 grade, copper stack, carbon ink, resistance value, curve, linearity, temperature, soldering limits, wear life, and qualification results remain unverified.
Manufacturing and quality at a glance
FR4 carbon resistor PCB production uses polymer carbon-ink printing, controlled curing, electrical measurement, and project-defined inspection.
Read the shared manufacturing-control scope
The workshop views show company-level printing and test resources. Board construction, resistance targets, contact mechanics, curing conditions, and acceptance limits remain tied to the released drawing.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What is an FR4 printed carbon resistor PCB?
It is an FR4 PCB in which a drawing-defined printed carbon layer performs a resistive function and interfaces with board conductors, terminals, or a contact system. The exact FR4 stack, ink, resistance target, curve, protection, assembly, and inspection method are released for each project.
What data is needed to define resistance or a response curve?
Provide the nominal resistance or curve table, tolerance, travel or angle reference, direction, measurement points, stabilization condition, electrical loading, and acceptance method. The supplied artwork does not prove a value, tolerance, linearity, or test result, so these remain By drawing and By project review.
How are contact stability and wear requirements reviewed?
The wiper or contact material, geometry, force, travel, speed, direction, lubrication, contamination, electrical loading, and expected movement duty must be defined first. Any contact-resistance, abrasion, cycling, or lifecycle target remains To be confirmed until the project validation method and limits are released.
What files should be sent for quotation?
Send the controlled board drawing, Gerber or resistor artwork, FR4 and printed-layer requirements, resistance or curve definition, contact-system and assembly details, environment, validation plan, quantity, and schedule. Clear sample photos can start a review, but final material, dimensions, electrical limits, and acceptance criteria remain By drawing or By project review.
Request an FR4 printed carbon resistor PCB quote
Send enough information to connect the board construction, printed resistance function, mating contact, operating conditions, and acceptance method. Clear sample photos can start a review when final drawings are not ready.
RFQ inputs and review sequence
- Controlled board drawing plus Gerber, DXF, DWG, PDF, or measured sample photos with revision
- FR4 grade, thickness, copper construction, surface finish, outline, holes, terminals, and tolerances
- Carbon-ink requirement, sheet resistance or target value, curve table, tolerance, direction, and measurement points
- Contact or wiper material, force, travel, speed, housing, soldering, cleaning, protection, and exposed windows
- Temperature, humidity, chemicals, vibration, wear or lifecycle test, quantity, schedule, traceability, and packing
- 1Upload drawings, data, or sample photos
- 2Engineering identifies missing release inputs
- 3Confirm the prototype and validation route
Submit RFQ and upload files
PDF, DWG, DXF, STEP, Gerber, ZIP, Excel, Word, or sample photos are accepted.
