Compact motorcycle fuel-sender element
Motorcycle Fuel Gauge Resistor Card
A motorcycle fuel gauge resistor card must fit a compact tank and sender while producing the required gauge response through the available float travel. Chipsimple reviews card envelope, pivot and arm motion, curve data, contact path, terminals, fuel-side isolation, vibration, electronics, and validation before release.
- Compact float-arm motion mapped to output
- Arc path and center-clearance review
- Contact, terminal, and mounting integration
- Motorcycle vibration and calibration planning
- By float mechanics
- Active geometry
- By mating assembly
- Contact system
- By drawing
- Tank, float, and mounting envelope
- By project review
- Curve and vehicle validation
Product Categories
On this pageJump to section
Verified capability review
Quick Specifications
Motorcycle Fuel Gauge Resistor Card is shown against approved company capability control sheets.
Capability source: approved company category control sheets. Final values remain drawing- and sample-controlled.
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Compact sender envelope | Card outline, centre clearance, mounting datums, pivot space, and float-arm sweep follow the motorcycle tank drawing | Tank-wall clearance, reserve position, stops, connector, and service access are reviewed together | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Gauge response points | Reserve, empty, intermediate, and full outputs follow the approved motorcycle gauge table | Nonlinear or segmented response is matched to float travel, instrument loading, and damping logic | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Pivot and contact route | Wiper trajectory, material, force, path width, support, and terminals are released with the compact mechanism | Misalignment, vibration, wear debris, contact interruption, and assembly tolerance are included in validation | Released mechanism drawing, electrical table, approved sample, and validation plan |
| Motorcycle duty validation | Fuel isolation, vibration, temperature, cycling, curve repeatability, and end-of-line calibration are defined by program | The test fixture reproduces the production tank, float, sender, wiring, and gauge electronics | Released mechanism drawing, electrical table, approved sample, and validation plan |
View 13 additional engineering review checks
| Parameter | Standard capability | Engineering review range | Final release |
|---|---|---|---|
| Substrate Material | Alumina / FR-4 / PI approved routes | Select alumina, FR-4, or PI from stiffness, contact support, media, temperature, mounting, and cure/firing needs | Approved material specification, drawing, and incoming criteria |
| Sensor Geometry | Rotary / Linear / Arc | Travel angle or distance, active arc, datum, dead zones, endpoints, and contact path by mechanism drawing | Released drawing, DFM approval, and first-article inspection |
| Resistor System | RuO₂ / Carbon | RuO₂ or carbon selected for substrate, curve, contact load, environment, and electrical loading | Released drawing and approved sample |
| Conductor System | Ag / Ag-Pd / Au / Ag-C | Ag, Ag-Pd, Au, or Ag-C selected for terminal, wiper, media, corrosion, and process compatibility | Approved material stack, assembly interface, and sample |
| Track Count | 1–4 tracks typical | Within 1–4 tracks, redundancy, diagnostics, isolation, and terminal count follow the system schematic | Released drawing, DFM approval, and first-article inspection |
| Nominal Resistance | 100 Ω–1 MΩ typical | Within 100 Ω–1 MΩ, endpoints, intermediate points, ratios, and loading follow the approved curve table | Released electrical limits, measurement method, and approved sample |
| Resistance Curve | Linear / Nonlinear / Segmented | Linear, nonlinear, segmented, or customer point table with defined scan direction and reference condition | Released electrical limits, measurement method, and approved sample |
| Resistance Tolerance | ±1–10% by material system | Within ±1–10%, limits are allocated by material system, measurement position, fixture, and electronics | Released electrical limits, measurement method, and approved sample |
| Linearity | ±0.5–2% FS typical | Within ±0.5–2% FS typical, define best-fit or terminal-based calculation, usable travel, and hysteresis | Released electrical limits, measurement method, and approved sample |
| TCR | ±100–200 ppm/°C ceramic reference | ±100–200 ppm/°C ceramic reference; final TCR range, tracking, and temperature points follow the selected paste system | Released electrical limits, measurement method, and approved sample |
| Contact System | Precious metal / Carbon | Precious-metal or carbon contact with defined geometry, force, speed, current, lubricant, and contact path | Approved material stack, assembly interface, and sample |
| Operating Temperature | -40 to +125°C, system-dependent | -40 to +125°C category envelope is checked with media, vibration, humidity, electrical load, and mating materials | Approved electrical-thermal design and instrumented prototype validation |
| Life-test conditions | Full-travel cycling is defined with speed, stroke, direction, contact force, electrical load, and starting condition | Cycle count, media, temperature, vibration, contact noise, curve drift, wear, and endpoint limits by mechanism risk | Approved mating contact, lifecycle profile, and validation report |
Engineering Capabilities
Motorcycle senders combine limited space, fuel-side constraints, vibration, and gauge calibration. The engineering route links the tank and float mechanism to printed artwork, contact integration, and production-intent acceptance tests.
Arc-track artwork control
Release resistor and collector paths, segments, overlaps, terminals, mounting references, inactive zones, and registration limits around the compact sender mechanics.
Wiper, pivot, and mounting review
Review contact material and force, pivot tolerance, path alignment, support, fasteners, terminals, sealing boundary, gauge loading, and assembly stack.
Gauge-system validation
Define output versus arm position or fuel level, repeatability, vibration, temperature, contact stability, cycling, calibration, and end-of-line test conditions.
Typical Applications
Representative compact fuel-sender uses require motorcycle-specific tank geometry, float clearance, vibration, mounting, electronics, sealing, calibration, and validation.
Application images are engineering illustrations, not customer projects, production records, or evidence of a released design. Suitability is confirmed only after the drawing, interfaces, operating conditions, risks, and validation plan are reviewed.
Application illustrationMotorcycle fuel senders
Compact senders need released tank clearance, float and arm travel, output curve, contact force, terminals, vibration, fuel isolation, and gauge calibration.
Review application inputs
Application illustrationSmall vehicle level sensing
Related vehicle platforms require tank-specific volume mapping, mounting, sender mechanics, electronics, environment, calibration, and system-level validation.
Review application inputs
Application illustrationVehicle instrument integration
Gauge integration depends on harness loading, signal damping, diagnostics, reserve and endpoint targets, vibration, temperature, and end-of-line acceptance.
Review application inputsVerified Product Views

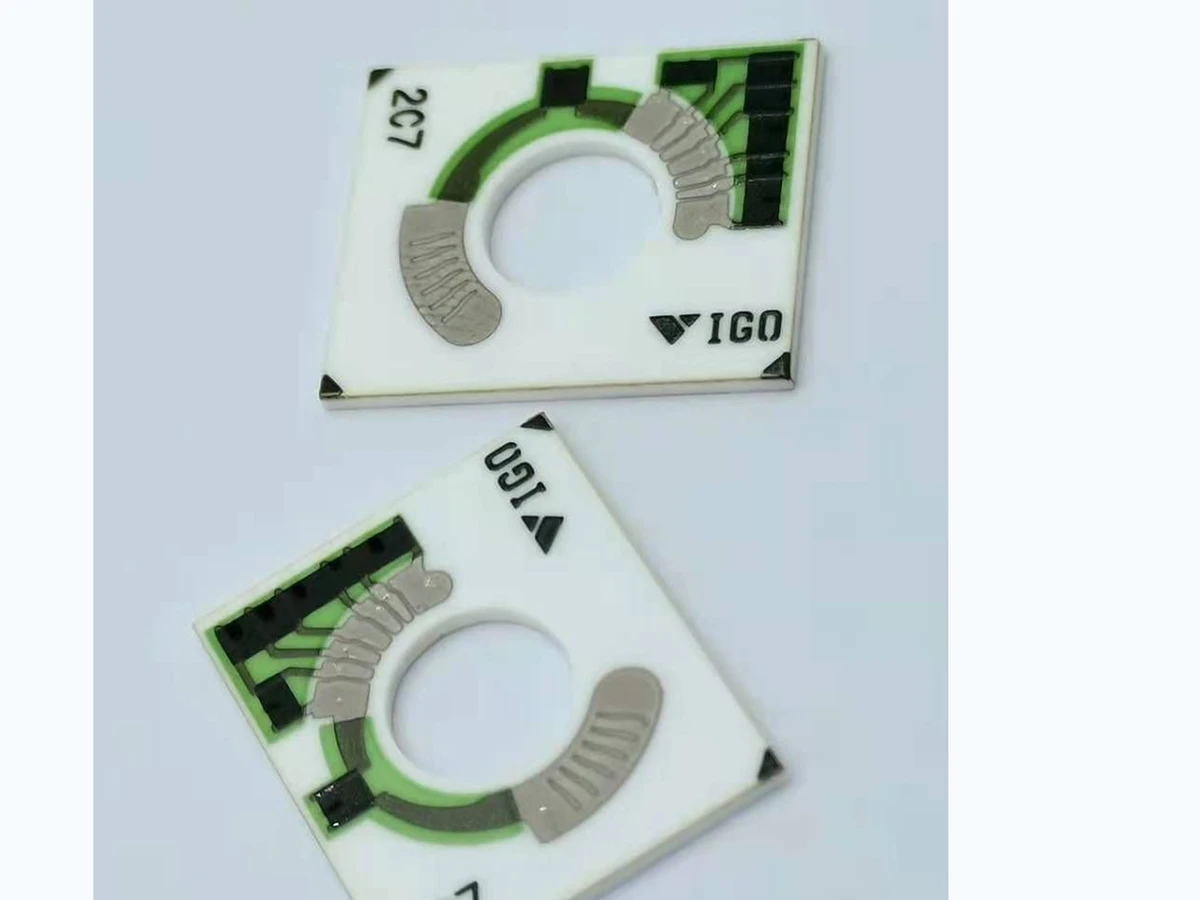

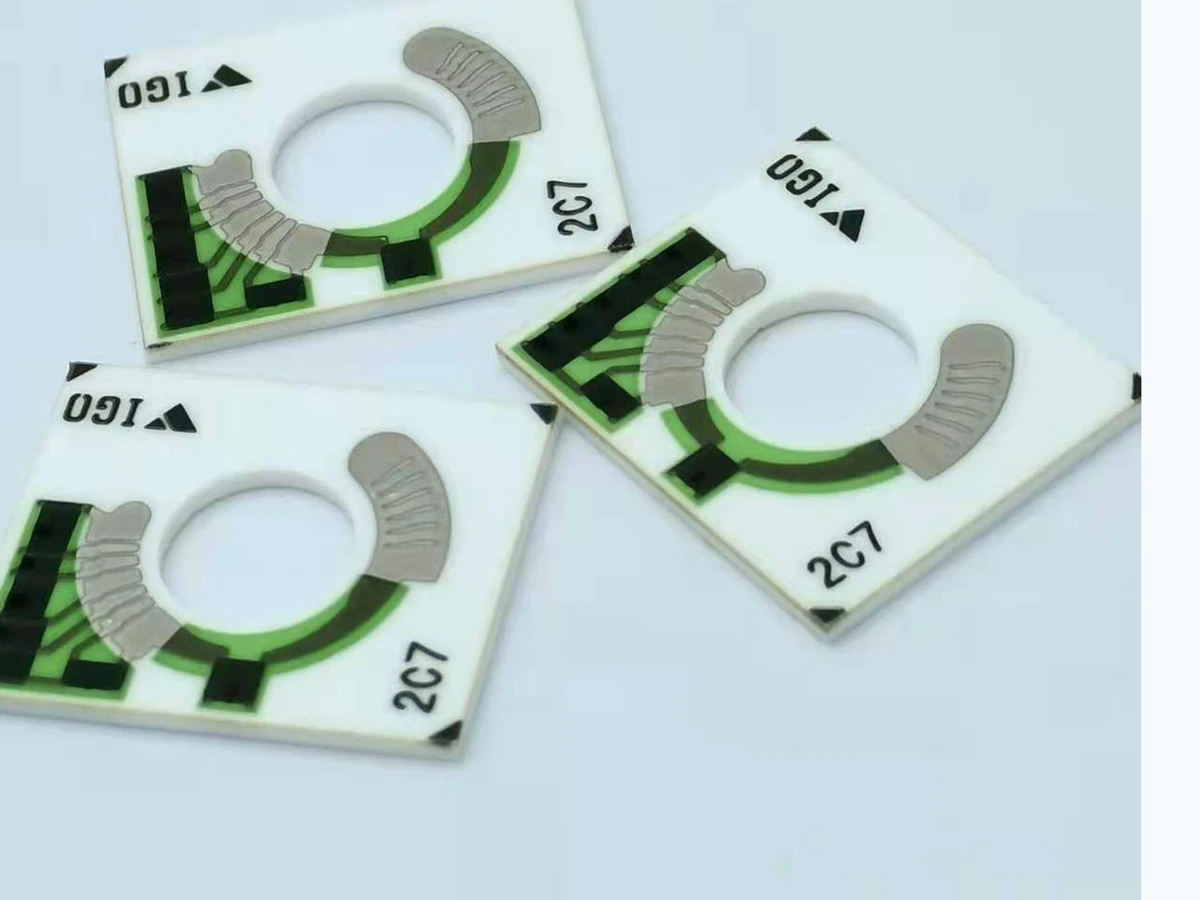

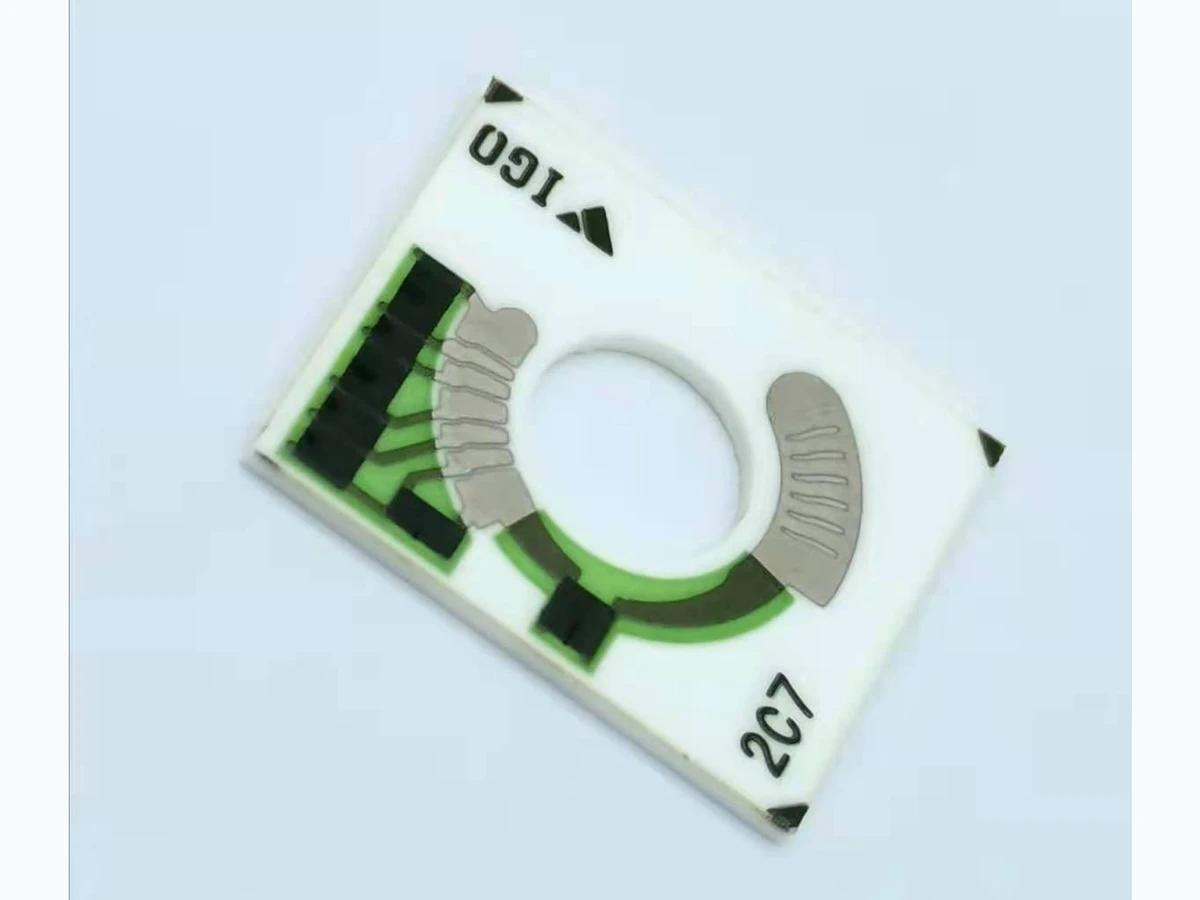

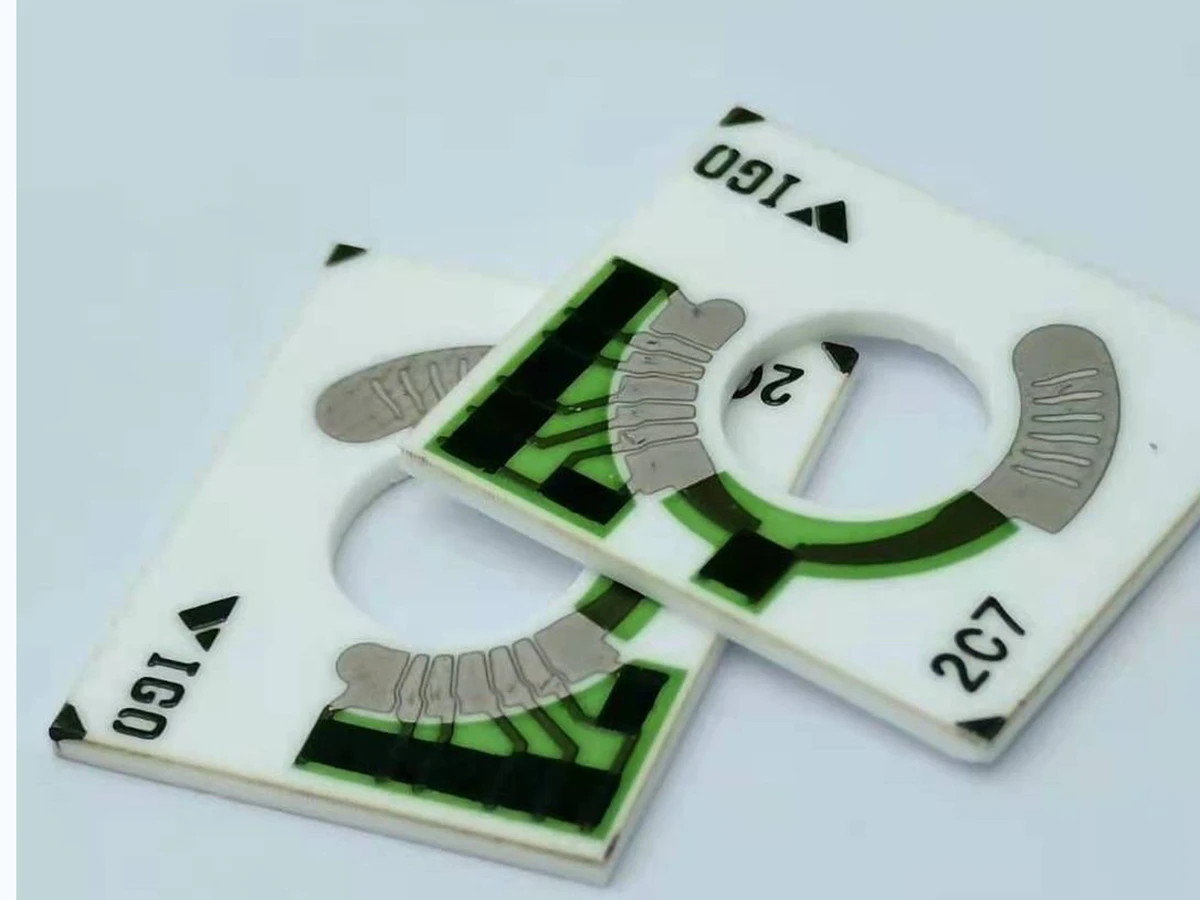

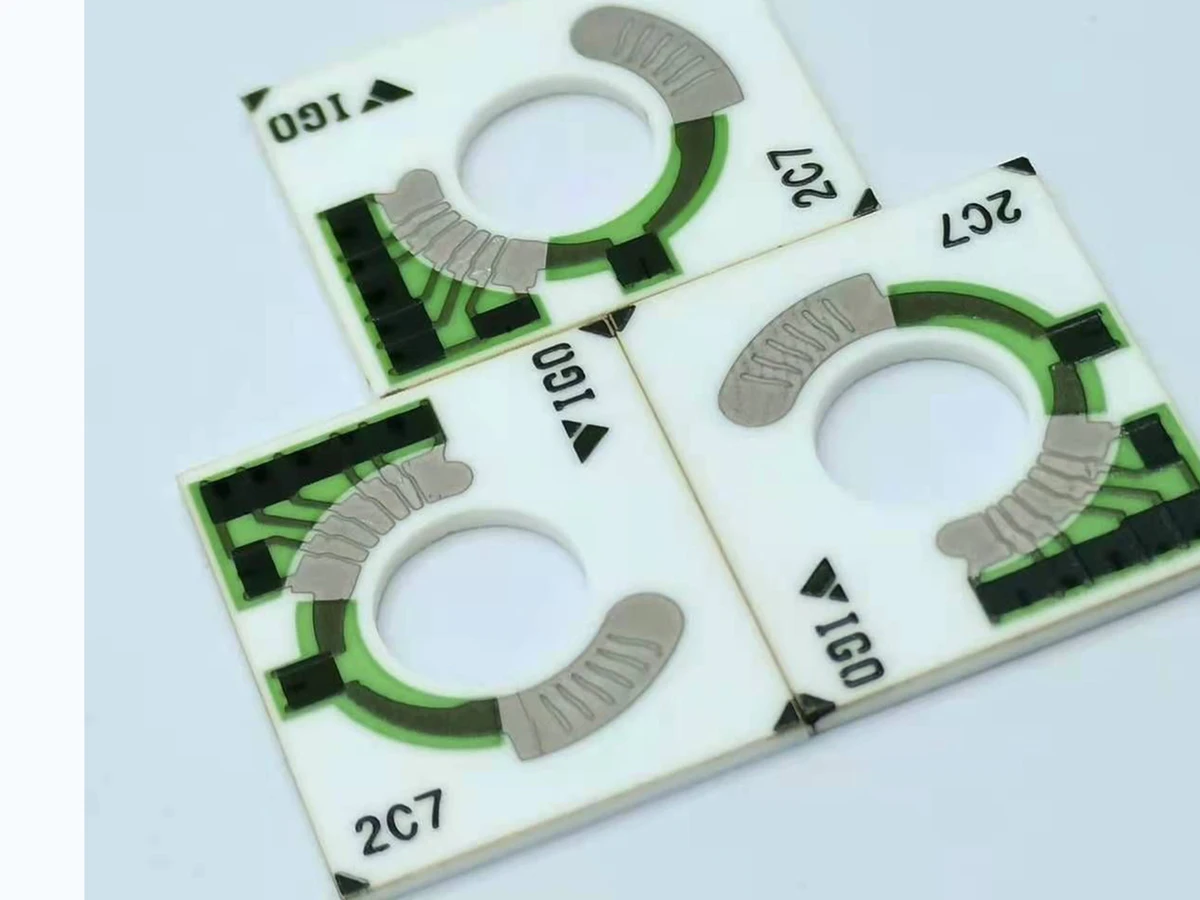

Verified photographs show complete square white cards with central openings, printed arc regions, conductor paths, contact areas, corner marks, and sample codes. These visible features do not establish fuel compatibility, electrical response, or qualification.
- Visible format

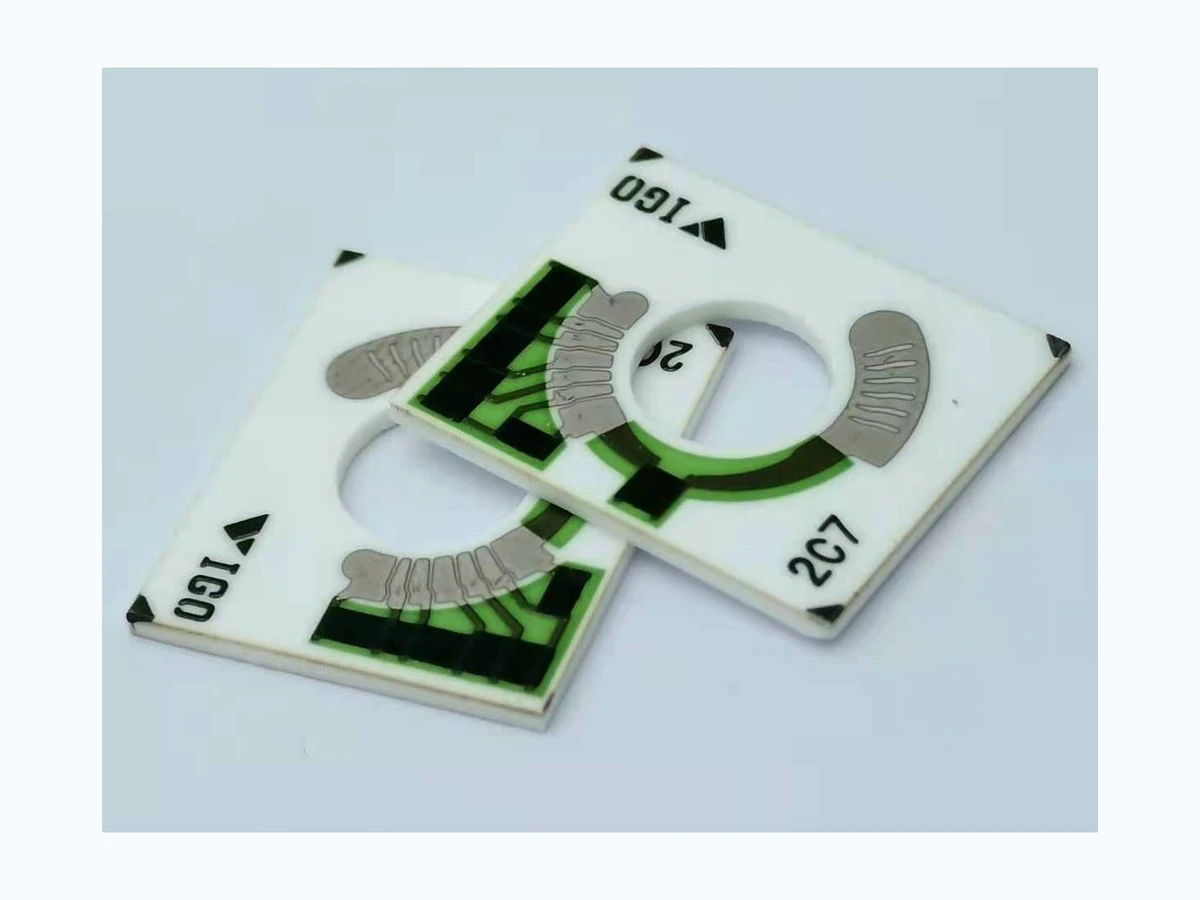

- Square cards with a central circular opening are shown singly and in two- or three-card arrangements.
- Printed geometry
- Arc-shaped regions, segmented paths, dark contact zones, green routing, corner marks, and sample codes are visible.
View 2 additional evidence boundaries
- Mechanical references
- The opening and card outline are visible, but dimensions, mounting, pivot, and float-arm relationships require the drawing.
- Evidence boundary
- Images cannot confirm material, resistance curve, fuel isolation, temperature, vibration, contact wear, gauge accuracy, or lifecycle.
Manufacturing & Quality
Chipsimple supports drawing-led printed sensor elements with controlled printing, resistance adjustment where applicable, dimensional and electrical inspection, and protected handling.
Read the shared manufacturing-control scope
The exact route depends on substrate, resistor system, contact design, and validation plan; these photographs show general company capability, not evidence of the displayed product batch.
Technical FAQ
Short answers for quotation planning; released drawings and validation requirements remain controlling.
What should be defined first for a custom Motorcycle Fuel Gauge Resistor Card?
Define compact tank geometry, float clearance, arm and pivot motion, stops, mounting, active angle, reserve and endpoint outputs, gauge circuit, contact, terminals, fuel isolation, vibration, temperature, lifecycle, and calibration first.
Are the Quick Specifications guaranteed for every resistor card?
No. These are category-level selection values, not a released part specification. Substrate, resistor and conductor systems, geometry, resistance, tolerance, linearity, TCR, contact route, and operating temperature are narrowed against the drawing, mating mechanics, electronics, and validation plan.
How should Motorcycle Fuel Gauge Resistor Card performance be validated?
Use production-intent tank, float, sender, wiring, and gauge electronics. Correlate output with arm position and fuel level, then validate vibration, temperature, contact stability, repeatability, cycling, fuel-side isolation, calibration, and end-of-line limits.
What should be included with the RFQ?
Send the controlled drawing or artwork, dimensions and tolerances, active travel or angle, resistance and output-curve data, track count, mating contact, electrical loading, environment, validation method, quantity, and schedule. Include the available card envelope, center or pivot clearance, mounting datums, float path, reserve point, and gauge response table.
Request a Motorcycle Fuel Gauge Resistor Card Quote
Send the compact tank and sender mechanics, float travel, output table, mounting and contact details, gauge circuit, environment, and qualification plan for a coordinated review.
RFQ inputs and review sequence
- Drawing-led DFM and curve-definition review
- Substrate, resistor, conductor, and contact-system selection
- Prototype and validation-route planning
- Confidential handling of customer drawings and data
- Controlled drawing, artwork, dimensions, tolerances, and active travel or angle
- Resistance range, output curve or table, linearity target, and track count
- Mating wiper or contact details, force window, connector, and assembly stack
- Substrate and printed-system preference, or permission for engineering selection
- Electrical loading, temperature, vibration, fluids, contamination, and lifecycle targets
- Prototype quantity, annual volume, inspection method, validation plan, and schedule
- 1We check the drawing, motion, electrical response, contact interface, environment, and missing acceptance inputs.
- 2You receive DFM questions and a proposed material, artwork, prototype, and validation route for review.
- 3Production follows the approved revision, inspection plan, traceability requirement, and packing instruction.
