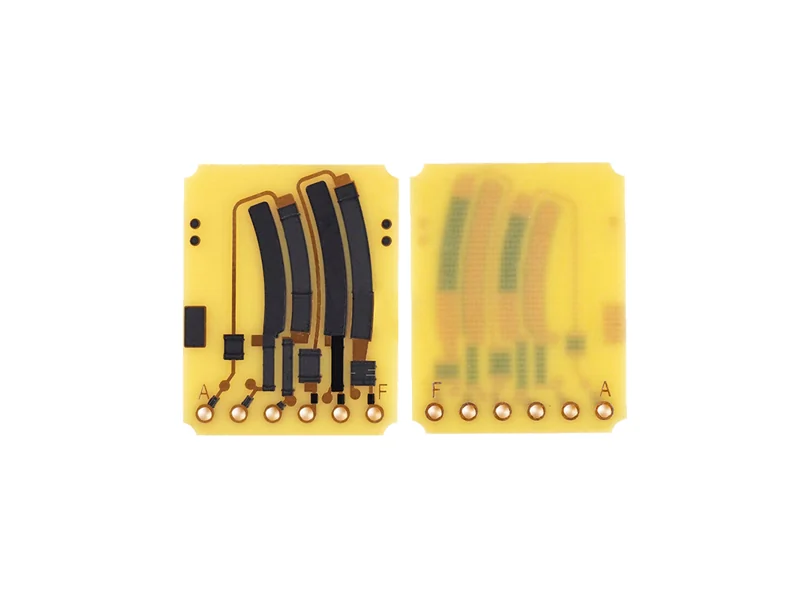

Thick film resistor for throttle position sensor
This thick film resistor product is designed for throttle position sensor and automotive signal control applications. The printed resistor pattern converts mechanical movement into an electrical signal, so the resistance curve, contact track, substrate geometry, and batch consistency all matter for final sensor performance.
Chipsimple supports drawing-based and sample-based development. If the buyer has an existing sensor structure, our team can review the resistor track, contact area, substrate dimensions, mounting features, and required resistance values. For new projects, we recommend providing the target curve, operating angle or travel distance, expected lifecycle, and environmental conditions.
Key features
- Custom thick film resistor pattern for stable signal output.
- Resistance value and curve design according to sensor movement.
- Ceramic substrate for compact and durable automotive applications.
- Prototype sample review and batch consistency inspection.
Quality focus
Important inspection items include resistance value, surface condition, track continuity, dimensional accuracy, and contact zone consistency. For automotive-related projects, customers should also define temperature, vibration, wear, and lifecycle expectations so the design can be reviewed properly.
RFQ checklist
Please send drawings, resistance range, curve requirement, product dimensions, contact method, quantity, operating environment, and existing sample photos if available. Chipsimple will review the project and confirm the next step for quotation or sampling.
