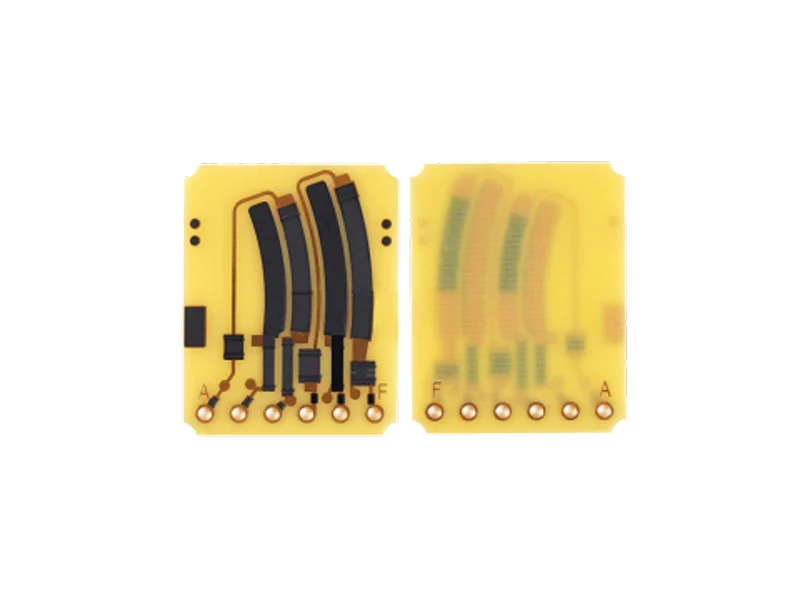

Throttle position sensor thick film resistor solutions
Chipsimple develops thick film resistor products for throttle position sensors and other position sensing modules where stable signal output, repeatability, and durability are critical. The resistor pattern must match the mechanical movement of the sensor, maintain predictable resistance behavior, and support the customer’s electrical tolerance requirements.
For throttle sensor projects, our technical review focuses on resistor material, conductor path, contact track, substrate dimensions, resistance gradient, mechanical contact area, and expected operating environment. Customers can send original samples, drawings, resistance curves, test standards, and application notes for review before sampling.
Product capabilities
- Custom thick film resistor layout for position signal output.
- Support for ceramic substrate shapes and compact sensor structures.
- Resistance value, tolerance, contact area, and curve optimization.
- Prototype sample review and batch consistency inspection.
Application value
Throttle position sensor resistors are used in automotive and engine control systems where signal accuracy affects drivability and control response. A stable thick film resistor structure helps reduce signal drift and supports consistent performance across production batches. Similar design principles can also be applied to industrial position sensors, control modules, and measurement assemblies.
RFQ information
Please provide the target resistance range, curve or signal requirement, substrate size, working temperature, contact method, expected lifecycle, annual quantity, and any existing sample. Chipsimple will review the design and suggest the next step for prototype or batch manufacturing.
