A thick-film resistor paste is not powdered metal suspended in a generic printing liquid. It is a formulated electrical material whose fired microstructure is created together with the substrate, conductor termination, furnace profile, and later layers. The nominal sheet-resistance decade is only the first selection field.
Three formulation roles shape the printed resistor
The functional phase establishes the conductive network. In common air-fired ceramic resistor systems, ruthenium oxide or related conductive phases are used with glass. The glass phase contributes bonding, microstructure, and interaction with the ceramic and conductor. The organic vehicle carries the solids through mixing and screen printing, then leaves during thermal processing.
Particle distribution, dispersion, solids loading, vehicle chemistry, and glass composition affect print response and fired performance. Three-roll milling is one common method used to develop a uniform dispersion, but manufacturing details belong to the material producer. At the circuit manufacturer, the paste is controlled by product, lot, storage, preparation, print, and firing—not reformulated at the printer.
Select a sheet-resistance decade that produces sensible geometry

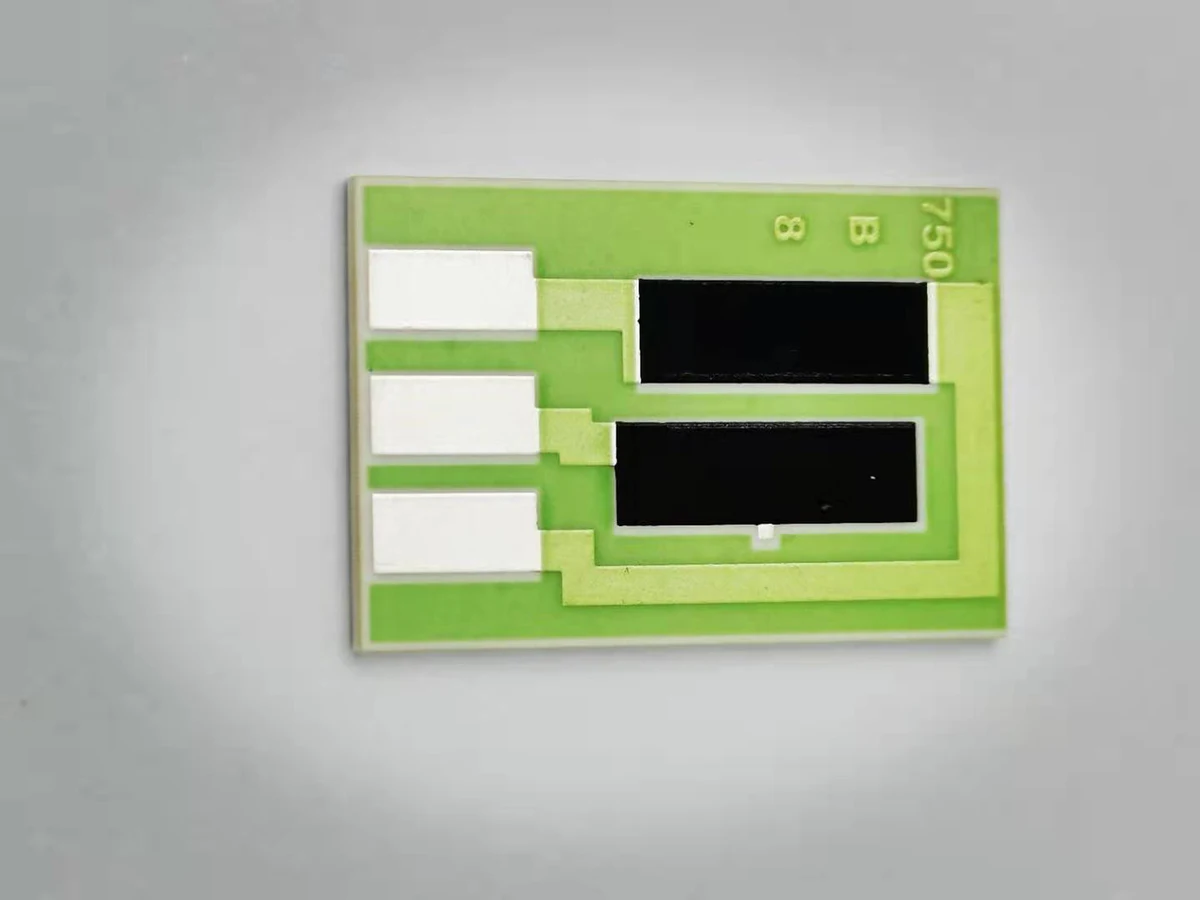

The first-pass rectangular relationship is R ≈ Rs × L/W. The chosen paste decade should place the required values inside practical aspect ratios and available area. A paste closest numerically to the final resistance may still be the wrong choice if it forces a very narrow path, a large current-density concentration, insufficient trim area, or excessive interaction with terminations.
Where a qualified material family permits blending adjacent decades, the blend follows supplier instructions and a controlled process. It is not an operator correction for a resistor that missed target. Blending can change TCR, stability, processing, and distribution as well as nominal sheet resistance.
Conductor termination compatibility matters
Current enters the resistor through the conductor–resistor overlap. Contact chemistry, overlap geometry, print order, firing sequence, and refire count can influence effective resistance and stability. A resistor data sheet therefore identifies compatible conductor systems or test terminations. Substituting a conductor may change the interface even if both conductors are nominally silver-based.
Define overlap and probe arrangement on the drawing. For matched networks, use consistent orientation and interfaces so that ratio tracking is not defeated by geometry. For low-value resistors, termination contribution can be a larger fraction of the total.
Firing creates the resistor; printing only places the precursor
Screen mesh, emulsion, paste rheology, squeegee settings, levelling, and drying control the deposited precursor. The furnace then removes organics and develops the fired microstructure. Peak temperature, time at temperature, total cycle, atmosphere, belt loading, part orientation, and refires can shift the resistance distribution.
Heraeus’s R8900 resistor data describes an air-fired system with its own printing, drying, firing, and trimming guidance. DuPont’s 4300 family likewise ties typical properties to a defined ceramic, film thickness, and firing route. Those documents demonstrate a general rule: data-sheet values belong to data-sheet conditions.
Electrical selection extends beyond nominal resistance
Selection fields that belong on the review
| Sheet resistance | Nominal decade and expected as-fired distribution under the qualified geometry and thickness. |
|---|---|
| TCR and tracking | Absolute TCR, matched-ratio behaviour, reference range, and whether positive and negative TCR grades or blends are used. |
| Load | Steady, pulse, overload, voltage stress, power density, allowable temperature rise, and heat path. |
| Stability | Drift after firing, refire, trimming, ageing, humidity, thermal cycling, load life, and assembly operations. |
| Compatibility | Substrate, conductor, overglaze, firing sequence, soldering, bonding, coating, and cleaning. |
| Production control | Print thickness, geometry, as-fired window, trim allowance, final tolerance, measurement temperature, and records. |
Resistance tolerance and TCR should be stated separately. A resistor can be laser-trimmed to a tight value at one temperature and still have unsuitable temperature behaviour. Voltage coefficient and excess noise may matter in high-value or precision applications. Heater resistors add power distribution, insulation, and hot-spot concerns that a signal-level resistor coupon does not represent.
Plan laser trimming before artwork release

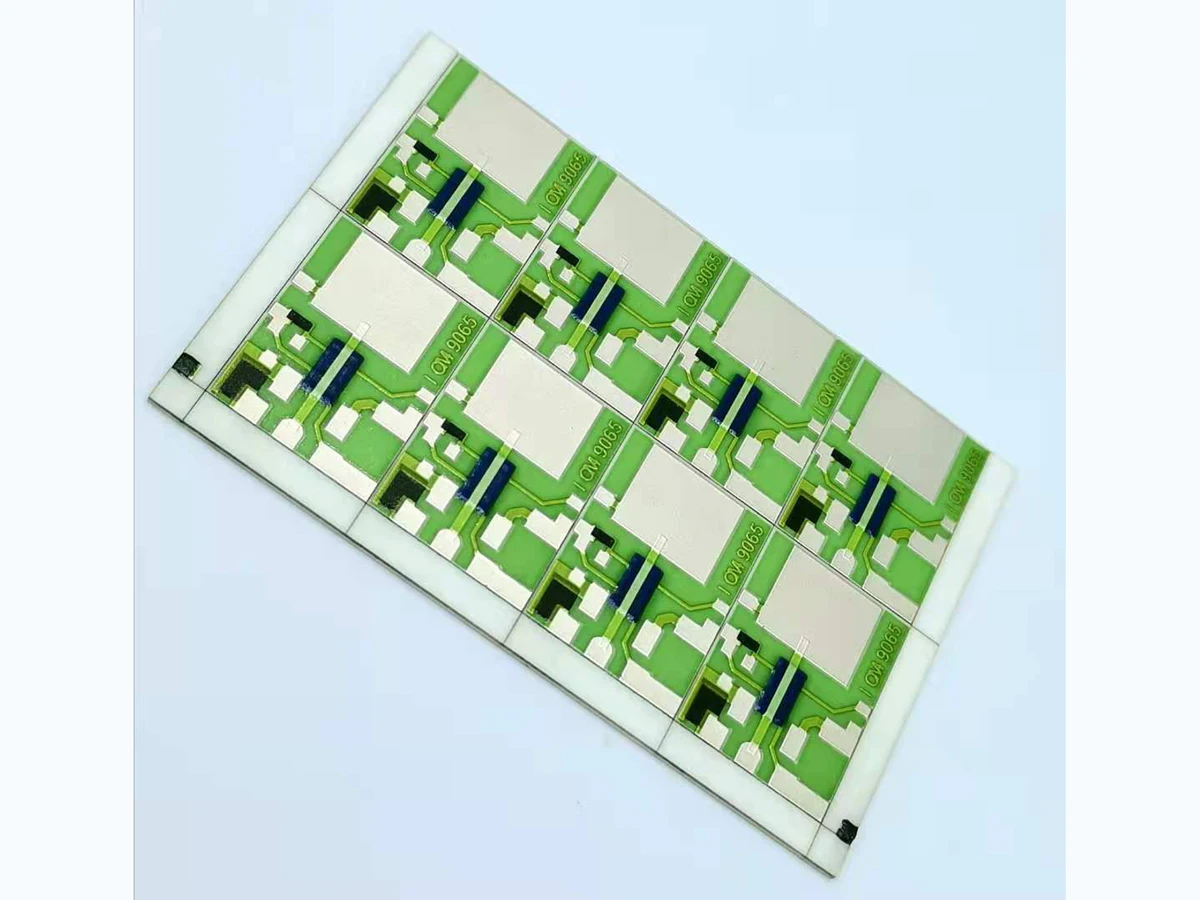

Laser trimming raises resistance by removing part of the current path. The as-fired target must therefore sit below the final target with a controlled distribution and sufficient—but not excessive—trim allowance. Cut style, kerf, access, measurement fixture, stopping rule, remaining current path, protective-layer sequence, and post-trim stability are design inputs.
Keep heater and polymer systems in their own branches
Stainless-steel thick-film heaters use a dielectric stack between the metal substrate and functional layers. Their resistor compositions, firing route, expansion match, insulation, and thermal cycling need heater-specific qualification. A ruthenium-based alumina resistor data sheet cannot be copied into that stack.
Polymer resistor inks cure at lower temperature and retain an organic binder in service. They may be selected for flexible sensors, carbon contacts, or printed resistors on polymer and PCB substrates. Flexibility, wear, humidity, solvent exposure, and cure history replace some of the concerns of a fired ceramic system and add others.
What to include in a resistor-paste RFQ
- Resistance or ratio targets, tolerance, reference temperature, TCR, and tracking requirement.
- Voltage, current, steady and pulse power, duty cycle, overload, and allowable temperature rise.
- Substrate grade, thickness, geometry, surface condition, and heat path.
- Conductor, resistor, dielectric and overglaze stack with print and firing sequence.
- Available resistor area, termination overlap, trim access, and keep-out regions.
- Assembly heat, soldering or bonding, coating, cleaning, and mechanical contact.
- Required stability, environmental tests, sampling, traceability, and final inspection method.
The material grade, resistor geometry, furnace route, trim plan, and test method must agree. Selecting a paste decade without the rest produces a calculable resistor, not necessarily a producible one.
Primary references
- Heraeus Electronics, R 8900 Series Air Fired Resistor System data sheet — paste-specific printing, firing, blending, refire, TCR, and trimming context.
- DuPont 4300 Series Resistors technical data sheet — sheet-resistance range, substrate, conductor compatibility, film thickness, firing, and property context.
- IEC 60115-1:2020, Fixed resistors for use in electronic equipment — Part 1 — generic resistor terms, inspection procedures, and test methods.
