Prepared by Chipsimple Engineering Team, Engineering and technical content review
Published online August 9, 2026 · Reviewed August 9, 2026
Source and scope: This article expands an August 2023 company-engineer note about unexpectedly low printed resistance. It separates conductor troubleshooting from resistor-paste troubleshooting and adds the measurement details needed to distinguish a real process shift from a test error.

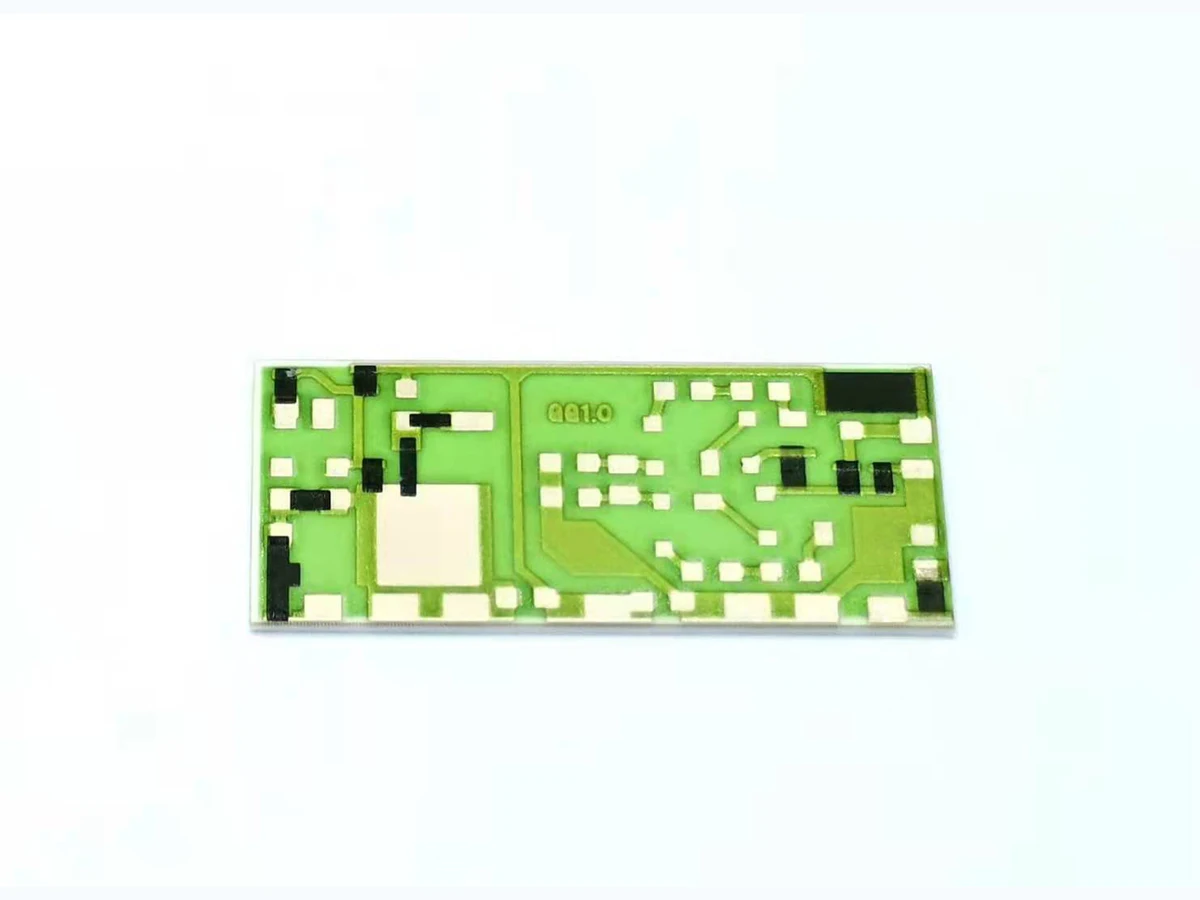

A printed silver trace that measures below target is not automatically defective. The drawing may state a maximum line resistance, in which case lower can be acceptable. A coupon may instead be intended to monitor sheet resistance within a two-sided window. Before changing the screen or paste, establish what quantity was specified, how it was normalised, and whether the measurement represents the printed film or the test fixture.
First verify the resistance definition
End-to-end line resistance, sheet resistance, bulk resistivity, and contact resistance answer different questions. Sheet resistance is normally expressed in Ω/□ or mΩ/□ at a stated thickness. Some polymer-paste data sheets report mΩ/□/mil. A finished conductor path is measured in ohms between defined terminals and includes its real length, width, thickness, bends, neck-down regions, contacts, and sometimes connector or probe effects.
Confirm the unit, geometry, probe locations, instrument range, lead compensation, test current, sample temperature, and time after cure or firing. For low resistance, a four-terminal method may be necessary to separate lead and contact resistance from the trace. A two-wire measurement can be dominated by the fixture.
R ≈ Rs × L/W
For a uniform rectangular film. Real pads, corners, thickness variation, and contacts require additional review.
If resistance is low, check deposit volume and geometry
A wider, shorter, or thicker conductor has lower resistance when material and cure are unchanged. Excess deposit can come from mesh and emulsion, squeegee pressure, multiple print passes, snap-off, stencil wear, paste rheology, or an artwork revision. Line widening may be subtle if inspection uses only a nominal CAD overlay.
Measure representative width and profile at defined locations. Compare dry or fired thickness with the approved route, not with an unrelated paste’s data sheet. For irregular traces, calculate the path by segments or use a validated model rather than one overall length-to-width ratio.
If resistance is high, look for a broken conductive network
High resistance may indicate insufficient deposit, narrow or interrupted lines, poor mesh opening, voids, pinholes, contamination, under-cure, under-fire, weak particle contact, or a high-resistance interface. Cracks after bending or thermoforming can raise resistance even when the flat as-printed coupon passed.
Do not rely only on a top-view photograph. Examine critical necks, conductor-to-pad transitions, vias, folds, and probe contacts. A continuity check can miss a partially connected path that drifts under load or flexing.
Review paste condition and working history
Solvent loss while paste sits on a screen can change transfer and film thickness. Unauthorised thinner can shift solids content and drying. Incomplete mixing can produce local differences in particle concentration. Contamination from another paste, cleaner, dried rim material, or substrate handling can change both print and cure.
Compare the supplier lot, container history, paste temperature, time on screen, replenishment method, room conditions, and print order. A resistance trend over successive panels can reveal solvent loss or screen blockage more clearly than one failed part.
Cure or firing determines the conductive network
In a polymer silver ink, cure removes solvent and develops the resin-bound particle network and adhesion. In a fired conductor, the thermal profile develops a sintered film and its bond to the substrate. Under-processing can leave high or unstable resistance. Over-processing can damage a polymer substrate or alter an interface. The result depends on actual part temperature, time, atmosphere, and loading—not only the displayed oven setpoint.
Supplier data illustrates the route dependency. DuPont KA801 gives its sheet-resistivity value with a stated 200 °C condition and a defined thickness unit, while DuPont 7095 is a fired silver composition with a 540–590 °C peak range that must be optimised for its approved substrate. Those values cannot be mixed into one generic silver-paste instruction.
Check termination and probe effects
A conductor coupon may have large pads designed to reduce probe sensitivity. A finished part may use a printed overlap, crimp, solder joint, conductive adhesive, spring contact, or wiper. Oxide, contamination, insufficient overlap, probe damage, or contact-pressure variation can dominate the reading near the lower end of the resistance range.
Use the measurement arrangement specified by the drawing or inspection plan. If the objective is film sheet resistance, keep termination behaviour from obscuring the film. If the objective is end-use resistance, include the real termination and assembly.
Troubleshooting sequence
| 1. Definition | Confirm unit, acceptance direction, geometry, thickness normalisation, test temperature, and probe locations. |
|---|---|
| 2. Measurement | Verify instrument, fixture, lead compensation, contact stability, and reference sample. |
| 3. Geometry | Measure width, effective length, thickness or mass deposit, necks, voids, and registration. |
| 4. Material | Check product, lot, container history, mixing, authorised thinner, temperature, age, and contamination. |
| 5. Process | Review screen, squeegee, settings, sequence, drying, cure or firing profile, loading, and atmosphere. |
| 6. Interface | Inspect substrate, pads, vias, overlaps, probe contacts, assembly joints, flexing, and protection. |
Close the investigation with a controlled comparison
Use a known-good material lot or retained coupon, the same measurement method, and controlled geometry. Change one factor at a time where practical. Record the raw readings and process history before adjusting settings. Otherwise a printer correction can hide a measurement problem and move the process away from its validated window.
A complete corrective action states the failure mode, evidence, affected lots, containment, root cause, correction, verification, and control-plan change. “Adjusted print pressure” is not a root cause.
Primary references
- DuPont Kapton KA801 Polyimide Silver Conductor data sheet — product-specific solids, viscosity, thickness, sheet-resistivity, cure, storage, and cleaning context.
- DuPont 7095 Silver Conductor data sheet — a distinct fired-silver route showing substrate and process dependency.
- “Performances of screen-printing silver thick films” — experimental connection between dispersion, rheology, film morphology, mechanical performance, and electrical results.
Define how the conductor will be measured
Send the artwork, conductor material requirement, substrate, cure or firing limit, target unit, probe points, temperature, assembly interface, environment, and production quantity. The inspection method can then be designed with the route.
