TFC / CALCULATOR / THICK FILM HEATER RESISTANCE POWER CALCULATOR

Check nominal heater voltage, resistance and power

Document type
Calculator
Updated
3 September 2026
Use
Engineering reference

Abstract

Use the nominal DC relationships P = V²/R and I = V/R, or R = V²/P, to expose the first electrical target. Then carry cold/hot resistance, TCR, tolerance, control and thermal boundary conditions into engineering review.

Index termsengineering calculatorbounded estimatedesign intake
Representative heater validation scene with a circular test article and thermal image

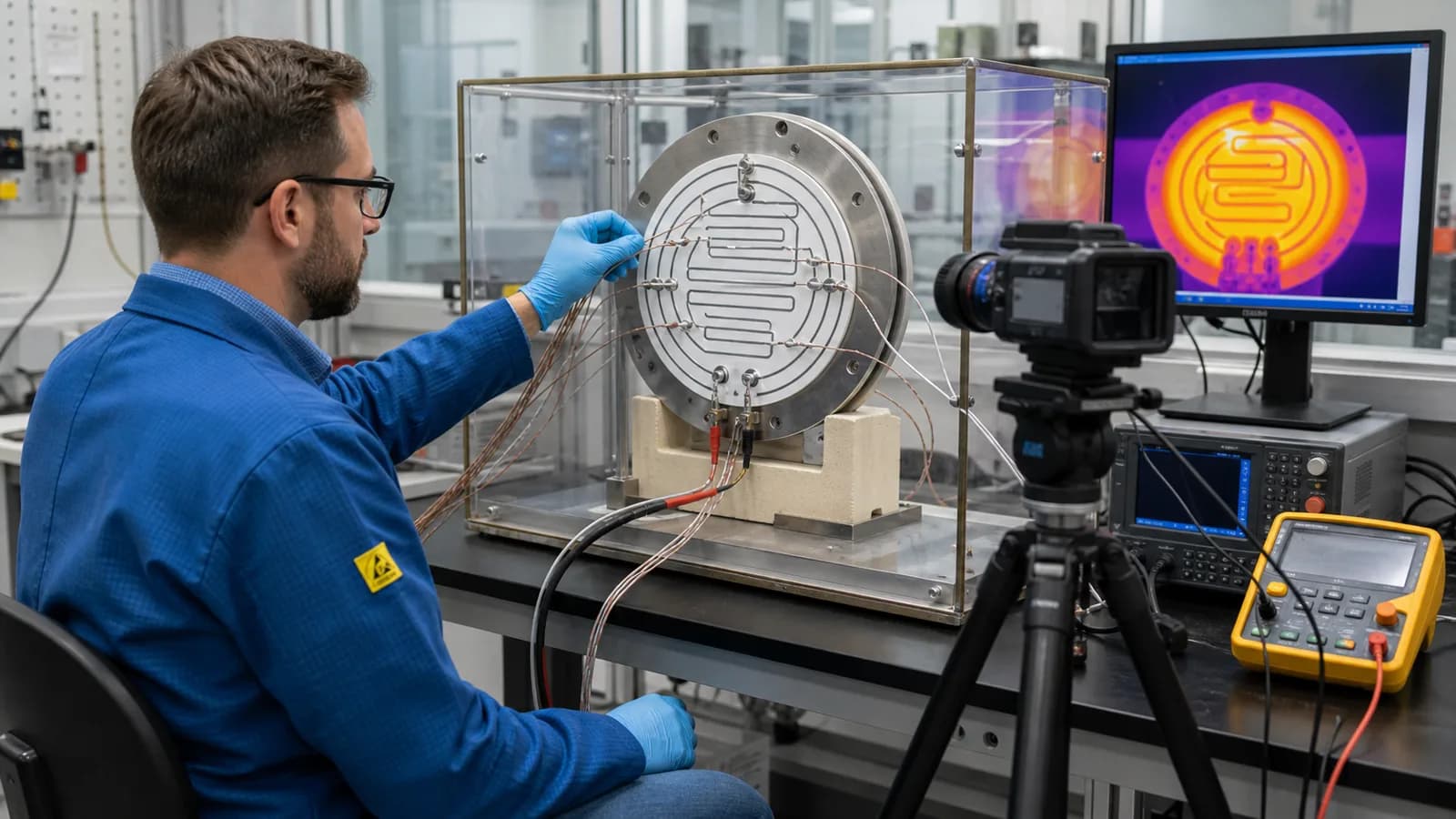

Fig. 1Nominal Ohm's-law output is an intake check. Release still requires the actual thermal boundary, temperature response and validation method.Representative engineering scene · not order-specific test evidence

Technical worksheet

Calculation and intake panel

Local browser calculation · no project data is uploaded

Choose known inputs

Nominal DC result

12 Ω

2 A · 48 W

Use the worksheet with your drawing

Voltage, resistance, power, current and active-area density, with operating conditions, mounting, sensors and validation inputs.

Download XLSX

Excel-compatible .xlsx · revision 9 September 2026. Inputs stay in your file. Estimates support engineering review and do not approve product performance.

Method boundaryThe result is not a heater rating, trace design, temperature prediction, safety limit, power-density approval, or manufacturability confirmation.

Engineering question

What nominal electrical relationship should the heater design satisfy before temperature-dependent and thermal effects are added?

Two bounded calculation modes

Electrical modes
Known inputsCalculated outputsWhat remains unknown
Voltage + resistanceCurrent I = V/R; power P = V²/ROperating resistance, temperature, heat loss, control, tolerance
Voltage + target powerTarget operating resistance R = V²/P; current I = P/VCold resistance, TCR, layout, substrate, thermal field, validation

Published test vectors

Calculator nominal test vectors
ModeInputsExpected result
V + R24 V, 12 Ω2 A; 48 W
V + P24 V, 48 W12 Ω; 2 A
V + R5 V, 10 Ω0.5 A; 2.5 W

Do not stop at nominal Ohm's law

  • Supply min/max, waveform, control and fault behavior
  • Cold and operating resistance, TCR and manufacturing tolerance
  • Trace geometry, material system, terminals and insulation
  • Heated load, mounting, losses, sensing and temperature limit
  • Startup, steady, cycle and loss-of-load cases
  • Prototype instrumentation, criteria and safety responsibility
