Silver Migration in Flexible Printed Circuits

Source and scope: This guide is a technically edited translation of an August 2023 company-engineer note on multilayer membrane switches. It distinguishes electrochemical migration from solid-state electromigration and removes universal coating thickness, UV dose, and drying instructions that cannot be transferred between material systems.

Silver electrochemical migration requires more than a silver track. Moisture must create an ionic path, an electrical potential must drive the reaction, and the surface must support dissolution, transport, and deposition. The visible failure is often a dendritic bridge between conductors, followed by leakage or a short. The design response is therefore to control the complete moisture–bias–contamination system.

Name the failure mechanism correctly

Electrochemical migration occurs when metal dissolves at one electrode, moves as ions through an electrolyte film, and deposits elsewhere under electrical bias. It is different from electromigration inside a current-carrying metal line, where momentum transfer at high current density moves atoms within the conductor. The two mechanisms need different tests and different corrective actions.

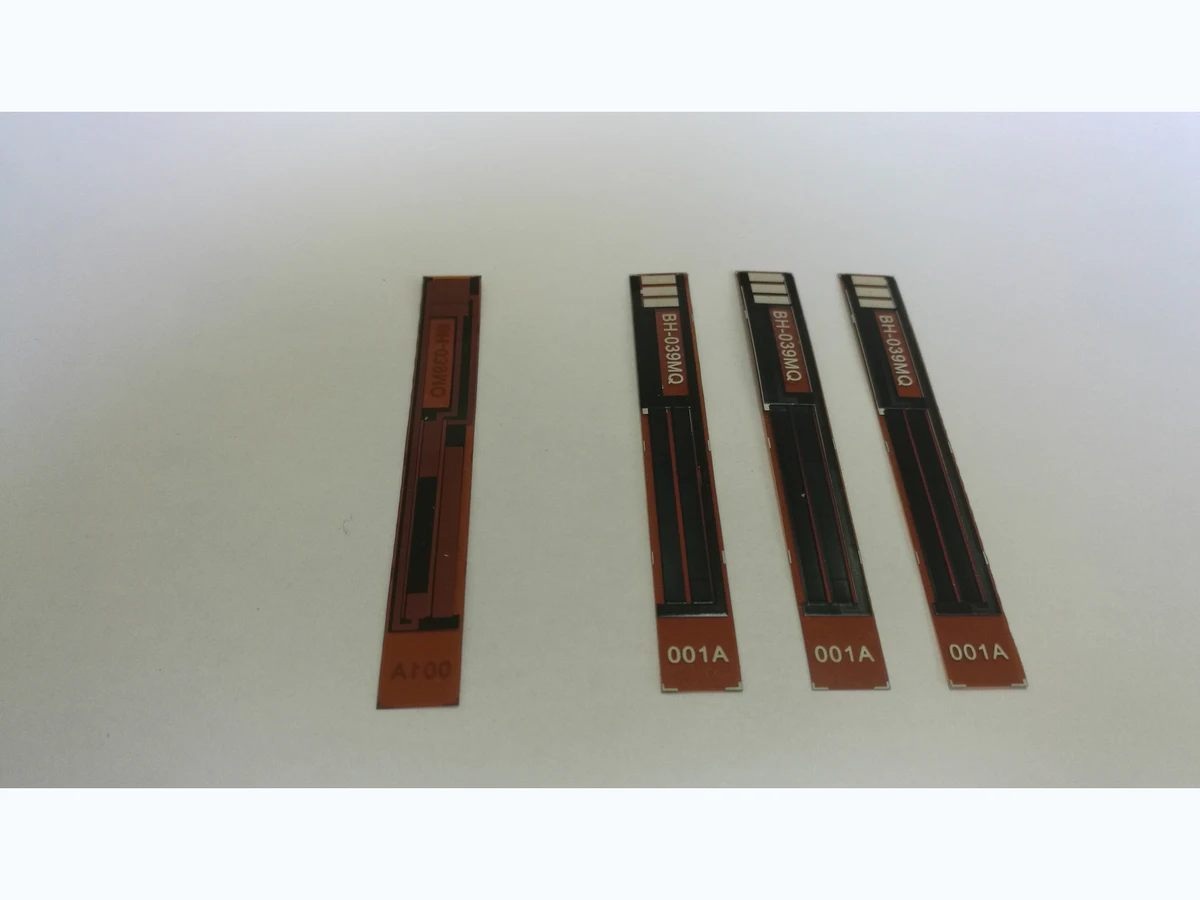

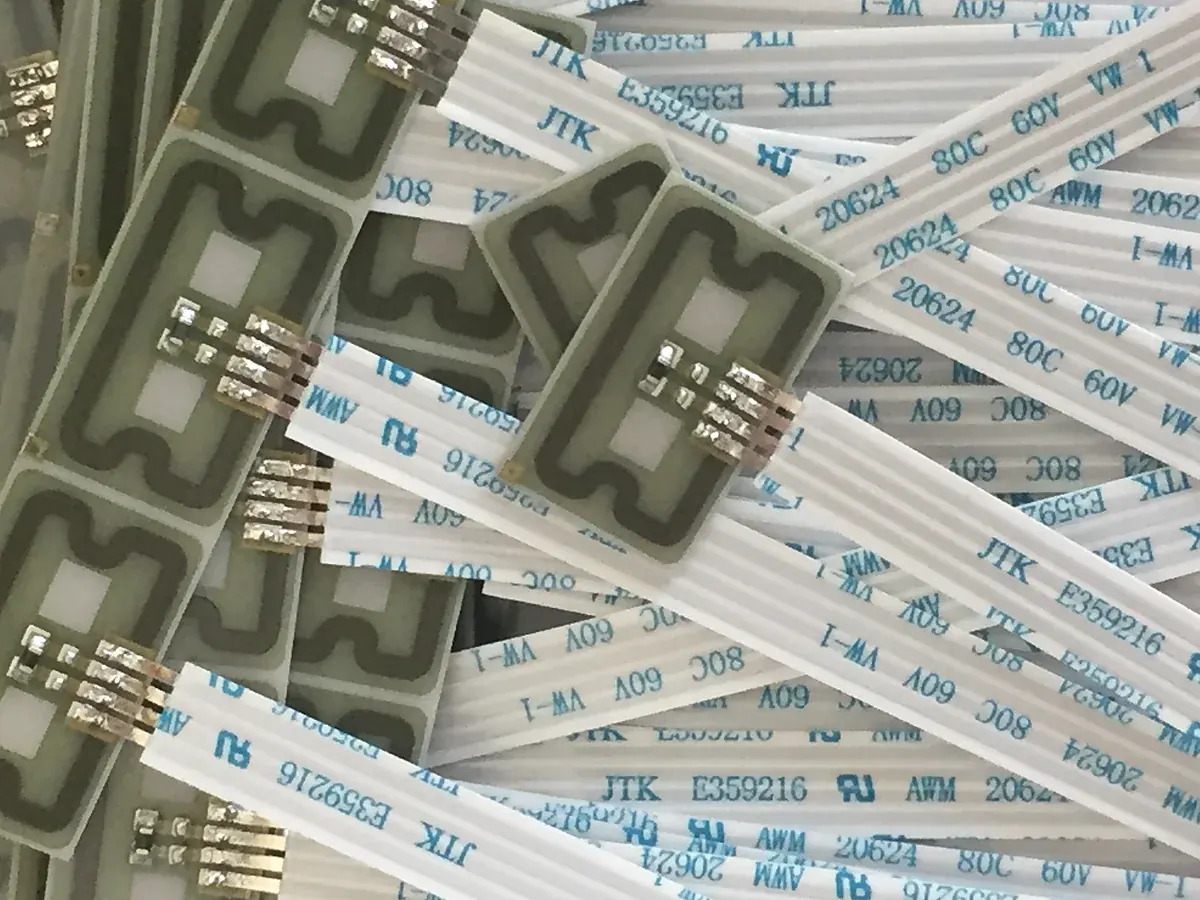

Silver is particularly important because printed flexible circuits, membrane switches, sensor tracks, and polymer thick-film interconnects often use silver-filled inks. Research on thick-film silver systems has shown that humidity, DC bias, surface debris, substrate condition, conductor composition, and test-circuit resistance can all change the observed migration rate. A single water-drop demonstration is not a lifetime claim.

Start with voltage, spacing, and the real environment

Electric field rises as conductor spacing falls for a given potential difference. Reducing the sustained DC potential between adjacent silver features, increasing effective creepage distance, or rearranging polarity can reduce risk, but no fixed spacing is safe for every environment. Condensation, splash, ionic contamination, cleaning residues, fuel vapour, salt, detergent, and temperature cycling can change the electrolyte path.

The drawing should identify maximum continuous and transient voltage between adjacent features, polarity, spacing, exposed edges, connector entry, vent paths, and any region that may collect moisture. A flex tail that looks dry in a bench test may see capillary moisture after assembly.

Cleanliness is an electrical design variable

Ionic residues reduce the resistance of a moisture film and can accelerate electrochemical reactions. Sources include handling, substrate treatment, cleaning chemicals, process water, incompatible adhesive, flux, dust, and contamination carried into a laminated stack. Visual cleanliness is not proof of low ionic contamination.

Process review should define substrate handling, allowed cleaning chemistry, drying, time between cleaning and printing, glove and tool control, adhesive compatibility, and storage before lamination. If cleanliness is a reliability driver, use a method appropriate to the product and correlate it with humidity-bias results. Do not use a generic cleanliness limit taken from an unrelated PCB process without review.

Cure the conductor as a functional film

Incomplete cure can leave a film with unstable resistance, weaker cohesion or adhesion, residual solvent, and a different moisture response. Cure validation includes actual part temperature—not only oven setpoint—plus dwell, airflow, loading, support, and the thermal limit of the polymer substrate. Successive printed layers may alter the heat history.

The correct cure comes from the ink supplier and the qualified production process. The original Chinese note proposed a staged room-temperature and infrared sequence. That may be workable for the source formulation, but it is not a transferable rule. Some systems use box ovens, conveyor dryers, infrared, UV-cured dielectric, or combinations; each requires its own evidence.

Use barriers, but do not treat a coating as immunity

A compatible carbon layer, dielectric, overprint, coverlay, adhesive laminate, edge seal, or encapsulant can reduce direct exposure and lengthen the moisture path. It can also introduce new interfaces, pinholes, trapped contamination, incomplete cure, or capillary channels. Protection must cover the correct region and remain intact through flexing, thermal cycling, connector insertion, and the service fluid.

Published work on silver thick-film conductors found that overglazes slowed moisture penetration but did not guarantee that dendritic growth could never occur. Treat a coating as one control in a layered design: electrical spacing, cleanliness, cure, drainage, sealing, and validation still matter.

Drainage and venting must match the assembly

In membrane constructions, trapped air and moisture can move through spacer channels as the switch operates. Vents and drain paths can prevent local pressure and liquid retention, but a poorly located opening can also become an entry route. The complete assembled stack—not an isolated printed layer—must be reviewed for vent direction, gasket compression, flexing, condensation, and orientation in service.

Validate with a representative humidity-bias test

A water-drop test is useful for rapid comparison and failure observation, but its electrolyte volume, chemistry, geometry, and field can be far removed from service. A temperature-humidity-bias test is closer to a product-level question, provided the sample stack, voltage, polarity, conductor spacing, protective layers, contaminants, and monitoring circuit represent the intended design.

Define leakage or insulation-resistance criteria, data logging, current limiting, test interruptions, and post-test examination before testing starts. Record whether the result is a material screening comparison, a process qualification, or a product validation. Passing one coupon does not qualify all layouts made with the same silver ink.

Evidence to request at RFQ

• Full layer stack with silver, carbon, dielectric, adhesive, spacer, coverlay, and exposed contact areas.
• Maximum voltage and polarity between adjacent conductors in normal and fault states.
• Minimum spacing and creepage path after registration tolerance is included.
• Fluid, humidity, condensation, salt, cleaning-agent, and temperature exposure.
• Flex radius, cycle count, connector operation, enclosure sealing, and vent or drain design.
• Required insulation resistance, leakage limit, humidity-bias method, duration, and failure definition.

The prevention strategy is strongest when migration is treated as a system failure mechanism at drawing review, not as a coating problem discovered after a humidity test.

Primary references

1. “Silver migration in thick film conductors and chip attachment resins” — experimental effects of humidity, bias, debris, substrate, and overglaze on silver migration.
2. “Electrochemical migration behavior of silver nanopaste screen-printed for flexible and printable electronics” — water-drop and temperature-humidity-bias study of printed silver on polyimide.
3. IPC technical resource, Durable Conductive Inks and SMD Attachment for Robust Printed Electronics — printed-electronics reliability context and reference to ASTM F1996 silver-migration testing.
