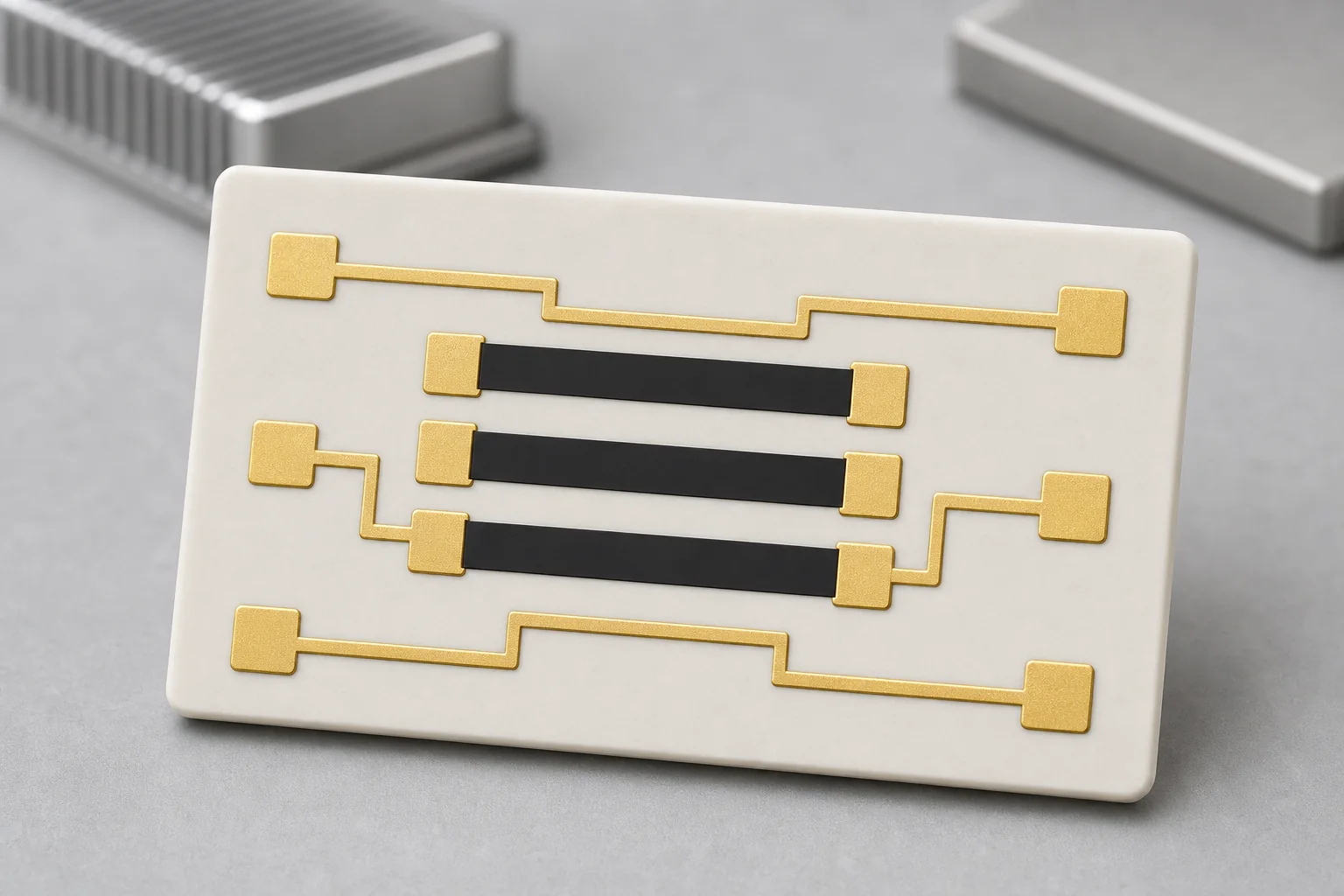

Thin Film Circuit on Ceramic Substrate

Review thin film circuits on alumina or AlN for precision networks, RF circuits, and laser-diode submounts, including film stacks, patterning, and assembly.

Start with the substrate, film stack and assembly requirements.

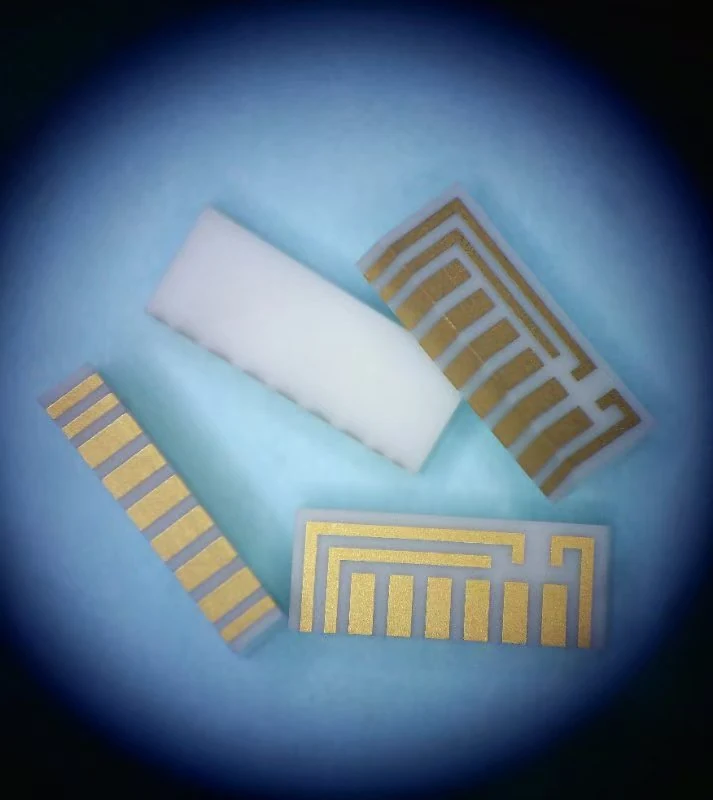

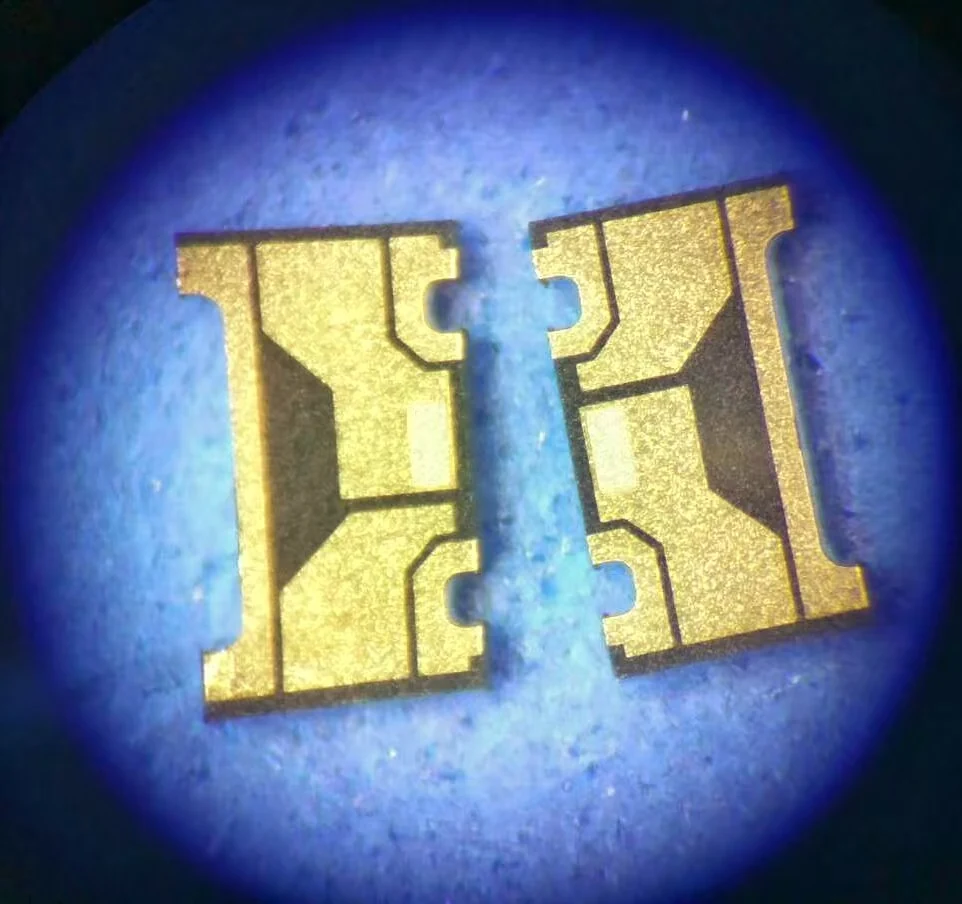

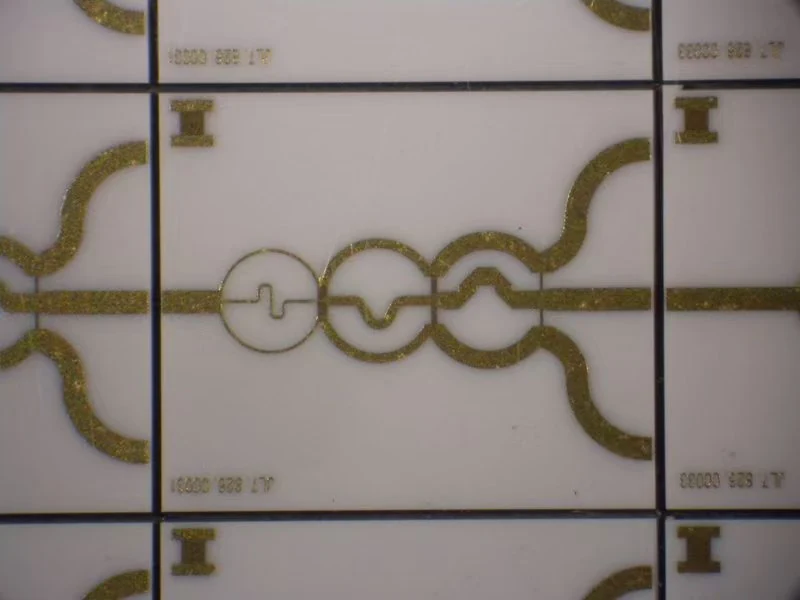

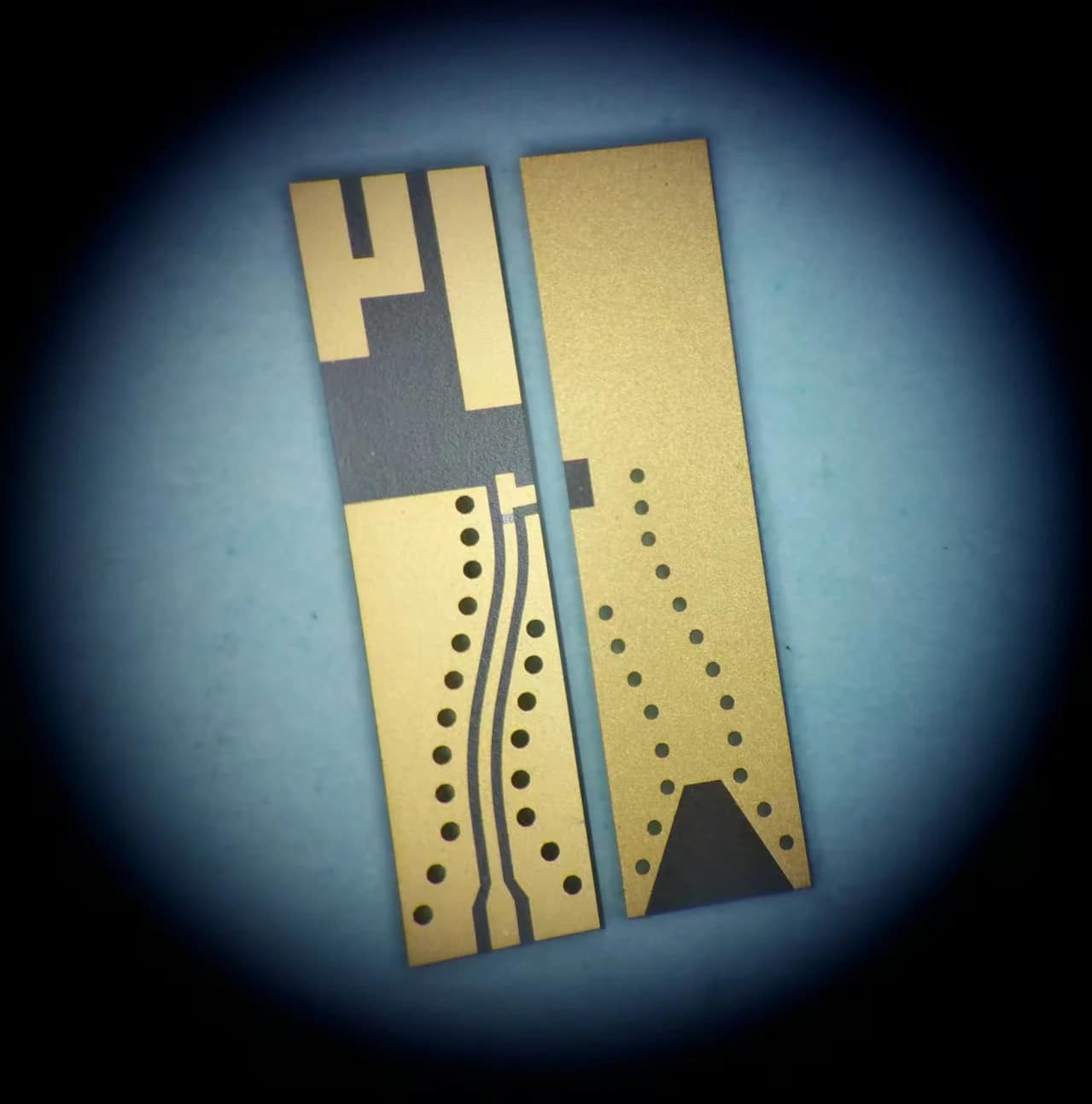

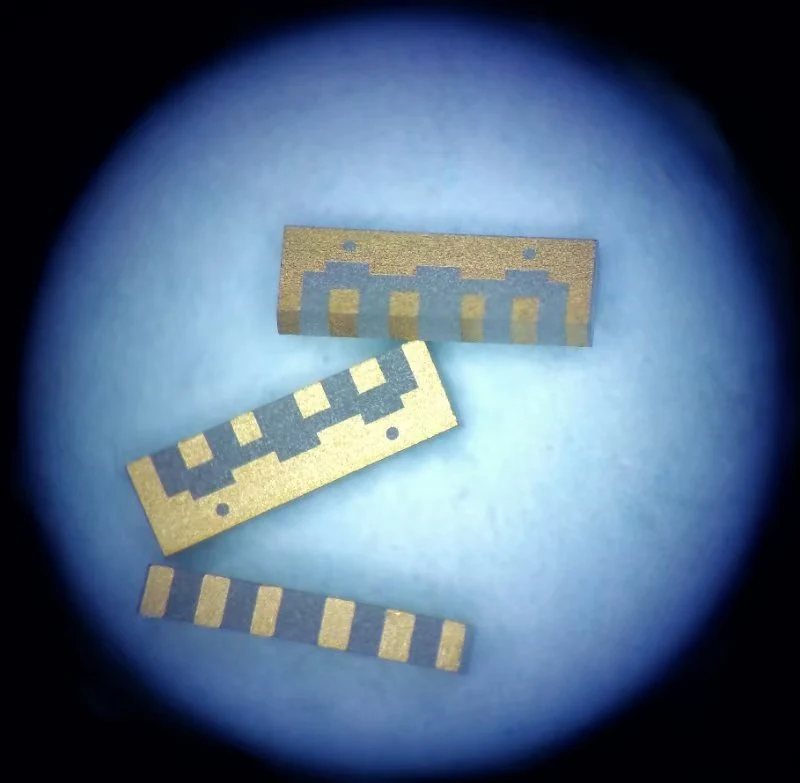

Company sample photographsThin film circuit samples

Thin Film Circuit on Ceramic Substrate is used when a circuit needs more than standard copper routing: the substrate, deposited films, and assembly interface must work as one engineered part.

The usual design review starts with substrate choice, sputtered or deposited metal and resistor films, terminal configuration, electrical targets, operating environment, and inspection method. Chipsimple can review drawings, samples, resistance curves, heating targets, and assembly requirements before prototype or batch planning.

Choose the manufacturing route

Thin film and thick film

Thin film
Deposited metal and resistor films are patterned on a prepared substrate. Specify the film stack, surface finish, geometry and assembly interface in the drawing.
Thick film
Conventional ceramic thick-film circuits use printed pastes and a firing sequence. Select the process from the film stack, geometry and project requirements.
Compare the Two Routes

Where this capability fits

This page targets projects involving thin film ceramic circuit on polished alumina or AlN. Typical demand comes from precision networks, RF circuits, laser diode submounts where the buyer needs a compact circuit, repeatable electrical behavior, and a manufacturable RFQ package.

Material and process route

Scroll the table to read both columns.

Substrate, film system and project inputs
Main substrate routepolished alumina or AlN
Typical process routesputtered or deposited metal and resistor films
Common project useprecision networks, RF circuits, laser diode submounts
Design concernssurface roughness, photolithography, film adhesion
Production modeprototype validation, small batch review, and repeat production after requirements are confirmed

Engineering checks before quotation

  • Confirm whether the project needs thick film, thin film, metallized ceramic, DPC, DBC, or another substrate route.
  • Provide target resistance, tolerance, TCR, voltage, current, power, thermal load, and any environmental exposure.
  • Review conductor finish for soldering, wire bonding, spring contact, connector assembly, or mechanical fastening.
  • Define inspection needs such as visual criteria, resistance measurement, insulation resistance, dielectric withstand, adhesion, or functional output.
  • Avoid quoting from a photo only when the circuit has a special curve, matched ratio, fine geometry, or reliability requirement.

Design risks to review

The main risks for thin film ceramic circuit are surface roughness, photolithography, film adhesion. These issues are normally controlled by substrate selection, deposited film system, layout geometry, process control, and a realistic test plan. Exact capability limits remain project-dependent and should be confirmed against the drawing and working conditions.

RFQ data checklist

  • Gerber, DXF, DWG, PDF drawing, or clear sample photos with dimensions.
  • Substrate material, thickness, outline tolerance, holes, slots, and surface finish.
  • Electrical targets including resistance, curve, ratio, TCR, voltage, current, power, and insulation.
  • Operating temperature, humidity, chemical exposure, vibration, cleaning, fuel, oil, water, or vacuum conditions.
  • Prototype quantity, annual volume, target lead time, packaging, and inspection standard.

FAQ

Can this page be used as a guaranteed specification?

No. It is an engineering selection guide. Final values depend on material, geometry, process route, test method, and factory confirmation.

When should a buyer send samples?

Samples are useful when the old drawing is incomplete, when a resistance curve must be copied, or when terminal and contact behavior matters.

What is the fastest way to get a useful review?

Send drawings plus operating conditions. For resistor or heater projects, include electrical data and the target test method.
