A controller can report motion while the mechanism remains still when return conductors carry current, channel inputs load a passive divider, shielding creates another reference path, or diagnostic pulls couple redundant channels. These errors often change with motor current and cabinet state, so they resemble intermittent position faults. Diagnosis must define the excitation and return topology, calculate loading, and compare local contact voltage with controller input on a shared timebase. Machine safety and diagnostic response remain with the automation integrator.
System boundary
The boundary includes resistive feedback card, wiper, excitation, return, harness, connectors, shields, controller inputs, diagnostic pulls, power returns and actuator current environment. ChipSimple may review the passive card drawing. Controls architecture, EMC, grounding, safety and machine qualification remain customer-owned.
System integration decisions
- Choose the physical reference for every voltage measurement.
- Include finite receiver impedance and diagnostic networks in the transfer law.
- Measure ground offset during real actuator current transitions.
- Verify redundant channels together and individually.
Draw the return-current and measurement-reference map
Mark where excitation originates, where current returns, where shield bonds connect and where each instrument references voltage. Include connector contacts and cabinet bonds. A wire labelled ground can carry load current and therefore have different potentials at its ends. Record motor and heater return paths that share conductors or structures. The map should show normal and fault states; opening a return can redirect current through a signal or shield path.
Model the receiver as part of the passive network
For a simple wiper divider, receiver resistance appears in parallel with the lower track segment.
R_b*=R_b||R_in; V_o=V_exc R_b*/(R_a+R_b*)+V_g
- R_a and R_b are track portions around the wiper.
- R_in is effective receiver impedance including diagnostics.
- V_g is local-return offset relative to controller reference.
DC lumped screening. Harness impedance, capacitance, multiplexing and time-varying interference need expanded analysis.
Calculate illustrative loading and ground error
With R_a=6 kΩ, R_b=4 kΩ and R_in=20 kΩ, the loaded lower leg is 3.333 kΩ. At 5 V excitation, output is about 1.786 V rather than the unloaded 2.000 V. Adding a 60 mV return offset produces 1.846 V at the controller reference. These values explain the mechanisms only and are not card specifications or acceptable errors.
Correlate apparent motion with actuator current
Hold the mechanism at independently confirmed positions and exercise approved motor-current states. Record wiper voltage relative to local return, local return relative to controller reference, controller counts, excitation and motor current. An apparent position change that follows return offset but not local wiper ratio identifies an electrical reference problem. Repeat for acceleration, braking and direction reversal because current paths and regenerative states differ.
Test redundant channels as a coupled system
Shared supply or return impedance allows one channel current to influence another. Diagnostic pull-ups, pull-downs or test pulses can change effective loading. Document controller modes and multiplex timing. Compare each channel alone, both connected and defined open/short fault simulations only under an approved safe procedure. Plausibility thresholds must account for designed transfer functions without being widened to hide unexplained coupling.
Control harness geometry and shielding

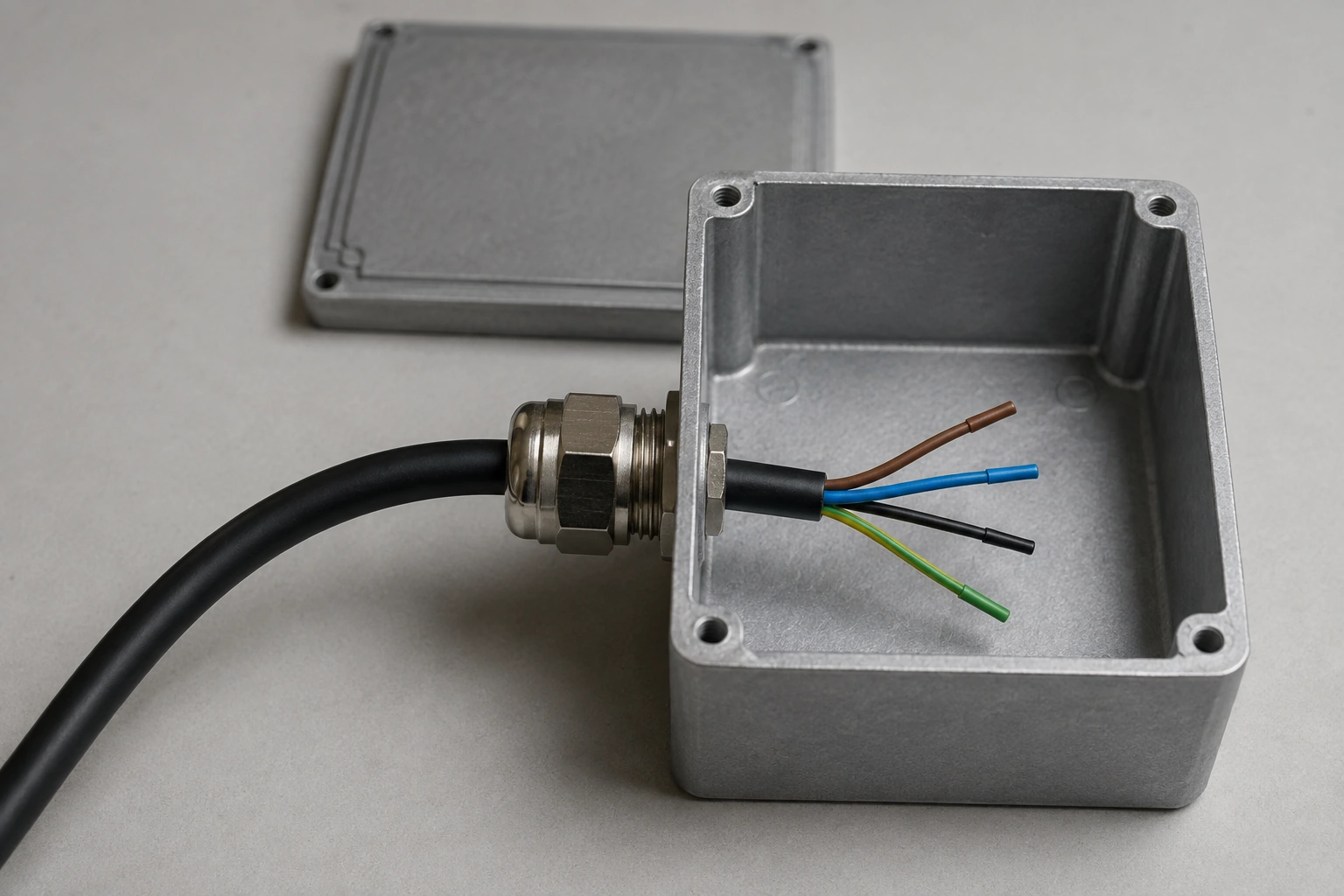

Record conductor gauge, length, twists, shield termination, connector pins and separation from switching cables. Measure contact resistance where it matters and include thermal variation. Shield current should not pass through the signal reference inadvertently. Routing changes during service can alter coupling. The card cannot correct a system reference that moves, so installation drawings and cabinet bonding are part of the feedback configuration.
Use comparisons that isolate the electrical boundary
Each comparison should preserve mechanism position.
| Comparison | Recorded quantities | Decision |
|---|---|---|
| Actuator off/on | Local ratio, ground offset and controller value | Shared-current effect |
| High-impedance meter/controller | Same wiper position and excitation | Input-loading effect |
| Channels individual/together | Both raw outputs | Cross-channel coupling |
| Shield states per approved design | Reference and interference | Bonding effect |
| Raw/filtered acquisition | Event amplitude and duration | Sampling or filtering effect |
Resolve transients before choosing a filter
Select acquisition bandwidth sufficient to observe switching events and contact dynamics. Record raw ADC counts and timestamps relative to actuator switching. Aliasing can turn a repeatable high-frequency transient into a slow apparent wander. Filtering may reduce displayed movement but cannot replace grounding or containment. Define which raw excursions are permissible and which require a diagnostic response. Keep the machine in a safe state while instruments are connected.
Validate at current and wiring tolerance states
Use independent mechanism reference, representative harness lengths, connector resistance bounds, supply tolerance and controller configuration. Test stationary positions, slow travel and dynamic operation across relevant motor-current states. Introduce only authorized fault cases. Acceptance for feedback error, diagnostics and machine response belongs to the system authority. ChipSimple can review card geometry and passive transfer by drawing, not certify automation accuracy or safety.
Reopen analysis after grounding or firmware changes
Changes to cable, pinout, connector, shield, cabinet bond, power return, controller input, diagnostics, sample timing, filter, excitation, card transfer or actuator drive can alter the observed signal. Bind wiring drawings and firmware version to validation results. A controller replacement with the same nominal input range may present another impedance or diagnostic sequence. Recalibration alone should not absorb an unexplained reference shift.
Keep EMC and safety claims explicit
This guide does not establish electromagnetic compatibility, safety integrity or allowable machine motion. Those require applicable standards, controlled facilities and responsible approval. Illustrative circuits are diagnostic models. Actual voltage, current and resistance remain by drawing and system review. If grounding topology or receiver details are withheld, the interface cannot be closed confidently.
Provide the complete feedback electrical topology
Card review needs excitation, returns, receiver loading and actuator disturbance states.
- Card network, wiper transfer, terminals and required error budget.
- Excitation, return, controller input, diagnostics and sampling details.
- Harness, connectors, shields, cabinet bonds and shared-current paths.
- Actuator drive, switching, braking and representative current states.
- Independent position reference, fault plan and acceptance ownership.
