A soft gasket can still create a concentrated load if a raised seam or trapped hard particle contacts a ceramic edge before the surrounding material. The average gasket thickness may meet the drawing while that local feature determines how the enclosure closes. Inspect the contact profile at the seam, relate it to the support beneath the ceramic, and define which surfaces stop the closing motion. Softness alone does not establish a safe load path.
System boundary

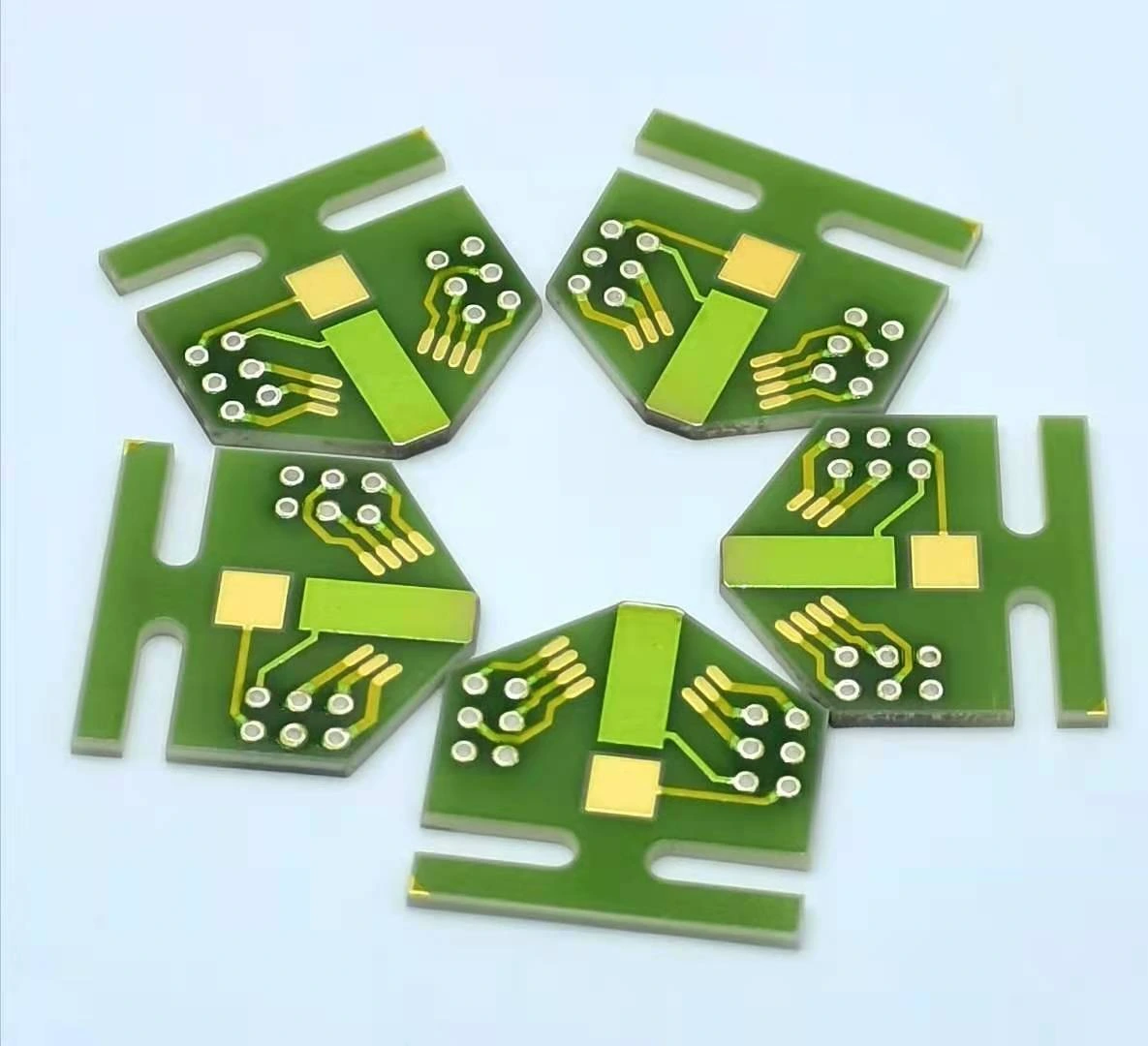

An elastomer gasket near the edge of a mounted ceramic circuit. The review concerns local mechanical contact during closure, not selection of a universal seal compression or a claim of ingress protection.
Integration interfaces
| Interface | Required input | Thick film role | Validation owner |
|---|---|---|---|
| Gasket seam to ceramic edge | Local profile, flash, seam position and relative alignment. | Maintain the actual ceramic edge and adjacent film keep-outs. | Gasket and mechanical owners review the contact profile. |
| Ceramic to lower support | Support footprint, edge overhang and local gaps. | Carry only the reviewed assembly contact loads. | Mechanical integrator traces the reaction path. |
| Lid to compression stop | Closed gap, stop tolerances and tightening sequence. | Remain located without being used as an unintended stop. | Enclosure designer verifies the closing stack. |
Integration risks
| Risk | Control or verification | Validation owner |
|---|---|---|
| A raised seam engages first and tilts the ceramic. | Compare local profiles and observe initial contact before full closure. | Mechanical owner. |
| A hard inclusion is hidden inside an apparently compliant interface. | Inspect the contact region and preserve any associated mark or particle. | Quality owner. |
| Reducing gasket compression compromises the seal. | Review seal function and ceramic load as separate requirements. | System enclosure owner. |
System integration decisions
- Measure local free height at the seam separately from the ordinary gasket section.
- Locate the first contact and its reaction beneath the ceramic during closing.
- Keep sealing compression requirements separate from acceptable ceramic loading.
Identify the seam that can reach the ceramic
Locate the molded parting line, joined section or other local height change on the installed gasket. Not every visible line is a hard point, and not every gasket has a joined seam. Use the actual part and its orientation rather than assuming a generic construction. Mark which face touches the lid, housing and ceramic during installation.
Inspect neighboring regions for flash, embedded debris, folds or a doubled section caused by placement. These conditions can create the same closing symptom but require different corrective actions. Retain the initial configuration before removing the gasket. A cleaned, flattened part photographed outside the housing may no longer show the interference that existed during assembly.
Compare local free height with the closed gap
Measure free height using a method that does not substantially compress the material. State the measurement contact and force where relevant, because an ordinary caliper can flatten a soft projection and report a misleadingly uniform result. Compare the seam with nearby ordinary sections using the same method and coordinate references.
For an illustrative geometric screen, take an ordinary free height of 1.00 mm, a seam height of 1.12 mm and a local closed gap of 0.80 mm. The ordinary section has 0.20 mm interference, while the seam has 0.32 mm. That is sixty percent more displacement at the seam, not sixty percent more force: the force depends on material response, geometry and lateral restraint.
d_local = max(0, h_local − g_closed)
- d_local: local geometric interference to be accommodated during closure, in mm.
- h_local: measured free gasket height at the stated location, in mm.
- g_closed: distance between the corresponding closed mating surfaces, in mm.
A local geometric comparison before material redistribution. It does not calculate contact pressure, seal performance or safe ceramic load; curved surfaces and lateral movement require the actual contact geometry.
Observe first contact before evaluating the final seat
Close the representative assembly through a controlled development sequence and determine which region engages first. If the seam contacts the ceramic while the lid remains tilted, the subsequent motion can concentrate force near one edge. A fully seated lid may hide that earlier condition, even if the final gap appears uniform.
Trace the reaction to the lower support. A seam directly above a supported region is mechanically different from one pressing on an overhanging corner. Do not use the ceramic to force a nonuniform gasket into a nominal pocket. Ceramic parts need particular attention to concentrated and tensile loading, so the support map should be reviewed together with the observed contact location.
Make the closing stop a deliberate structural feature
Identify the surfaces that determine final enclosure separation. If closure is controlled only by applied screw torque, the resulting gasket compression depends on the complete joint and material response. A positive stop may make the closed gap more repeatable, but it must be located and toleranced so the intended structural members, rather than an unsupported ceramic edge, carry the closing load.
Check the stop engagement sequence around the perimeter. One high stop can pivot the lid and increase local interference elsewhere before the remaining stops engage. Do not assume that adding a hard stop eliminates every local load. The useful drawing shows the stop heights, gasket free profile, ceramic supports and the range of relative positions during closing.
Use a controlled seam-position comparison
When the gasket geometry permits a changed orientation without altering its function, compare the same seam beside different identified ceramic regions. Keep the housing, closing sequence and inspection method fixed. If the contact mark follows the seam, its profile or material deserves attention; if the mark stays at one housing coordinate, investigate that support or mating feature.
Do not rotate a keyed or asymmetric seal into an invalid installation merely to perform a comparison. A separately prepared equivalent specimen may be needed. Preserve the parts and their orientation so repeated installation does not mix seam effects with wear, contamination or relaxation. Use the comparison to locate a mechanism, not to authorize an uncontrolled production orientation.
| Observation | Discriminating comparison | Likely drawing input |
|---|---|---|
| Mark follows the gasket seam | Controlled equivalent seam position | Seam placement and local profile |
| Mark stays at one enclosure corner | Inspect support and stop heights | Housing or support correction |
| Ceramic tilts before lid seating | Observe first contact through closure | Engagement order and support footprint |
| Local mark contains a hard particle | Preserve and identify the inclusion | Cleanliness and handling boundary |
| Seal improves only with greater ceramic load | Separate sealing and load requirements | Revise the interface rather than increase torque |
Do not solve the contact problem by guessing seal settings
Gasket material, section shape, working environment and the enclosure design govern the sealing requirement. A local ceramic-load investigation cannot establish a universal compression percentage. Removing material from a seam, changing lubrication or substituting a softer compound can alter sealing and durability and must be agreed with the responsible supplier and system designer.
Evaluate candidate changes separately. Moving the seam away from a vulnerable edge addresses location; correcting a molded profile addresses height; improving a support addresses reaction. Each change leaves different checks to complete. If the gasket also provides electrical shielding, its conductive contact requirements remain relevant and must not be confused with an insulating cushion around the circuit.
Inspect the ceramic for the consequence of contact
Retain before-and-after edge views with enough orientation information to relocate the seam. Check for new chips, cracks, film marks or changed seating at the contacted segment. An electrical pass alone does not exclude mechanical damage near a nonconductive edge, while a superficial mark does not by itself establish a loss of strength.
Where the observation is ambiguous, preserve the part for the appropriate material or mechanical examination instead of repeatedly closing the housing until the result becomes obvious. Repeated loading changes the specimen history. Record the number and order of closures, gasket state and any movement so the investigation can distinguish an initial interference from a later handling event.
Supply a contact map that both suppliers can use
The handoff should identify local gasket profiles, the seam's permitted position, closed gaps, support footprints and closing stops. Show ceramic edge zones and adjacent functional films without changing the real circuit outline to simplify the drawing. Include the observation sequence and the separate seal and mechanical acceptance owners.
Revisit the interface after a gasket tool revision, compound change, seam relocation, housing change or ceramic thickness change. A part can retain the same general appearance while its first-contact sequence changes. An explicit local map makes that difference inspectable and prevents a nominal average thickness from concealing the feature that actually loads the ceramic.
Send the gasket and ceramic contact stack
Provide the local seam profile and closing geometry so load concentration can be reviewed independently of the sealing requirement.
- Gasket section, seam or parting-line position, local height measurements and material identity.
- Housing gaps, closing stops, assembly sequence and ceramic support locations.
- Ceramic edge coordinates, nearby films and before/after contact observations.
- Separate sealing, shielding where applicable, and mechanical requirements with responsible owners.
