The first water delivered after standby is a transient inventory problem, not a steady-flow temperature point. The heater wall stores energy, some water may remain in the channel, the pump and valves need time to establish a continuous path, and the outlet sensor observes a parcel after transport and mixing delay. Increasing heater command can conceal an unprimed path rather than correct it. This page owns the standby-to-first-dose sequence only. General heater selection, beverage recipe, pressure containment, hygiene, independent protection and appliance compliance remain separate system responsibilities.

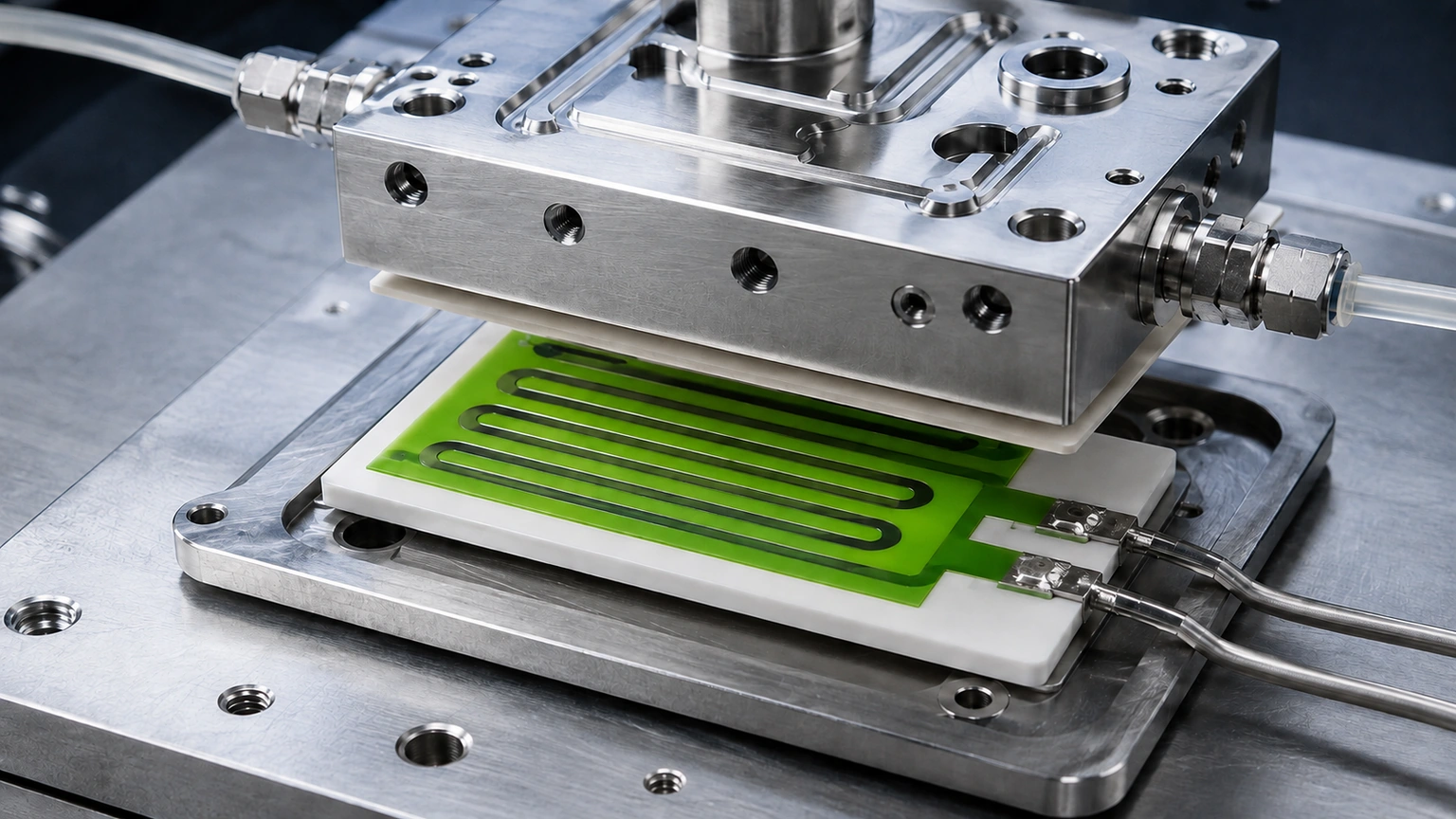

System boundary
Standby wall and retained channel water through valve and pump restart, heater power, outlet sensor, downstream mixing volume and defined first delivered portion
System integration decisions
- Define the first-dose boundary by mass or volume and by a clear start event.
- Account separately for retained water, wall energy, new inlet water and heat loss.
- Prove prime and actual flow before interpreting heater power as useful water heating.
- Align outlet measurements with transported parcels rather than controller timestamps alone.
Define exactly what counts as the first dispense
Choose the start event: user command, valve opening, confirmed pump motion, first outlet flow or first collected mass. Choose the end event by delivered mass or volume, not an arbitrary controller delay. Record the downstream tube and sensor volume between the heater and collection point. Two tests with the same controller command can evaluate different water parcels if their prime times or retained volumes differ.
Separate beverage acceptance from engineering observation. The appliance owner defines the allowed temperature profile and usable portion. The engineering record should retain the complete early discharge, including water that the product may intentionally divert. This prevents a favorable average over a selected interval from hiding a cold or overheated segment immediately before it.
Measure the wall and water state at standby exit
Record standby duration, prior operating state, wall temperatures at declared coordinates, inlet condition, retained-water temperature, ambient condition and any periodic maintenance heating. A single control sensor cannot fully describe energy stored through a wall, attachment and insulated housing. Use development measurements to determine whether the wall remains nearly uniform or carries a local gradient near the printed heater.
State whether the fluid path drains, remains full or can trap vapor during standby. Orientation and valve leakage can change retained mass. Scale or deposits can also change the relationship between wall temperature and water temperature. These conditions belong in the test matrix rather than being absorbed into a generic warm-start label.
Build an energy ledger for the defined dose
For the selected collection interval, electrical input and released wall energy are divided among delivered-water enthalpy, reheating of retained hardware and heat loss. Use measured voltage and current rather than command percentage. Integrate the outlet temperature against mass flow so a short hot leading parcel and a colder following parcel remain visible.
E_in + C_w(T_w0-T_w1) = integral[m_dot c_p(T_out-T_in)dt] + E_store + E_loss
- E_in: measured heater electrical energy during the collection interval
- C_w(T_w0-T_w1): screened release of wall energy between declared wall states
- m_dot: measured water mass-flow rate
- E_store: net energy retained in hardware and uncollected fluid
- E_loss: heat transferred outside the collected-water boundary
Single liquid phase and a clearly defined collection boundary; vapor, leakage and changing heat capacity require additional accounting.
Calculate an illustrative first-dose contribution
Assume a 30-gram collected portion rises by an average 35 kelvin and use 4.0 joules per gram-kelvin as an illustrative heat-capacity input. The water term is 4,200 joules. If measured electrical input during that interval is 3,000 joules, at least 1,200 joules must come from stored energy after allowing for any simultaneous loss or remaining storage. This calculation does not specify a coffee temperature, dose size or heater capability. It shows why a first portion can appear adequately heated even when restart power alone would not support the observation.
Prove a continuous water path before judging heat transfer
Define evidence for valve position, pump operation, channel fill and outlet flow. Motor command is not flow evidence, and pressure can persist in a static or partly gas-filled path. During development, correlate flow or collected mass with wall-temperature rate and pump signature. A rapidly rising local wall temperature with commanded pumping challenges wetting even if water later reaches the outlet.
Protection must be independent of a favorable temperature average. The appliance safety owner defines how lost flow, trapped gas or blocked discharge interrupts measured power and how restart is inhibited until reprime conditions are met. No dry-operation survival or protective rating is implied by this integration method.
Align inlet, wall, sensor and cup data by parcel travel
Estimate transport delay from the measured channel and downstream volume divided by volumetric flow, then refine it using a safe temperature or conductivity marker if the appliance method permits. Pump pulsation makes delay time-varying, so retain raw flow and temperature timestamps rather than shifting every trace by one constant. Sensor immersion depth, response time and mounting mass must be documented.
The outlet sensor may observe water that has not yet reached the collection boundary, while the cup may contain a mixture of several earlier parcels. Report both the sensor-coordinate profile and the collected-dose profile. The beverage-system owner decides which one controls user-facing behavior.
Sequence pump, valve, sensing and heater authority
Represent restart as explicit states such as wake, valve positioning, prime confirmation, bounded preheat, collection and steady delivery. For every transition state the entry condition, permitted heater command, sensor validity, timeout and fault exit. Avoid using elapsed time alone when pump performance, retained volume or inlet condition can vary.
Confirm actual heater current removal on any protective transition. A software command can be low while a failed switch continues to conduct. Conversely, absent current may reflect an electrical connection fault rather than successful temperature regulation. The controls team owns state logic and diagnostics; the heater circuit review supplies drawing-defined resistance and terminal context.
Distinguish first-dose failure signatures
Interpret early delivery by combining mass flow, wall slope, outlet profile and electrical power. A hot leading pulse followed by a cold interval suggests retained hot water followed by insufficient new-water heating. High wall slope with delayed flow challenges prime. Normal flow with low measured power directs attention toward supply, switching, connection or resistance path. A plausible outlet reading that arrives too early may represent retained water at the sensor.
| First-dose signature | Likely boundary to inspect | Discriminating evidence |
|---|---|---|
| Hot lead, colder following water | Retained volume and stored wall energy | Mass-resolved outlet profile |
| Fast wall rise before outlet mass | Prime or local wetting | Flow evidence plus spatial wall temperatures |
| Normal flow, reduced electrical input | Drive or connection path | Synchronized terminal voltage and current |
| Sensor reports hot before cup warms | Transport and mixing delay | Sensor-to-collection volume and timestamps |
| Repeated restart timeout | Pump, valve or state criterion | State log with collected mass |
Validate the complete standby-to-dose timeline
Test several controlled standby durations after declared prior states, including cold start as a separate reference. Use representative inlet temperature, orientation, downstream tubing, pump, valve, heater attachment, insulation and sensor installation. Acquire heater voltage and current, multiple wall temperatures, inlet and outlet temperature, flow or collected mass, valve and pump state, protection state and collection weight on one timebase.
Repeat tolerance-representative builds and allowed deposit or maintenance conditions selected by the appliance team. Acceptance belongs to the actual appliance and defined dose. Reopen the evaluation after a change to channel volume, pump, valve, heater, wall, insulation, sensor location, downstream tube, control timing, protective device or cleaning state.
Provide restart-specific inputs for heater review
The request should identify the standby state and first-dose boundary rather than providing only nominal flow and wattage. ChipSimple can review drawing-defined heater geometry, resistance and terminals against the supplied thermal interface. The appliance integrator retains pump timing, fluid management, pressure, hygiene, beverage performance and independent protection.
Standby restart and first-dose review inputs
Supply the transient water-path and control information needed for a bounded heater discussion.
- Heater and channel drawing, wall construction, attachment, insulation and orientation.
- Standby durations, prior states, retained-water behavior and first-dose definition.
- Inlet condition, pump and valve timing, flow range, downstream volume and collection point.
- Supply waveform, measured-power method, control states, sensors and independent cutoff sequence.
- Required temperature profile, test tolerances, cleaning or deposit condition and validation owners.
