Overview

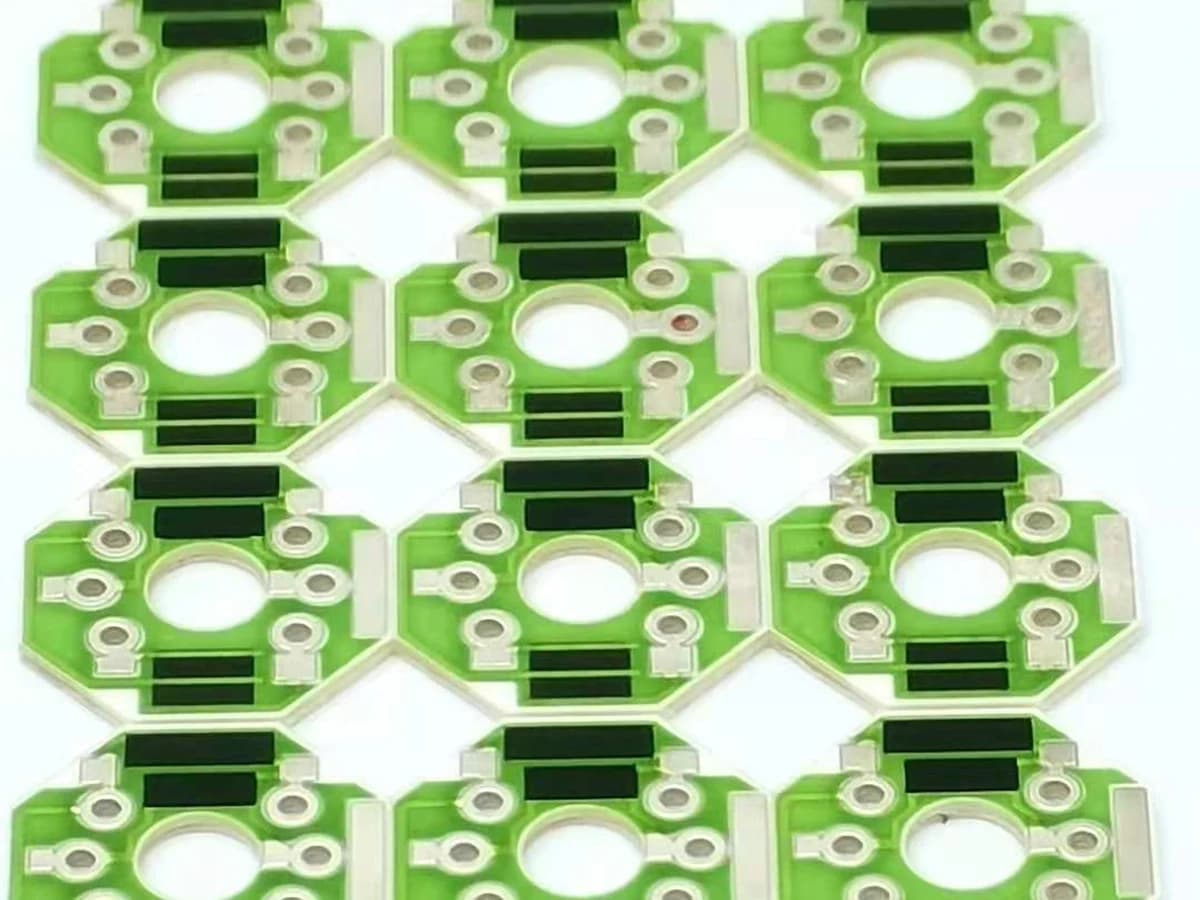

A high-voltage divider is a coordinated resistor chain, insulation structure, and measurement chain used within a defined protection context; the divider is not by itself a protection system. this guide helps OEM engineers define continuous, transient, test, and fault voltages; ratio and loading; heat and field distribution; creepage and clearance context; calibration; and safe verification without implying a universal voltage rating or certified measurement assembly.
Failure controls
These are review prompts, not evidence that every risk applies or that every test is available.
- A
A divider that meets low-voltage resistance tolerance can develop unacceptable ratio error from voltage dependence, self-heating, thermal gradients, or leakage at working voltage.
- B
Using one headline voltage hides differences between continuous stress, repetitive transients, impulse energy, test voltage, and abnormal faults.
- C
Creepage or clearance copied from an isolated component can be invalid after enclosure, coating, altitude, contamination, connector, and assembly tolerances are included.
- D
Measurement-input resistance and capacitance can change ratio, bandwidth, settling, and transient response.
- E
An open element can move unexpected voltage to the low-side output or redistribute stress across the remaining chain.
- F
An undefined fixture, guard, grounding, discharge, or interlock method can create both measurement error and personnel hazard during validation.
High-voltage measurement integrity review
The order makes assumptions and ownership visible before a result is promoted to a requirement.
- 01
Separate every voltage state
Define normal working voltage, polarity, waveform, common-mode condition, switching transient, surge, discharge, test voltage, fault voltage, duration, repetition, source impedance, and energy instead of using one maximum value.
- 02
Build the ratio and error budget
Allocate nominal ratio, absolute resistance, tolerance, temperature tracking, voltage dependence, self-heating, aging, leakage, input loading, calibration, and measurement uncertainty to the required system accuracy.
- 03
Resolve insulation and field geometry
Review resistor segmentation, conductor spacing, creepage, clearance, edges, holes, coating, dielectric interfaces, contamination paths, altitude, enclosure, and neighboring conductors for the actual construction.
- 04
Coordinate output and protection
Define the low-side reference, amplifier or converter input, input impedance and capacitance, bandwidth, filtering, clamping, discharge path, open-element response, isolation boundary, and safe de-energization method.
- 05
Verify under controlled high voltage
A qualified high-voltage laboratory or OEM-authorized validation owner should validate ratio, output settling, temperature, leakage, transient response, insulation behavior, calibration stability, and selected faults using methods suitable for the target waveform and equipment category, controlled energy, documented fixtures, and an approved safety procedure.
Engineering review matrix
Each row links a design variable to evidence that can support a drawing or release decision.
| Variable | Control question | Verification route |
|---|---|---|
| Voltage-state definition | What continuous, repetitive, transient, test, discharge, reverse-polarity, common-mode, and fault voltages occur, with what waveform, duration, repetition, and source impedance? | A qualified high-voltage laboratory or OEM-authorized validation owner should capture or reproduce each agreed state with controlled energy and record the actual voltage waveform at the divider terminals. |
| Divider ratio and resistance | Which nominal ratio, total resistance, output range, tolerance, resolution, current, loading, and calibration adjustment are required? | A qualified high-voltage laboratory or calibration owner should measure input and output simultaneously with traceable methods and calculate ratio error at the defined voltages and temperatures. |
| Temperature and voltage effects | How do resistor temperature coefficients, tracking, voltage dependence, self-heating, thermal gradients, mounting, and ambient alter ratio? | Record element or substrate temperature and ratio after stabilization across selected voltage and ambient conditions. |
| Creepage and clearance context | Which working and transient voltages, pollution state, material surfaces, altitude, enclosure, coating, edges, slots, and assembly tolerances govern spacing? | Inspect finished geometry and evaluate the complete assembly against the OEM's applicable safety and insulation design process. |
| Dielectric and leakage paths | What substrate, printed dielectric, protection, contamination, humidity, mounting, guard, and surface path can divert current from the intended chain? | A qualified high-voltage laboratory or OEM-authorized validation owner should measure leakage or insulation behavior on the representative construction under defined conditioning, voltage, time, and instrument limits. |
| Measurement input loading | What input resistance, capacitance, bias current, common-mode range, bandwidth, filter, sampling, grounding, and cable load follow the divider? | Connect the intended front end or a documented equivalent and compare static ratio, settling, phase, and transient response. |
| Fault and discharge behavior | What happens after an open or short element, output disconnect, amplifier fault, insulation fault, power removal, stored charge, or failed discharge path? | A qualified high-voltage laboratory or OEM-authorized safety-validation owner should inject only permitted faults under an approved procedure with controlled energy, then verify output, touch or service state, discharge time, detection, protective response, and post-test integrity. |
| Calibration and traceability | Which reference, fixture, warm-up, guarding, uncertainty, interval, adjustment, environmental condition, and revision define an accepted ratio? | The qualified calibration owner should retain raw readings, reference identity, correction, uncertainty, conditions, operator, hardware revision, and disposition for each calibration point. |
Reference boundary
Public method sources
These sources support the engineering method and terminology used in this technical guide. They do not establish a ThickFilmPCB material list, capability limit, customer result, certification, or finished-product specification.
- 01IEC 60060-2:2025 — High-Voltage Measuring Systems
Applies to complete high-voltage measuring systems and their components during laboratory and factory high-voltage tests; on-site tests are addressed separately by IEC 60060-3. It does not provide a generic embedded-divider voltage rating or qualify the target equipment.
- 02NIST Technical Note 1215 — High Voltage Divider and Resistor Calibrations
Documents a 1985 NBS guarded calibration technique for DC high-voltage dividers and resistors in the 10 kV to 150 kV range. Its guarding and systematic-error concepts do not qualify AC, impulse, transient, phase, or product-specific performance.
- 03IEC 61010-1:2010+A1:2016 — Measurement and Laboratory Equipment Safety
Provides general safety requirements for electrical equipment used for measurement, control, and laboratory purposes. The applicable particular equipment standard still must be selected, and IEC 61010-1 does not assign a divider voltage rating or prove protection-system performance.
Inputs for a practical review
Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.
Send Drawings- 01
Circuit and assembly drawing showing divider chain, substrate, conductors, dielectric or coating, terminals, guards, enclosure, spacing, and mounting
- 02
Continuous, transient, impulse, test, discharge, reverse-polarity, common-mode, and fault voltages with waveform, duration, repetition, source impedance, and energy
- 03
Target ratio, total resistance, output range, tolerance, temperature behavior, bandwidth, settling, calibration, and uncertainty requirements
- 04
Measurement front-end input resistance and capacitance, bias, common-mode range, filtering, sampling, grounding, cable, clamp, and protection details
- 05
Ambient and component temperatures, altitude, humidity, pollution or contamination, condensation, coating, cooling, and installation conditions
- 06
Fault list, safe-state and discharge requirements, diagnostic response, service procedure, applicable standards, and safety-review ownership
- 07
Prototype quantity, validation fixture, guarded measurement method, test points, calibration records, and acceptance authority
