Industrial actuator environmental and failure risks

System boundary

Drive power, actuator mechanics, mounting and process load through feedback element, moving harness, controller input and machine response

Build an actuator service mission

Describe production, setup, cleaning, maintenance, standby and transport states. For each, provide travel, speed, reversals, dwell, load, orientation and environment. Cleaning can impose pressure and chemicals absent during normal motion.

Use position bins because work and wear often concentrate near clamps, seats or process transitions. Retain representative time histories so short oscillations are not lost in total cycles.

Calculate commanded travel without calling it life

A bookkeeping total is L_eq=sum(n_i s_i), where n_i counts strokes of length s_i. Keep direction and loaded travel separate, and add small oscillations where they matter.

Eight thousand strokes of ninety millimetres represent seven hundred twenty metres of commanded travel. This arithmetic does not predict life or contact wear; actual force, speed, lubrication, contamination and mechanism must be evaluated.

Link force cycles to mechanical damage

Record breakaway, running, seating, side and impact loads versus position. Include overload duration and controller current limiting. A peak number does not describe repeated stress or sustained holding.

Compare motor current, output force and movement. Increasing current at constant load may indicate friction growth; stable current with lost external movement can indicate a coupling problem depending on architecture.

Create a force-versus-position envelope for normal and degraded machine states. Compare commanded torque with independently observed output work. A worn transmission can consume energy internally while the controller reports increasing effort, whereas a shifted process load can produce a similar current signature with intact mechanics.

Trace particles and liquid through the enclosure

Show seals, breathers, rod interfaces, drainage, connector orientation and pressure directions. Name dust size or process residue and wash chemistry where known.

Deposits can abrade, jam, bridge electrical paths or alter lubricant. Preserve the original contamination pattern before cleaning. Enclosure ratings and chemical compatibility require separate evidence at the declared condition.

Evaluate the transition from wash to restart. Liquid retained behind a seal or in a connector can migrate as the actuator warms and pressure changes. State drying time, orientation and inspection. Repeated cleaning may also remove lubricant or carry abrasive particles into a sliding interface.

Combine temperature, vibration and mounting effects

Temperature changes lubricant viscosity, seal friction, gear clearance, winding resistance and feedback output. Thermal gradients can shift a mounting datum.

Measure vibration at the actuator and moving cable support. Resonance or bracket flexibility can amplify a remote machine input. Evaluate powered feedback so brief events remain observable.

Treat the moving cable as a wear item

Define bend radius, torsion, travel, support spacing, flex count and connector strain relief. A harness may load the actuator or sensor before conductor failure becomes electrical.

Monitor individual conductors and shields during representative movement. A continuity check after the test can miss intermittent opens that occur only at one cable position.

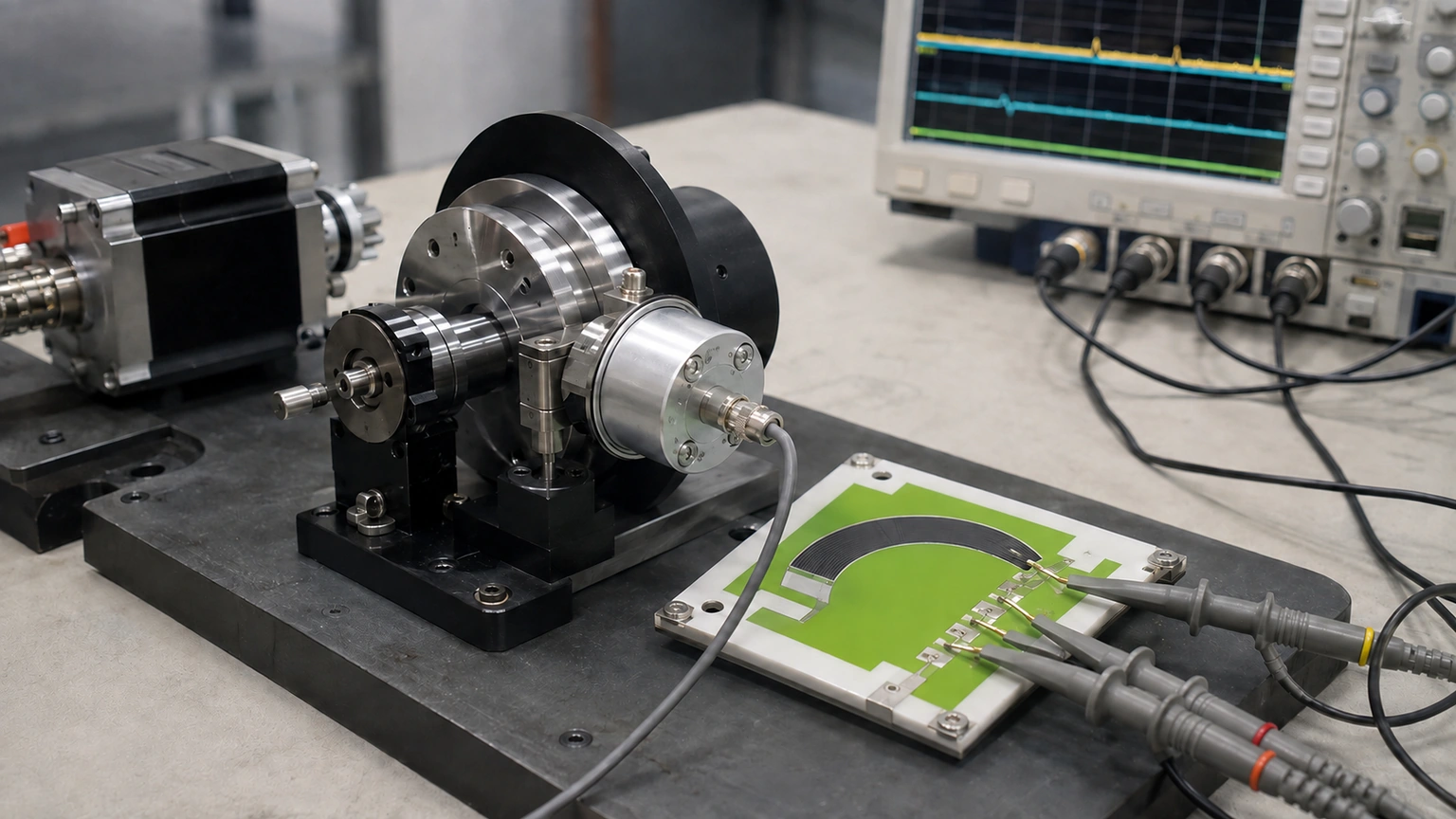

Separate jam, transmission loss and feedback faults

Capture command, motor current, actuator output, driven-member position, feedback terminals and controller value together. Apply load or environment one factor at a time after preserving the failed state.

Find the earliest divergence instead of compensating it in software.

Classify machine consequences separately

Review unintended motion, failure to move, false position, delayed stop and intermittent feedback as distinct hazards. A credible but wrong value may defeat a simple range diagnostic.

The machine owner defines guarding, energy isolation, fallback and safe state. Component evidence cannot establish complete machinery compliance or functional-safety coverage.

Validate exposures under representative load

Combine selected load, motion, temperature, vibration, dust or wash states that occur together in service. Use production-intent mounting, seals, cable routing, drive and controller.

Synchronize force, coordinates and electrical nodes. Freeze acceptance, diagnostic latency, uncertainty and retest rules. Confirm on assemblies not used to tune thresholds.

After environmental exposure, repeat reference travel at a controlled load before disassembly. Then inspect seals, lubricant, gears, feedback contact and cable in an order that preserves location evidence. A post-test pass at no load must not override intermittent or loaded failures captured during the sequence.

Include maintenance and manual recovery in the actuator mission

Industrial actuators are often exposed differently during lubrication, washdown, jam clearing, manual override and cable replacement than during automatic cycles. Add these states to the mission profile with power condition, position, enclosure opening, applied tools and permitted restart. A manual release can move the mechanism without a matching command, and a replaced cable can change bend radius or reference routing. Validate that the controller distinguishes expected service movement from feedback loss and that safeguards remain owned by the machine design. Preserve the as-found contamination and wear pattern before cleaning. Service frequency is an input from the equipment owner, not a lifetime claim inferred from a short cycling test.

Control changes that alter exposure or detection

Link gearbox, lubricant, seal, bracket, linkage, cable, feedback card, controller and software revisions. A routing change can affect both motion load and signal integrity.

Track residual mechanisms with evidence and owner. Results remain bounded to tested loads, media, profiles and configuration; they do not establish production lifetime.

RFQ inputs for actuator risk review

Submit service mission, stroke, speed, load, mounting, orientation, dust, washdown, temperature, vibration and cable motion. Include drive and feedback architectures.

Provide fault consequences, diagnostics, safe-response owner, validation profiles, quantities and maintenance assumptions. Mark unknown combined states for application review.
