A precision fixture can show a stable sensor value while the controlled specimen remains displaced from its intended thermal condition. The heater first warms a substrate and mounting interface; heat then spreads through the fixture and load; the sensor observes one coordinate through its own attachment and time constant; and the controller acts on delayed information. Faster heater response is therefore not automatically better, and a slower sensor cannot be corrected safely by aggressive gain alone. This guide organizes heat paths, observable coordinates and timing validation. ChipSimple may review a drawing-defined thick-film heater. Instrument accuracy, method performance, calibration, protection and regulatory obligations remain with the equipment owner.
System boundary
The boundary includes power source, switching, heater terminals and pattern, substrate, attachment, fixture body, sample or instrument load, insulation, ambient paths, regulation sensor, reference sensors, acquisition, control algorithm, independent limiter and enclosure. ChipSimple scope is limited to reviewed heater drawing features.
System integration decisions
- Define the controlled physical coordinate separately from the regulation sensor.
- Identify heater, fixture, load and sensor time scales from synchronized data.
- Set control bandwidth below unobserved thermal modes and total delay constraints.
- Verify independent temperature limiting outside ordinary regulation.
Define what temperature is actually controlled
Name the required coordinate: fixture surface, embedded cavity, optical element, reagent holder, reference block or another physical location. Provide datum, allowable spatial region, operating modes and independent measurement method. The regulation sensor coordinate may be chosen for repeatability or control speed and need not equal the controlled-load coordinate. State the relationship that validation must establish. A displayed setpoint and sensor resolution are controller properties, not evidence that the load has reached or maintained its required temperature.
Draw heat paths and stored-energy nodes

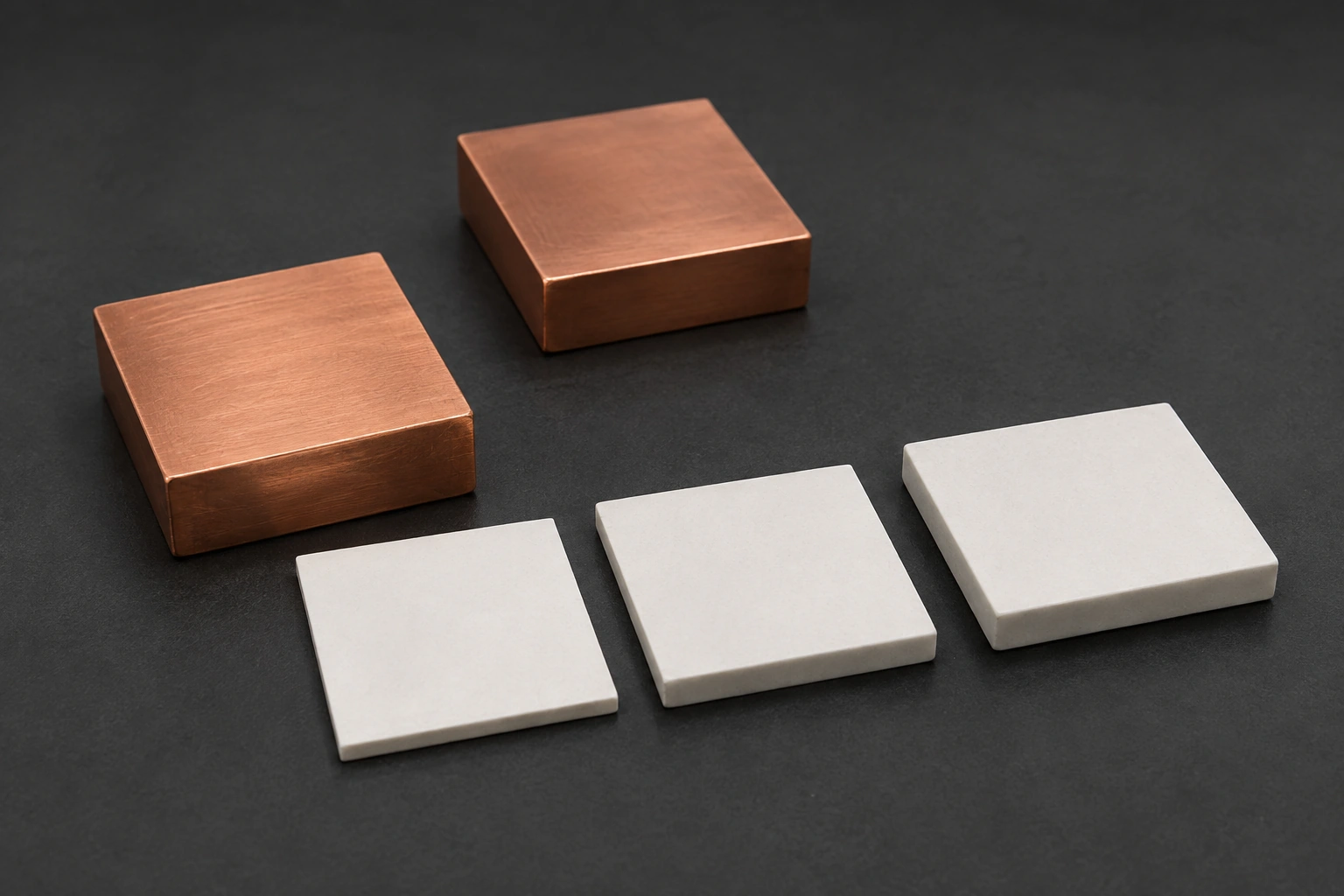

Represent heater substrate, interface, fixture body, load contact, sensor attachment, insulation, supports and ambient as distinct paths or capacities where their time scales matter. Mark parasitic heat into fasteners, wiring and nearby electronics. A high-conductivity block can reduce local gradients yet increase warm-up energy; a thin interface can respond quickly but become sensitive to voids or clamp variation. Use the network to select measurement coordinates and experiments, not as a substitute for physical validation of the assembled fixture.
Use a bounded response model to compare time scales
A first-order observation is useful only after its boundary is stated.
T_s(t)=T_s,0+K_s P[1-exp(-t/tau_s)]; T_c(t)=T_c,0+K_c P[1-exp(-t/tau_c)]
- T_s is the regulation-sensor response and T_c is the controlled-coordinate response.
- K_s and K_c are local steady sensitivities for the stated configuration.
- tau_s and tau_c are identified time constants, not universal material values.
Constant input and approximately linear, time-invariant behavior over the examined interval; multiple modes, saturation and changing contact require measured extensions.
Calculate an illustrative sensor-to-load lag
Suppose a safe identification step gives sensor time constant 6 s and controlled-coordinate time constant 18 s. After 12 s, the normalized sensor response is about 0.865 while the controlled coordinate reaches about 0.487. The controller could therefore see a much more advanced response than the load. These numbers demonstrate the danger of equating coordinates; they are not heater, fixture or accuracy specifications. Actual gains, delays and modes must be identified from the installed assembly across relevant operating states.
Specify sensor attachment as part of the measurement chain
Record sensor type, body and lead geometry, exact coordinate, insertion or surface contact, adhesive or clamp, pressure, wiring heat path, calibration and acquisition settings. Sensor attachment can change both response and the local temperature it observes. Compare regulation sensing with independent references whose own uncertainty and response are documented. Use thin or fast references only when their installation does not materially disturb the fixture. Sensor replacement, lead routing or attachment compound is a controlled change rather than routine equivalence.
Control fixture seating and load variability
Define fixture material, finish, mass, supports, clamp sequence, interface layers and replaceable inserts. For the controlled load, specify contact area, initial temperature, position, mass range and allowed substitutions. An empty fixture, calibration artifact and production load can present different heat capacities and losses. Record seating evidence for every thermal run. A controller tuned on one highly repeatable reference block may overshoot or settle slowly with another load; the instrument owner must define valid configurations and method-specific acceptance.
Identify dynamics without confusing controller action with the plant
Use an approved low-risk input sequence and acquire actual heater voltage, current, several fixture temperatures, regulation sensor output, reference sensor data, ambient condition and controller command on one timebase. Where safe, identify open-loop or minimally conditioned behavior; otherwise record the exact control law used. Separate transport delay, sensor time constant and fixture modes. Repeat at relevant temperature and load states because radiation, convection and contact conductance can change. Retain raw data before smoothing so the model can be independently reviewed.
Allocate control speed from observability and delay
Choose sample rate, filtering, command slew, output limits and loop bandwidth together. A fast sample stream does not remove sensor thermal lag. Aggressive integral action can accumulate while the controlled load is still responding, then drive overshoot after heat reaches it. Establish anti-windup, startup, standby and load-change behavior. The control engineer owns stability margins and disturbance rejection. Heater resistance and nominal power alone do not define a safe tuning range, because mounting, fixture capacity and sensor placement govern the observed plant.
Separate thermal-control evidence by boundary
The table keeps component data distinct from instrument claims.
| Boundary | Required evidence | Owner |
|---|---|---|
| Electrical input | Terminal waveform, current and power | Electrical engineering |
| Heater attachment | Stack, contact and tolerance condition | Thermal-mechanical engineering |
| Controlled load | Coordinate, seating and disturbance states | Method owner |
| Temperature observation | Sensor location, calibration, uncertainty and lag | Metrology |
| Control response | Timing, filtering, stability and recovery | Controls engineering |
| Independent protection | Detection, interruption, latch and reset | Product safety |
Diagnose overshoot and settling with coordinate-specific traces
If the sensor rises rapidly while remote fixture points lag, the issue is observability or heat spreading rather than insufficient displayed resolution. If all coordinates move slowly with expected ratios, electrical power or total thermal mass may dominate. A run-to-run shift tied to fixture replacement indicates seating or interface variation. Correct measured power with a changing sensor response points toward attachment or sensor condition. Preserve the assembled stack before adjustment; retuning can hide a physical change while leaving gradients or protective exposure unresolved.
Validate independent limiting against the fastest hazardous coordinate
Identify where an excessive temperature could first occur, how the limiter observes it, what removes electrical energy and how stored heat evolves afterward. Confirm actual current interruption, not only a software state. Analyze common dependencies between regulation and protection, including shared sensors, supplies, wiring or switches. Define latch, cooldown, service and restart behavior. The safety owner selects thresholds and abnormal tests based on the instrument hazard analysis; this guide supplies no universal temperature limit or safety classification.
Validate disturbances across the allowed fixture configurations
Test cold start, setpoint changes, steady hold, permitted load insertion or removal, ambient or airflow change, shutdown and restart. Include representative heater-to-fixture interfaces, sensor installations and replaceable fixtures. Measure both regulation and controlled coordinates with calibrated, time-characterized references. Evaluate spatial spread, overshoot, settling, recovery and limiter operation separately. The instrument owner approves accuracy and method performance. ChipSimple heater review remains bounded to the supplied drawing, electrical stress and agreed assembly context.
Reopen dynamics after hardware, method or software changes
Review changes to heater resistance, pattern, substrate, terminals, drive, attachment, fixture material, clamp, load, insulation, airflow, sensor, acquisition, filter, control coefficients, limiter or operating sequence. Bind identification and validation data to hardware and software revisions. Equal steady temperature does not prove equal transient behavior. Transfer evidence only where the heat path, observed coordinate and control implementation are unchanged; otherwise repeat the affected response and protection checks.
Keep precision claims with the complete qualified instrument
This page does not promise temperature accuracy, uniformity, response time, calibration status, instrument suitability, regulatory compliance or lifetime. The numerical example is explanatory. Actual heater material, geometry, resistance, terminals and permissible stresses remain by drawing and application review. The RFQ must identify the controlled coordinate, complete fixture stack, sensor dynamics, operating sequence and protection owner before a component requirement can be responsibly reviewed.
Provide the heater, fixture, sensing and control boundary
Response review requires physical coordinates and synchronized timing information.
- Controlled coordinate, operating temperatures, spatial requirement, load states, disturbances and method sequence.
- Heater drawing, resistance target, supply, waveform, terminals, attachment, fixture stack and insulation.
- Regulation and reference sensors, exact locations, attachments, calibration, uncertainty, response and acquisition.
- Controller sample rate, filtering, output limits, tuning approach, startup, recovery and allowable lag.
- Independent limiter, interruption, reset, abnormal states, validation plan and responsible acceptance owners.
