Linking Printed Track Datums to Housing and Motion

System boundary

A printed resistive card, substrate locating features, housing seats, retainers, pivot or linear guide, moving contact and final measurement reference. ChipSimple controls drawing-defined card features; housing, mechanism, assembly and complete transfer accuracy are controlled by the integrator.

Build a datum tree from function back to manufacture

Start with the required wiper-to-track relationship. Trace the wiper to pivot or guide, that mechanism to housing, housing locators to card features, and card features to the printed pattern. Mark every clearance, fitted feature and compliant contact. If the chain branches, identify which branch controls translation and which controls rotation. Avoid redundant constraints that can rock or bend ceramic. A manufacturing tooling hole is useful only if its relationship to installed function is preserved.

Express position through translation and rotation

For small rotation, the local cross-track error increases with distance from the selected origin.

Show why origin placement matters

With 0.20 mm lateral translation and 0.15 degree relative rotation, a point 60 mm from the origin adds about 0.157 mm rotational displacement, for roughly 0.357 mm before local print error. At 10 mm the rotation adds only about 0.026 mm. These illustrative numbers are not capability claims. They demonstrate why inspecting near one datum cannot guarantee trajectory coverage at the far end.

Define how the card actually seats

Specify primary surface, locating pin or edge, secondary anti-rotation feature and retention method. Include clearance direction, insertion sequence, debris allowance and contact force. Chamfers and edge chips can shift an edge-located part. Adhesive can cure with offset; clips can permit slip under vibration. Record whether the card is removable and how repeated assembly affects seating. The datum scheme should constrain necessary degrees of freedom without using brittle ceramic to absorb excessive interference.

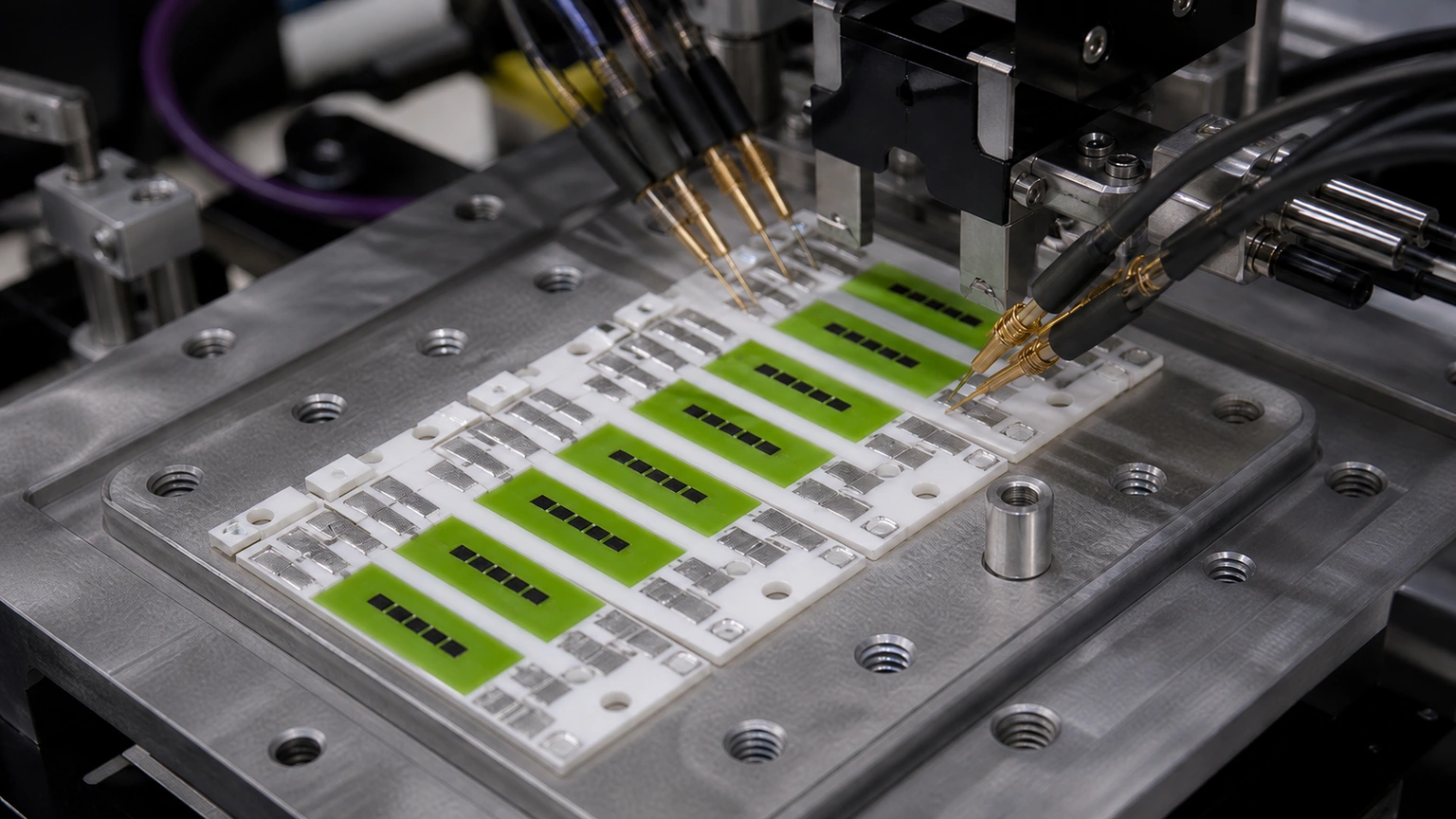

Make inspection reconstruct the functional coordinates

Card inspection should report track features to the agreed substrate datums with stated edge-fitting or hole-center rules. Assembly verification should then measure substrate datum to housing and mechanism trajectory. A final functional sweep can close the chain, but it must not replace missing dimensional information if failures need localization. Preserve cavity and orientation data because panel position can produce systematic print rotation.

Assign each link and closure measurement

The datum strategy works only when adjacent owners exchange compatible definitions.

Use spatial signatures to locate datum loss

Uniform offset over travel suggests translation. An error growing with position suggests rotation or scale. Direction-dependent displacement can indicate clearance take-up or backlash. A step after assembly may reflect seating on debris or a changed support. If the error follows panel orientation, investigate print registration; if it follows one housing cavity, inspect the locator. These patterns guide containment but need dimensional confirmation before corrective action.

Close the chain with mapped installed evidence

Measure representative tolerance corners, repeated card installations and motion in both directions. Record track coverage, contact footprint, position transfer and any intermittent output. Temperature testing should include differential expansion where relevant. ChipSimple can review card geometry against supplied datums; it does not own housing or mechanism tolerances. The system integrator defines final coverage, accuracy and durability acceptance.

Release one datum dictionary for every participant

The controlled dictionary names each datum feature, coordinate direction, construction algorithm, origin, orientation and revision. Attach the tolerance stack and closure evidence. Reopen after changes to card outline, holes, artwork origin, panelization, singulation, housing locators, retention, pivot, guide, wiper or inspection software. Shared labels without shared physical definitions are not configuration control.

Assembly serviceability can challenge the datum chain. If the card can be removed and replaced, measure seating repeatability after realistic cycles and inspect locator wear, debris and retention force. If adjustment slots or shims exist, define the setting method and lock condition. A functional calibration may compensate an initial offset, but it should not conceal inadequate contact coverage or a position-dependent rotation. Keep pre-adjustment data so the underlying tolerance distribution remains visible. For permanent assemblies, account for adhesive movement during cure and confirm the final relationship after the last thermal process rather than only during fixture setup.

Where holes define location, specify whether centers are constructed from all edge points, a filtered circle or functional pin contact. Ceramic chipping and clearance can make these interpretations differ. A maximum-material simulation may be needed for assembly fit, while optical center may suit print inspection. The datum dictionary should state the chosen rule at each stage and the transformation between them.
