Throttle Resistor Cards at Mechanical Stops: Prevent Stop Loads Entering the Track

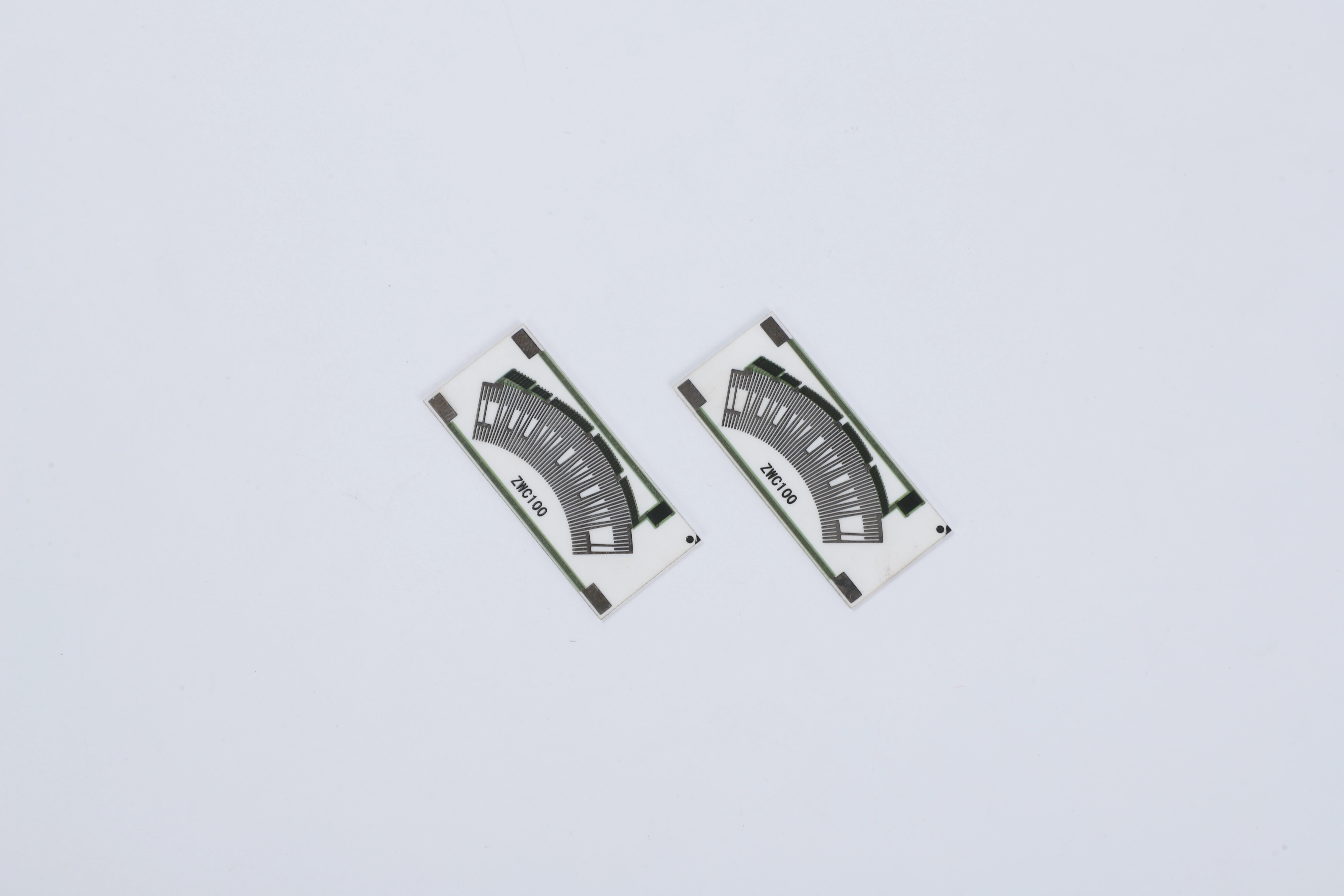

System boundary

This review concerns structural load transfer around a ceramic position-sensing card. It does not establish throttle safety performance, a stop-torque rating or an assembled product lifetime.

Integration interfaces

Integration risks

Draw the stop reaction through actual contacting parts

Start with the shaft or lever receiving torque and follow the reaction through the stop face, housing, fasteners and supporting structure. Mark every part that can touch when tolerances, deflection and assembly variation are considered. A drawing showing a nominal gap is not enough if the carrier deflects into the card under load. The wiper, contact spring and ceramic should not be assigned structural capacity merely because they are nearby.

Repeat the exercise at the opposite stop. Opening and closing can involve different contact faces and different directions of spring deflection. Identify whether the mechanism reaches a hard stop, a compliant stop or another defined limiting element. End-stop torque and normal operating torque describe different conditions; a component rating for one must not be substituted for the other.

Convert torque into a local reaction before evaluating clearance

For a simplified lever, the reaction required to balance torque is the torque divided by the perpendicular lever arm. An illustrative 0.30 newton-metre applied to a stop with a 15 millimetre perpendicular arm produces a 20 newton reaction. That reaction is carried by the actual contacting surfaces, not automatically distributed across the entire housing. A shorter effective arm increases force for the same torque.

This static calculation is a screening tool. It does not determine local contact stress, impact force, fatigue life or ceramic strength. Those require the actual geometry, material behaviour, load history and appropriate analysis or testing. Its immediate value is to expose a design in which a small feature near the track would have to react a much larger force than its ordinary sensing contact load.

Separate tangential stop reaction from wiper normal force

The intended wiper normal force establishes contact with the resistive track. A stop reaction can alter that force through carrier rotation, spring distortion or axial shaft movement. The effect may be an increased contact load, a lifted contact, or a sideways sweep across an unintended edge. A stable output at the stop does not exclude excessive force; it may simply mean the contact still conducts while being overloaded.

Measure or otherwise establish the relevant carrier displacement under the defined stop condition. Relate that motion to the contact spring geometry instead of assuming all displacement is harmless. Preserve the difference between normal contact compliance and a structural stop element. Increasing contact force to suppress an endpoint interruption can worsen wear if the underlying carrier motion remains unresolved.

Check loaded clearances, not just angular reserve

The electrical travel review defines where valid contact exists. The stop-load review adds the deformed configuration: carrier-to-card clearance, ceramic-to-housing clearance, fastener movement and terminal strain. These checks are related but not interchangeable. Extra angular reserve cannot protect a ceramic edge that is being pressed by a housing feature under torque.

List the contact sequence as load rises. The intended stop should engage before a secondary feature creates a new path through the sensing assembly. Evaluate tolerance combinations that reduce the relevant gap, including assembly seating and support deformation. Where the path cannot be established analytically, an instrumented assembly trial can reveal motion, but its load and boundary conditions must represent the intended design question.

Use observations that distinguish competing load paths

Record applied torque, stop contact, carrier displacement and electrical output on a common sequence. Observe the assembly before loading, while held at the specified condition, and after unloading. The interpretation changes depending on whether an output shift disappears immediately, persists because the contact moved, or accompanies visible damage.

Define a controlled assembly trial with a safe boundary

A stop-load trial should be planned by the responsible assembly designer using agreed loads, rates, hold times and specimen disposition. Secure the test article so that the fixture reacts the intended mounting interface. A fixture that clamps an unsupported ceramic region can create a failure unrelated to the installed mechanism. Keep personnel clear of moving or stored-energy parts and follow the equipment-specific safety procedure.

Use separate records for quasi-static load and impact conditions. Reaching a static torque without damage does not establish survival under a fast collision with the stop. Likewise, a destructive overload result is not a proposed operating limit. Do not use an assembled throttle in a live control system as a convenient bench fixture for this investigation.

Assess the complete return path after stop exposure

After the specified exposure, traverse the usable range in both directions using the same receiver loading as the baseline. Compare output continuity, endpoint recovery and any position-dependent changes. Include the first return sweep because later cycling may redistribute debris or partially reseat a contact. Preserve abnormal events rather than averaging them away across a long trace.

Inspect contact springs, ceramic edges, track regions, terminals and attachment points that lie near the identified force paths. A mechanical change can require a card-interface review even if total resistance remains unchanged. Acceptance must use the assembly drawing and agreed test criteria; there is no general stop torque that can be assigned to all ceramic thick-film cards.

Keep the card requirement separate from structural approval

The handoff should provide the card outline, mounting support, wiper geometry, intended force range, shaft travel and both structural stop definitions. Identify who owns any feature that can contact the card under load. This makes a subsequent housing or carrier change traceable to the affected sensing interface rather than treating it as unrelated mechanical packaging.

ChipSimple can review drawing-defined thick-film track, substrate and terminal requirements. The throttle or position-sensor integrator owns structural loads, stop design and final system validation. When stop-induced error is found, correct the evidenced load path before compensating the resistance law. Electrical compensation may make one endpoint look better while leaving ceramic stress and wear unchanged.
