Mesh, Emulsion, Squeegee and Snap-Off: The Four Controls Behind Print Definition

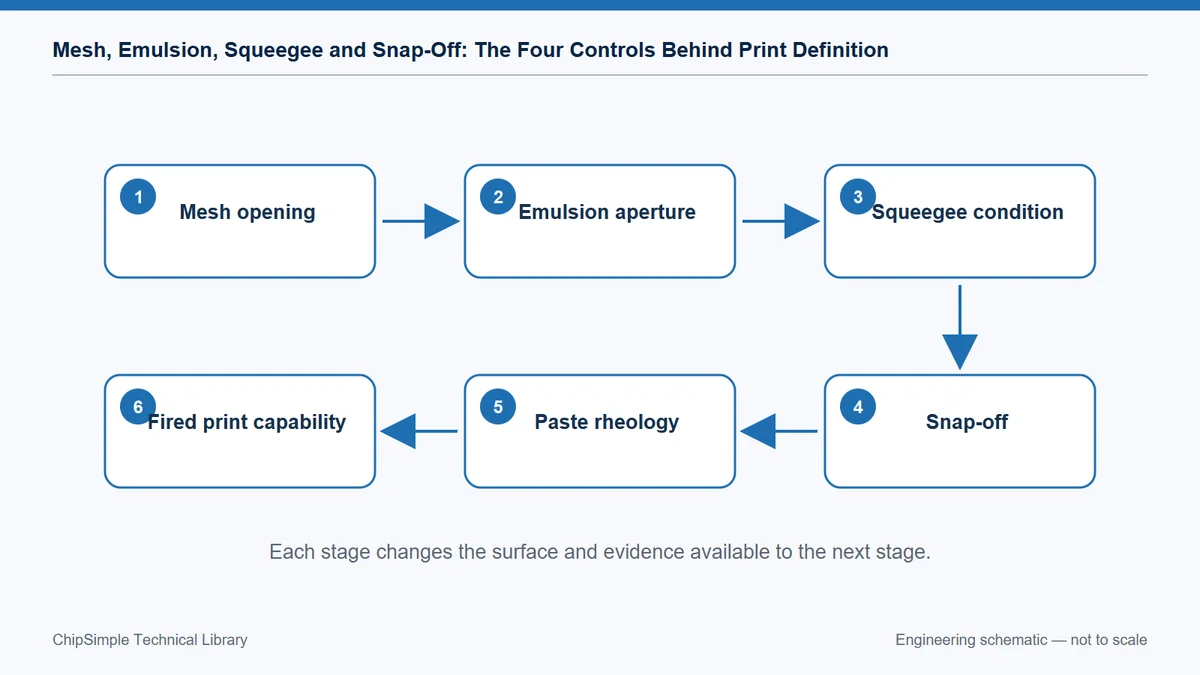

The screen carries the image and meters paste; emulsion defines the aperture and contributes thickness; the squeegee shears and transfers paste; snap-off separates the screen from the deposit. These four controls interact with paste rheology and substrate support. A parameter table is useful only when the relationships behind it are understood.
Mesh Governs Aperture and Open Area
Geometry and material meet at this point: Mesh count, wire diameter, weave and tension define the physical path for paste. Therefore, fine mesh can improve pattern support but restrict particles and deposit volume. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, match mesh opening to paste particle distribution and feature size. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes screen certificate, tension map and printed deposit data. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is blocked apertures or thin deposits after selecting mesh by line width alone. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Emulsion Defines the Working Image
Process capability follows from the mechanism: Emulsion thickness and edge quality shape the aperture above the mesh. The direct implication is that underexposure, damage or excessive thickness changes release and geometry. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to qualify coating, exposure, development and final inspection. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use aperture measurement and screen thickness records to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to rounded or enlarged features repeating exactly with the screen. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Squeegee Controls Shear and Local Contact
Blade hardness, edge, angle, speed and pressure act together. The consequence is that a worn or flexible blade can change print width and deposit across a long image. In a thick film screen printing parameters review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to standardise blade specification and replacement criteria. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include blade inspection plus print data by stroke position. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is gradual geometry drift that resets when the blade is changed. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Snap-Off Controls Release
Off-contact distance and tension determine how quickly mesh leaves the wet film. The consequence is practical: too little release smears while excessive separation can distort or stress the screen. This is one reason thick film screen printing parameters cannot be reduced to a single catalogue value.
During design review, set off-contact for substrate thickness, image size and tension. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains directional edge inspection and registration checks. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for tails or image distortion concentrated at the far end of the stroke. It often indicates that two individually acceptable variables have combined at the edge of their windows.
Qualify a Process Window
One golden setting does not describe normal variation. Consequently, temperature, paste age, screen wear and substrate flatness move the optimum. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will establish high and low limits through designed trials. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through capability for width, spacing, deposit and registration at window corners. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is a process that passes at setup but has no margin during a full run. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
A Worked Engineering Review
For a 150 µm conductor feature, begin by confirming that the mesh opening comfortably passes the paste particles and that emulsion edge quality supports the aperture. Run a small matrix of speed and off-contact while keeping blade and paste constant. Measure fired width and thickness, not only wet geometry. Then repeat at the expected paste temperature and near the screen-tension maintenance limit. The selected settings should sit inside the acceptable region, not on the best-looking single point.
Design Review Checklist
- Record mesh count, wire, weave and tension.
- Measure emulsion and aperture.
- Standardise blade material and edge.
- Set snap-off with substrate support.
- Prove high and low process limits.
Questions Engineers Commonly Ask
Does finer mesh always print finer lines?
No. Particle passage, open area, emulsion, rheology and release also matter. An overly restrictive mesh can create gaps.
How often should screen tension be checked?
At controlled intervals based on use and before critical runs; local tension mapping is more useful than one centre value.
Why measure fired geometry?
Drying and firing change the deposit. The customer receives the fired circuit, so qualification must follow the complete process.
Related Engineering Resources
Closing Note
Print definition is a system response. Document the hardware and its acceptable window together, and connect each setting to fired measurements that matter to the circuit.
