Heater Cycling Acceptance: Insulation Failure Can Precede an Open Circuit

Measurement purpose

Establish a heater-cycling acceptance record with independent functional, isolation, thermal and mechanical endpoints and safe endpoint precedence.

Specimens and conditions

Construction-specific boundaries

Identify the heater path and required isolation electrodes in the actual assembly state.

Diagnostic condition

Specify temperature, recovery, environment and prior test stress for each property.

Equipment and records required

• Functional measurement: Observe heating-path behavior at the defined terminals with traceable operating or reference-state conditions.
• Isolation and safety testing: Use a qualified construction-specific method with safe connections, discharge and verification checks.

Method sequence

1. Define endpoints

   Agree property criteria, observation schedules and stop actions before cycling.

   Record: Endpoint and authority matrix.

2. Observe independently

   Record each property and preserve invalid or missing observations separately.

   Record: Property-level checkpoint history.

3. Stop and interpret

   Apply the approved response and retain first detected events and later findings.

   Record: Endpoint chronology and safe disposition.

Decision and uncertainty

Overall qualification requires every specified endpoint; continued heating cannot substitute for a required isolation result.

Observation intervals, test-induced changes and invalid connections can obscure physical event order and cause.

The system safety owner approves stop conditions; qualified method owners approve electrical tests; the product authority owns overall acceptance.

Traceable outputs

Draw the heating path and every required isolation boundary

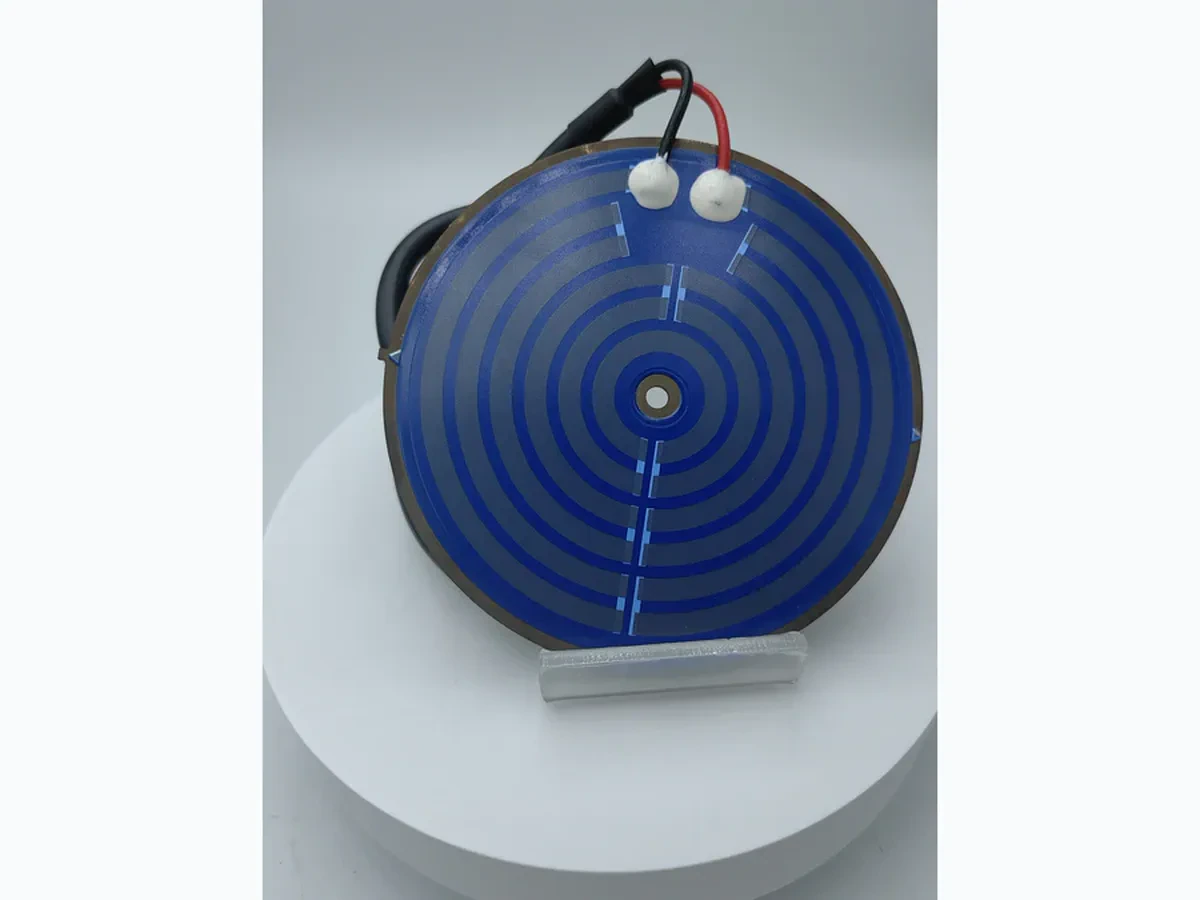

Identify the intended resistive current path separately from the dielectric boundaries to metal substrate, mounting hardware, sensor circuits or accessible surfaces. The construction determines which paths matter. A ceramic heater and a metal-substrate heater may have different isolation architecture and must not share an assumed universal test arrangement.

Map the measurement electrodes and assembly state for each property. A low resistance between heater terminals is expected during heating; a low resistance between a heater terminal and a required isolated support can indicate a different problem. Naming both readings resistance does not make their methods, stimulus or acceptance meaning interchangeable.

Give each endpoint a condition and an owner

Define the resistance endpoint at its specified temperature and recovery state. Define insulation resistance or dielectric withstand under its own approved voltage, duration, electrode and environmental conditions. Thermal and mechanical endpoints may include a controlled temperature behavior or a located structural condition, with consequences assigned by the system owner.

Keep these criteria independent even where one failure can influence another. Insulation resistance evaluates leakage-related resistance under a stated test, while withstand testing addresses dielectric behavior under a specified stress. Neither can be replaced by measuring the heater's operating current. Test conditions must come from the actual construction and applicable requirements, not a generic example.

Build the endpoint matrix before exposure

The matrix should identify the measured property, observation state and immediate action. It becomes the contract between the cycling operator, electrical-safety reviewer and product acceptance authority. It should also identify properties that are not continuously observed so a later report does not imply uninterrupted knowledge.

Read a hypothetical endpoint sequence correctly

Suppose a heater remains within its agreed recovered-resistance band at a checkpoint, but an isolation measurement fails its independently specified criterion. That specimen has not passed the overall endpoint set merely because it still heats. Its isolation result requires the approved safe disposition and investigation before any resumption.

If a later examination finds an open heater path, preserve both observations. Do not replace the earlier isolation endpoint with the later open because it is easier to photograph. When properties are checked only at intervals, the first detected event is not necessarily the earliest physical event. Report the observation order without inventing exact failure times.

Review whether one diagnostic can alter the next

An electrical test, heating cycle or specimen preparation can change the condition seen by later measurements. Define the readout sequence and safe discharge or recovery requirements with the relevant test owner. Preserve the as-found condition before cleaning or disassembly when surface leakage or interface damage is under investigation.

Repeated high-voltage testing is not simply another harmless reading. Record previous test stresses and use the approved retest policy. A test-induced event must remain distinguishable from a cycling-induced event. Where the investigation requires destructive or potentially conditioning methods, allocate specimens and chronology accordingly rather than applying every method to one part without review.

Distinguish a property failure from an invalid observation

An open test lead, an uncharged electrode, a fixture leakage path or an incorrect connection can invalidate an insulation observation. A failed method check is not automatically a product failure, but it is also not a pass. Preserve raw instrument status, electrode locations and verification evidence before assigning the result.

Use controlled fixture checks and appropriate references within the approved procedure. If the heating-path measurement is valid while the isolation measurement is uncertain, retain the valid functional result and the unresolved isolation state separately. Do not let one good channel fill another property's missing result. Overall acceptance requires the endpoint set actually specified.

Do not continue exposure past a safety endpoint for convenience

The system's protective response takes precedence over the desire for a complete-looking endurance curve. If a criterion requires stopping, isolate the test safely and retain the last observed electrical and thermal conditions. Do not bypass interlocks or increase limits to wait for a more obvious open circuit.

Any authorized diagnostic continuation must state what remains safe, what equipment and personnel controls apply, and how the new exposure differs from the original sequence. It is not part of an unchanged qualification run by default. The final record should show the stop event and the scope of any subsequent investigation as distinct stages.

Report the endpoint set without collapsing it into one label

For each specimen, retain initial status, last valid observations, first detected nonconformance by property, safe-stop action and later physical findings. Show which endpoints remained passing, which failed and which became unobservable after another event. Preserve actual exposure through the stop separately from planned cycles.

A summary pass is appropriate only when all required endpoints were met under their defined observation conditions. Continued heat production alone is a functional observation, not complete qualification. This separation gives customers a clearer understanding of what the test established without inventing a lifetime, certification or universal operating limit.
