A microscope can show a feature clearly while two inspectors still disagree about whether it is acceptable. Ceramic edge damage, surface marks and contamination can have different meanings at a bonding area, a handling margin or an electrically active region. An agreement study tests the decision rule applied to those visible conditions. It must distinguish repeatable judgement from correct judgement and must retain the physical specimen context behind every rating.
Measurement purpose
Determine whether the specified inspectors can repeatedly apply the approved ceramic defect rubric, and whether their calls match independently established specimen status. The result qualifies a defined classification method and participating population, not every inspection task or a supplier's overall defect rate.
Specimens and conditions
- Identifiable ceramic features
- Retain specimen, face and feature identifiers, drawing location and preservation history. Features must remain stable between repeated ratings; loose particles that move cannot silently serve as repeated observations of the same condition.

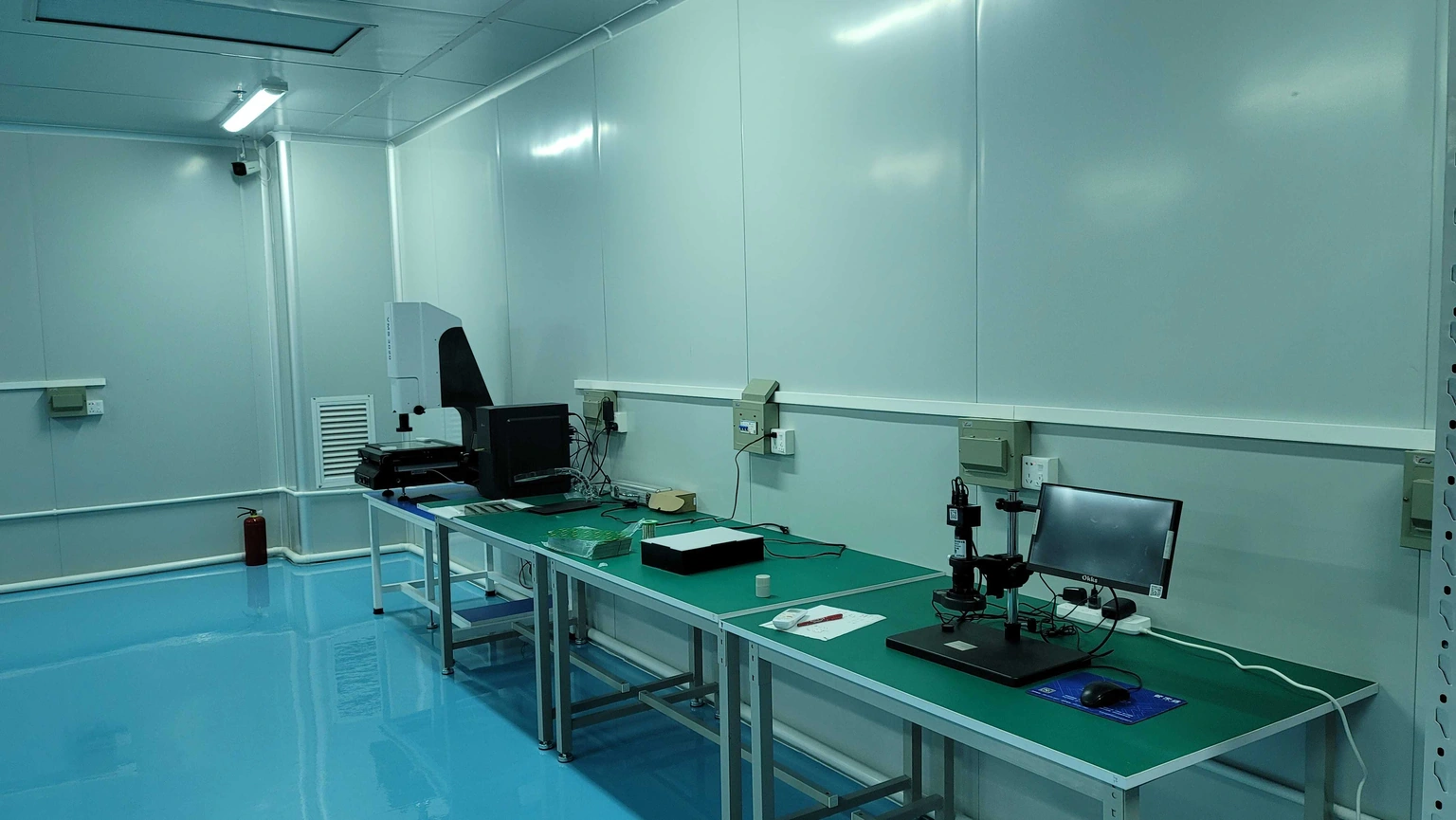

- Locked viewing conditions
- Use the approved lighting, magnification, orientation and cleaning condition throughout a comparison. A deliberate change of optics creates a separate study condition rather than an unexplained operator effect.
Equipment and records required
- Qualified viewing setup: Optics and fixtures must already resolve the relevant features. This study does not establish object-space resolution or replace dimensional characterization of a borderline defect.
- Blinded rating record: Provide randomized specimen codes and a form that hides the reference class and previous responses. Preserve the code key separately under the study coordinator's control.
Method sequence
- Establish specimen status
Agree the drawing rule and characterize disputed features before inspector scoring begins. Record cases that cannot yet be classified without pretending that majority opinion establishes physical truth.
Record: Reference class, characterization basis, defect location and unresolved status.
- Collect independent rounds
Each inspector examines the same specimen set in separately randomized rounds. Separate rounds sufficiently to reduce recall and do not provide corrective feedback between them.
Record: Inspector, round, randomized order, call, uncertain response and elapsed inspection condition.
- Review decision performance
Calculate consistency and reference agreement separately, stratify significant defect classes, and inspect disagreements before choosing a corrective change.
Record: Counts with denominators, disagreement specimens, change rationale and confirmation-study scope.
Decision and uncertainty
Set the permitted false-acceptance and false-rejection risks by feature consequence before viewing the results. A high combined agreement percentage cannot override repeated misses of a critical defect class.
The finite specimen set, uncertain reference labels and repeated use of the same parts limit inference. Repeat ratings add information about consistency, not an equal number of independent ceramic specimens.
The quality-method owner and drawing acceptance authority approve the rubric and disposition rules. An individual inspector should not redefine the acceptance boundary during the scoring exercise.
Traceable outputs
| Record | Required contents |
|---|---|
| Rating matrix | One row per specimen, inspector and round, linked to the preserved physical feature and the independently held reference key. |
| Method decision record | Rubric revision, participant scope, class-specific errors, unresolved cases, corrective action and evidence from an independent confirmation set. |
Method review decisions
- Separate inspector self-consistency, agreement between inspectors and correctness against specimen status.
- Include difficult acceptable features as well as obvious rejects; document deliberate enrichment of rare defects.
- Do not release a changed rubric solely because inspectors remember the training specimens.
Establish status without circular consensus
Suppose a shallow edge chip approaches a drawing exclusion zone. A photograph alone may not settle its depth or distance from that zone. Establishing its status can require an independent dimensional examination and a drawing interpretation approved by the acceptance authority. Record those decisions before distributing blinded specimens. If the same participating inspectors create the reference by voting and are then scored against their own vote, the exercise measures conformity to that group, not independent correctness.
Establish status without circular consensus — decision record
When a feature remains genuinely ambiguous, retain an unresolved category or remove it from the correctness denominator with an explicit reason. It may still be valuable for testing whether the rubric identifies uncertainty consistently. Relabelling every difficult specimen as acceptable would make the resulting error rate artificially reassuring.
Challenge the actual decision boundary
An all-obvious set can hide a weak classification rule. Include acceptable machining marks close to the stated limit, similar-looking contamination, damage outside the functional region and clearly unacceptable conditions. Keep these categories separate in the analysis because different visual cues can cause different mistakes. Selection is purposeful for method validation; it is not automatically a random sample from incoming production.
The set should cover the intended surface finishes and inspection regions without mixing unrelated substrate families into one percentage. If only one alumina finish is represented, the result does not establish agreement for reflective metallization, translucent glaze or a different ceramic finish. Preserve a feature map so a later reviewer knows precisely what each inspector was asked to judge.
Protect independent rounds from memory
A distinctive broken corner can reveal specimen identity even when the label changes. Randomizing order alone therefore does not guarantee independence. Separate rounds, use neutral carriers and avoid discussing the calls while the study is in progress. Do not change or conceal the actual feature to make blinding easier. Record unavoidable recognition as a limitation.
Keep training and measurement separate. Teach the rubric using a training set, then freeze it for the study. If a rule changes halfway through because an unexpected mark appears, preserve the first-round data and start a clearly identified new condition. Combining ratings from two different rubrics makes an operator disagreement look like a person problem when it may be a document revision problem.
Name exactly what an agreement percentage counts
An inspector who rejects the same acceptable part in every round is perfectly self-consistent and consistently wrong. Likewise, several inspectors can agree with each other while sharing the same mistaken interpretation. Report within-inspector consistency, between-inspector agreement and agreement with established status as different results.
Per-rating correctness and all-rounds-correct specimen performance answer different questions. If a part receives correct calls in two of three rounds, it contributes two correct ratings out of three but does not satisfy an all-rounds-correct criterion. State the counting unit and denominator next to every percentage. Do not pool repeated decisions as independent specimens when estimating uncertainty.
Read the confusion matrix by consequence
Consider hypothetical single-round calls on twenty unacceptable and eighty acceptable specimens. An inspector rejects eighteen unacceptable specimens and four acceptable specimens. The matrix below contains all one hundred decisions. These values demonstrate the arithmetic; they are not production inspection results.
Detection of unacceptable specimens is eighteen divided by twenty, or ninety percent. Correct acceptance is seventy-six divided by eighty, or ninety-five percent. Overall correctness is ninety-four percent, yet two unacceptable specimens escaped. Among the twenty-two rejected calls, eighteen are actually unacceptable, so the rejected-call predictive fraction is about eighty-one point eight percent. The attractive overall percentage does not erase the misses.
| Established specimen status | Inspector rejects | Inspector accepts |
|---|---|---|
| Unacceptable: twenty specimens | Eighteen correct rejections | Two false acceptances |
| Acceptable: eighty specimens | Four false rejections | Seventy-six correct acceptances |
Do not transfer an enriched-set predictive fraction
A study may intentionally contain more defects than routine production so that inspectors face enough meaningful challenges. That improves observation of class-specific errors, but the fraction of rejected calls that are true defects depends on the mix presented. It cannot be copied directly into a claim about incoming-lot rejects.
Even sensitivity and specificity can change if the difficulty within each class changes. A collection of large chips does not validate detection of tiny boundary chips simply because both are called unacceptable. Keep severity and feature-location strata available. When critical classes contain few specimens, show the counts and acknowledge the limited information rather than implying that a rounded percentage is precise.
Convert disagreements into a controlled method change
Review disagreement specimens with their original observations, not just the final pass or fail label. A concentration at one zone may indicate an unclear drawing boundary. A concentration on one finish may indicate unsuitable lighting. One inspector's repeated pattern may indicate a training need, but it should not be assumed before the specimen and rubric have been checked.
Change one identifiable aspect of the method, preserve its revision and verify the revised rule using specimens that were not used to teach the correction. Keep unclassifiable calls visible. The deliverable is a defensible method decision and an explicit scope of use, not a league table of inspectors or a claim that visual classification has become error-free.
Define the ceramic inspection decision
For a drawing review, provide the functional inspection regions and the consequences of false acceptance. The review can then define which classification method and specimen evidence are needed for the intended part.
- Drawing revision, material and surface condition with the exact acceptance zones.
- Defect definitions, difficult acceptable examples and the proposed reference characterization.
- Required error-risk limits, report format, participant scope and record retention requirements.
