Multi-Channel Heater Cycling: Verify Equal Stress at Each Fixture Position

Measurement purpose

Determine whether multiple cycling positions impose sufficiently comparable measured stress for the planned heater comparison.

Specimens and conditions

Specimen identity

Retain reference resistance, orientation, mounting history and all channel-position assignments.

Loaded configuration

Use the intended active-channel combination, supports and cooling boundary.

Equipment and records required

• Electrical acquisition: Measure appropriately synchronized heater-terminal voltage and current without defeating protective functions.
• Thermal acquisition: Compare relevant local temperatures and thermal recovery with controlled sensor placement.

Method sequence

1. Baseline

   Measure each defined channel-position combination under intended loading.

   Record: Power and temperature histories.

2. Cross assignment

   Separate approved electrical exchanges from mechanical-position exchanges.

   Record: Physical assignment matrix and repeat mounting observations.

3. Disposition

   Compare defined stress quantities with uncertainty and declared equivalence criteria.

   Record: Qualified conditions, exclusions and recheck triggers.

Decision and uncertainty

Pool endurance observations only where measured stress equivalence is justified for the relevant mechanism.

Include electrical acquisition, mounting repeatability, sensor response and temporal station drift.

The test owner defines comparison criteria; qualified personnel control electrical reconnection and safety.

Traceable outputs

Keep specimen, channel and position as three identities

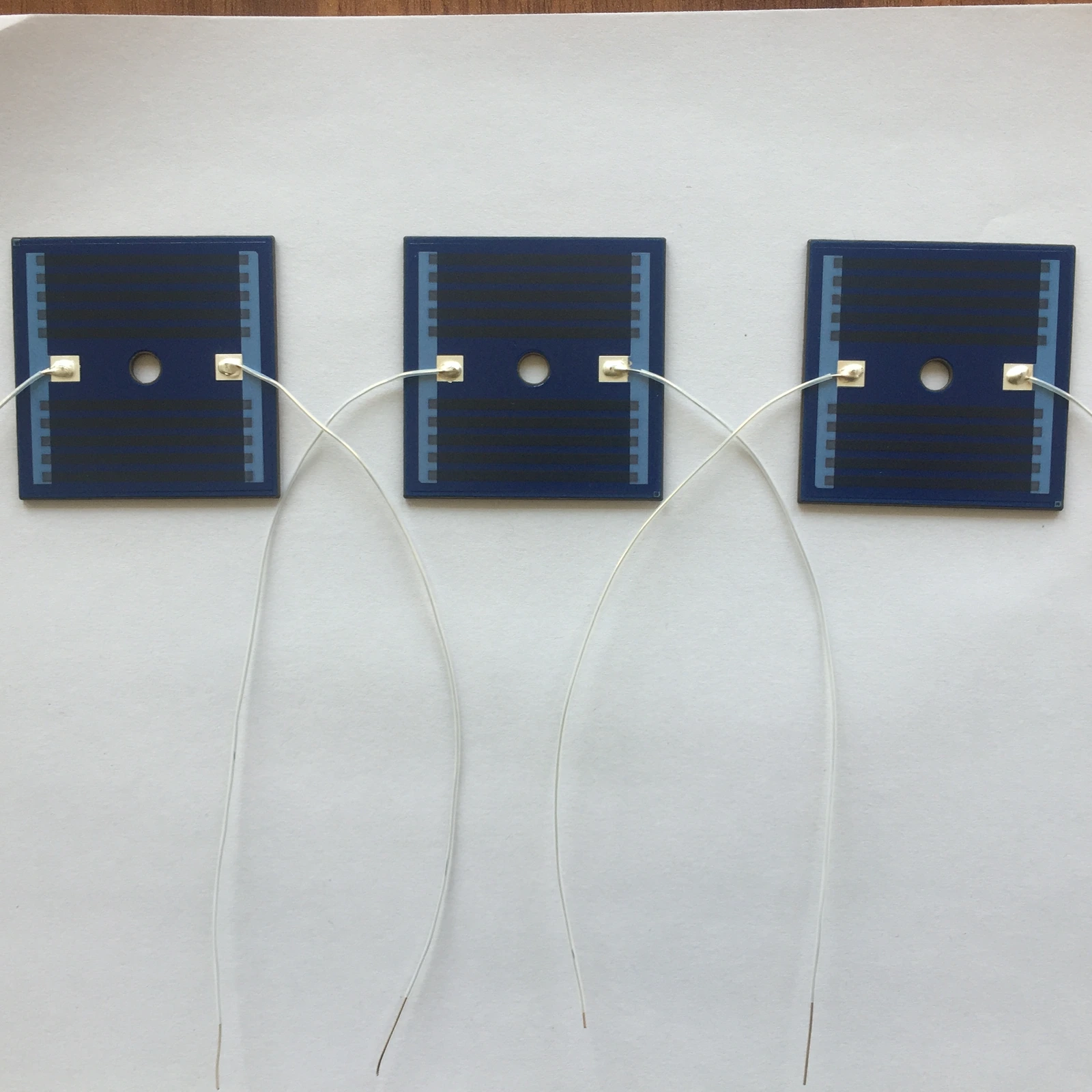

Assign each heater an identity, each powered output a channel identity and each fixture location a position identity. Include connectors and adapters in the channel definition unless the experiment intentionally separates them. The chamber shelf, clamping hardware and nearby thermal masses belong to the mechanical position. A single station number that combines all three makes later swaps impossible to interpret.

Record the original assignment before powering the fixture. Preserve heater orientation, support area, contact pressure method and sensor locations. If moving a specimen changes its thermal interface, repeatability of that interface becomes part of the comparison. Do not attribute a difference to the electrical output merely because its channel label moved with the entire holder.

Measure delivered power rather than the supply display

For a simplified constant-resistance example, a 12 V source drives a 10 Ω heater through 0.10 Ω of series wiring and switching resistance. Heater current is 12/10.1 = 1.188 A and heater power is approximately 14.12 W. With 0.50 Ω in the series path, current becomes 1.143 A and heater power approximately 13.06 W, despite the same source setting.

These assumed values illustrate a station effect, not a recommended operating condition. Real heater resistance changes with temperature, and switching waveforms require synchronized voltage and current measurements. Distinguish power dissipated in the heater from power heating a connector. A suspect or overheating connection requires correction under the authorized electrical-safety procedure, not acceptance as part of a calibrated station offset.

Qualify the fixture at its intended channel loading

A channel characterized alone may behave differently when neighbouring heaters switch on. Shared supply limits, common-return drops or multiplexed timing can affect several positions together. Test the intended concurrency and record the active-channel pattern, rather than assuming an unloaded calibration applies to the complete fixture.

Compare heater-terminal voltage and current during startup, established on-time and transitions relevant to the recipe. Preserve common timestamps so a supply dip can be associated with another channel's switching event. Average power over an entire cycle may conceal unequal peaks or different off-state heating. Report those quantities separately when they contribute to the stress mechanism being studied.

Exchange electrical channels without moving the thermal fixture

With power removed and the equipment made safe, exchange compatible output connections between two fixed mechanical positions using an approved reconnection procedure. Keep specimens and supports in place. Repeat the same comparison after verifying polarity, channel assignment, sensing connections and protection functions. This tests whether the difference follows the electrical channel while reducing mechanical reassembly changes.

If a terminal-power deficit follows the output, investigate its source regulation, switching path, cable and connector boundary. If it remains at the same heater, it may follow the specimen or a local connection that was not exchanged. Document exactly which physical items moved. The experiment distinguishes defined boundaries; it cannot localize an effect to a component that stayed inside both boundaries.

Test fixture position after electrical delivery is understood

An electrically matched pair can still have different temperature excursions because support conduction, airflow or nearby thermal mass differs. A separate specimen-position exchange tests this possibility. Use matched assembly practice and enough repeat mounting observations to distinguish a persistent position effect from mounting scatter.

Record more than a single peak temperature when heating and cooling rates matter. Compare the relevant local temperatures, spatial gradients and return toward the reference state. A position with greater heat extraction may need more controller power to reach the same sensor setpoint while producing a different internal gradient. Matching one sensor does not establish equivalent thermal stress throughout the ceramic.

Interpret the exchange matrix without hiding interactions

The comparison below assumes the changes are repeatable and the measurement channels have been checked. If an effect appears only for one particular specimen-channel-position combination, retain the interaction instead of forcing a single station correction.

Define the stress comparison before accepting positions

Set comparison quantities and permissible differences according to the actual engineering question. These may include heater-terminal energy, peak power, relevant local temperature excursion, dwell within a defined state and cooling recovery. No universal station-to-station percentage proves equivalence for every heater mechanism. Keep measurement uncertainty and within-position repeatability visible beside the allowed comparison band.

Separate persistent offset from time-dependent drift. A position can match at the beginning and diverge as connectors, fixtures or cooling conditions change. Define appropriate rechecks during the campaign and after a channel, cable, holder or sensor is replaced. A mathematical correction to reported temperature does not repair unequal physical stress already delivered to a specimen.

Carry qualification limits into the endurance comparison

Store the assignment history with every specimen's cycling record. If a station becomes non-equivalent, identify the affected time interval and specimens before combining results. Do not erase that history by moving heaters into qualified positions and continuing a common counter. The previous exposure remains part of the interpretation.

The station qualification output is a map of supported comparable conditions, known exclusions and requalification triggers. It supports a separate endurance analysis; it does not by itself prove heater life, establish a product power rating or validate every installation. When equivalence is unresolved, report channel-stratified observations rather than pooling unlike stresses into one performance claim.
