Thick-Film Paste Samples: Do Not Test Only the Jar Surface

Measurement purpose

Establish what a paste aliquot represents before interpreting its test result.

Specimens and conditions

Sample question

As-found local or prepared-container state explicitly selected.

Material history

Named product, jar lot, storage and preparation retained.

Equipment and records required

• Sampling: Compatible clean tool and controlled location/quantity transfer.
• Testing: Defined rheology or analytical method with temperature and timing controls.

Method sequence

1. Preserve

   Record local condition before any homogenization.

   Record: Location and surface observations.

2. Prepare and sample

   Follow actual material instruction and identify aliquot state.

   Record: Preparation and withdrawal history.

3. Interpret

   Separate sampling variation from method and print response.

   Record: State-specific conclusion.

Decision and uncertainty

A local aliquot cannot automatically represent the prepared jar.

Spatial variation, transfer exposure and shear history can change the result.

Material-process and receiving-quality owners.

Traceable outputs

Choose the receiving question before opening the jar

Define the decision the sample must support. A suspected surface skin, foreign particle or localized separation is an as-found condition question. A printing or viscosity acceptance check may instead require material prepared through the supplier's approved sequence. Neither specimen should be described as the other, even when both originate from the same sealed container.

Review the material identity, container lot, seal and storage eligibility before sampling. A valid calendar date does not resolve an unknown storage excursion. Keep the container closed until the approved opening conditions are satisfied. This sampling method does not replace the separate assessment of temperature equilibration or condensation risk at the opening station.

Document the local condition before homogenization

If a localized problem is under investigation, photograph the exposed surface and assign sample locations before mixing. Record whether the aliquot came from the center surface, near the wall, below the surface or another defined region. Use tools and access methods compatible with the paste and the intended analysis. Do not deliberately introduce contamination to make a location easier to identify.

Retain enough context to distinguish a jar-wall residue from material actually withdrawn for printing. A dried film on the lid or threads may not represent the bulk paste, but it can create an entry route during handling. Keep those observations separate. If the only available sample was already mixed or transferred, state that limitation rather than reconstructing its original depth.

Prepare the container using its own material instruction

Named paste systems can specify particular stirring, handling and air-entrapment precautions, and some explicitly acknowledge settling during storage. Those instructions belong to that product and package. A gold LTCC via-fill instruction cannot be copied as the mixing duration, tool or storage rule for a fired silver conductor paste merely because both are screen printable.

For the actual material, record the approved preparation sequence and its completion before taking a prepared-container sample. Do not add thinner, return used paste or introduce an aggressive mixing method just to make the sample look uniform. Such actions alter the material and may require a separate disposition. A visually smooth surface is not proof that the required preparation has been achieved.

Specify location, quantity and transfer state

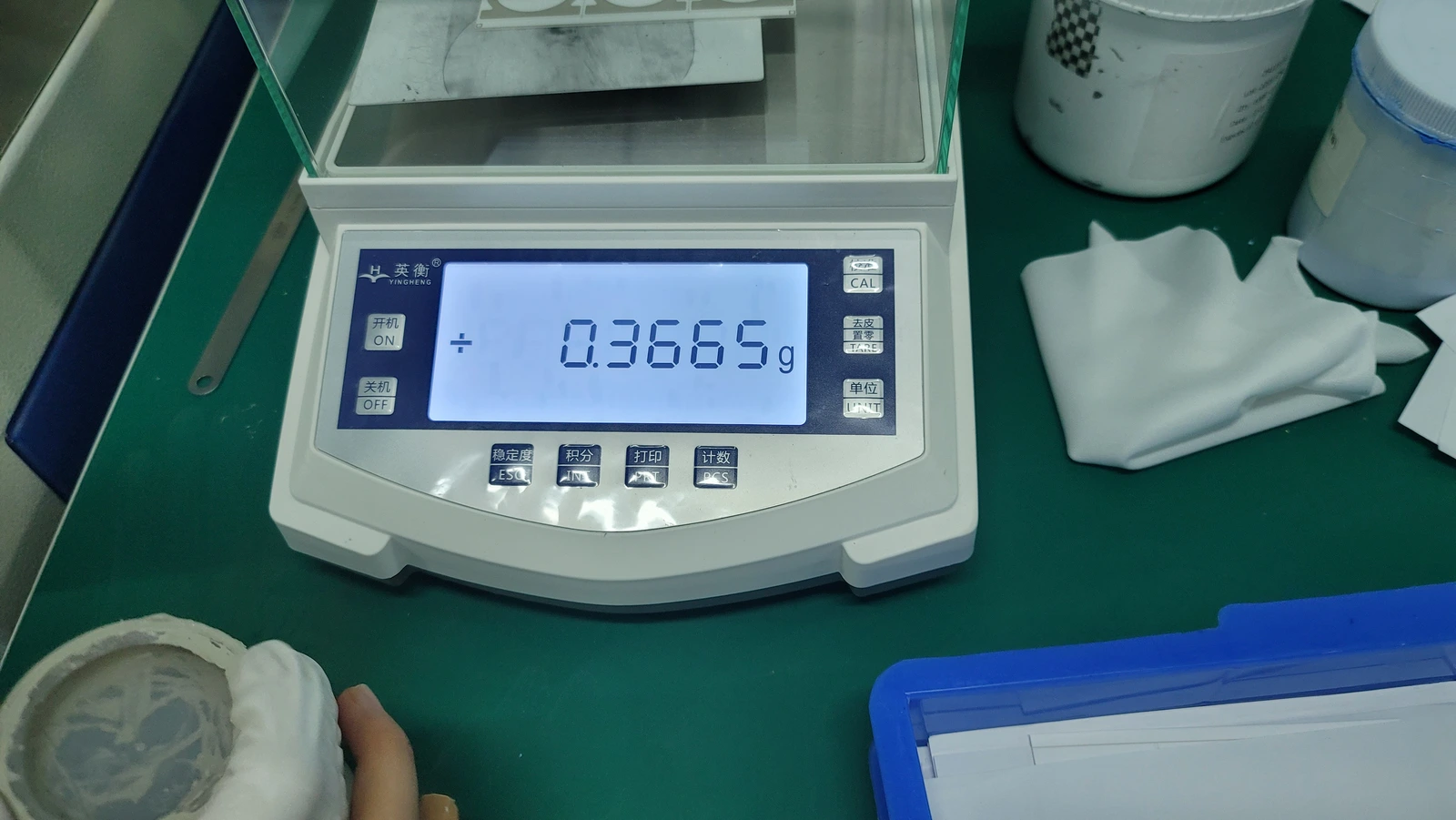

Define the sampling tool, withdrawal location, aliquot quantity, receiving vessel and closure method. Keep the sample identity linked to the source jar and the exact preparation state. A small exposed aliquot can change faster than the larger closed container, so record the time between withdrawal and measurement and the environment during that interval.

Where a representativeness study compares locations, keep the locations distinct through testing instead of pooling them immediately. Pooling can answer a different average-composition question but removes information about spatial differences. Choose the study structure with the material specialist, and do not return tested or exposed aliquots to saleable stock unless an approved process explicitly permits it.

Do not average local viscosity into a bulk claim

Suppose a hypothetical study reports apparent viscosities of 12, 16 and 20 Pa·s from three separately identified locations under one defined instrument method. Their arithmetic mean is 16 Pa·s. That calculation summarizes the three reported results; it does not establish that a mixed jar will measure 16 Pa·s or that the container meets a printing requirement.

Viscosity depends on measurement geometry, temperature and shear history, and a structured paste need not combine by a simple linear averaging rule. Keep the original location results and measure the approved prepared state separately. If the locations were measured at different temperatures or after different rest periods, even their descriptive comparison is confounded.

Match the test conditions before judging a difference

For a rheological comparison, retain instrument geometry, speed or shear condition, temperature, pre-shear, rest and acquisition timing as required by the method. A viscosity value without those conditions is incomplete. For a solids or composition test, retain its own specimen preparation and calculation basis rather than treating the rheology sample as automatically suitable.

Distinguish a repeat measurement on one aliquot from a new withdrawal from the jar. The former can reveal instrument or time-dependent behavior; the latter also includes sampling variation. Plan both if the question needs both. Do not increase the number of repeated readings and describe that as greater coverage of the container when every reading comes from the same surface scoop.

Connect the sample to a controlled printing observation

When the receiving decision concerns print behavior, compare the relevant prepared material using a defined witness geometry and controlled screen, substrate and process state. Retain the source jar and sample history with the witness. An isolated viscosity difference does not identify the resulting fired conductor or resistor behavior without that process connection.

If an as-found local sample differs from the prepared-container result, decide whether that is expected under the approved preparation or indicates a material concern requiring review. Do not diagnose the cause from the direction of the difference alone. A better-looking print after several simultaneous changes cannot establish that sampling location was the original problem.

Report the sample the laboratory actually tested

The report should state source container, location, conditioning and mixing state, withdrawal time, test method and any alteration. Use terms such as surface aliquot and prepared-container sample accurately. Keep the original local observations alongside later prepared results so the evidence can support either a receiving discussion or a process review without changing its meaning.

For thick-film paste and circuit process planning, provide the named material and the question that prompted the sample. ChipSimple can review drawing-specific printed structures and the relevant material interface. No universal mixing duration, allowable viscosity, shelf life or thinner addition follows from this sampling example; those belong to the selected material's approved instruction and validation.
