Electrochemical migration is a specific degradation mechanism, not a general name for every low insulation-resistance reading. Moisture, mobile ionic species, susceptible electrode materials and electrical bias can combine to form conductive growth between separated conductors. A useful evaluation controls those conditions and preserves the evidence needed to distinguish migration from ordinary surface leakage, contamination bridging or mechanical damage.
Key design decisions
- Keep electrode material, polarity, spacing and surface condition traceable.
- Separate controlled condensation from noncondensing humidity exposure.
- Use electrical event records and physical evidence together to identify the mechanism.
Distinguish migration from other conductive paths
Electrochemical migration involves electrochemical dissolution, transport of ionic species and deposition that can form a conductive path under bias. A surface can also conduct more strongly simply because moisture and contamination lower its resistance, without an observed metallic bridge. These mechanisms may occur in the same exposure but should not be treated as interchangeable conclusions.
Keep terminology specific to the construction. Conductive anodic filament behavior within glass-reinforced organic laminates is not automatically the mechanism in a fired ceramic thick-film circuit. For a ceramic assembly, investigate the actual exposed surfaces, glass-overglaze boundaries, conductor interfaces and attachment materials that lie between the biased electrodes.
Define materials and polarity before exposure
Record the conductor composition or specified material system, surface finish and any attached metal parts. Different electrode surfaces can participate differently in the electrochemical process. A test coupon with a convenient metal pattern may not represent the production conductor and its processed surface state.

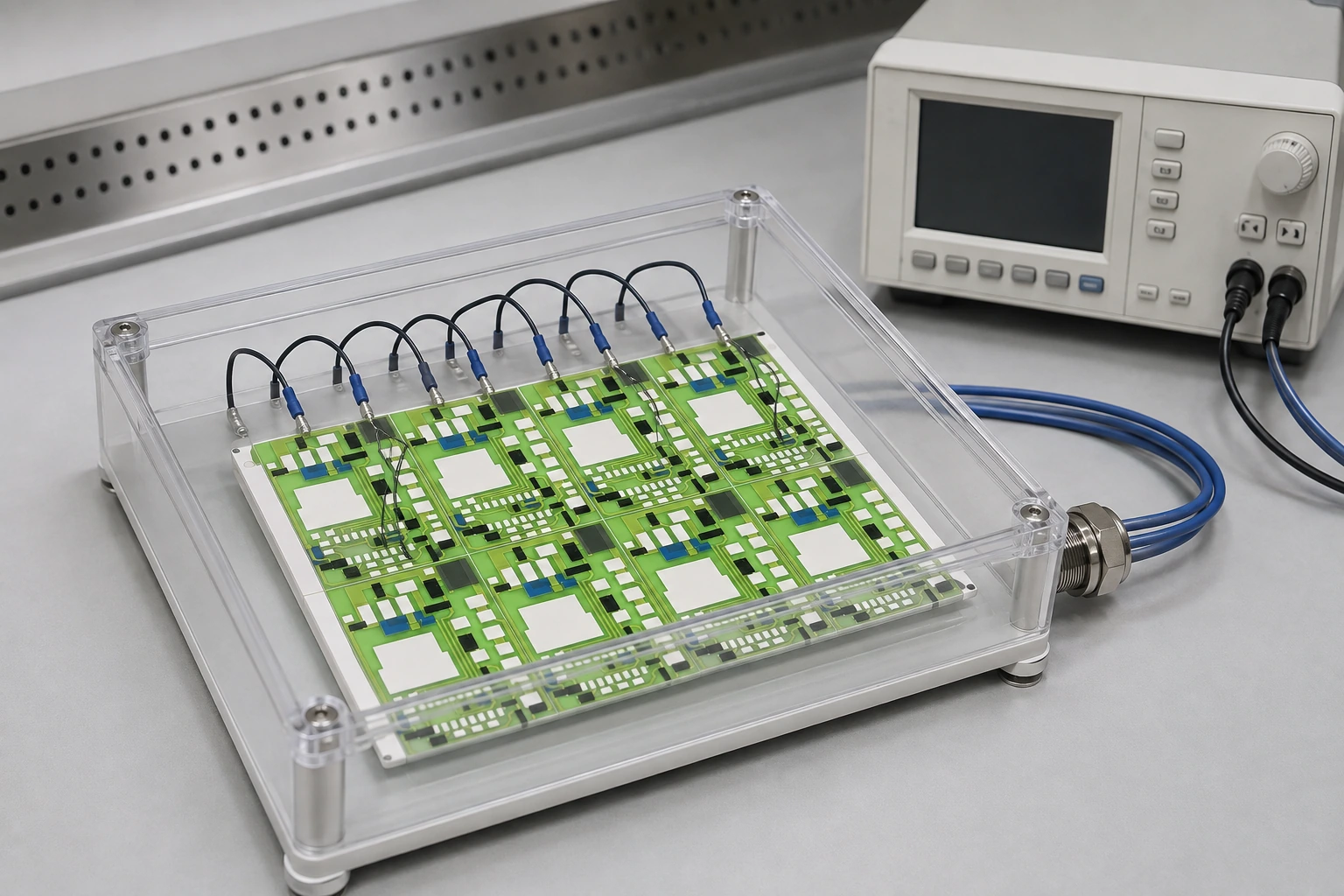

Mark positive and negative electrodes on the specimen drawing and preserve that orientation in photographs. Include the direction of applied bias during each phase, especially if the operating circuit changes polarity. Reversing the specimen during inspection without recording orientation can make a deposit's location difficult to interpret. Keep the electrical connections outside the evaluated path where the method allows.
Consider field and geometry without reducing the problem to one ratio
For a simple uniform gap, voltage divided by separation is a useful first estimate of electric field. Real printed edges, corners, surface features and contamination deposits create a more complex local condition. Electrode length also changes the amount of exposed edge and the opportunity for localized events, so two patterns with the same minimum spacing are not necessarily equivalent specimens.
Measure the processed gap, not only the artwork value. Overglaze encroachment, conductor edge roughness and local debris can alter the effective surface route. Keep the test pattern representative of the feature being evaluated and report the full geometry. Increasing voltage to compensate for a larger gap does not necessarily reproduce every chemical and transport condition of a smaller production gap.
E_nominal ≈ V_bias / d
- V_bias is the potential difference between the evaluated electrodes.
- d is the defined electrode separation for the simple gap model.
The estimate assumes a uniform field region; electrode corners, surface layers, moisture distribution and deposits can create local departures.
Control contamination as a test variable
Identify whether the objective is to evaluate the as-produced surface or a defined contamination challenge. Handling residue, cleaning chemistry, attachment-process residue and environmental deposits can have different compositions and distributions. Record preparation, handling and storage so an unexplained surface change is not introduced before the test begins.
If a contamination challenge is specified, document its composition, amount, application area and drying condition using the selected method. Do not substitute a visually similar residue. A droplet concentrated across one gap and a distributed deposit over a broad surface create different local conditions. Retain unexposed comparison specimens where they will help distinguish preparation artifacts from exposure damage.
Define the moisture state at the surface
Humidity controls the environment, but the actual surface water state depends on temperature, surface chemistry and condensation. A cool specimen can collect moisture during a transition even when the later chamber condition is noncondensing. Record specimen temperature where necessary to determine whether that event occurred.
Choose an exposure that represents the engineering question or required method. A water-drop evaluation can reveal susceptibility under a localized electrolyte but cannot automatically establish behavior in a noncondensing service environment. Conversely, a noncondensing humidity sequence may not challenge the same mechanism as repeated condensation. Keep these results named by their actual conditions.
Capture electrical events without destroying their context
Monitor the applied voltage and current with a defined time resolution and instrument compliance. Conductive growth can create intermittent events, and subsequent heating or mechanical disturbance can alter a fragile path. Preserve the current history around each event, including any voltage collapse caused by the source limit.
Characterize fixture leakage under the same environment and use an appropriate guarded measurement arrangement when needed. Guarding should remove unwanted fixture contributions without bypassing the specimen path of interest. Record channel switching and settling if multiple specimens share an instrument, since sparse readings can miss short events or confuse switching artifacts with specimen behavior.
| Evidence | Why it matters | Important limitation |
|---|---|---|
| Known bias polarity and electrode materials | Connects the observation with the electrochemical system | Polarity alone does not identify a deposit |
| Current history with source voltage | Locates intermittent or sustained conductive events | Leakage does not prove a metallic bridge |
| Controlled surface moisture record | Defines the electrolyte-forming environment | Chamber humidity alone may miss condensation |
| Location-matched microscopy before cleaning | Preserves growth, residue and electrode changes | Preparation can disturb fragile features |
| Comparison with unexposed and controlled specimens | Separates exposure effects from original surface features | Different geometry or chemistry weakens the comparison |
Preserve the path before cleaning or drying
Document the specimen as soon as practical after the relevant event under the selected handling procedure. Record whether it was wet, dried, de-biased or moved before imaging. Drying can change a conductive path, and cleaning can remove the residue or deposit needed to identify its origin. Do not treat a clean post-wash image as evidence of the original failure surface.
Use microscopy and, when required, suitable material analysis to distinguish a conductive deposit from dust, scratches or preparation debris. Correlate the feature with the exact electrode gap and event history. Avoid assigning a metal composition from color alone. Preserve representative specimens and record any destructive analysis sequence.
Use the mechanism to select the next improvement
Possible design and process variables include conductor spacing, surface cleanliness, glaze or coating coverage, attachment residues and environmental protection. Select the next comparison from the identified mechanism rather than changing every variable at once. A wider gap may improve one geometry while leaving a contaminated terminal boundary as the dominant path.
Report the test conditions, individual specimen behavior, electrical event criteria and physical observations together. A result applies to the tested construction and exposure. Establishing field reliability requires a justified connection to the actual environment and operating bias, especially when an accelerated condition changes the amount or state of surface moisture.
Evaluate an electrochemical migration risk
Provide the biased geometry and surface history so moisture, contamination and electrode effects can be evaluated separately.
- Conductor material, finish, polarity and processed electrode spacing.
- Glass-overglaze or coating boundaries and terminal construction.
- Cleaning, handling, attachment residues and any defined contamination challenge.
- Operating humidity, condensation events and bias waveform.
- Current traces, source limits and microscopy before cleaning.
