A heater operated at constant voltage does not necessarily receive constant power as it warms. If resistance changes with temperature, current and power change with it. The sign and shape of that relationship must come from the selected resistive construction and measurements over the relevant range. A cold resistance value alone is insufficient for reviewing startup current, steady thermal input or the range that a controller must manage.
Key design decisions
- Use voltage at the heater terminals rather than the nominal supply label.
- Calculate power from the measured resistance-temperature relationship over the intended range.
- Separate reversible temperature dependence from permanent resistance change after processing or use.
Define the cold resistance measurement
Cold resistance should refer to a stated, stabilized temperature and measurement connection. A part measured immediately after handling or after a previous heating cycle may not be at the assumed condition. Low-resistance heaters are also sensitive to lead and contact resistance, so the connection method matters.
Use a measurement current that does not materially heat the resistor during the reading. Record whether the measured value includes lead wires and terminals or represents the active heater path alone. These details establish the baseline for a cold-to-hot comparison. Without them, an apparent resistance change may reflect a different connection or initial temperature rather than the heater material itself.
Apply the constant-voltage relation at the correct boundary
At a defined terminal voltage, current is voltage divided by resistance and resistive power is voltage squared divided by resistance. An increase in resistance reduces power under that drive condition; a decrease increases it. The relationship differs from constant-current operation, where power grows with resistance.

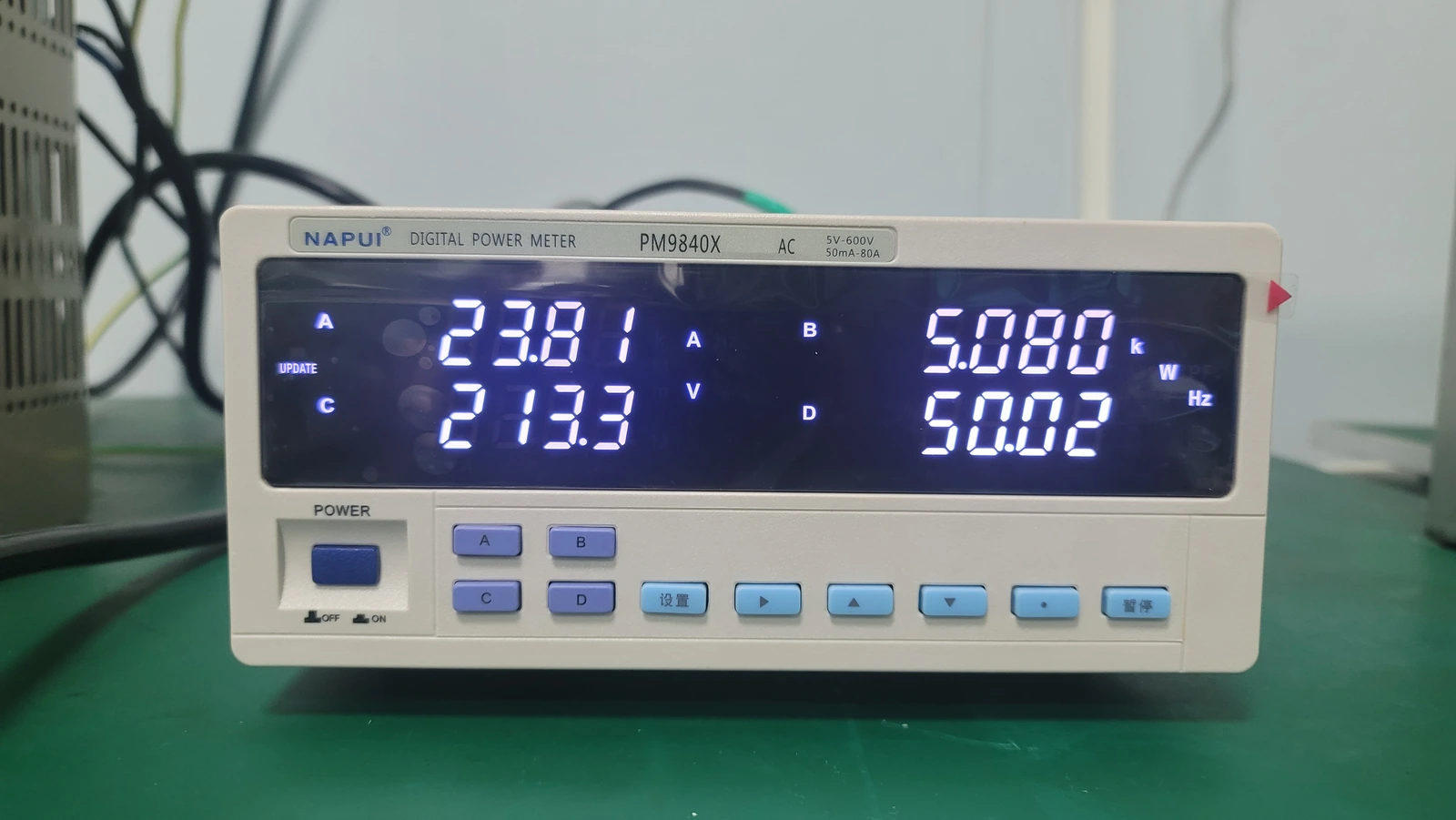

Check whether the supply actually remains in constant-voltage mode during startup. A current limit, cable drop or switching device can alter the voltage delivered to the heater. If the source enters another mode, the simple constant-voltage prediction no longer describes that interval. Capture voltage and current together so the operating mode is visible rather than assumed.
I(T) = V_heater/R(T); P(T) = V_heater²/R(T)
- V_heater: voltage measured across the selected heater terminals.
- R(T): resistance associated with the relevant temperature state and connection boundary.
- I(T) and P(T): resulting current and resistive input power under constant terminal voltage.
The relation describes a resistive load at the stated operating point. Pulsed waveforms require the appropriate instantaneous or time-averaged treatment, and the source must remain in its intended voltage mode.
Use a curve when one coefficient is not enough
A linear temperature coefficient can be useful over a characterized interval, but it should not be extended across an arbitrary temperature range. Printed resistive systems may have curvature, different hot and cold behavior or changes associated with processing. Obtain the relationship appropriate to the actual material stack and conditioning.
When measuring resistance in an externally controlled temperature environment, allow the specimen to approach a sufficiently uniform state. When inferring resistance from an energized heater, recognize that the film may have a spatial temperature distribution. The resulting electrical resistance represents the whole current path and does not identify its local maximum temperature. A single resistance-derived temperature cannot automatically replace spatial thermal verification.
Calculate the electrical consequence before predicting temperature
As a hypothetical arithmetic example, a heater with 12 ohms at its defined cold condition receives 48 watts from a constant 24-volt source. If its measured operating resistance is 15 ohms, input power becomes 38.4 watts and current becomes 1.6 amperes. The change is a reduction in electrical input, not a direct prediction of a specific load temperature.
If the operating resistance instead falls, constant-voltage power rises. Whether the temperature stabilizes depends on the heat-removal paths and on how resistance continues to change. The example values are calculation inputs, not material specifications. Use the actual resistance curve, source limits and thermal boundaries to evaluate a real heater.
Evaluate supply and resistance extremes consistently
Supply voltage affects power quadratically, while resistance appears in the denominator. Check the relevant combinations of voltage tolerance, cold resistance variation and hot resistance behavior. A low-resistance specimen at the highest available voltage may create the largest startup current, but the most demanding hot condition depends on the full resistance-temperature relationship.
Do not assume the same specimen is worst for every requirement. One case may govern source current, another local temperature and another available heating power at the load. Use physically consistent cases and retain the correlation between cold resistance and the measured temperature response when known. This avoids constructing a misleading extreme from unrelated data.
| Condition | Quantity to calculate | What it controls |
|---|---|---|
| Lowest allowed cold resistance at high terminal voltage | Startup current and initial power before substantial heating. | Power-source current margin, switching stress and the initial thermal ramp. |
| Highest operating resistance at low terminal voltage | Available power after warming under the intended voltage mode. | Whether the useful load can still reach and maintain its required condition. |
| Resistance decreases during heating | Power rise along the measured resistance-temperature curve. | Thermal feedback and the range that the control and protection design must address. |
| Source reaches current limit | Actual voltage-current operating point rather than the voltage-only formula. | A change in startup behavior that must be captured in the power record. |
Review feedback without calling the heater self-regulating
A positive resistance-temperature slope provides negative electrical feedback under constant voltage, but that does not establish a safe self-regulating heater. The slope may be small, may vary with temperature or may not prevent a damaging local hot spot after loss of contact. The whole thermal and electrical system determines stability.
A controller also sees the temperature through a sensor with its own location and delay. It may compensate a falling power level by increasing duty, while a fast startup interval remains constrained by source current. Review the actual modulation method and available authority. Do not infer that a favorable resistance trend eliminates the need for temperature sensing or appropriate abnormal-condition protection.
Separate temperature dependence from permanent drift
Measure resistance again after the heater returns to the same defined cold condition. If the baseline changes, the difference is not simply the reversible cold-to-hot behavior. Investigate connection repeatability, conditioning, processing history and possible material or joint change. Compare specimens using matched temperature and timing.
A hot measurement taken under power and a later low-current bench measurement answer different questions. Keep them both, with their conditions, rather than reducing the record to one percentage. Repeated heating and cooling can help distinguish a stable reversible curve from an evolving baseline, but the sequence and observation intervals must be documented before attributing a mechanism.
Carry the power curve into the equipment review
The design handoff should include a resistance-temperature relation, terminal-voltage range and the resulting current and power envelope. Link that electrical envelope to the measured load response, local heater temperatures and operating duty. The equipment designer can then size the source and evaluate control behavior without guessing from one nominal resistance.
If a paste system, geometry, overcoat or thermal processing step changes, recheck the curve and baseline. A matched cold resistance does not prove an unchanged hot response. Preserving these distinctions keeps the heater specification useful through prototype comparison, process changes and final assembly integration.
Provide the cold-to-hot electrical record
A constant-voltage review needs resistance and voltage data tied to defined thermal and connection conditions.
- Cold resistance, measurement temperature, connection method, measurement current and whether lead or terminal resistance is included.
- Measured resistance-temperature points or a material-specific relationship with its valid interval and conditioning history.
- Terminal-voltage range, source current limit, switching or modulation method and synchronized startup voltage-current records when available.
- Operating load and mounting conditions, local temperature limits, duty cycle and resistance after returning to the original cold measurement state.
