Constant-current and constant-voltage drive respond in opposite ways to a change in heater resistance. That distinction affects startup power, temperature feedback and the consequence of a local defect. The right choice depends on the finished resistance-temperature behavior, the thermal load and the protective architecture, rather than on a general preference for one type of power supply.
Key design decisions
- Use the measured resistance-temperature characteristic of the finished heater.
- Distinguish source regulation from closed-loop temperature control.
- Evaluate current limits, voltage compliance and local defects in addition to nominal power.
Start with the two power relationships
For an ideal resistive load, constant voltage gives power equal to voltage squared divided by resistance, while constant current gives current squared multiplied by resistance. If resistance rises with temperature, voltage drive reduces electrical power and current drive increases it. A falling resistance reverses those directions. These are electrical tendencies, not complete predictions of temperature stability.
Use the resistance of the actual powered path at its operating state. A published material coefficient or an earlier unglazed specimen may not represent the finished heater. Record the range and conditions over which the characteristic was established. If the curve is nonlinear, retain the curve rather than replacing it with a single coefficient outside its valid interval.
P_voltage = V²/R(T); P_current = I²R(T)
- R(T) represents the heater resistance associated with its temperature state.
- V and I are the regulated heater-terminal voltage or current.
These expressions describe resistive operation within the source regulation range; nonuniform temperatures and source limits require additional analysis.
Combine electrical feedback with heat loss
Temperature settles where electrical input and heat leaving the heater balance. To assess a small temperature disturbance, compare how rapidly input power changes with temperature against how rapidly heat loss changes. A favorable electrical tendency can be overwhelmed by a lost heat sink, and an increasing-power tendency can still be managed by an appropriately designed temperature-control system.
For a lumped steady model, a local equilibrium is stable when a small increase in temperature produces more additional heat loss than additional electrical input. Apply this reasoning only where the lumped temperature represents the relevant region. A small dry patch can become unstable locally even when the average assembly temperature appears well controlled.
Compare startup under real supply limits

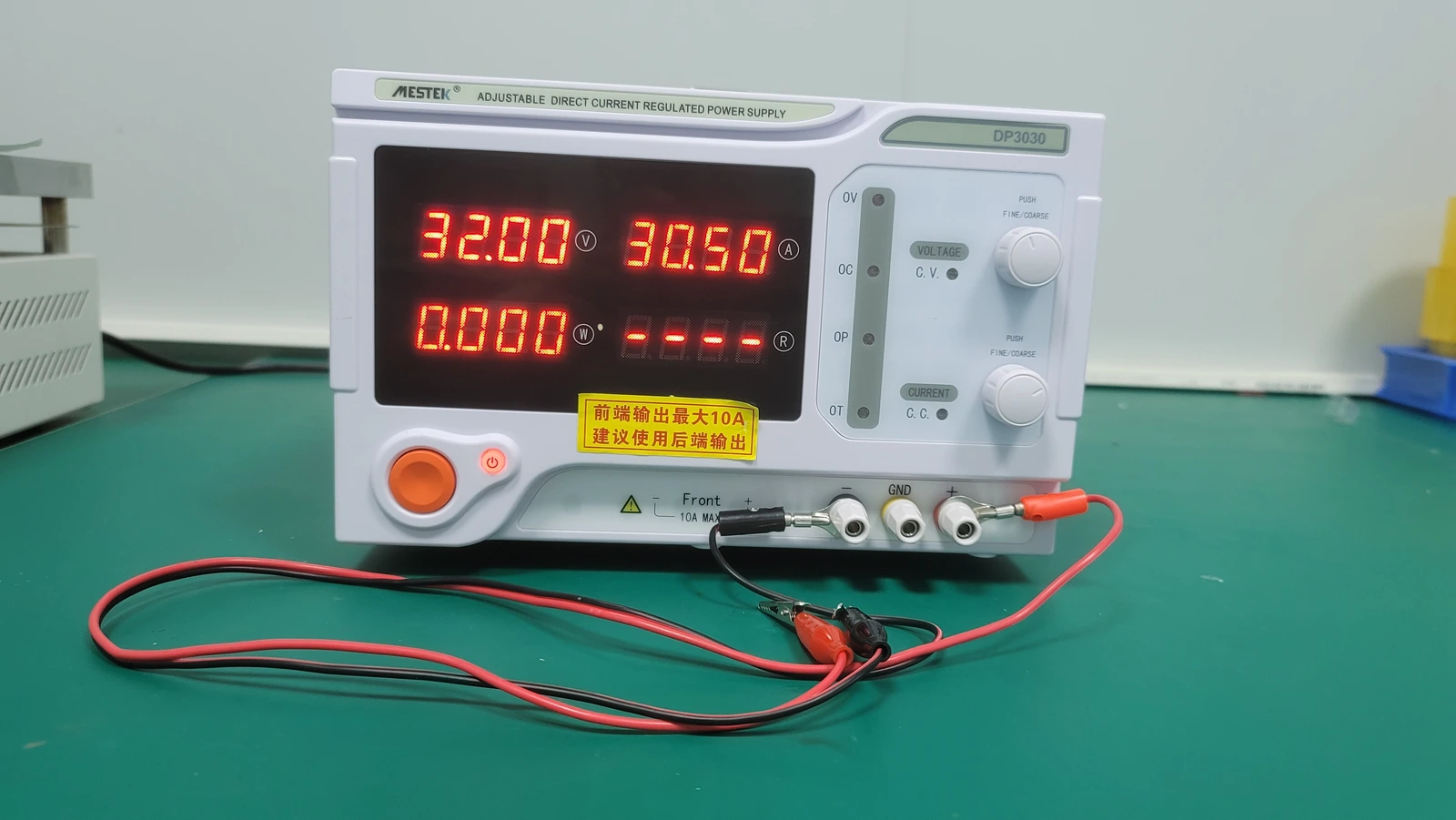

Cold resistance determines the initial operating point, but the supply may not remain in its commanded mode. A nominal voltage source can enter current limit, while a nominal current source can reach its voltage-compliance limit. Record both voltage and current during startup to establish the delivered power and the transition between regulation modes.
Use the lowest and highest plausible cold resistance with the intended cable and connector arrangement. A design that starts normally with a short laboratory harness may warm more slowly with production wiring. Conversely, a control algorithm that raises its command during a current-limited interval can produce an unexpected power increase when the limit is released.
Account for series connections and sensing location
Under current drive, a growing connection resistance dissipates additional local power at the maintained current, until a source limit or control action intervenes. Under voltage drive, an added series resistance reduces overall current but can still generate a dangerous concentrated heat source at the connection. Neither mode eliminates the need for a sound interconnect.
Define whether voltage regulation is at the source or at remote sense points near the heater. Remote sensing changes how wiring loss influences the heater terminal voltage and can change the power dissipated in a deteriorating lead. Follow the source's intended sensing arrangement and evaluate disconnection behavior rather than treating remote sense as a purely numerical correction.
Examine local changes separately from total resistance
A narrow damaged section in a series track carries the same current as the surrounding track. If its resistance increases, its share of the total dissipation can rise in either drive mode, depending on how total current changes. The whole-heater power may fall while the damaged section becomes hotter. Total input power is therefore an incomplete indicator of local safety.
Map likely constrictions, terminal transitions and regions that can lose thermal contact. Use location-specific temperature measurements or a suitably resolved model when comparing drive modes. Keep the physical defect model realistic; an ideal zero-width crack or perfectly sharp corner can produce mathematical behavior that is not a usable temperature prediction.
| Question | Voltage-drive consideration | Current-drive consideration |
|---|---|---|
| Resistance rises during warm-up | Input decreases if terminal voltage stays fixed | Input increases if current stays fixed |
| Resistance falls during warm-up | Input increases if terminal voltage stays fixed | Input decreases if current stays fixed |
| Lead or joint resistance grows | Total current changes and joint heat must be checked | Joint heat rises at maintained current |
| Supply reaches a regulation limit | Current limiting changes startup behavior | Voltage compliance changes delivered current |
| Small local damage develops | Reduced total power may conceal a local peak | Maintained current can intensify local dissipation |
Do not confuse drive mode with temperature control
A temperature controller can command either a voltage-regulated or current-regulated power stage. The controller's sensor location, timing, output limits and tuning determine how it responds to the thermal system. A stable power supply does not ensure stable temperature, and a stable sensor reading does not ensure that every part of the heater is within its limit.
Evaluate the loop during startup, load changes and power-stage saturation. Prevent integral accumulation or other control behavior from causing excessive output when the system leaves a limit. The implementation details depend on the selected controller, but the acceptance test should record the command, actual power and critical temperatures together.
Define protective behavior independently
Identify credible sensor, connection and switching faults through the equipment's safety assessment. Determine what interrupts power if the normal controller cannot maintain the required condition. A favorable resistance coefficient should not be treated as an independent protective device unless the complete construction and application have been assessed for that function.
Check what happens after a shutdown command and after the source reaches a limit. Some systems retain energy in the load or substrate, so the highest temperature may occur after current stops. Maintain protective devices during development and use the applicable test procedures rather than bypassing limits to compare nominal performance.
Choose from measured operating envelopes
Run both candidate drive arrangements on a representative mounted heater if the choice materially affects the design. Compare warm-up, steady load control, disturbance response, wiring loss and local temperatures at equivalent useful heating conditions. Use the same thermal boundary so a fixture change does not masquerade as a drive-mode advantage.
Summarize the selected mode with its permitted operating range, sensing points, source limits and control assumptions. Include the resistance-temperature data that supported the choice. A later change to the resistive material, pattern or terminal construction should trigger a review of those assumptions, even when the room-temperature nominal resistance remains the same.
Select a heater drive arrangement
Provide the finished resistance behavior and thermal load so voltage and current drive can be compared under the same operating conditions.
- Cold resistance range and measured resistance-temperature curve.
- Supply regulation, compliance, current limits and sensing locations.
- Thermal load, mounting, startup requirement and operating disturbances.
- Temperature-control sensor, power command and protective arrangement.
- Terminal construction and any local failure or hot-spot observations.
