A heater dielectric has to separate electrical circuits while operating inside a thermal and mechanical assembly. Insulation resistance, operating leakage and dielectric withstand describe different aspects of that job. They should not be collapsed into one voltage number taken from an isolated material sheet. The review begins by identifying the actual live-to-metal and live-to-live boundaries, then specifying the conditions and measurements needed for each boundary.
Key design decisions
- Identify the insulation boundary in the complete heater assembly.
- Keep operating leakage and withstand acceptance separate.
- Review temperature, moisture, edges and mounting effects rather than only nominal layer thickness.
Draw the electrical boundaries before choosing tests
Identify live resistor and conductor regions, metal substrate, accessible hardware, sensors, connectors and any protective-earth connection. Show where insulating layers start and end. A test between one pad and the substrate may not cover a sensor interface or a terminal that can move toward a housing.
Use the intended equipment architecture to determine which separations matter. Functional isolation, user-accessible metal and protective bonding are not interchangeable concepts. The applicable safety requirements and test procedures must be assigned by the equipment’s responsible engineering team. A heater-component review can supply geometry and material information, but it cannot replace that system-level classification with a general rule.
Ask separate questions about leakage and withstand

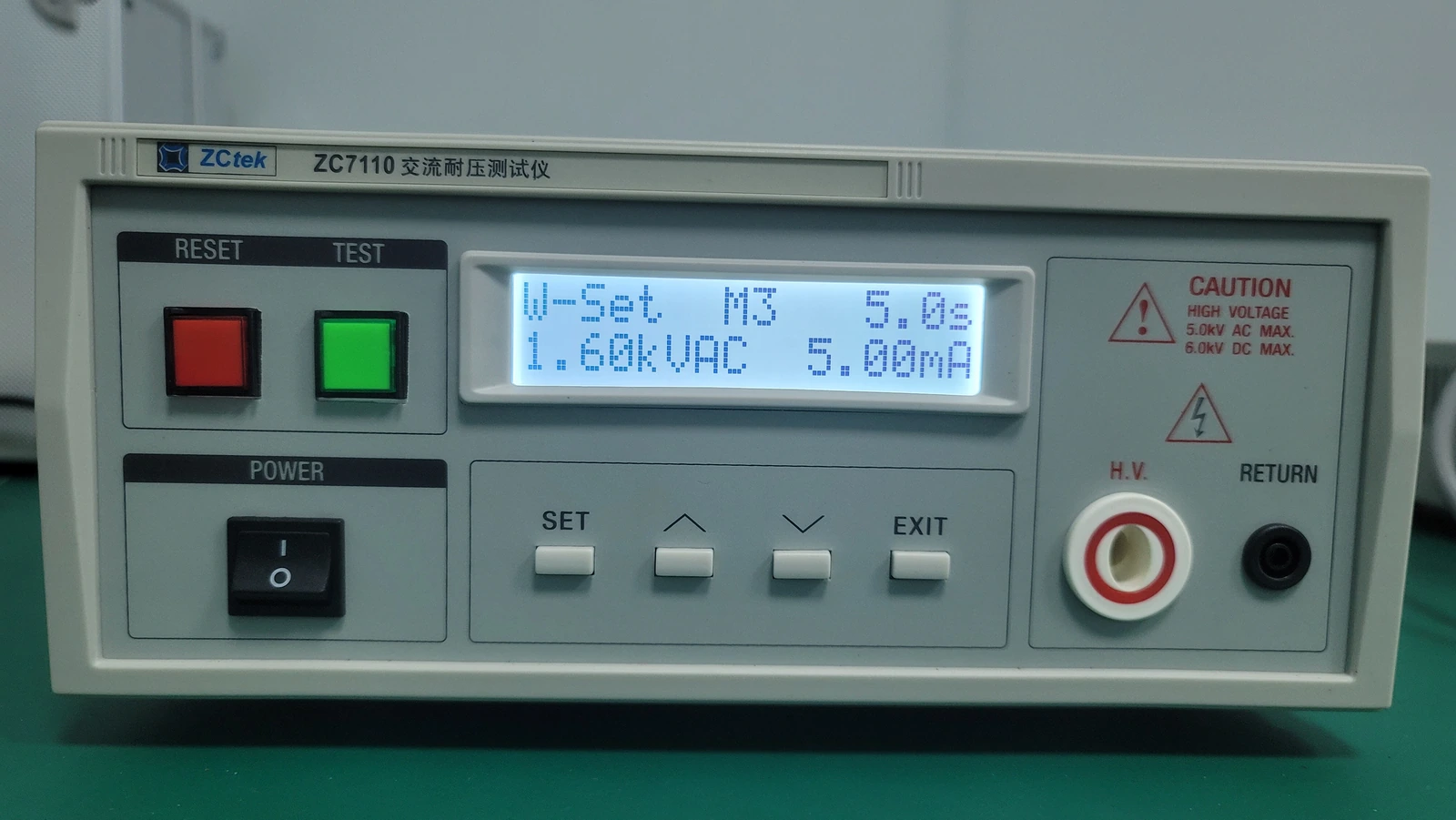

An insulation-resistance measurement evaluates the resistance of a defined unwanted current path at a specified electrical condition. Operating leakage examines current under the relevant service waveform and environment. A withstand procedure applies a defined electrical stress and assesses behavior under its acceptance rules. The three results are related but do not answer the same question.
Specify the output expected from each test rather than requesting a generic insulation pass. Record voltage type, timing, connection arrangement and conditioning. Do not select a test value by multiplying an operating voltage using an informal rule. The approved method must account for the equipment, construction and stress applied to other connected components.
Understand why current changes with time
Current after an applied voltage change can include charging, dielectric absorption, surface leakage, bulk leakage and fixture contributions. A reading taken immediately after voltage application can therefore differ from one taken after a defined delay. With alternating voltage, capacitive current adds another distinction from a simple direct-current resistance measurement.
Retain time information and the actual voltage waveform. A decreasing current is not automatically evidence that the material has improved; it may be normal settling. A sudden change may require investigation of the specimen, cable motion, condensation or switching. The measurement method should distinguish these possibilities before assigning a single value to the dielectric layer.
Evaluate the weakest geometry, not just the broad film area
Printed layer thickness, coverage and registration can vary near edges, holes, steps and conductor transitions. These features may create a different isolation path from the uniform central area. An unbroken-looking topcoat does not reveal the state of every underlying layer.
Identify critical regions from the drawing and inspect them after operations that can damage or strain the construction. Mounting fasteners, handling tools, lead attachment and thermal expansion can change the boundary after an earlier electrical test. A coupon is useful when it represents a controlled feature, but its result should not be generalized to an assembled heater containing unrepresented edges and interfaces. Link measurements to the specimen and physical location.
Use the operating environment in the insulation review
Temperature and moisture can change leakage, while contamination can provide a surface path that differs from conduction through the dielectric thickness. A measurement on a clean dry specimen after cooling may miss a path present in the hot or humid operating state. State which conditions are required and how the specimen reaches them.
Keep the test fixture from becoming the dominant leakage path. Cleanliness, suitable insulators, guarding where appropriate and stable cables help establish whether current belongs to the specimen. These techniques must be implemented with the instrument’s safety requirements and approved laboratory procedure. Guarding improves a measurement boundary; it does not turn an electrically unsafe product into a safe one.
| Question | Required condition or record | Conclusion that should remain separate |
|---|---|---|
| How resistive is the defined insulation path? | Specified direct voltage, connection, conditioning and measurement delay. | Whether the assembly withstands a different stress waveform or voltage. |
| What leakage occurs in operation? | Relevant service waveform, temperature, humidity and accessible-boundary arrangement. | A dry room-temperature resistance result measured after shutdown. |
| Does the construction meet its specified withstand procedure? | Approved stress application, duration, current criteria and specimen configuration. | A universal continuous operating-voltage rating for the material. |
| Did assembly damage the insulating system? | Comparable measurements and inspection before and after the relevant mechanical operation. | A conclusion based only on a preassembly flat coupon. |
Treat dielectric temperature and heat transfer together
The insulating system also lies in a heat-transfer path for many heater constructions. Changing thickness, composition or contact can alter both dielectric temperature and useful heat delivery. A thicker layer may change thermal resistance without solving an edge-clearance issue. A more conductive layer may improve thermal transfer but still require separate electrical and mechanical evaluation.
Identify the temperature of the dielectric region, not only the load or metal back face. Local hot spots can expose a small area to conditions different from the average. Use thermal measurements and the stack model to locate that area, then include it in the electrical review. Avoid trading electrical integrity against thermal performance through an unspecified material substitution.
Make the laboratory record reproducible
Use trained personnel, suitable guarded or enclosed test arrangements and the approved procedure for potentially hazardous electrical testing. The engineering record should identify specimen revision, electrode connections, environmental conditioning, instrument, waveform, timing and acceptance rule. It should also state which other components were included or isolated from the test circuit.
Keep raw current or resistance observations where the time behavior matters. When a result changes, repeat suitable fixture and control checks before destructively investigating the specimen. Preserve the failed condition and location when possible. This makes it easier to separate a material defect, assembly damage, surface contamination and a measurement-system problem.
Release separate electrical statements
A useful heater specification contains distinct operating, insulation-measurement and withstand requirements with their conditions. It also identifies the construction and mounting features that support those requirements. Avoid presenting the highest applied laboratory voltage as the heater’s continuous service voltage or as proof of equipment certification.
When the dielectric, substrate, terminal layout, sensor integration or assembly process changes, review which isolation paths are affected. Repeating the same nominal test without revisiting the boundary can miss a new weakness. A clear separation of requirements lets the component supplier and equipment team exchange meaningful evidence while keeping responsibility for the installed electrical-safety system explicit.
Send the insulation boundary and approved requirements
A heater-insulation review needs the actual assembly and distinct acceptance criteria for each electrical question.
- Cross-section and layout showing live conductors, dielectric coverage, exposed metal, holes, terminals and sensor interfaces.
- Operating waveform and environment, equipment isolation classification and responsible system-level safety requirements.
- Approved insulation-resistance, leakage and withstand procedures with connections, timing, conditioning and decision limits.
- Thermal map, mounting and assembly operations, specimen-linked test records and any suspected critical defect locations.
