A heater power-density value is incomplete until its area denominator is defined. Dividing the same electrical power by the substrate footprint, a heated envelope or the actual resistive area produces different numbers, each describing a different aspect of the design. A useful watt-density map keeps these definitions explicit and shows where electrical heat is generated, where useful heat leaves the assembly and where no heating pattern is present.
Key design decisions
- Label every area used in a power-density calculation.
- Separate local resistor generation from useful heat flux into the load.
- Compare heater designs only at matching electrical and thermal conditions.
Keep three area definitions visible

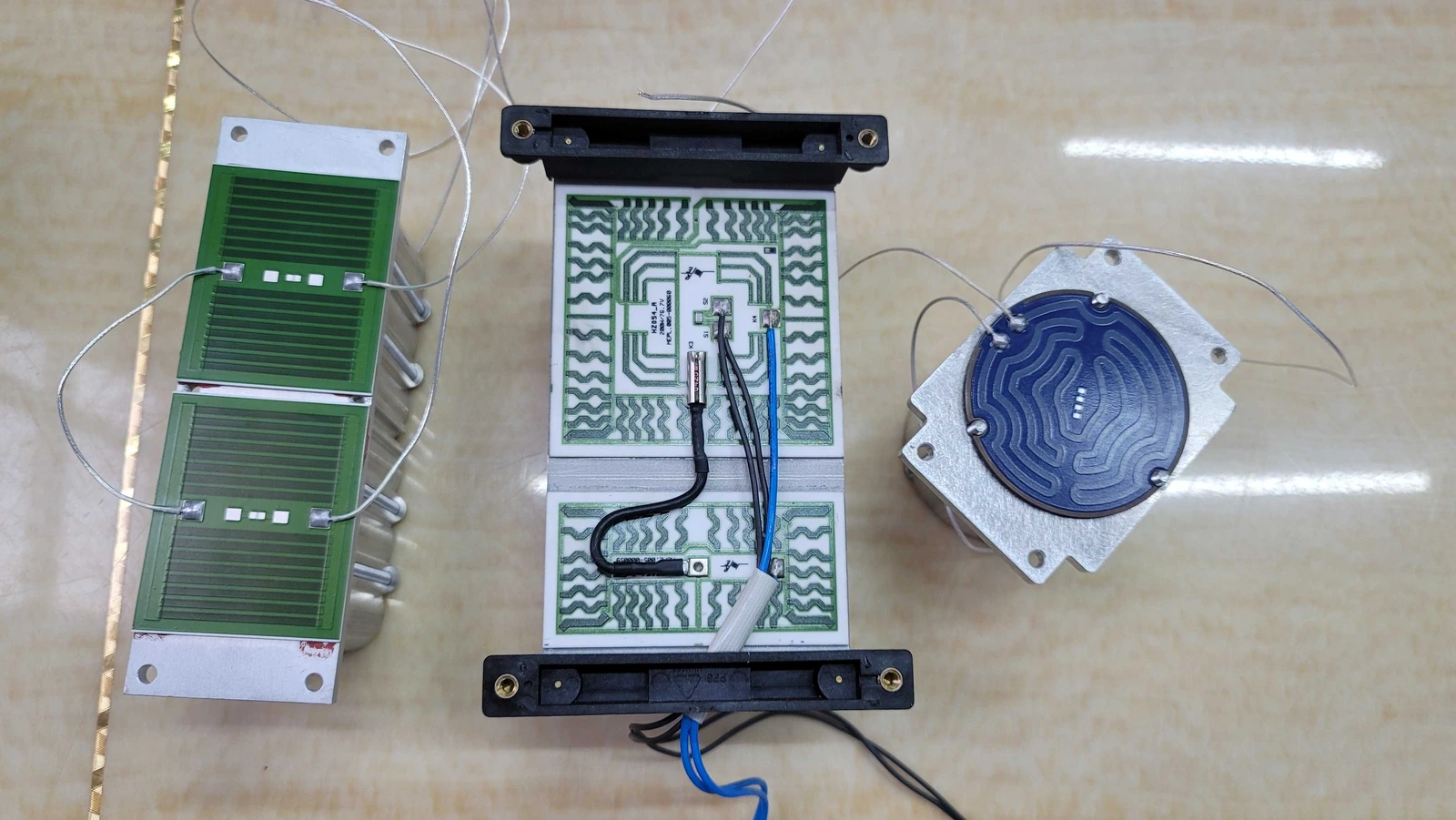

The footprint is the overall projected area of the heater part. The heated envelope is a defined region intended to provide useful heat, commonly excluding terminal zones and other no-heat regions. The resistive area is the area occupied by the material that dissipates electrical power. These areas can differ greatly in a sparse serpentine pattern.
A footprint value is helpful for packaging comparisons, while a heated-envelope value can help size a load interface. Local resistor power density is useful for investigating concentrated generation. None is a universal substitute for the others. Put the area name next to the result in calculations, tables and drawings so the reader does not have to infer the denominator.
Account for openings and inactive zones
Subtract geometric openings only from the areas to which they belong. A hole inside the heater outline removes substrate material; an unprinted region may still contain substrate that spreads heat. A terminal pad may conduct heat while intentionally dissipating little electrical power. Treating all three features as identical empty space loses important thermal information.
Trace the boundaries on the drawing and state whether area is measured in plan view or on a curved surface. For a wrapped or formed heater, projected area and actual heated surface area can differ. Use one coordinate and unit convention throughout. CAD area measurements should retain the region selection so another engineer can reproduce the calculation after an artwork revision.
See how the denominator changes the result
Consider an explicitly hypothetical heater supplied with 80 watts. Its footprint is 100 square centimeters, its defined heated envelope is 80 square centimeters and its actual resistive area is 40 square centimeters. The resulting average values are 0.8, 1 and 2 watts per square centimeter respectively. All calculations can be arithmetically correct, yet they are not interchangeable ratings.
These numbers do not establish a safe operating point. They only demonstrate why an area definition is necessary. Temperature still depends on contact, material construction, airflow, local geometry and the load. A comparison should therefore report both the geometric definition and the boundary under which power is transferred away from the heater.
q_footprint = P/A_footprint; q_envelope = P/A_envelope; q_resistor,avg = P_resistor/A_resistor
- P: measured electrical power at the selected system boundary.
- P_resistor: the portion dissipated in the resistive material, excluding separately assessed leads or connections.
- Each area must use the same units before the values are compared.
Average area ratios do not resolve current crowding, individual trace segments or thermal spreading. The numerical example uses invented design inputs solely to demonstrate arithmetic.
Build a generation map rather than coloring the footprint uniformly
Electrical power can be allocated by resistor segment or by a spatial region that has a defensible circuit model. For a series path, segment resistance determines its fraction of total resistive power at a given current. For parallel branches, branch voltage and resistance must be considered. An equal geometric area does not necessarily carry equal current.
Use the actual conductor-resistor topology and identify transitions where contact resistance or a narrow conductor may contribute additional heating. A coarse colored map should retain the calculation basis for each region. Without that basis, a visually smooth map can obscure the very concentration that the review is intended to find. Keep the thermal map and electrical-generation map as separate layers.
Do not confuse generated power with transferred heat flux
Heat spreads laterally through the substrate and can leave through supports, cables and exposed surfaces. As a result, useful heat flux into the load need not follow the printed resistor area point for point. A region without a resistor may still deliver heat received from neighboring regions, while a densely powered trace above an air gap may transfer little useful heat to the load.
The useful boundary should therefore be stated separately: load-contact face, fluid wall, surrounding air or another defined interface. Electrical input power is a measurable quantity; useful heat transfer may require a separate energy balance or calorimetric method. Calling all input power useful heating hides losses and makes design comparisons unreliable.
| Question | Appropriate quantity | Additional information required |
|---|---|---|
| Will the heater fit within a package power budget? | Total input power divided by the clearly labeled overall footprint. | Outline, thickness, electrical boundary and the installed cooling condition. |
| What average load-interface heat rate is required? | Useful heat delivered through the specified contact area. | Load energy balance and measured or estimated losses elsewhere. |
| Where might the resistor run locally hotter? | Segment or local resistive generation relative to the corresponding area. | Current topology, local film geometry and heat-removal paths. |
| Can two supplier numbers be compared directly? | Values recalculated with a common area and electrical condition. | Their inactive-area definitions, mounting conditions and material-specific operating limits. |
Include tolerances that alter both power and area
Line width, printed geometry, resistance and supply tolerance can change the power-density calculation. The variations are not always independent: a narrowed region may alter both its area and its resistance. Do not combine nominal power with minimum area without understanding the circuit consequence, or assume that equal total resistance guarantees equal local generation.
Use a small set of physically consistent cases. For each case, calculate the electrical operating point first, then map the resulting regional powers onto the corresponding geometry. Record which inputs came from drawings, measurements or bounded assumptions. This is more informative than adding one unexplained percentage margin to a nominal average.
Align electrical and thermal maps in the same coordinates
Measure terminal power and create a temperature map under the intended load and mounting condition. Overlay the trace geometry, inactive regions and known contact boundaries. A local temperature peak can then be compared with both electrical generation and heat-removal limitations. Repeat the observation during startup as well as after settling.
If the hottest region is not the most densely powered region, investigate contact, edge loss, conductor heating and sensor behavior before changing the artwork. Retain the original measured values rather than only a smoothed visualization. The final review should state which area definitions were used, which local regions control the design and what operating conditions the conclusion covers.
Make the number survive a drawing revision
A useful report includes the power boundary, area selection, units, temperature condition and artwork revision next to the calculated value. When a hole grows, a terminal moves or the useful load zone changes, recalculate the affected areas rather than carrying forward the old number. Keep regional values separate from the overall average.
This discipline prevents a marketing or purchasing comparison from confusing different definitions. It also makes the engineering result actionable: the team can tell whether the next improvement requires more usable area, a different resistance allocation, better contact or reduced heat loss rather than simply asking for a higher watt-density figure.
Send the area definitions with the power requirement
For a watt-density review, provide the geometry and electrical boundary needed to reproduce every reported value.
- Dimensioned footprint, openings, terminal regions and the precise heated-envelope boundary with consistent area units.
- Resistor and conductor artwork, series or parallel connections, nominal resistance and relevant manufacturing variations.
- Measured or required terminal voltage, current and power, including cold startup and normal operating conditions.
- Load-contact area, mounting and cooling conditions, local temperature limits and any aligned electrical or thermal maps.
