High-Voltage Dividers: Distributing Voltage Along the Resistor Chain

Assign voltage and power to each series element

For an unloaded series chain, every element carries the same current. The voltage across an element is proportional to its resistance, and its power is current squared multiplied by resistance. This gives a clear first allocation, provided unintended leakage and output loading are negligible in that calculation.

As a hypothetical example, ten equal one-megohm elements across 1,000 volts carry 100 microamperes. Each has a nominal 100-volt drop and dissipates ten milliwatts. These are circuit results, not acceptable ratings for an unspecified printed resistor. Each element's working voltage, geometry, temperature and material condition must still be reviewed, along with the chain's total voltage and installation.

Check the element that receives the largest share

When resistance values differ, the highest-value element receives a greater share of a fixed total voltage. Evaluate plausible combinations rather than assuming every element simultaneously has the same fractional error. If the elements share correlated process variation, their absolute values can move together while the voltage fractions change little; differential variation changes the fractions directly.

For the ten-element example, let one element be 1.1 megohms while the other nine remain one megohm. Its voltage becomes approximately 108.9 volts, and its power is approximately 10.78 milliwatts. The overall chain current has decreased, but that element receives more voltage than the equal-value estimate. Use this type of calculation to allocate margin before selecting the geometry.

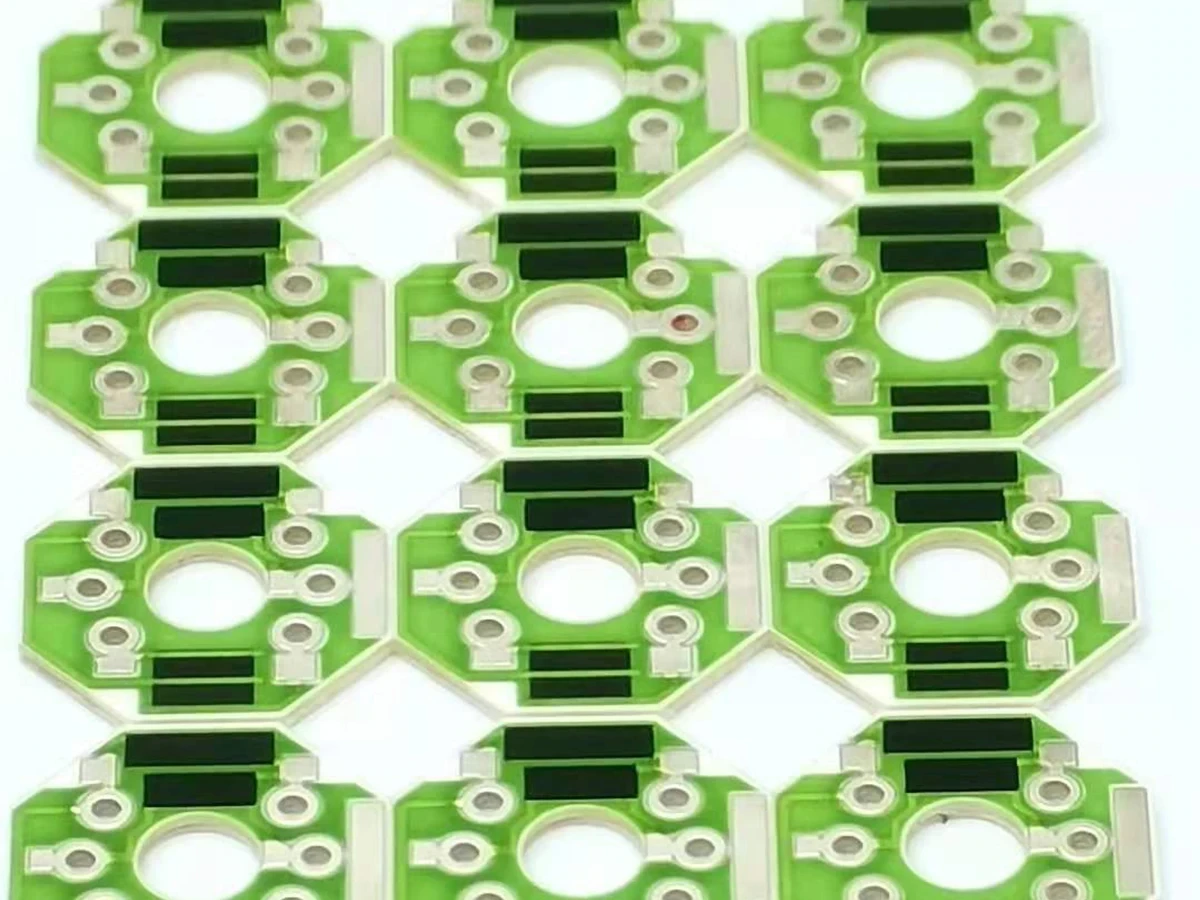

Place node potentials on the physical drawing

A chain folded into a compact serpentine arrangement can bring widely separated electrical nodes close together. Adjacent elements in the schematic are not the only neighbors that matter physically. Annotate the expected potential of each terminal and intermediate node, then compare all nearby conductor regions, substrate edges, fasteners and shields.

Identify the actual surface path between those regions and the through-air path where relevant. Protective coatings and enclosure features need their own material and environmental review; they do not automatically justify a spacing reduction. The applicable equipment design requirements determine the final insulation assessment. A resistance calculation alone cannot supply a universal clearance or creepage distance.

Model capacitance when the input changes quickly

At a rapid voltage transition, displacement current flows through capacitance between elements and to surrounding structures. The initial voltage distribution can therefore differ from the DC resistance distribution. A grounded enclosure, measurement cable or nearby plate can change the result even though no resistor value changes.

Physical surroundings and parasitic capacitance can redistribute voltage along the resistor chain during a transition. For a printed design, use the actual layer arrangement, enclosure and receiver in the model. Check both waveform shape and intermediate element stress. A divider output that looks acceptable after settling may still experience an unfavorable internal distribution during the edge.

Evaluate the operating conditions separately

Separate steady measurement, startup, repetitive switching and environmental exposure in the review. Each condition changes which part of the model is most important. Use actual waveforms or a bounded input specification, including transition times and repetition rate.

Treat contamination as a circuit change

A surface leakage path can bypass one or several elements or draw current from an intermediate node toward ground. The resulting network is no longer a simple equal-current series chain. Its voltage redistribution depends on where the path connects, so one global insulation-resistance value may not identify the most important local effect.

During development, compare clean conditioned samples with the agreed environmental condition while preserving the same voltage, timing and measurement arrangement. Record whether the output changes reversibly after drying and whether individual node behavior changes. Avoid interpreting a cleaned recovery reading as the behavior during exposure. Define the surface and coating condition that the delivered assembly is expected to maintain.

Account for the probes used to observe internal nodes

Connecting a probe to an intermediate node adds resistance and capacitance. The measurement can change the distribution being investigated, especially in a high-resistance chain. Include the probe's relevant input model and connection geometry in the analysis, and select a method whose disturbance is compatible with the uncertainty requirement.

High-voltage measurements require qualified personnel, appropriately rated probes and a controlled test arrangement. Isolate the supply, discharge stored energy and verify the safe state before changing probe or circuit connections.

Compare overall input current and divider output before and after attaching the probe where feasible. Keep lead routing fixed during transient measurements. If internal-node measurements cannot be made without significant disturbance, combine a validated model with suitably designed test structures or alternative measurement methods. Do not present a heavily loaded node reading as the undisturbed operating value.

Define the chain as an installed electrical structure

The final review package should combine schematic, physical node map, element values, drive waveform, receiver and enclosure. Include environmental conditions and the applicable insulation requirements supplied by the equipment designer. This lets electrical distribution and physical spacing be evaluated against the same configuration.

For a custom printed divider, provide the desired ratio and total input impedance together with the maximum continuous and transient input. Record which values are measured and which remain design targets. Validation should verify both output accuracy and internal stress under the intended conditions. Subdividing resistance is one design tool; the number of elements alone is not evidence of acceptable high-voltage operation.
