Drying Process Selection

Selecting a drying check that tracks solvent release

Select a noncontact drying endpoint check for printed thick-film layers by combining witness mass trend, print geometry, airflow position, handling control, and downstream verification.

Send Drawings7 min read

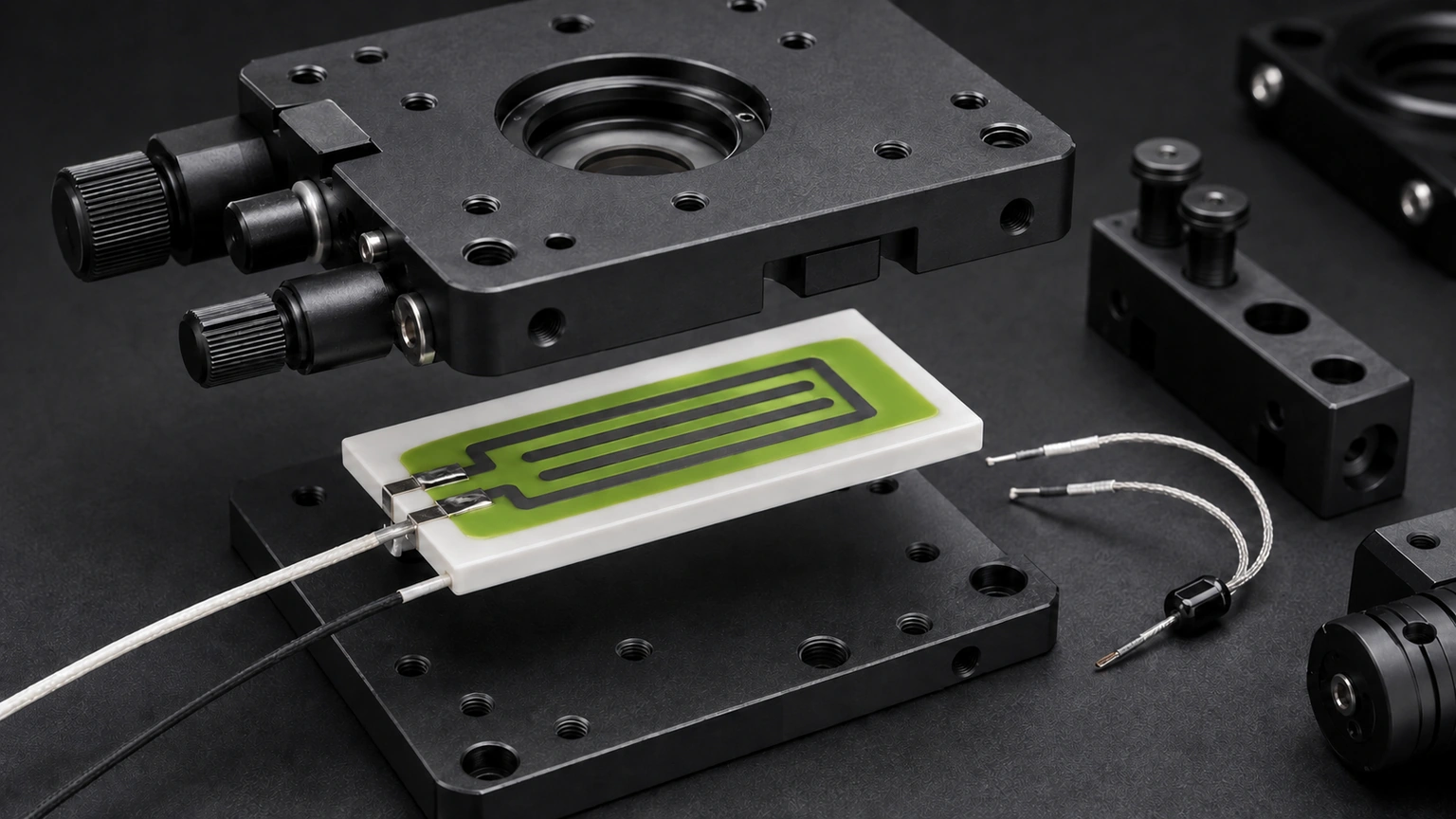

High-resolution industrial engineering scene showing optical stage heater in a clean thick-film ceramic circuit context.
Engineering illustration; not a product photograph or a test result.
On this page

A printed film can look matte at the surface while its interior is still changing. Touching the functional print to test that condition adds a defect mechanism and destroys the evidence. A useful drying check therefore needs a separate witness that follows the product print closely enough to track solvent release, yet remains available for repeated observation. The method below selects that witness, separates mass change from handling error, and defines how a drying endpoint is confirmed without converting an illustrative trend into a universal process limit.

Key design decisions

  • Use an adjacent witness made in the same print event, never a finger, swab, or probe on the functional film.
  • Interpret mass-change slope together with witness geometry, position, and downstream print integrity.
  • Release an endpoint rule only for the tested material, wet thickness, loading, airflow, and drying route.

Why surface appearance cannot define the drying endpoint

Gloss, colour, and apparent tack are surface observations. Solvent can continue to redistribute beneath a skin, especially where the print is thick, broad, or locally shielded from airflow. Illumination angle also changes the way a printed layer appears. For these reasons, a visual change may be useful as a supporting timestamp but should not be the sole endpoint. The engineering question is whether the material state has become sufficiently stable for the next defined operation, not whether the top surface resembles a previous batch.

The next operation determines what matters. A second print may be sensitive to pickup or intermixing; handling may be sensitive to marking; a later firing load may be sensitive to retained volatile behaviour. Record that consequence before choosing the check. Avoid language such as “fully dry” unless the measurement actually establishes the intended material state. A bounded term such as “ready for the reviewed next print under the validated route” is more accurate.

Design a witness that follows the functional wet film

Print the witness in the same stroke or otherwise documented print event as the product features. Match paste, nominal wet thickness, substrate material, print direction, and nearby open area. A narrow line witness cannot represent a large solid region because its edge-to-area ratio changes release behaviour. Where the product contains both fine conductors and broad deposits, use more than one witness geometry and state which feature each represents.

Place witnesses at locations that expose relevant airflow and loading differences. An inlet-side witness and an exhaust-side witness can reveal directionality that a single centre coupon misses. Keep them outside functional circuitry and provide a handling tab or carrier feature that does not contact wet material. Identify position, carrier level, batch, print time, dryer entry, and dryer exit so a mass reading never becomes detached from its process history.

Measure a mass trend without claiming solvent chemistry

A conditioned balance reading can track total witness mass change, but it cannot identify which volatile species left the film. Tare the substrate or use a matched blank procedure defined before the trial. Control the interval between removal and weighing because evaporation continues during transfer. Use the same enclosure, handling tool, orientation, and stabilization rule for every reading. If the witness is too light for the available resolution, enlarge the nonfunctional printed area rather than averaging unstable numbers.

Normalize the interval loss by printed area and time when geometry differs. For example, a 400 mm² witness changing from 1.842 g to 1.836 g during 180 seconds has an interval slope of 0.083 mg/(mm²·s). That arithmetic is a trend point only. The calculation does not prove a safe endpoint, reveal solvent content, or establish a product specification. Preserve unrounded masses and uncertainty with the normalized result.

s_m = (m_i - m_{i+1}) / (A_w × Δt)

  • s_m: interval witness mass-loss rate per printed area
  • m_i: conditioned mass at the earlier observation
  • m_{i+1}: conditioned mass at the later observation
  • A_w: documented printed witness area
  • Δt: elapsed time between the two observations

The same witness and handling method are used for both readings. Continued loss during transfer and balance resolution are included in the uncertainty review.

Build the endpoint study around elapsed time and position

Choose observation times that can reveal the falling portion of the mass curve and the later region where change approaches the measurement noise. Do not select only the nominal process time. Include at least one deliberately short condition and one extended condition during development so the check demonstrates sensitivity. Use independent witnesses when removal or weighing would disturb subsequent drying. A witness repeatedly taken through a different environment may no longer represent a continuously processed product.

Stratify results by rack level, carrier position, print geometry, and paste issue history. Alternate candidate profiles when equipment drift could favour one sequence. Keep interrupted runs and document why they stopped. A set of repeated balance readings on one coupon estimates metrology repeatability; it does not replace independent prints. The study must contain enough independent material to distinguish real drying movement from balance scatter and transfer timing.

Use failure signatures to challenge the selected check

Continuing mass loss after the proposed endpoint means the observation window may be too short or the witness may represent a slower region. A dry-looking perimeter with a mobile centre points to geometry and through-thickness behaviour. A consistent inlet-to-exhaust gradient points toward airflow or loading position. These signatures require different actions, so retain their coordinates rather than reporting one batch average.

Downstream evidence must remain linked to the same condition. Look for pickup on the next screen, edge deformation, layer mixing, blistering or other route-specific symptoms using the approved inspection method. A downstream anomaly without witness movement may show that the witness is poorly placed or geometrically unrepresentative. Witness movement without downstream impact can still justify monitoring, but it does not automatically reject product.

Compare endpoint checks by information value and disturbance

Mass trend offers a quantitative signal but adds transfer time and needs adequate resolution. A removable companion coupon can support repeated tests but may experience different airflow. A sacrificial edge witness follows the carrier well but cannot be used if panel space is unavailable. Visual observation is fast but operator- and lighting-dependent. Select a combined method based on the failure consequence and the ability to preserve traceability, not on convenience alone.

The table separates what each option observes from what it cannot prove. A program may use mass slope during validation and a simpler indirect control during routine production, provided correlation and change triggers are established. That transition is itself an engineering decision and must retain evidence.

Candidate drying checks and their interpretation boundaries
CheckUseful observationMain controlDoes not prove
Area-normalized witness massChange over a defined intervalTransfer timing and balance resolutionSolvent identity or product performance
Sacrificial print appearanceSurface evolution by positionLighting and image setupInterior material state
Companion geometry couponResponse of a representative shapeGeometry and airflow equivalenceAll product locations behave alike
Downstream print trialReadiness for one next operationMatched print and handling sequenceSuitability for every later process

Confirm the endpoint with an independent downstream result

Predefine the candidate slope region, the maximum permitted observation uncertainty, the relevant witness geometries, and the downstream acceptance evidence. Run nominal, deliberately short, and extended drying conditions. Confirm that the chosen check separates the disturbed condition without creating handling marks. Review every location before summarizing. A passing average cannot conceal one slow position that corresponds to a broad functional deposit.

Use a confirmation batch that did not set the provisional rule. Operators should follow the written sampling and transfer sequence without informal corrections. Compare the check with downstream integrity after the reviewed next operation. If the confirmation response changes with rack load, paste lot, or witness geometry, narrow the released scope or redesign the witness. Do not widen the endpoint window merely to capture the observed population.

Release a route-specific drying control package

The package should identify paste, substrate, print geometry, wet-film target by the approved method, witness design, witness position, carrier load, dryer profile identifier, timestamps, balance procedure, normalization equation, uncertainty treatment, downstream confirmation, sampling frequency, hold rule, and disposition owner. Store raw readings and images under the specimen identifier. Product parameters remain by drawing or application review.

Reopen the study when paste or lot behaviour, print thickness, solid-area geometry, substrate, carrier, rack loading, airflow, temperature profile, transfer time, balance, or downstream operation changes. For RFQ review, obtain layer artwork, material system, broadest deposits, intended sequence, and functional consequence of incomplete drying. The review determines an evidence plan; it does not promise an endpoint or cycle time before validation.

Provide the printed-layer and drying-route inputs

Send the information needed to select a noncontact witness and a defensible endpoint study.

  • Substrate, paste system, layer artwork, broad-area geometry, nominal print state, and panel layout.
  • Dryer route, carrier and rack loading, airflow direction, timing, handling, and next process operation.
  • Available witness area, balance resolution, imaging method, sampling positions, and traceability format.
  • Known pickup, deformation, mixing, or firing symptoms; required acceptance consequence and change owner.
