Resistor Corners: Comparing Printed Rounding with the Intended Radius

Specify inner radius, outer radius and minimum throat separately

State the intended path centreline, turn angle, inner and outer boundaries, adjacent straight lengths and conductor overlaps. A fitted radius alone can hide a narrow throat or asymmetric bulge. Define the arc points included in fitting and report residual shape. Use substrate fiducials to align images. For small features, pixel scale and threshold uncertainty can be comparable to the requested radius and must be visible in the dimensional result.

Compare stage-specific radius and throat bias

Measure the same corners at screen, wet, dry and fired stages where possible. Separate inner and outer edge movement and calculate minimum local width.

Calculate geometry and electrical contrasts together

For illustration, a designed 0.25 mm inner radius measures 0.32 mm fired, while a 0.50 mm throat measures 0.46 mm. Radius bias is +0.07 mm and throat bias −0.04 mm. A turning coupon measures 51.2 Ω versus 50.5 Ω for its matched straight reference, giving +0.7 Ω turning contribution for that construction. These values teach the method and do not state capability or a production rule.

Rotate coupons relative to screen travel and mesh

Place identical turns in multiple orientations and panel locations. The leading and trailing sides can transfer differently, creating corner asymmetry that a single orientation misses. Record screen tension, snap-off, squeegee, paste conditioning and time to imaging. Balance layouts so orientation is not confounded with panel edge. Repeat through screen life if the decision concerns production robustness. Measure straight widths beside corners to distinguish global spread from turn-specific deformation.

Distinguish apparent optical radius from film topography

Fired edges can slope, feather or show glass-rich regions. Top-view threshold may not equal the cross-sectional current boundary. Use profilometry or selected sections when thickness and taper matter. Record drying and firing profiles and later refires. If wet geometry already shows rounding, do not assign all bias to firing. If optical radius changes while throat resistance remains stable, investigate measurement contrast before changing artwork.

Compare turn contribution at the applicable current and geometry

Use terminals far enough from the corner to avoid probe and overlap differences. Normalize matched body dimensions and sheet resistance. Examine voltage gradient or simulation where current crowding is relevant, but validate assumptions with coupon data. A resistance difference does not alone establish local temperature or life. Power, protective layers and substrate heat flow belong to separate evaluation. Avoid extrapolating a 90-degree coupon to other turn angles or widths.

Prevent artwork compensation that narrows another boundary

Reducing designed radius to counter print rounding may sharpen mesh features, reduce paste release or violate conductor spacing. Widening a throat can move an outer edge toward a neighboring node. Review complete artwork and registration tolerances. A visually smooth corner can still contain a local thickness depression. Confirm changes across relevant screens, paste lots and panel positions before adopting a bias. Preserve the original design target and controlled revised target for traceability.

Control fired corner outputs and the supporting process window

The drawing should define functional fired boundaries, minimum throat, intended radius or fit rule, datums and nearby spacing. Process records should link screen, paste, orientation, printing and firing. ChipSimple can establish controls for the agreed feature after evidence; no single rounding factor applies to all geometries. Reopen the study after paste, screen, squeegee, orientation, feature size, firing, protective layer or inspection-method changes.

Control current-path curvature through the print route

A drawn resistor corner with a sharp vertex will not print or fire as an infinitely sharp electrical boundary. Screen opening, paste rheology and separation round the inner and outer edges differently. The inner corner may accumulate material while the outer edge retreats, changing local width and current density. A nominal centreline radius therefore needs companion definitions for minimum inside radius, local throat width and edge measurement. Inspection should use fired images with a documented threshold, because lighting and glaze can shift an apparent boundary by several pixels without changing the actual conductor path.

Compare corner candidates on coupons that preserve approach width, turn angle, termination distance and print direction. Map resistance, fired edge profile and any trim result by panel position. A simple geometry estimate can compare centreline length divided by width, but local finite-element or field analysis may be needed when the bend is tight or loading is high. Modeling inputs must come from the reviewed material and thickness assumptions. Inspect the region after protective-glaze firing as well, since glaze coverage or reheating may change visibility and stress without proving an electrical failure.

Useful failure evidence includes recurring thin throats, asymmetric edge breakup, resistance tails tied to one print orientation, or localized thermal discoloration under an approved powered test. Each pattern points to a different action: artwork radius, screen reproduction, deposition stability or load distribution. Do not solve a corner problem by increasing overall resistor area unless spacing and thermal consequences are checked. Provide the turn angle, candidate radii, body width, paste family, print direction, power cases and allowable footprint so the design review can select a robust curved path rather than an attractive nominal drawing.

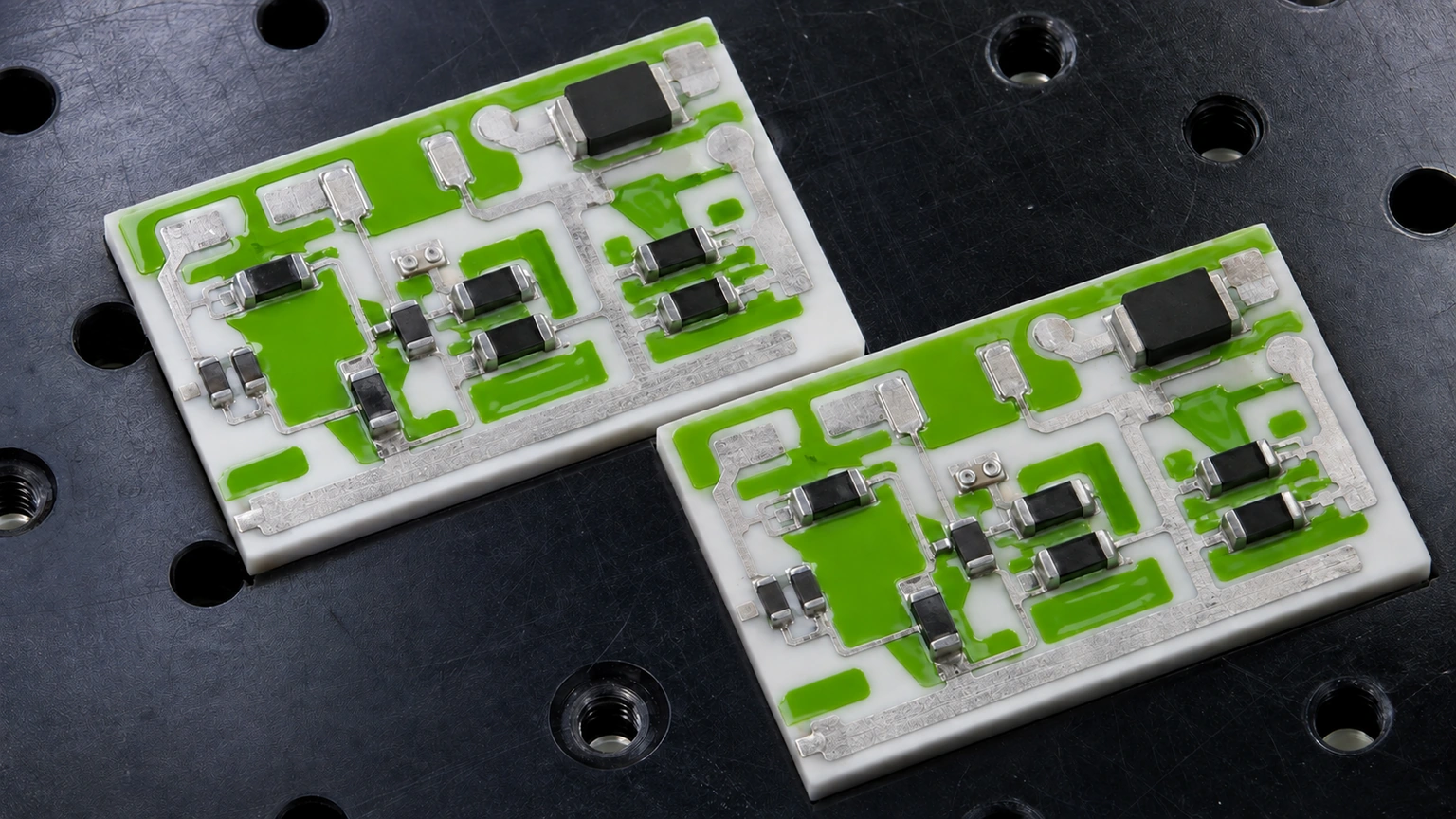

Before production release, create an image-based corner record using the same magnification, illumination, focus and threshold settings intended for routine inspection. Measure inside radius, outside radius and minimum conducting throat on representative panel positions. Link every image to screen identity, paste lot and firing run. Where the corner sits near a termination or trim zone, inspect the combined current path rather than isolating the bend. The acceptance record should distinguish dimensional conformance from electrical and thermal validation. A geometry that measures correctly can still require powered assessment under the customer load case, while a successful short test does not waive drawing dimensions. Preserve both observations and the owner of the final decision.
