A thick film print can align at the center of a ceramic panel while missing capture pads near the edges. Moving the screen until one corner looks correct may simply move the failure elsewhere. The useful diagnosis is a displacement field: the direction and magnitude of error at several known positions. Separating a uniform offset from rotation, scale mismatch and local distortion helps determine whether the appropriate correction belongs in the printer setup, the measurement system or the artwork process.
Key design decisions
- Measure actual printed features against the same physical datum system before choosing a correction.
- Fit translation and rotation first; investigate systematic residuals before introducing additional transformation terms.
- Judge the remaining error against local pad, dielectric and overglaze overlap, not only a panel-wide average.
Build matched coordinate pairs across the usable print area
Select identifiable features distributed around the panel perimeter and through its interior. For every feature, record the nominal coordinate and the measured coordinate in one set of physical units. Preserve the panel identity, printed layer and process state. Comparing a wet conductor on one panel with a fired conductor on another confounds registration with part variation and dimensional change during processing.

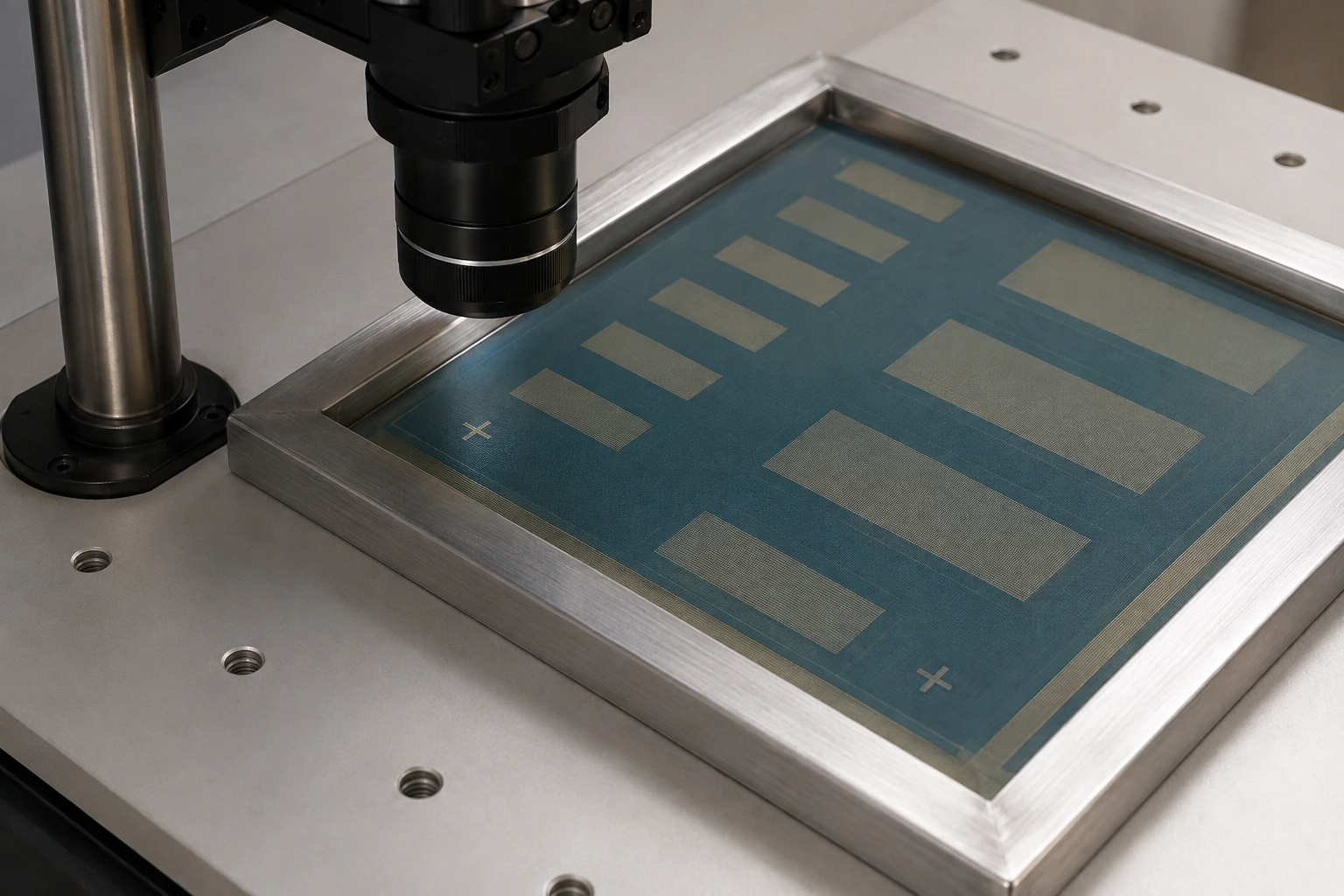

A fiducial must represent the same physical center in both records. A square pad center inferred from four edges is not necessarily equivalent to a center calculated from an intensity blob after one edge becomes obscured. Keep the feature-location method fixed, and include independent functional features such as via capture pads. Fiducials alone can look well aligned while paste spread reduces the useful margin at a nearby circuit detail.
Establish the measurement floor before blaming the print
Repeat feature measurements without moving the panel, then remove and reseat it and repeat again. The first sequence reveals image-location variation; the second adds locating and support variation. If those changes are comparable with the reported registration error, a finely adjusted artwork offset would be based on measurement noise rather than a stable process bias.
Check calibration over the actual field and at the working surface height. Lens distortion, perspective, a changed camera position or a different image acquisition setup can produce a scale-like residual. A calibration target near the center does not by itself verify the corners. Preserve the calibration configuration with the measurement record, and do not convert a pixel distance into a dimensional claim using an unverified magnification factor.
Remove the correction that an XYθ adjustment can actually provide
Begin with a rigid transformation: one horizontal shift, one vertical shift and one in-plane rotation. This represents movement of an otherwise unchanged pattern. Use more widely separated point pairs than the mathematical minimum so an incorrectly detected mark or a local defect cannot silently define the entire correction.
An approximately equal displacement at every location suggests translation. A rotation produces a displacement that increases with distance from its center and changes direction around that center. Neither signature is a cause by itself: a locating error, screen setup error or coordinate conversion error may produce similar observations. The fit identifies the correction class; controlled checks determine which operation introduced it.
qᵢ = R(θ)pᵢ + t + rᵢ
- pᵢ: nominal feature coordinate vector
- qᵢ: measured coordinate vector
- R(θ): in-plane rotation matrix
- t: common translation vector
- rᵢ: residual displacement after the rigid fit
Corresponding points share units, handedness and measurement state; the rigid model cannot correct pattern stretch or local deformation.
Use the residual signature to choose the next investigation
Plot or tabulate horizontal and vertical residuals by panel position after the rigid correction. Preserve signed values: a single average magnitude hides whether opposite edges move in opposite directions. Compare the pattern over multiple panels before calling it repeatable. A correction that follows one damaged fiducial is not a panel distortion model.
| Remaining pattern | Investigation priority | Correction that would be premature |
|---|---|---|
| Similar outward displacement at opposite edges | Dimensional scale, image calibration and screen geometry | Another uniform offset |
| Different growth along horizontal and vertical axes | Axis scaling, screen behavior and coordinate conversion | One isotropic scale factor |
| Straight rows become systematically skewed | Affine shear, setup and optical perspective | Changing pad locations individually |
| One small region disagrees while neighboring marks agree | Local print damage, feature detection or support condition | A global artwork correction |
| Pattern changes after every reseating | Fixture contacts and measurement repeatability | Permanent screen compensation |
Treat an affine fit as a diagnostic, not an automatic artwork change
An affine fit adds enough freedom to describe separate axis scale and shear together with translation and rotation. At least three non-collinear coordinate pairs are required to determine its six scalar parameters, but a fit using only that minimum has no independent residual check. Use additional well-spaced features and reserve some as verification points.
A lower fitting error is expected when more parameters are allowed. The important question is whether the improvement persists at unused locations and on other panels. Large changes in fitted scale between repeated captures of one stationary panel point toward measurement instability. Consistent affine terms across controlled runs justify deeper investigation, but they still do not show whether the screen, the substrate or the imaging geometry is responsible.
Translate displacement into the margin that the circuit needs
For a via capture pad, evaluate whether the measured hole remains inside the usable metal region with the required surrounding allowance. For a dielectric crossover, inspect the direction in which displacement consumes insulating overlap. For an overglaze opening, check the remaining exposed contact area. These three features can react differently to the same displacement vector.
A long pad may tolerate movement along its length but have little remaining width across a spring-contact footprint. Project the displacement onto the sensitive direction and include feature size variation, not only center-to-center registration. Keep electrical spacing and mechanical contact requirements separate; an acceptable fiducial residual does not establish either insulation performance or contact reliability.
Change one correction layer and verify its effect
Apply a documented printer offset or rotation only after the measurement convention is settled. Retain the pre-correction feature coordinates and predict the direction of the expected change. Then inspect a new controlled print using the same evaluation method. If the observed motion is reversed or couples unexpectedly into another axis, check transformation direction and machine coordinates before increasing the adjustment.
Do not simultaneously move the artwork origin, alter the fixture and adjust the printer. That combination prevents attribution and can create compensating errors that fail when tooling is changed. Separate setup correction from permanent artwork compensation; the latter needs a stable multi-panel transformation and its own validation across the intended process range.
Deliver a registration diagnosis that another engineer can reproduce
The useful output contains matched coordinate data, calibration identity, fitted rigid terms, residuals and the limiting functional features. State which points were used for fitting and which were held back for verification. Attach the panel orientation and process state so a later reviewer cannot mistake a back-face view or a wet-print measurement for the final fired geometry.
Record the correction actually made and the remaining unexplained pattern. A concise conclusion such as stable rotation with local edge residuals is more actionable than a blanket statement that alignment improved. The final decision belongs to the drawing-specific overlap and inspection requirements; neither a small fit residual nor a visually centered print establishes a universal registration capability.
Send registration coordinates and the limiting features
Provide the information needed to separate printer correction from measurement or artwork distortion.
- Named layers, panel orientation, physical datums and matching nominal/measured feature coordinates.
- Wet, dried or fired inspection state, material identity and relevant thermal sequence.
- Calibration setup, repeated-capture and reseating results, and any printer corrections already applied.
- Via capture, crossover overlap, exposed pad or contact-footprint requirements that define the available margin.
