Wet print volume links the patterned area and deposited thickness to the amount of paste placed on a substrate. It is useful for planning material use and comparing printing consistency, but it is not the same as the paste consumed during a production run. Material remains on screens, tools and containers, and the fired layer changes as the vehicle is removed and the material consolidates. Keep these quantities separate so an accurate geometric estimate is not mistaken for a complete consumption or fired-thickness prediction.
Key design decisions
- Calculate the actual printed area rather than the circuit outline or bounding rectangle.
- Use wet deposited thickness for wet-volume estimates and keep dried and fired measurements separate.
- Distinguish paste deposited on acceptable parts from handling losses, retained material and rejected prints.

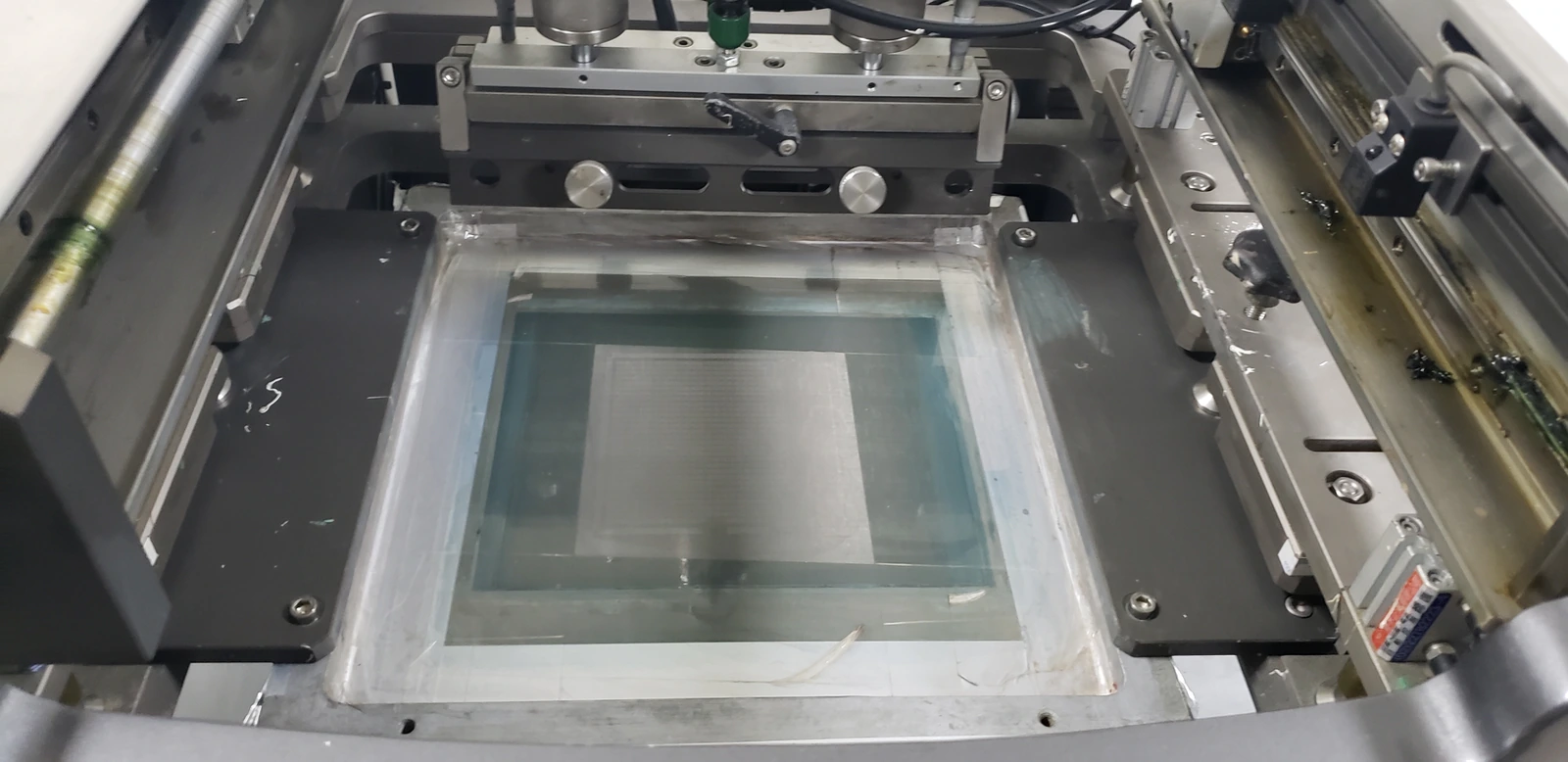

Measure the area that is actually printed
For a patterned conductor or resistor layer, add the areas of the printed shapes and subtract openings. The substrate outline can be much larger than the deposited region. A bounding rectangle around a serpentine pattern is therefore not an appropriate printed-area input.
Keep overlapping shapes and repeated features organized in the artwork calculation so regions are not counted twice. If the design contains broad pads, narrow lines and filled holes, treat those geometries separately where a single thickness assumption is inadequate. Record the artwork revision used for the estimate because a small layout change can alter repeated-area totals across a panel.
Calculate volume with consistent units
For an approximately uniform wet deposit, volume equals printed area multiplied by wet thickness. This is a geometric quantity. Convert units explicitly before combining values or comparing them with dispenser and container units.
For a hypothetical printed area of 1,000 mm² and wet thickness of 0.035 mm, the volume is 35 mm³, which equals 0.035 mL. If a separately measured paste density were 3 g/mL, the deposited mass would be 0.105 g. The values demonstrate unit conversion and arithmetic; they are not specifications for a particular thick film paste.
Vwet = Aprint × twet; mdeposited = ρpaste × Vwet
- Aprint: actual patterned area
- twet: representative deposited wet thickness
- Vwet: deposited wet volume
- ρpaste: measured paste density under the stated condition
- mdeposited: calculated paste mass on the substrate
Uniform wet thickness and known density. Hole filling, edge profiles and nonuniform broad-area deposits require additional geometric treatment.
Use representative thickness rather than a convenient peak
A wet print can have mesh texture, edge buildup or a profile that varies across the panel. A peak-height measurement is not automatically the average thickness needed for volume. Choose a method that represents the deposited region and record where the measurement was made.
For comparison, separate broad pads from narrow lines if their profiles differ. A single average derived from a large flat patch may overstate the volume of a narrow feature. Where volume matters strongly, integrate a measured profile or use a justified area-weighted estimate rather than selecting the highest visible region.
Keep processing states separate
Material data distinguishes wet, dried and fired thickness for specific pastes. Solvent removal and firing change the layer, so a wet-volume estimate cannot be converted to fired thickness by assuming a universal shrinkage factor. The relationship depends on the material and process.
Establish the relationship between wet, dried and fired thickness using the selected material and measured process output. If a new thinner or process adjustment is introduced, revisit the relationship because the deposited vehicle and solids balance may have changed.
Account for material destinations during a run
Total paste issued to a job is distributed among several destinations. Separating them makes a consumption comparison useful and prevents normal retained material from being confused with excessive print thickness.
| Quantity | What it represents | How to compare it |
|---|---|---|
| Deposited on accepted parts | Useful wet material in the pattern | Area and thickness or measured mass |
| Deposited on rejected prints | Material on nonaccepted substrates | Reject count and relevant print geometry |
| Retained on screen and tools | Material not transferred to parts | Consistent end-of-run handling method |
| Recovered material | Segregated material eligible for defined reuse | Identity and permitted recovery procedure |
| Cleaning and container residue | Unrecoverable handling loss | Consistent weighing or accounting boundary |
| Vehicle loss during exposure | Change associated with open time | Exposure history rather than part count alone |
Use a weighing boundary that matches the question
To compare deposited mass, weigh the appropriate substrate or a controlled set before and after printing with a method sensitive enough for the expected change. Account for handling, substrate condition and the time between printing and weighing. Evaporation during a delayed measurement can change the apparent wet mass.
To compare total job consumption, use a defined boundary around issued, returned and retained material. Do not combine a container-loss measurement with a geometric deposited-volume estimate and call the difference printing efficiency unless all other destinations are accounted for. The boundary and uncertainty should be stated beside the result.
Identify which input dominates the uncertainty
For the uniform-volume model, a fractional area change and a fractional thickness change both affect volume directly. If artwork area is accurately known but thickness varies across the print, improving the thickness estimate is more useful than adding more decimal places to the area.
Density uncertainty matters when converting volume to mass. Use a relevant measured or controlled material value and keep its temperature and preparation context. If the purpose is comparing the same paste under unchanged conditions, a relative volume comparison may be sufficient; if purchasing or mass balance is involved, the density and handling boundaries become more important.
Use the estimate to guide a practical process decision
A volume calculation can reveal the effect of enlarging a pad, adding an overglaze layer or changing panel utilization. It can also help select a sensible sampling plan for thickness measurements. It should not be used to promise exact consumption before retained material, startup prints and process behavior are known.
For a design handoff, provide the area breakdown, assumed thickness state and the purpose of the calculation. If the estimate is used to compare alternatives, hold material and process assumptions constant or show their changes explicitly. This keeps the arithmetic connected to a reproducible print rather than a misleadingly precise material-use claim.
Send the print-volume inputs
Provide the patterned geometry and the material-accounting question to be answered.
- Artwork revision, printed-area breakdown, repeated panel features and any filled-hole geometry.
- Wet thickness measurements, locations, profile method and time after printing.
- Paste grade, density information and the drying or firing sequence if later-state comparisons are needed.
- Issued and returned material boundary, startup or reject counts and retained-material handling procedure.
