A label such as fuel, oil or cleaning fluid is not an adequate exposure definition. Formulation, concentration, contaminants, temperature, pressure, duration, agitation, electrical bias and recovery time can all alter a sensor-card observation. The defensible result is a paired, position-resolved signal contrast for named specimens under a controlled sequence. Reference specimens and blank fixtures help show whether the measured change came from the media, the laboratory process or ordinary drift. The outcome applies to the stated conditions; it does not establish universal compatibility with every product in a media family.
Key design decisions
- Identify the exact media state and surfaces actually exposed.
- Use the same electrical and mechanical measurement conditions before and after exposure.
- Retain both as-exposed and recovered results instead of one final percentage.
Turn the media name into a reproducible exposure condition
Record supplier or preparation identity, batch where available, composition information relevant to safety, concentration, water content or known contaminants, temperature, exposure time and fluid movement. For mixtures, state the preparation method and aging interval. Describe whether the card is immersed, splashed, exposed to vapor or contacted only at a selected surface. A sealed assembly can expose terminals or edges differently from an unassembled coupon. The specimen configuration must represent the decision being made.
State electrical bias and contact position during exposure. Current can change electrochemical behavior, while a stationary contact can shield a local area. Pressure and mechanical load may influence ingress or sealing. All handling, waste and protective requirements belong to an approved facility procedure based on the actual substance. This page supplies an evidence structure, not chemical-safety instructions.
Calculate a normalized change at matched positions
Measure the connected output at controlled positions before exposure, immediately after the specified handling step, and after each defined recovery interval. Use the same excitation and receiver. A normalized change can help compare positions with different output magnitude, but it becomes unstable near zero. In low-output regions report absolute voltage or resistance change beside the normalized value. Always retain the signed result because swelling, leaching, surface films and reference shifts need not move output in the same direction.
A matched unexposed control can remove laboratory drift through a difference-in-differences calculation. It does not remove specimen-to-specimen variation, so baseline pairing and replication remain necessary.
δ_E(x,t) = [y_E(x,t)-y_E(x,0)]/y_E(x,0); δ_media = δ_E - δ_C
- y_E is the exposed-specimen signal at matched coordinate x and recovery time t.
- y_E(x,0) is its pre-exposure baseline under the same circuit conditions.
- δ_C is the corresponding normalized change of an unexposed control.
- δ_media is the drift contrast associated with the defined exposure sequence.
Baseline denominators are sufficiently above measurement resolution and exposed and control measurements experience comparable fixture and time effects.
Work a paired drift example without claiming compatibility
At one illustrative coordinate, an exposed specimen reads 2.000 V before exposure and 1.970 V after the stated recovery, a normalized change of −1.50%. Its matched unexposed control changes from 2.020 V to 2.010 V, or approximately −0.50%. Difference in differences is therefore about −1.00%. At another coordinate, the exposed signal may recover closer to baseline, showing that one reported maximum cannot describe the complete track.
These numbers demonstrate the calculation only. They do not establish an acceptance limit or compatibility with any named substance. An application owner must consider measurement uncertainty, specimen population, functional consequences and safety margin. The raw 30 mV exposed change should remain available because normalization and control subtraction can hide whether a denominator or reference is unstable. If the control and exposed units have materially different starting slopes, compare engineering-unit conversion carefully rather than assuming equal percentage changes have equal system effect.
Distinguish reversible wet-state change from persistent drift
Define measurement states such as wet, drained, wiped by an approved method, conditioned for a fixed interval, and fully recovered under stated temperature and humidity. An immediate signal shift that later returns may matter in service even if a final dry measurement passes. A persistent change after recovery answers a different question. Plot each position against elapsed recovery time and record mass or dimensional observations where relevant to the investigation. Do not choose the best recovery time after seeing the data.
Measurement order can bias early time points. Use a fixed or randomized position sequence and record the timestamp for every station. If the card must be moved during measurement, motion itself may redistribute residual media. A separate handling control that follows the same cleaning, drying and movement sequence without the active substance can reveal process-induced change. Keep the handling definition precise enough that another laboratory could reproduce it.
| State | What to control | Why it is retained |
|---|---|---|
| Baseline | Position, circuit, temperature and stabilization | Establish the paired reference |
| As exposed | Elapsed time and surface condition | Capture in-service-like immediate change |
| Recovery intervals | Time, atmosphere and handling | Separate reversible from persistent behavior |
| Unexposed control | Same fixture and schedule without active media | Estimate laboratory drift |
Measure across the path because exposure is rarely uniform
Include electrical endpoints, calibration locations, frequently used contact zones, printed transitions and regions near exposed edges or terminals. Record increasing and decreasing approaches when contact mechanics may matter. A local shift near an edge can indicate ingress or termination influence, while a nearly uniform ratio change can be consistent with bulk track or reference effects. Those patterns generate hypotheses, not proof. Inspection and controlled follow-up contrasts are required before assigning a mechanism.
Use an independent mechanical coordinate. If the media changes linkage dimensions, relying on output to position the contact makes mechanical movement indistinguishable from electrical drift. Photograph or otherwise document the specimen configuration internally before exposure and at inspections, while keeping customer-facing claims limited to evidence that has been reviewed. Avoid destructive analysis until the paired electrical sequence is complete unless the plan allocates separate specimens.
Control temperature, receiver and terminal effects that mimic media drift
Track resistance and receiver electronics can change with temperature. Bring baseline, control and exposed measurements to the specified condition or model the remaining difference with applicable evidence. Verify excitation at the card terminals, not merely at the supply instrument. Terminal films and connector reseating can create series resistance that appears after exposure even if the printed path is unchanged. Record connections and use witness channels where possible.

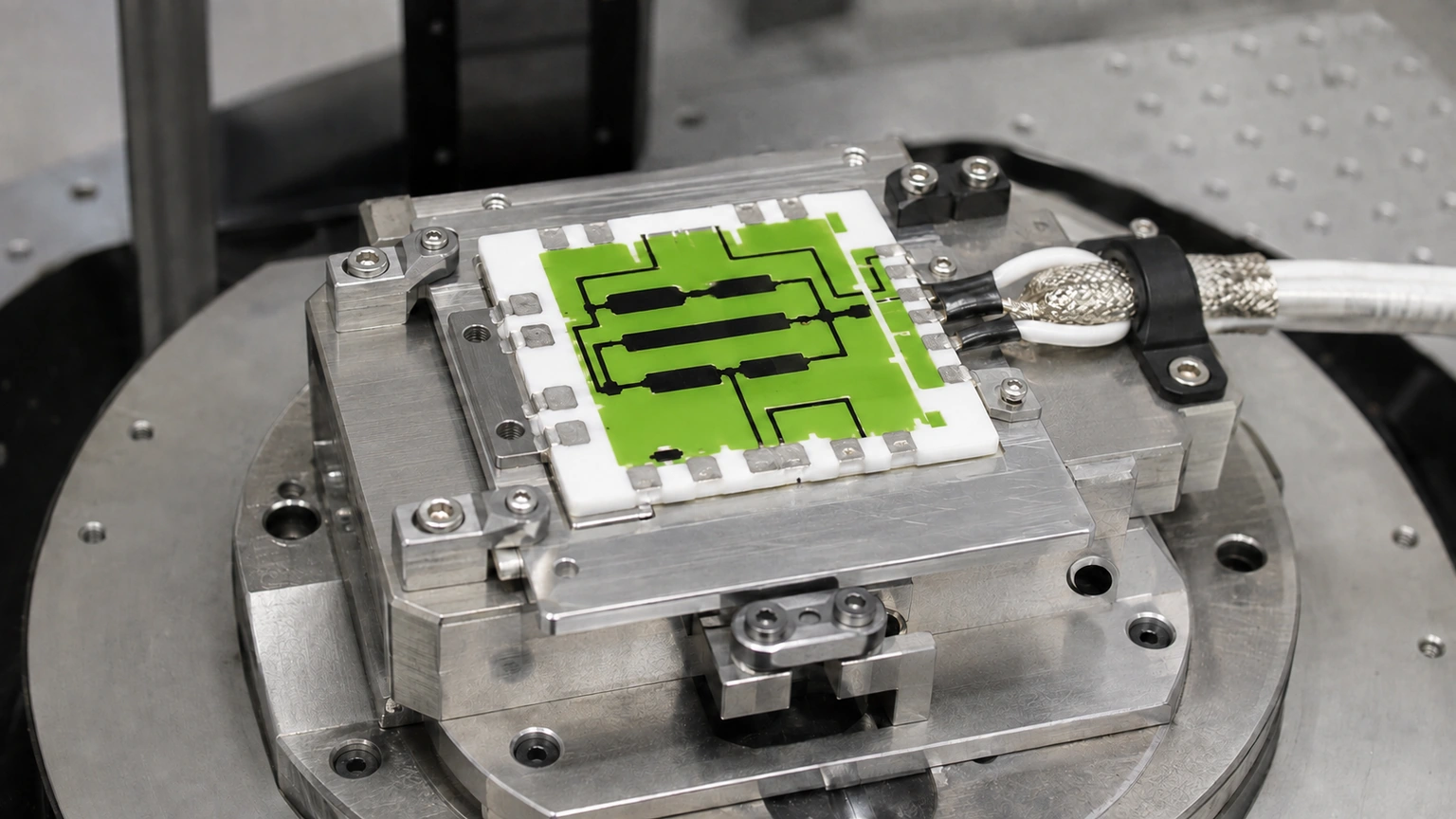

Fixture absorption can contaminate later specimens. Establish cleaning verification, blank runs and media replacement rules. Evaporation can change concentration over a long exposure, so record volume or composition controls appropriate to the application. Mechanical force from seals or clamps can bend a substrate and shift contact position. An unpopulated material coupon may help chemical analysis but cannot replace an assembled electrical specimen when interfaces and bias are part of the question.
Investigate electrical, mechanical and surface changes on separate branches
When drift exceeds its allocated review level, repeat the connected output check before disturbing the assembly. Then measure accessible track, contact and terminal quantities under a documented sequence. A signal change under high-impedance measurement but not under the installed receiver suggests a different mechanism from a load-dependent terminal drop. Position shift visible on an independent reference points toward mechanics. Surface discoloration, swelling or residue should be documented but not treated as a quantitative cause without analysis.
Compare exposed and control specimens at the same coordinates and times. Review whether the media changed during the run or whether one fixture position ran warmer. If a cleaning step restores the signal, record both before and after states; restoration does not by itself prove long-term acceptability. Any corrective material or protective-layer change must be reviewed for firing compatibility, contact function, adhesion, edge coverage and the complete electrical curve rather than judged on one drift point.
Validate and report a bounded result that cannot be mistaken for a universal claim
The report title should name the exact medium or controlled identifier, concentration, exposure mode, temperature, duration, bias and recovery states. Include specimen construction, exposed surfaces, contact state, measurement circuit, position grid, raw baselines, signed changes, controls and uncertainty. State the tested scope and avoid broad phrases such as media proof or chemically resistant when only one condition was examined. Acceptance authority and relevance to field mixtures remain with the application owner.
An RFQ should identify the proposed substrate, conductors, resistor system, glaze coverage, terminals and contact interface along with the customer's exposure definition. ChipSimple can review manufacturability and specimen requirements against that package. It cannot infer all formulation variants or promise application lifetime from a short exposure. Reopen the evaluation when media composition, temperature, bias, sealing, edge geometry, glaze, termination, contact or cleaning procedure changes.
Provide the exact media exposure and signal comparison plan
Compatibility review requires a reproducible substance, specimen state and paired electrical measurement.
- Media identity or controlled formulation, concentration, contaminants and safety documentation.
- Exposure mode, temperature, duration, pressure, agitation, bias and contacted surfaces.
- Card construction, contact position, receiver circuit, baseline grid and recovery schedule.
- Control specimens, uncertainty, acceptance ownership and intended application consequence.
