Understanding the Thick Film Firing Profile

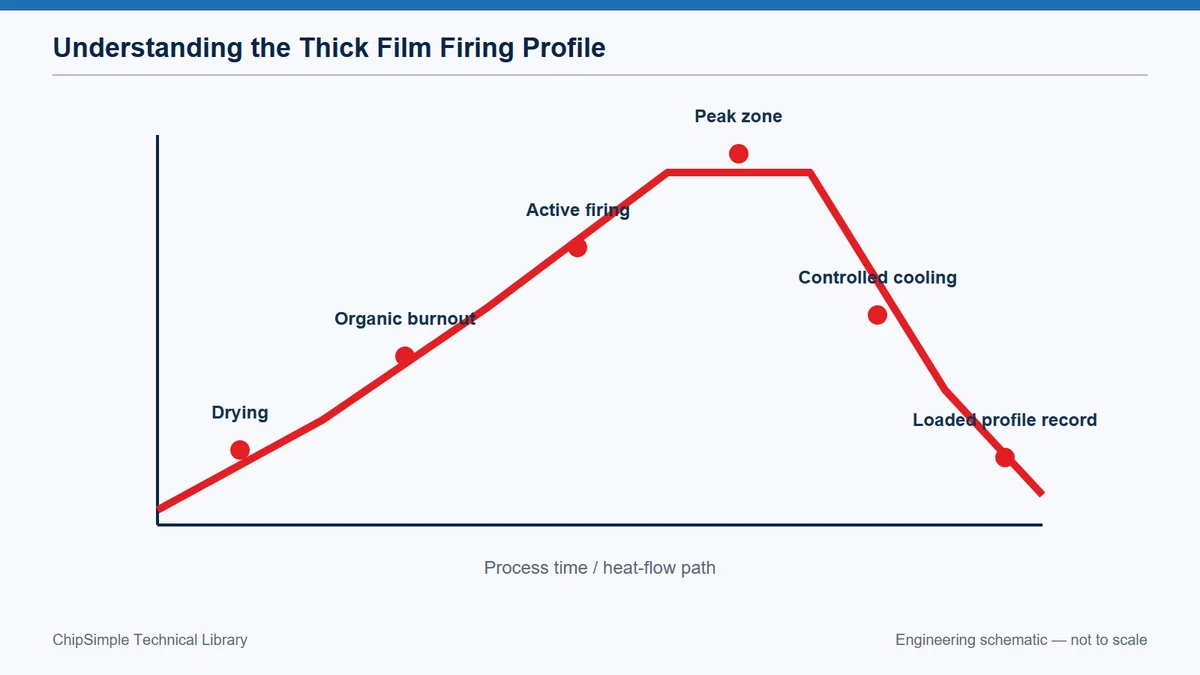

A belt furnace profile is often reduced to one number such as 850°C. That shorthand hides the stages that determine quality. Early heating removes solvent and polymers; the middle region completes burnout; high temperature activates sintering, glass flow and interfacial reactions; cooling freezes the microstructure while thermal gradients develop. Different deposits and layer stacks respond differently to the same nominal peak.
Complete Burnout Before Consolidation
Organics need oxygen, temperature and time to leave the printed body. The consequence is that trapped decomposition products can create porosity, blisters and unstable electrical behaviour. In a thick film firing profile review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to qualify ramp and burnout dwell for the heaviest deposit and loading. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include profile records, fired appearance and sectioned porosity. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is defects that increase when belt loading or print thickness rises. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Control Peak and Time at Temperature
Functional phases and glass react over a temperature-time window. The consequence is practical: under-firing and over-firing can both change resistance, adhesion and surface morphology. This is one reason thick film firing profile cannot be reduced to a single catalogue value.
During design review, specify allowable profile envelope rather than controller setpoint alone. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains travelling thermocouple profiles linked to coupon properties. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for electrical shifts after furnace maintenance with unchanged recipe name. It often indicates that two individually acceptable variables have combined at the edge of their windows.
Manage Atmosphere and Exhaust
Gas composition and removal of burnout products influence chemistry and cleanliness. Consequently, blocked exhaust, contamination or atmosphere changes can affect noble and oxide systems differently. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will maintain airflow, exhaust and furnace cleanliness to qualified conditions. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through maintenance records and control coupons positioned through the belt width. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is edge-to-centre variation or residue appearing across unrelated product lots. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
Control Loading and Thermal Uniformity
The physical starting point is straightforward: Substrate mass, carrier arrangement and belt coverage change local heat transfer. From there, a validated empty-furnace profile may not represent a dense production load. For thick film firing profile, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, define carriers, spacing, orientation and maximum loading. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture loaded profiles and electrical mapping by belt position. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees lot variation correlated with carrier row or production volume, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
Include Cooling and Refiring History
In a stable manufacturing route, cooling gradients create stress and later firings continue to modify earlier layers. This means ceramic flatness, dielectric stress and resistor value can change after repeated cycles. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should plan the full number and order of firings and avoid unnecessary refires. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from stage-by-stage coupon data through the complete route. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate final failure caused by a corrective refire that was not in qualification. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
A Worked Engineering Review
A resistor lot shifts high while conductor adhesion remains normal. The investigation compares actual loaded profiles with previous lots, including burnout and time near peak. Coupon position across the belt can reveal a thermal-uniformity pattern. If a new carrier increased thermal mass, controller setpoints may still look correct while the product profile changed. Re-firing a coupon helps identify sensitivity but should not become an unrecorded production repair. The corrective action is a qualified loading and profile envelope tied to resistor data.
Design Review Checklist
- Profile burnout, peak and cooling on the product carrier.
- Define belt loading and orientation.
- Maintain atmosphere and exhaust.
- Record all refiring cycles.
- Link profile records to electrical coupons.
Questions Engineers Commonly Ask
Is 'firing temperature up to 850°C' a complete specification?
It is a concise capability statement, not a process specification. Product qualification needs the full profile and material system.
How often should a furnace be profiled?
At a controlled schedule and after changes such as maintenance, belt speed, loading or carrier design.
Can different pastes share one profile?
Only when their compatible process windows and layer interactions have been qualified together.
Related Engineering Resources
Closing Note
Treat the furnace as a chemical and thermal process, not an oven with one temperature. A controlled profile envelope provides the evidence needed to explain electrical and adhesion variation.
