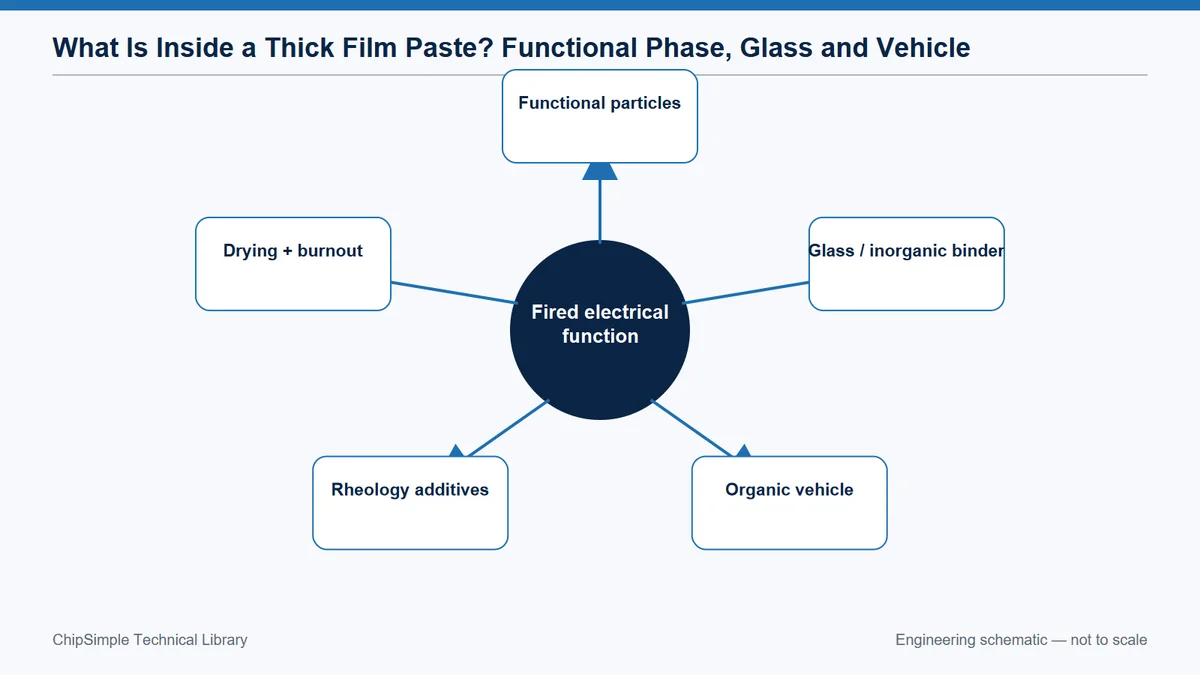

What Is Inside a Thick Film Paste? Functional Phase, Glass and Vehicle
The paste seen on a screen is not the finished conductor, resistor or dielectric. The organic system provides printability and temporary shape; it must later leave without damaging the deposit. Functional particles create the electrical or insulating behaviour. Glass and other inorganic phases support adhesion and fired structure. Particle size, solids loading and rheology tie these ingredients to the mesh, drying conditions and firing profile.
Functional Phase Sets the Electrical Role
Process capability follows from the mechanism: Metal, resistive oxide or dielectric particles provide the primary fired function. The direct implication is that particle chemistry and distribution influence conductivity, sheet resistance, TCR, dielectric behaviour and interaction with adjacent layers. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to select a qualified paste family for the substrate, firing atmosphere and electrical duty. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use fired coupons measuring the relevant electrical property and microstructure to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to using a nominally similar paste whose chemistry changes compatibility or long-term drift. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Glass and Inorganic Binder Build the Interface
The bonding phase softens and reacts during firing to anchor the functional phase to ceramic. The consequence is that too little bonding can weaken adhesion while excessive or unsuitable glass can raise resistance or alter surface behaviour. In a thick film paste composition review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to keep the substrate and paste system within the supplier-qualified firing window. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include adhesion, fired morphology and electrical change after ageing or refiring. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is good initial appearance with weak pads or unstable resistance after later thermal cycles. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Vehicle Controls Printing and Burnout
Solvent, polymer and additives control viscosity, thixotropy, levelling and temporary strength. The consequence is practical: the wet film must pass the screen, release, recover its shape and dry without trapping excessive organics. This is one reason thick film paste composition cannot be reduced to a single catalogue value.
During design review, manage paste age, mixing, temperature, open time and approved thinning practice. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains print weight or thickness, edge definition and drying behaviour during a controlled trial. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for slumping, screen drying, pinholes or carbon residue blamed on the wrong process step. It often indicates that two individually acceptable variables have combined at the edge of their windows.
Rheology Must Match the Screen Process
Useful viscosity is shear-dependent rather than a single static number. Consequently, paste should flow under the squeegee and regain structure after screen separation. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will qualify mesh, emulsion, speed, pressure, snap-off and environmental range with the paste. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through repeat prints across the intended run length with measured geometry and deposit mass. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is a first print that looks acceptable followed by gradual edge or thickness drift. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
Storage and Handling Preserve the Formulation
The physical starting point is straightforward: Settling, solvent loss, contamination and repeated temperature changes can alter paste behaviour. From there, a material inside shelf life may still print inconsistently if its handling history is uncontrolled. For thick film paste composition, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, record lot, storage, conditioning, mixing and time out of container. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture incoming condition, viscosity or print coupon comparison and lot traceability. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees unexplained lot variation that is actually a handling variation, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
A Worked Engineering Review
When a conductor begins to show rough edges, the immediate reaction may be to increase squeegee pressure. A better review asks whether the paste has lost solvent, whether the screen is partially blocked, whether temperature has changed and whether the deposit mass has moved. Pressure can temporarily force material through the mesh while worsening wear and geometry. A short coupon run using conditioned paste and controlled print settings distinguishes material condition from screen or machine effects. After firing, conductor sheet resistance and adhesion show whether the wet-print correction preserved the intended functional layer.
Design Review Checklist
- Use a substrate-compatible paste family.
- Record paste lot, storage and conditioning.
- Control mixing and approved thinning.
- Match rheology to screen and print settings.
- Measure fired function, not only wet appearance.
Questions Engineers Commonly Ask
Why can two pastes with similar electrical ratings print differently?
Their vehicle, solids loading, particle distribution and rheological additives can differ. Electrical labels describe the fired result under defined conditions, not the complete printing behaviour.
Can solvent be added when paste becomes thick?
Only under an approved procedure from the material supplier. Uncontrolled thinning changes solids loading and print thickness and may disturb burnout.
Is paste shelf life the only storage control?
No. Temperature history, container closure, contamination, conditioning and time at the printer can affect behaviour before the expiry date.
Related Engineering Resources
Closing Note
Paste selection is a process choice as much as a material choice. Preserve the formulation, qualify it with the intended screen and firing route, and judge it by the fired electrical and mechanical evidence.
