Design question
What must be protected, what must stay exposed, and which process can protect it without changing function?
Define the protection job before the chemistry
| Protection job | Keep visible in the design | Typical validation question |
|---|---|---|
| Resistor stabilization | Resistor body, trim area, conductor overlap, refire sequence | Does the selected layer and sequence preserve value and stability? |
| Environmental barrier | Edges, pinholes, interfaces, terminals, exposed contact zones | Which media, temperature, time, bias, and failure criterion apply? |
| Functional or safety insulation, only when explicitly rated | Rated material system, thickness, defects, creepage path, underlying topography | Does the complete named construction have an applicable voltage method, conditions, margin, and approval? |
| Mechanical protection | Wear path, assembly contact, separation and cleaning | Will the layer crack, abrade, delaminate, or interfere with the interface? |
| Process protection | Solder, plating, cleaning, bonding, adhesive and rework areas | Can later operations occur without attacking or contaminating the functional layer? |
Fired overglaze and polymer overcoat are different routes
A fired glass overglaze is selected within a compatible fired material system and requires a defined firing step. Whether it is a separate refire or part of a qualified co-fire sequence depends on that named system; all thermal exposure and its interaction with the resistor, conductor, trim and substrate must be reviewed in process order. A polymer overcoat uses a lower-temperature cure but brings its own adhesion, solvent, moisture, temperature and assembly boundaries.
The right comparison is therefore not ‘which coat is stronger?’ It is which route matches the underlying stack, protected function, exposed interfaces, later assembly, operating environment, repair policy and validation plan.

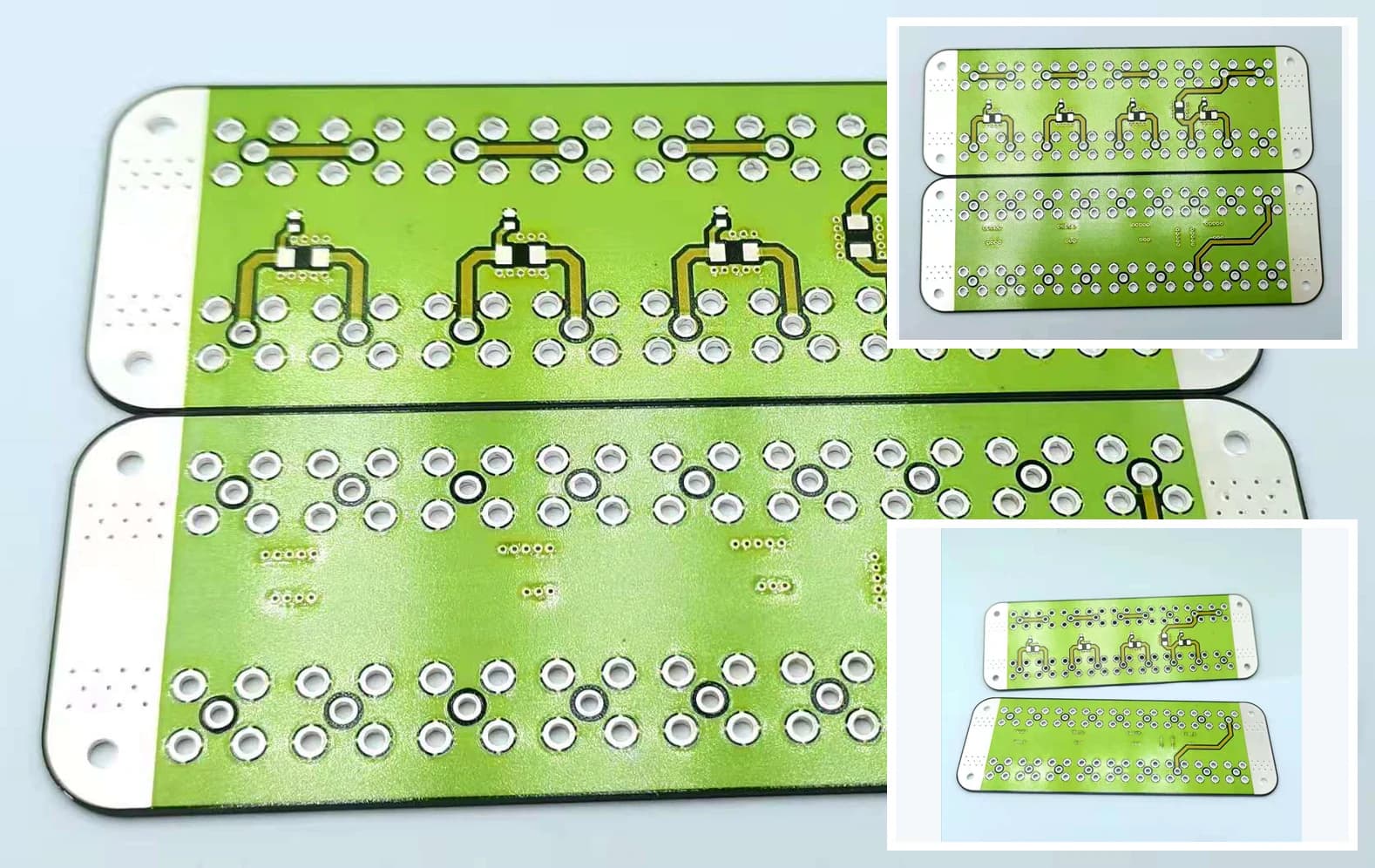

Make protection boundaries drawable
- Coated and keep-out regions, including edges and registration allowance
- Pads, wire-bond areas, solder areas, wiper/contact tracks, sensor surfaces and trim access that stay exposed
- Minimum overlap onto the protected region and transition across topography
- Finished-thickness or coverage intent where it is functionally relevant
- Cure/fire sequence, cleaning, handling, masking, and inspection ownership
Inspect the layer and the function beneath it
- Visual coverage, pinholes, cracks, blisters, contamination and edge condition
- Resistance or functional shift before and after protection processing
- Adhesion and interface integrity after relevant assembly and exposure
- Insulation or leakage only under a defined test construction and method
- Media, humidity, temperature cycling, wear, or aging selected from application risk
Build a compatibility ledger for the complete stack
A protection-layer decision starts with the exact surface that receives it and every operation that follows. Record the substrate, conductor, resistor, dielectric, trim state, cleaning condition, contact metallurgy, terminal process, adhesive or encapsulant, and expected rework route by controlled material or drawing revision. Mark an interface unknown when its chemistry, surface treatment, or process history has not been supplied; do not fill the gap with behavior reported for a different material family.
Review sequence as carefully as chemistry. A layer applied before laser trimming faces different cut-edge and contamination questions from one applied after trimming. A fired overglaze adds a thermal history that can affect earlier films, while a polymer overcoat adds cure, solvent, moisture, and later-assembly limits. The ledger should state which owner supplies each input, which interaction needs a coupon or representative circuit, and which change reopens the decision.
| Interface | Decision to close | Evidence or validation needed |
|---|---|---|
| Resistor and trim cut | Coverage, trim order, cut-edge condition, stabilization, and allowed resistance change | Named resistor and protection materials, actual sequence, pre/post measurements, microscopy where justified |
| Conductor and terminal | Overlap, keep-out, contact access, solder or bond exposure, cleaning, and corrosion boundary | Released artwork plus representative terminal and assembly process under the specified environmental sequence |
| Dielectric and topography | Coverage over steps, edges, windows, void-prone zones, and electric-field role | Processed cross-section or other approved coverage method only when the drawing risk requires it |
| Substrate edge and holes | Registration allowance, edge termination, masking, handling, and moisture or media path | Finished-part inspection tied to datums, panel route, cleaning state, and agreed acceptance criteria |
| Adhesive, housing, or encapsulant | Cure interaction, stress, trapped contamination, repair access, and service exposure | Assembly-representative compatibility and exposure plan owned by the complete-system reviewer |
Diagnose protection failures without guessing the cause
- Map a blister, crack, pinhole, stain, lift, or resistance shift to its exact location, underlying layer, panel position, and process stage.
- Separate incomplete print coverage from trapped contamination, wetting loss, cure or firing disturbance, topographic thinning, later mechanical contact, and environmental attack.
- Compare pre-protection, post-protection, post-assembly, and post-exposure electrical data using the same method, reference temperature, fixture, stabilization, and sample identity.
- Inspect intentional openings and transition edges because a sound central area does not prove pad, trim, contact, hole, or perimeter coverage.
- Use witness coupons only when they reproduce the governing surface, geometry, layer sequence, thickness, thermal history, and exposure of the circuit feature under review.
- Treat insulation, leakage, adhesion, chemistry, and lifetime as separate questions; passing one test does not close the others.
- Record whether the observed condition is cosmetic, electrically functional, mechanically progressive, exposure-dependent, repairable, or a release blocker under the agreed criteria.
- Return an unexplained failure to material, process, assembly, and application owners before changing artwork or accepting a wider process window.
Send a protection-layer review package, not a coating label
A useful request connects the protected function to geometry, sequence, interfaces, exposure, inspection, and acceptance. If the material is open for proposal, identify prohibited chemistries and the decision the prototype must answer. If it is customer-specified, provide the current technical data, handling requirements, and approval boundary.
- Circuit drawing and artwork revisions with coated, overlap, transition, masked, and keep-out regions identified
- Substrate, conductor, resistor, dielectric, trim, terminal, and joining materials with revision or unknown status
- Required protection job for every region: stabilization, barrier, mechanical protection, process protection, or explicitly rated insulation
- Print, dry, fire, cure, trim, cleaning, plating, bonding, soldering, adhesive, encapsulation, and rework sequence
- Surface topography, edge, hole, pad, contact, sensor, wiper, bond, solder, connector, and fixture interfaces
- Operating and storage temperature, humidity, condensation, media, voltage bias, wear, handling, cleaning, and service duration
- Allowed resistance or functional change plus coverage, adhesion, leakage, insulation, cosmetic, and defect criteria
- Prototype construction, witness features, sample size, measurement method, test order, reporting, and disposition owner
- Repair and recoat policy, downstream assembly limits, packaging needs, and changes that require renewed validation
- Requested company evidence and supplier documents, with disclosure, provenance, applicability, and review status kept distinct
