Temporary Test Jumpers: Verify the Final Ceramic Circuit Topology

System boundary

An unpowered or appropriately controlled low-energy test state of a ceramic hybrid using temporary jumpers, shunts or fixture connections. Final test energy and handling must suit the populated components; no energized rework procedure is provided.

Integration interfaces

Integration risks

List temporary connections as actual circuit edges

Create a table identifying each jumper, clip, solder link, zero-ohm part or switched fixture path. Record the two or more nodes it connects and why the test requires it. A label such as test aid does not reveal whether it bypasses a resistor, connects separate returns or forces a configuration input.

Separate hardware attached to the fixture from hardware carried by the specimen. Disconnecting a test cable removes only the fixture edges that pass through that cable. An on-board solder bridge or removable shunt remains part of the module until its own transition is completed. Include temporary grounding and protection arrangements in the controlled review, with appropriate handling requirements.

Define the final topology before the first test

Maintain the approved final netlist as the comparison master. Derive the temporary test state by adding or changing explicitly identified edges, rather than editing the final schematic informally. This makes the required return to the final state a concrete set of changes that can be checked.

For each temporary item, specify whether it is removed, opened, moved to another position or intentionally retained under the final design. Unused is not a final electrical state. A remaining open pad, floating branch or disconnected clip can still create mechanical, contamination or coupling concerns and needs the appropriate drawing disposition.

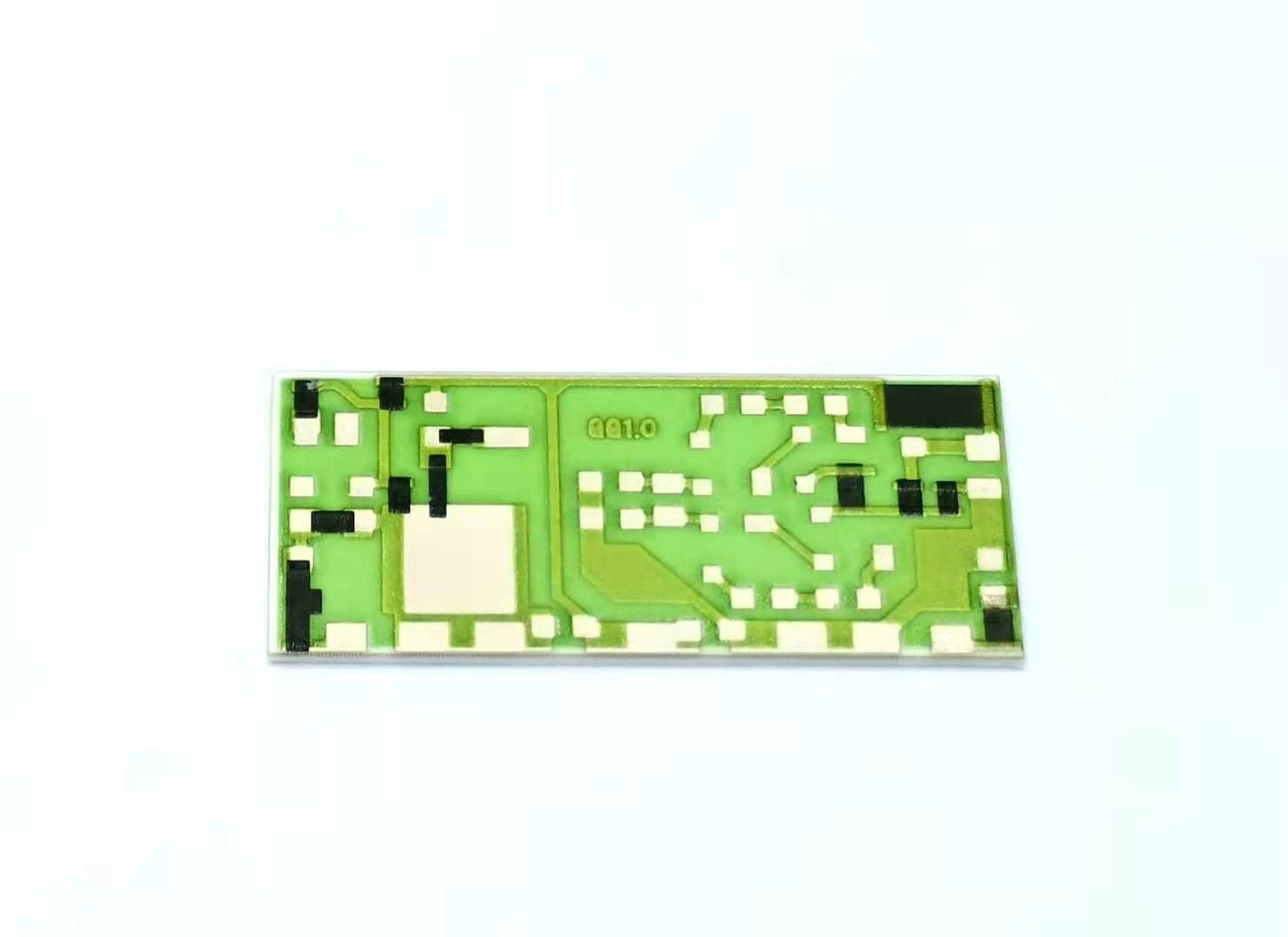

Show why a continuity pass can miss a remaining shunt

Consider an illustrative 100-ohm printed resistor temporarily bypassed by a 0.20-ohm test shunt. With the shunt installed, the equivalent resistance is about 0.1996 ohm. After complete removal it returns to 100 ohms, neglecting other paths. A broad connection test that classifies both as connected cannot demonstrate that the shunt was removed.

The final check must distinguish the intended resistor value from the bypassed condition using the actual populated network and uncertainty. It may require isolated access, a quantitative resistance measurement or an appropriate functional response. The example does not prescribe a test current or tolerance; those depend on the circuit and component restrictions.

Use positive evidence of the state change

An operator sign-off is useful process information but should be supported by the checks appropriate to the failure consequence. For a removable shunt, verify its absence at the identified location and complete the topology-sensitive electrical check. For a cut or opened link, inspect the defined separation without assuming that a dark line proves electrical isolation.

Do not infer removal solely from a count of parts in a collection tray. The count may match while one module retains a shunt and another had none. Link the operation to the module and location. A photograph that cannot identify the actual jumper position is not sufficient evidence merely because it shows the finished board.

Keep the final check independent of the bypassed route

Review whether the test programme itself reconnects the temporary path during final verification. A fixture relay left in its test position can mask the module's final topology even after an on-board jumper is removed. State relay and switch conditions in the final test definition, not only in an operator note.

Challenge the final check using a controlled development example with the relevant temporary connection deliberately represented, under a safe approved procedure. Confirm that the expected result changes and that the intact final circuit still passes. This verifies the specific bypass detection; it does not establish coverage of every possible assembly fault.

Complete the transition before access is lost

Place jumper removal and its verification after the test that requires it but before a cover, potting operation or connector blocks the location. If final electrical testing needs the temporary path again, the route contains a conflict that must be resolved in the test design. Do not rely on an inaccessible manual exception at the end of assembly.

Retain the last test-state result and the final-state result separately. They describe different circuits, so comparing their raw values without the topology record can create a false drift investigation. A final pass should point to the correct netlist revision and the configuration used for that measurement.

Return reworked modules through the same final-state check

Debugging or calibration may reintroduce a jumper after normal final testing. Record the intervention as a new test-state entry and require the defined return to final topology afterward. A previously valid result cannot certify a circuit whose connections have subsequently changed.

Preserve the reason for adding the temporary path and the nodes involved. Unrecorded bench jumpers are especially difficult to reconcile because they may not appear in the normal fixture documentation. The engineering handoff should make approved diagnostic connections explicit while preventing a temporary workaround from becoming an undocumented shipped revision.

Deliver the topology difference and its verification

Provide the final netlist, each temporary change, its physical location and the operation that restores the final state. Include the electrical signature that detects an unremoved connection and the visual inspection required where topology alone is insufficient. Keep module identity and test programme revision with both results.

Reopen the review when a resistor value, fixture, test method, configuration function or assembly sequence changes. A previous final check may become insensitive if the normal circuit changes. The deliverable is a traceable transition from test configuration to customer configuration, ensuring that the convenience of temporary hardware does not change the function of the delivered ceramic hybrid.
