Regenerative Current Sensing: Check Both Current Directions and Input Voltages

System boundary

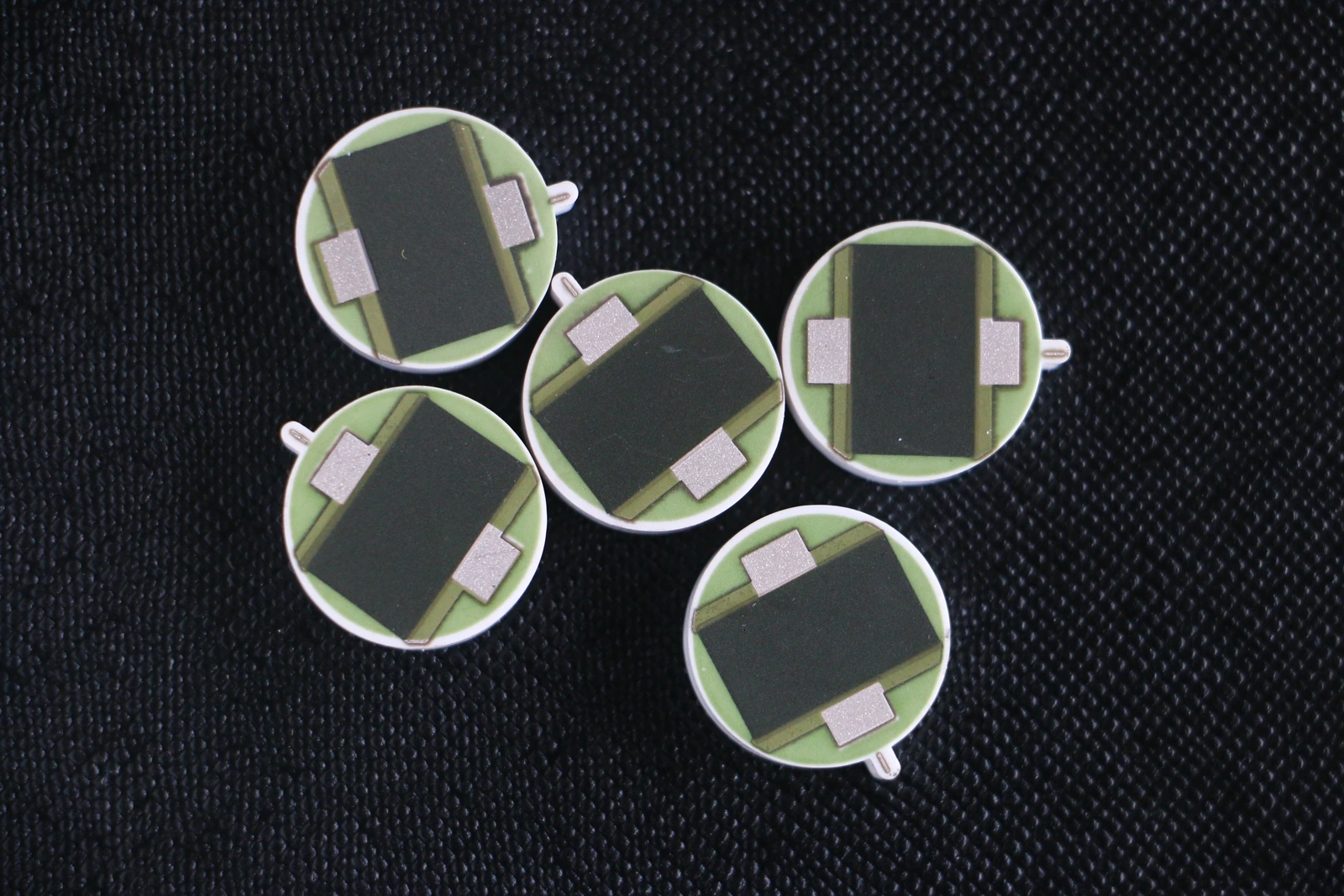

A ceramic circuit carrying or connecting a specified shunt element to an external current-sense amplifier and converter. This review defines receiver operating limits; it does not establish printed-shunt power capability or a complete motor-drive protection design.

Integration interfaces

Integration risks

Name the terminals before naming positive current

Mark the shunt terminals Splus and Sminus and define positive current as producing a higher voltage at Splus. Connect the receiver inputs consistently with that convention. The terms charging, motoring and regeneration describe system energy flow, but their sign depends on where the shunt sits. A bus-return shunt and a phase shunt cannot inherit the same polarity labels without tracing the actual circuit.

Record the sense voltage as Vplus minus Vminus and keep both voltages referenced to receiver ground. From them calculate differential voltage and their arithmetic mean. The differential component establishes the ideal current signal; the mean locates that signal inside the input operating range. A small difference between two large voltages is still a demanding input condition, even when the desired output is near its center.

Solve the reference interval that accommodates both directions

For a linear receiver with positive gain G and shunt resistance R, output is Vref plus G times I times R. Let the required positive-current magnitude be Ip and the required negative-current magnitude be In. If valid output lies between L and H, Vref must be at least L plus G R In and no greater than H minus G R Ip. These two bounds must overlap.

This interval permits an asymmetric current range without automatically placing zero at half scale. Reserve room for output offset, gain uncertainty, reference movement and converter limits before assigning the usable L and H. A mathematical solution outside the selected receiver's reference-input limits is not feasible. The actual reference connection may also have loading requirements that cannot be inferred from its pin name.

Calculate an asymmetric forward and regenerative example

Assume R is 0.020 ohm, G is 20, the required range is minus 2 A to plus 3 A, and the allocated valid output is 0.2 to 3.1 V. The gain-resistance product is 0.4 V per ampere. The allowable zero-current reference is therefore from 1.0 to 1.9 V. Choosing 1.4 V predicts 0.6 V at minus 2 A and 2.6 V at plus 3 A.

With that same assumed reference, the output interval alone corresponds to minus 3 A through plus 4.25 A. These are not approved overload or current ratings; they show only where the ideal output reaches the stated allocation. Shunt power, amplifier input limits and other errors may control sooner. A ground-referenced zero-current output would not provide the required negative-output excursion in this example.

Do not confuse a negative difference with a negative input voltage

At a common-mode voltage of 12 V, a minus 40 millivolt differential input corresponds to Vplus of 11.98 V and Vminus of 12.02 V. Both input pins remain positive even though the sensed current is negative. At common mode minus 0.30 V, the same differential signal gives minus 0.32 V and minus 0.28 V. The ideal output equation is identical, but the receiver faces a different input-voltage requirement.

Check the permitted common-mode range and any individual pin restrictions for the selected amplifier at its actual supply and temperature. Also inspect differential-input limits separately. Moving Vref changes the output allocation; it does not move these external shunt voltages. If an input trajectory exceeds the supported operating range, a plausible output number from the linear formula must be rejected rather than accepted as a corrected current reading.

Make a signed operating-envelope table

Build one row for every power-stage state relevant to measurement or protection. Record current sign and magnitude, both input voltages, receiver supply, reference voltage and intended output. Include the intervals between steady states where switching changes the common-mode voltage rapidly. A maximum-current column alone loses the trajectory that may determine whether the receiver produces a valid signal.

The following entries are review categories, not prescribed electrical test levels. Some states are supposed to produce no usable measurement, but their inputs still need to remain within the hardware's permitted exposure. Distinguish an invalid reading from a damaging condition and document the system response for each. A software invalid flag does not protect a semiconductor input from an excessive voltage or current.

Treat supply-off behavior as a separate circuit condition

A specification allowing input common-mode voltage above the receiver supply during normal operation does not by itself establish every unpowered condition. Read the selected part's absolute limits, supply-sequencing information and input-current behavior. Include external filter resistors and clamps in the exposure model. Some paths may inject current into a supply that other components expect to be off.

Do not use the normal gain equation while the amplifier or its reference is unpowered. Instead, determine which input currents can flow, whether they remain permitted and what downstream circuitry observes. If the system uses a disconnect or sequencing measure, verify its state during loss of supply as well as deliberate shutdown. Keep this analysis tied to the actual component revision instead of transferring another current-sense amplifier's behavior.

Verify polarity and recovery without hiding clipping

Begin with appropriate controlled low-energy signals that exercise both signed differential directions at representative common-mode voltages. Compare raw output voltage with the expected transfer before applying software scaling. A clipped lower output can otherwise be interpreted as a stable negative-current value by a conversion routine that never checks whether the analog channel remains within range.

Inspect zero-current crossings separately from large-current endpoints. Receiver offset and noise can dominate near zero even when endpoint gain is satisfactory. Then evaluate the relevant switching and regeneration transitions with suitable differential measurement equipment and an approved test setup. Preserve the time record around each event; averaging a transient into one apparently reasonable current value can conceal an invalid acquisition interval.

Provide a signed sensing envelope with the ceramic drawing

Send the shunt resistance and sense coordinates, forward and reverse current requirements, receiver gain and allowed output range. Attach the reference interval calculation and the input-node trajectories. Identify which conditions are measurement states and which are exposure-only states. This gives the ceramic circuit review a defined electrical boundary without implying that a passive substrate specification establishes complete regenerative-drive performance.

Revisit the envelope after changes to bus voltage, receiver ground, shunt location, gain or reference architecture. A change that leaves the nominal forward reading unchanged can still remove negative-current headroom or alter common-mode exposure. Maintaining the signed table with the schematic makes those interactions visible before a correctly manufactured current-sense interface is installed in a circuit that asks it to operate outside its range.
